DESCRIPTION
Vortex trichome separator is a device or tool designed to separate trichomes from plant material, typically cannabis or hemp. Trichomes are the tiny, resinous structures on the surface of the plant that contain cannabinoids, terpenes, and other compounds responsible for the plant’s therapeutic and psychoactive effects.
In the context of cannabis or hemp processing, trichome separation is often a step in the extraction process to isolate the valuable compounds for various purposes, such as making concentrates, oils, or other cannabis products. Trichome separators can use different methods, including mechanical agitation or sieving, to separate trichomes from the plant material, resulting in a more concentrated product with a higher potency of cannabinoids.
Working principle: When working, a layer of filter screen will be placed inside the shell, covered with ice cubes and the plants to be extracted, and then another layer of filter screen will be placed. The motor drives the transmission assembly, thereby driving the rotating body, and a vortex is formed inside the shell, thereby forming a strong stirring force. In the absence of plant particle contamination, the trichomes are quickly separated from the plants and remain in the water as suspended insoluble solids. Once the slurry mixture of water and trichomes is separated from the remaining biomass, it can be easily filtered, separated, collected and dried to obtain high-quality hash.
FEATURES
1. Control touch screen with PLC program and temperature measuring device, the real-time temperature can be displayed on the display.

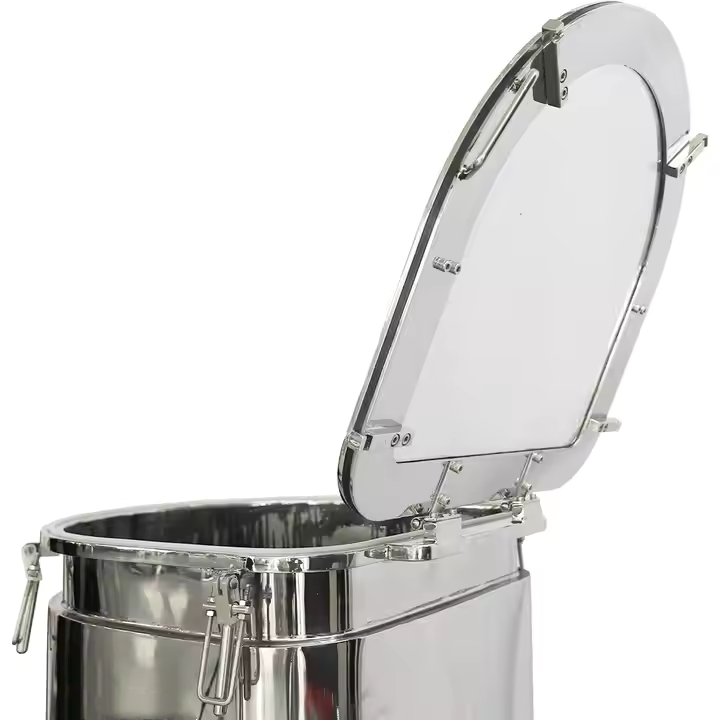

2. Fully transparent explosion-proof sight glass, the material handling process can be clearly seen during the extraction process.

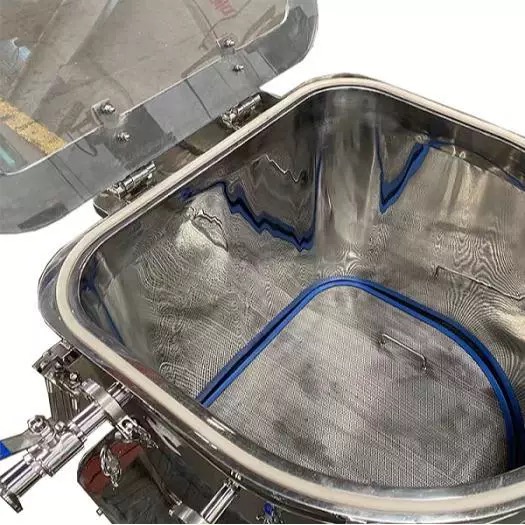

3. S316 stainless steel centrifugal perforated drum, the overall appearance is beautiful, and the material is dried more evenly
4. Alarm lamp device, higher safety. (fault warning, overload warning, etc.)
5. The liquid inlet, liquid outlet, pressure relief valve, coolant inlet and outlet, pressure gauge, etc. can all be quickly installed and disassembled.
SPECIFICATIONS
| Model | Working Temperature | Speed | Capacity | Jacketed Capacity | Motor power | Packed size | Packed weight |
| LTS-50 | -20℃-100℃ | 200-800r/min | 190L | 18L | 1.1kw | 850*850*1400mm | 350kg |
| LTS-75 | -20℃-100℃ | 200-800r/min | 285L | 28L | 1.1kw | 950*950*1400mm | 400kg |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.

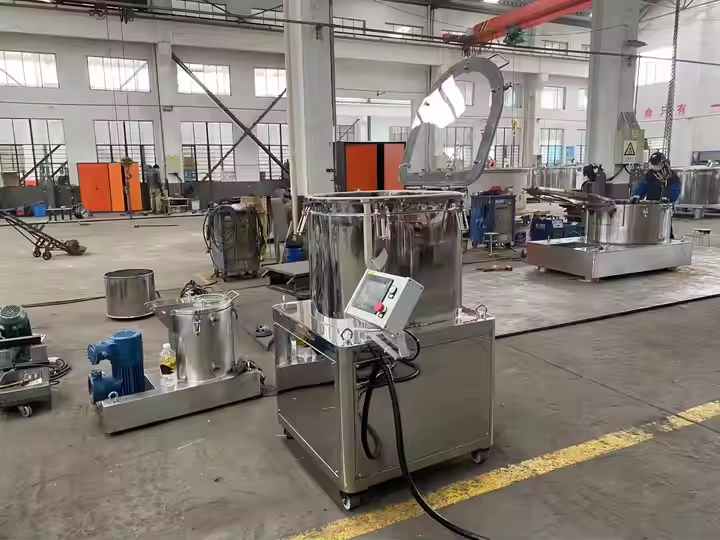

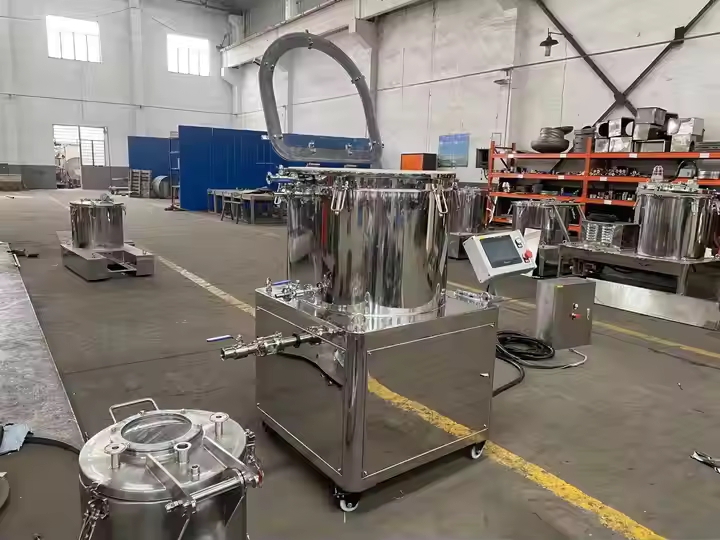

OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
