DESCRIPTION

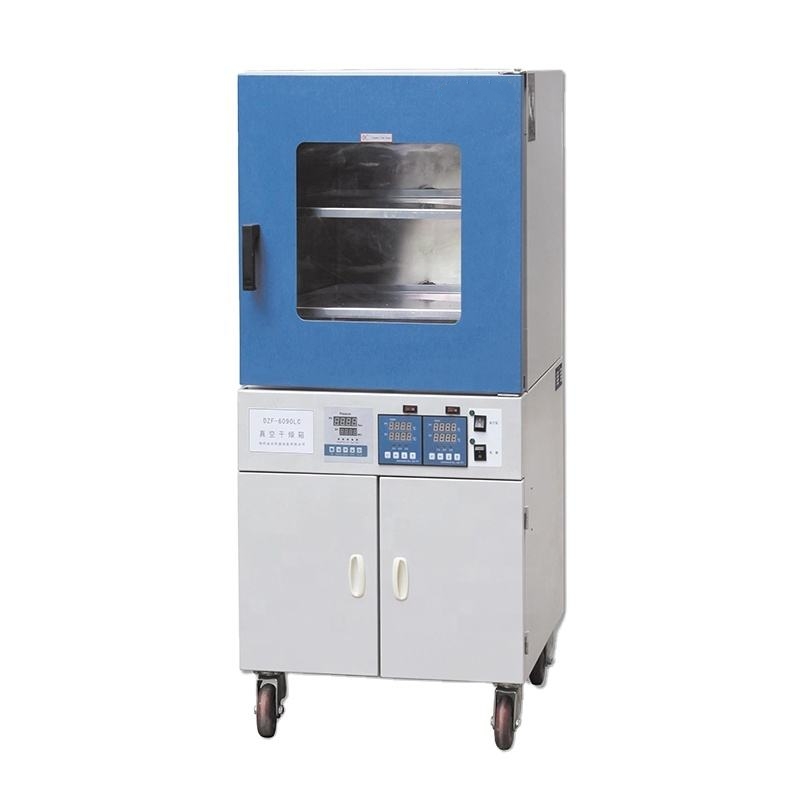

Designed for drying heat-sensitive, easily decomposable and easily oxidizable materials, the vacuum oven can flush inert gases into the interior, especially for complex parts. Widely used in the pharmaceutical, electronics and chemical industries.
FEATURES
1. Digital micro-computer temperature controller with timing function, accurate and reliable temperature control.
2. The cuboid studio is the largest effective volume.
3. Tempered, bullet-proof double-glazed doors to observe objects in the workroom at a glance.
4. The door can be closed tightly and can be adjusted. The integrally formed silicone rubber seals the ring to ensure high vacuum inside the box.
5. The studio is made of stainless steel or brushed to ensure durability.
6. The “D” series is an intelligent ten-segment programmable LCD controller.
7. With the “LC” series, the vacuum can be displayed and controlled.
SPECIFICATIONS
| Model | ODZF-6050LC
ODZF-6053LC ODZF-6055LC |
ODZF-6090
ODZF-6090D ODZF-6090LC |
ODZF-6123A
ODZF-6123LC ODZF-6126A ODZF-6126LC |
ODZF-6210
ODZF-6210D ODZF-6210LC ODZF-6216A ODZF-6216LC |
ODZF-6500
ODZF-6500D ODZF-6500LC ODZF-6506A ODZF-6506LC |
ODZF-6930
ODZF-6930LC ODZF-6936 ODZF-6936LC |
| Voltage | 220V 50HZ | 380V 50HZ | ||||
| Input power | 1800W | 1400W | 2000W | 2200W | 3600W | 5600W |
| Temperature control range | +10℃-250℃ | +10℃-200℃ | ||||
| Temperature resolution | 0.1℃ | |||||
| Constant temperature fluctuation | ±0.1℃ | |||||
| Reach vacuum | ＜133pa | |||||
| Working temperature | 5℃-40℃ | |||||
| Liner size (mm) | 415*370*345 | 450*450*450 | 500*500*500 | 560*600*640 | 630*810*845 | 750*1060*1050 |
| Dimensions (mm) | 600*570*1200 | 615*620*1300 | 665*670*1400 | 720*805*1600 | 790*1030*1760 | 1400*1390*2005 |
| Shelf | ODZF-6050LC Two
ODZF-6053LC Three ODZF-6055LC Five |
ODZF-6090 Two
ODZF-6090D Two ODZF-6090LC Two |
ODZF-6123A Three
ODZF-6123LC Three ODZF-6126A Six ODZF-6126LC Six |
ODZF-6210 Three
ODZF-6210D Three ODZF-6210LC Three ODZF-6216A Six ODZF-6506LC Six |
ODZF-6500 Three ODZF-6500D Three
ODZF-6500LC Three ODZF-6506A Six ODZF-6506LC Six |
ODZF-6930 Five
ODZF-6930LC Five ODZF-6936 Six ODZF-6936LC Six |
| Heating method | Surrounded by | Shelf | Shelf / perimeter | Shelf / perimeter | Shelf / perimeter | Shelf / perimeter |
| Studio material | Stainless steel | |||||
| Timing range | 1-9999 minutes | |||||
APPLICATION
Research and Development-
Biotechnology Pharmaceutical
-
Food and Beverage Processing
-
Industrial Applications
-
Environmental Testing
-
Textile and Apparel Industry
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
