DESCRIPTION

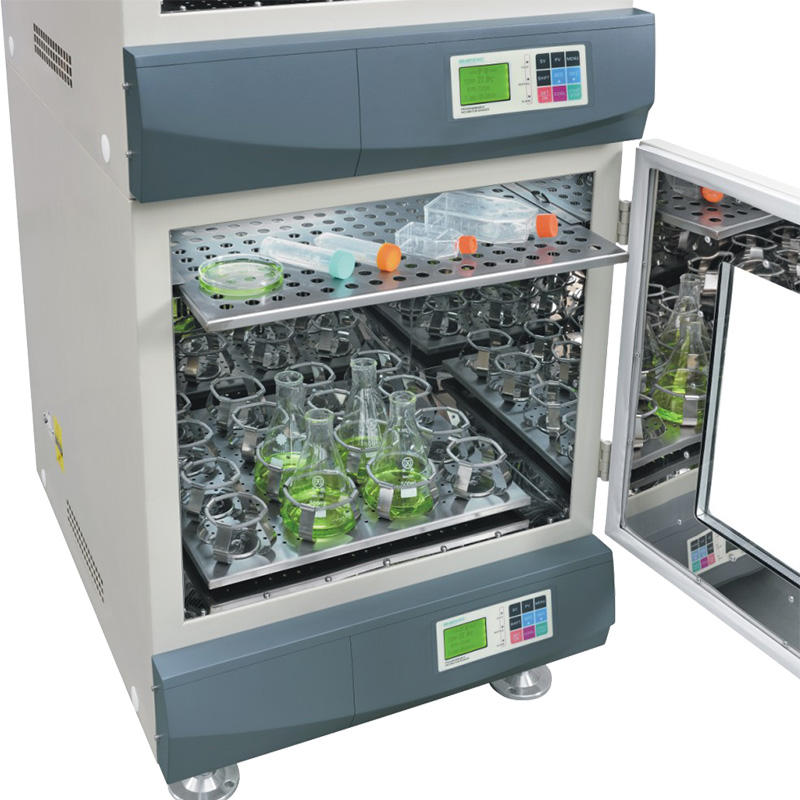

The constant temperature shaker has a stainless-steel universal clamp, digital display temperature control, stepless speed regulation and good thermal cycle function. It is a multi-purpose biochemical device, which is a plant, biology, microbiology, genetics, virus, environmental protection, medicine and other scientific research. education and production departments for precision culture preparation of indispensable laboratory equipment.
FEATURES
1. The patented technology of the original single-axis drive mechanism in China is quiet and durable.
2. The sound and light alarm environment scanning processing chip has more powerful data processing functions.
3. Eight sections of self-programming, each program can set different speed and time to realize the programming operation of speed and appointment time.
4. Independent overspeed sound/light alarm, independent leakage, over-current protection does not affect other equipment.
5. The oscillation frequency can be extended to a wide range of 30-300 rpm.
6. Unique high-precision frequency control system with frequency accuracy of ±1rpm.
7. A safe, fluorine-free refrigeration system that meets international environmental requirements.
8. Run the parameter memory function to avoid cumbersome operations.
9. The line that controls the acceleration ensures that the shaker starts slowly and accelerates smoothly to ensure the safety of the experimental samples.
10. Over-temperature sound and light alarm function, the motor overheats, the temperature is out of control, the abnormal over-temperature instrument automatically cuts off the respective power supply.
11. The unique slow start line prevents sudden starts and splashes, ensuring safe reagents.
12. High quality variable frequency motor, wide speed regulation, constant torque, no carbon brush, maintenance free.
13. With power-off recovery function, after the external power supply suddenly loses power and calls again, the device can automatically resume operation according to the original setting program.
14. The electrostatic color spray box is beautiful and rustproof.
15. Stainless steel mirror cavity, high-quality stainless-steel bottle holder.
16. High quality and high strength cold rolled steel, medium plate, channel steel, angle steel, cast iron.
17. Large screen tempered glass window.
18.Double oscillation mode, cyclotron oscillation / reciprocating oscillation switchable.
19.The shaker can be placed on the bench or under the stage, and the two shakers can be stacked and landed.
20. The height-adjustable partition allows for easy storage of more samples and can be used for stationary culture.
21. The front opening design makes the shaker more flexible than turning the door shaker up.
22. The large internal space allows for a maximum capacity of 5L culture bottles.
23. Available in both temperature and low temperature ranges.
24. The transparent viewing window and built-in lighting design make it easy to view samples at any time.
25. Simultaneous observation of temperature, oscillation speed, time.
Application range
Cell culture
Solubility test
Extraction experiment
Diagnostic test
Mixing samples
Bacterial suspension preparation
Dyeing and bleaching
Elution process
Hybrid experiment
SPECIFICATIONS
| Model | OJS-2013 | OJS-2013R | OJS-2013-2(Double layer) | OJS-2013-2R (Double layer) | ||
| Control method | P.I.D(Microcomputer environment scanning micro processing chip) | |||||
| Display method | LCD (Large screen LCD dual display) | |||||
| Cyclic mode | Forced convection | |||||
| Oscillation mode | Reciprocating/rotating switching | Rotary oscillation | ||||
| Drive mode | Single-axis balancing device (Chinese patent) | |||||
| Temperature range | +5℃-60℃ | 4℃-60℃ | +5℃-60℃ | 4℃-60℃ | ||
| Temperature accuracy | ±0.1℃ | |||||
| Temperature uniformity | ±1℃ | |||||
| Security function | Upper and lower temperature deviation alarm; upper- and lower-line speed deviation alarm, independent over-temperature protector; open door stop protection; leakage protection, chiller overload protection. | |||||
| Accessory function | Speed storage, call recovery, parameter memory, temperature speed correction, clock display, room temperature / measured temperature double display. | |||||
| Programming function | Repeat, step, eight-segment curve programming settings. | |||||
| Rotation frequency | 50-300rpm | |||||
| Rotation accuracy | ±1rpm | |||||
| Pendulum amplitude | φ25mm | |||||
| The refrigerant | – | CFC-Free (134A) fluorine-free safety refrigeration system | – | CFC-Free (134A) fluorine-free safety refrigeration system | ||
| Cooler | – | 200W | 200W | |||
| Heater | 800W | |||||
| Timing range | 0-999.59h/ Sustainable | |||||
| Rocker size | 456*450 (mm) bottle splint. 450*400 (mm) culture shelf | |||||
| Maximum configuration | 5000ml*4 or 1000ml*9 or 500ml*16 or 250ml*20 | 500ml*32 or 250ml*40 or 100ml*60 or 50ml*60 | ||||
| Gross weight | 120kg/set | 150kg/set | 120kg/set | 150kg/set | ||
| Inner cavity size | 560*500*555H(mm) | |||||
| Dimensions | 650*820*810H(Single)/ Without foot 90mm | |||||
| 650*820*1620H (Two stacks) Without foot 90mm | ||||||
| Annex | Lighting, ultraviolet light | |||||
| Power | 600w | 830w | 600w | 830w | ||
| Motor | 60W inverter motor | |||||
| Power supply | AC 200-240V 50-60HZ | |||||
| Inner cavity material | All 304 high quality imported stainless steel mirror panel | |||||
| Box material | High quality and high strength channel steel, angle steel, cold rolled steel plate | |||||
