DESCRIPTION
The constant temperature shaker has a stainless-steel universal clamp, digital display temperature control, stepless speed regulation and good thermal cycle function. It is a multi-purpose biochemical device, which is a plant, biology, microbiology, genetics, virus, environmental protection, medicine and other scientific research. education and production departments for precision culture preparation of indispensable laboratory equipment.
FEATURES
1. The original technology of the original single-axis drive balance device 1(patent type: a single-axis drive swing balance mechanism; patent number: ZL 2015 2 0624431.5), to ensure minimum energy consumption and noise.
2. Vertical double-layer structure, small footprint, large bottle capacity and double performance.
3. The oscillation frequency can be extended over a wide range to 50-300 rpm.
4. Intelligent sound and light alarm environment scanning microprocessor controller.
5. The LCD large-screen backlit LCD display double displays each set parameter and measured parameter.
6. Model 2102C/2102/2112B/F is a safe, fluorine-free refrigeration system that meets international environmental requirements.
7. Run the parameter memory function to avoid cumbersome operations.
8. AC induction long life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance free.
9. Over-temperature sound and light alarm function, motor overheating, temperature out of control, abnormal over-temperature instrument automatically cut off their respective power supply.
10. With power-off recovery function, after the external power supply suddenly loses power and calls again, the device can automatically resume operation according to the original setting program.
11. The line that controls the acceleration ensures that the shaker is slowly started and smoothly accelerated to ensure the safety of the experimental samples.
12. The streamlined luxury machine model with rich aesthetic design concept, electrostatic spray box, large screen tempered glass window.
13. Timing setting up to 500 hours, and sound and light alarm
14. Adapt to the increasing trend of sample processing in modern laboratories and the mass production of modern bioengineering.
15. The front door opening design allows the shaker to be more flexible than turning the door shaker up.
16. Available in both temperature and low temperature ranges.
17. Efficient drive Makeda and refrigeration control, ultra-low energy consumption.
18. The transparent viewing window and built-in lighting design make it easy to view samples at any time.
19. Simultaneous observation of temperature, oscillation speed, time
Application range
Cell culture
Solubility test
Extraction experiment
Diagnostic test
Mixing samples
Bacterial suspension preparation
Dyeing and bleaching
Elution process
Hybrid experiment
Security
Leakage current and overcurrent protection systems ensure operator safety.
Over-temperature, over-speed sound and light alarm emergency control system to ensure sample safety
SPECIFICATIONS
| Model | OH-1102 | OH-1112B | OH-1112D | OH-1112F | |
| Control method | P.I.D(Microcomputer environment scanning micro processing chip) | ||||
| Display method | LCD (Large screen LCD dual display) | ||||
| Cyclic mode | Forced convection | ||||
| Oscillation mode | Rotary oscillation | Reciprocating | |||
| Drive mode | Single-axis balancing device (Chinese patent) | ||||
| Environmental requirements | Temperature 25 ° C, humidity 20% -90% | ||||
| Opening method | Double door | ||||
| Temperature control range | Room temperature +5℃-60℃ | ||||
| Temperature accuracy | ±0.1℃ | ||||
| Temperature uniformity | ±1℃ | ||||
| Performance | Frequency Range | 30-300rpm | |||
| Rotation accuracy | ±1rpm | ||||
| Pendulum amplitude | Φ25mm | Φ35mm | Φ50mm | Φ35mm | |
| security function | Upper and lower temperature deviation alarm; upper- and lower-line speed deviation alarm, independent over-temperature protector; open door stop protection; leakage protection, chiller overload protection. | ||||
| Accessory function | Speed storage, call recovery, parameter memory, temperature speed correction, clock display, room temperature / measured temperature double display. | ||||
| Programming function | Repeat, step, eight-segment curve programming settings. | ||||
| Heater | 500W | 800W | |||
| Timing range | 0-999.59h/ Sustainable | ||||
| Standard sizes | Rocker size | 734*464(mm) | 920*520mm | ||
| Number of rocking plates | Two | ||||
| Gross weight | 200kg | 325kg | 425kg | 325kg | |
| Inner cavity size | 950*740*1400H (mm) | 1200*850*1550mm | |||
| Dimensions | 850*520*760H(mm) | 1100*700*830mm | |||
| power | 930W | 1100W | |||
| power supply | AC 200-240V 50-60HZ | ||||
| Material | Motor | 250W inverter motor | |||
| Inner cavity material | High quality imported stainless steel mirror panel | ||||
| box Materia | High quality and high strength castings, channel steel, angle steel, cold rolled steel plate | ||||
The OH-1102C/2102C is a single-door, two-layer, small-capacity type.

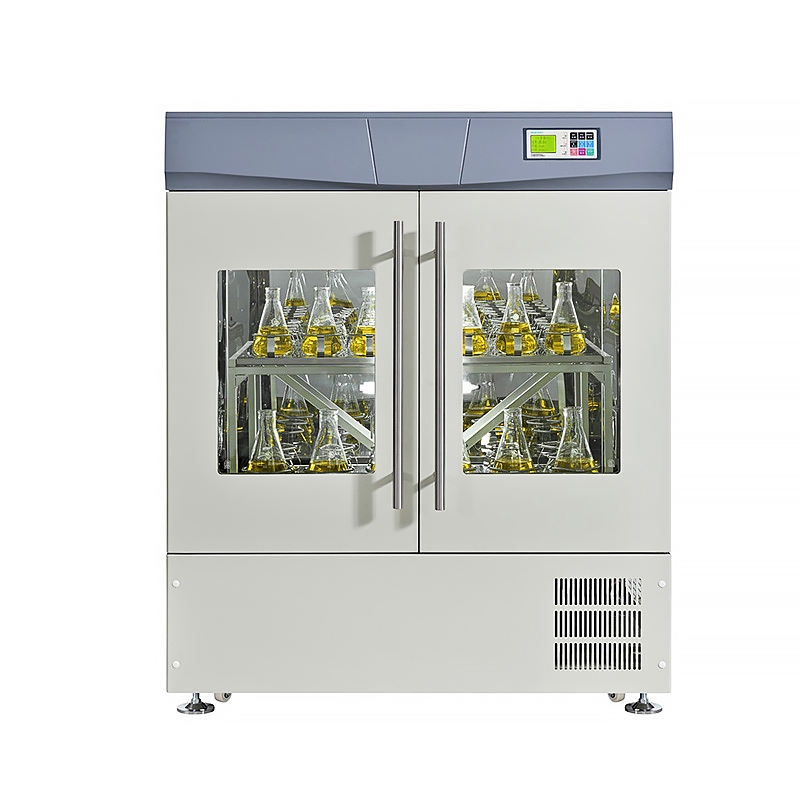

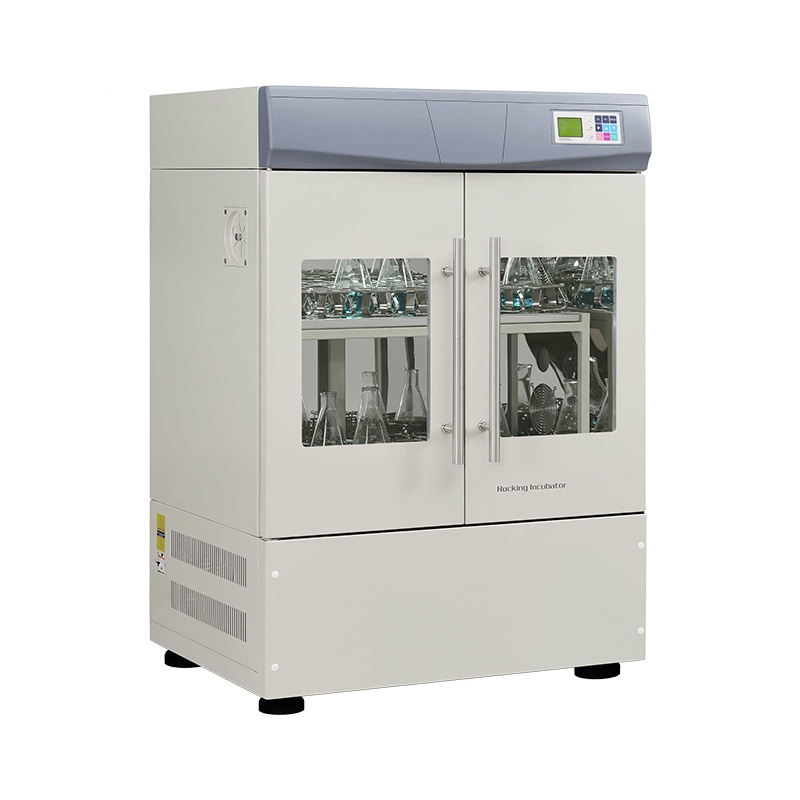

The OH-1102/2102 is a double-door, double-layer, high-capacity type that is especially suitable for pilot production.
OH-1112B/2112B is a double-door double-layer extra-large capacity type, which is especially suitable for large-scale constant temperature oscillation operation in the manufacturing industry.
The OH-1112D/2112D is a double door double layer with an amplitude of 50mm.
The OH-1112F/2112F is a double-door double-deck reciprocating extra-large capacity type.
