DESCRIPTION

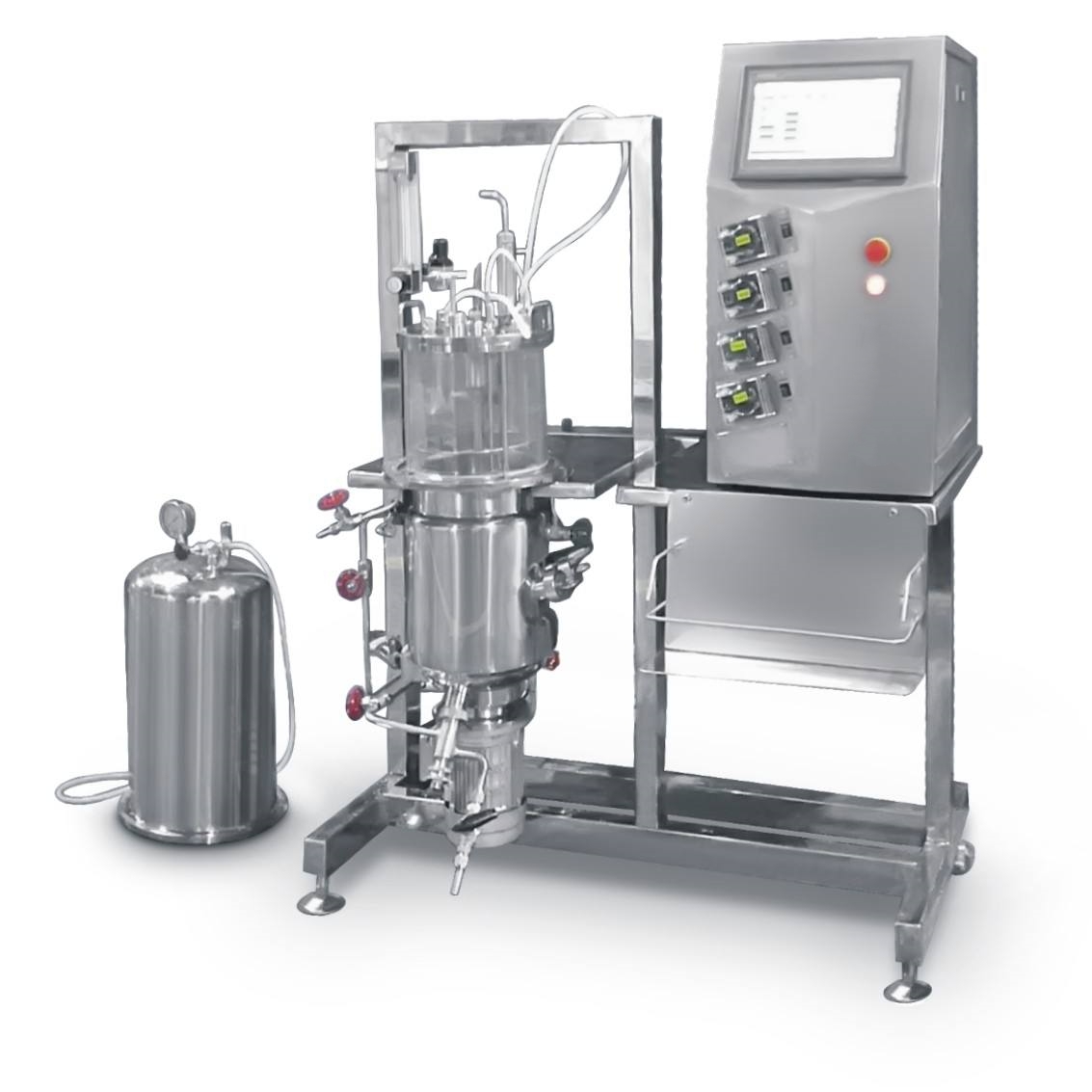

The OQT-XGJAV/XGCAV multifunctional glass biological fermentation system uses a color touch screen to display all measured values and control parameters, which greatly facilitates the user’s operation. Four peristaltic pumps are installed on the front of the control box to add acid, alkali, defoamer and culture medium to the fermenter. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated into the fermentation system. It adopts the direct coupling mechanical stirring method driven by the upper part or the magnetic indirect coupling mechanical stirring method driven by the lower part. The structure is simple and the operation is stable.
Application areas:
• Discover secondary metabolites or new enzyme activities in heterogeneous mixed culture products;
• High-throughput screening research, mutant strain distribution research and construction of E. coli library or yeast library;
• Metabolic flux research and high-throughput screening of highly active mutant strains;
• Comparative studies, such as: isolation and screening of clinical strains;
• Optimization of growth medium for cell lines or high-yield strains;
FEATURES
1. The tank is a combination of high temperature, acid and alkali resistant, corrosion resistant silicon borosilicate glass cylinder and 316L stainless steel
2. rotameter display, adjust the flow of gas according to process requirements
3. Fermentation pH, dissolved oxygen and temperature are controlled by intelligent PID
4. Perfect feeding system (acid, alkali, foaming enemy, culture agent), can feed regularly and quantitatively;
5. Electrode detection, peristaltic pump replenishing defoamer, automatic foam control
SPECIFICATIONS
| Name | In-situ sterilization magnetically stirred glass fermentation tank (vertical) | In-situ sterilization mechanically stirred glass fermentation tank (vertical) |
| Model | OQT-XGCAV | OQT-XGJAV |
| Volume | 3L/5L/7L/10L/15L | |
| Material | 316 stainless steel temperature control jacketed + high boron glass | |
| Stirring method | Magnetic coupling at the bottom drive mechanical stirring at the top | Shaft coupling drive top mechanical agitation |
| Sterilization method | In situ sterilization | |
| Basic configuration | Temperature, speed, PH, dissolved oxygen, replenishment, defoaming, air flow (manual), tank pressure (manual) | |
| Control System | LBR-B, S biological process controller | |
| Power | 220V/2KW | |
| Shape space | 900*550*1100mm | |
| Net weight | 150kg | |
| Scalable configuration | Liquid level control, feeding and weighing system, two-way feeding, online detection of methanol and ethanol content, exhaust O2 and CO2 detection, etc. | |
OPTIONAL
1. Weighing with replenishing balance
2. Tank weighing
3. Air flow automatic control
4. Tank pressure detection
5. Bypass pure oxygen
6. Redox potential online detection
7. Methyl (ethyl) alcohol content online detection and control
8. Tail gas O2, CO2 content online detection
APPLICATION
Microbial Fermentation-
Biopharmaceuticals
-
Tissue Engineering
-
Algal Biotechnology
-
Environmental Applications
-
Agricultural Biotechnology
-
Biofuels and Renewable Energy
-
Food and Beverage Industry
