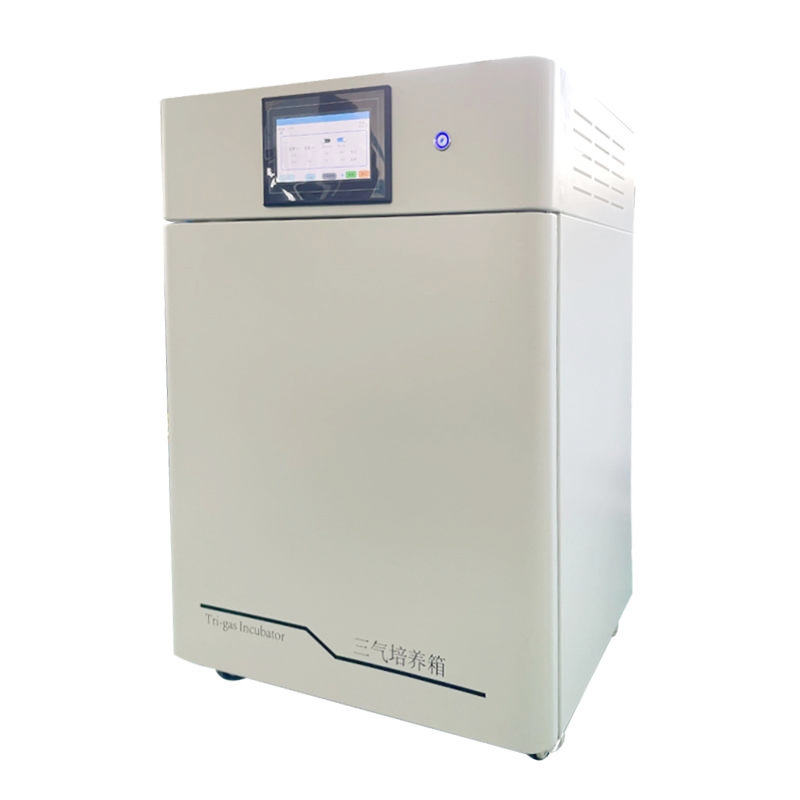

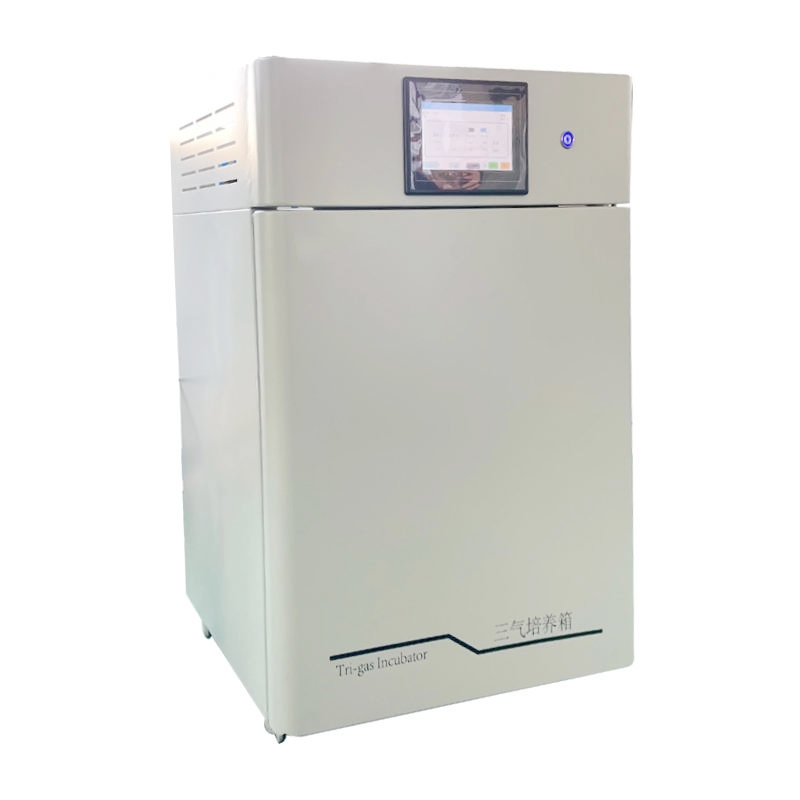

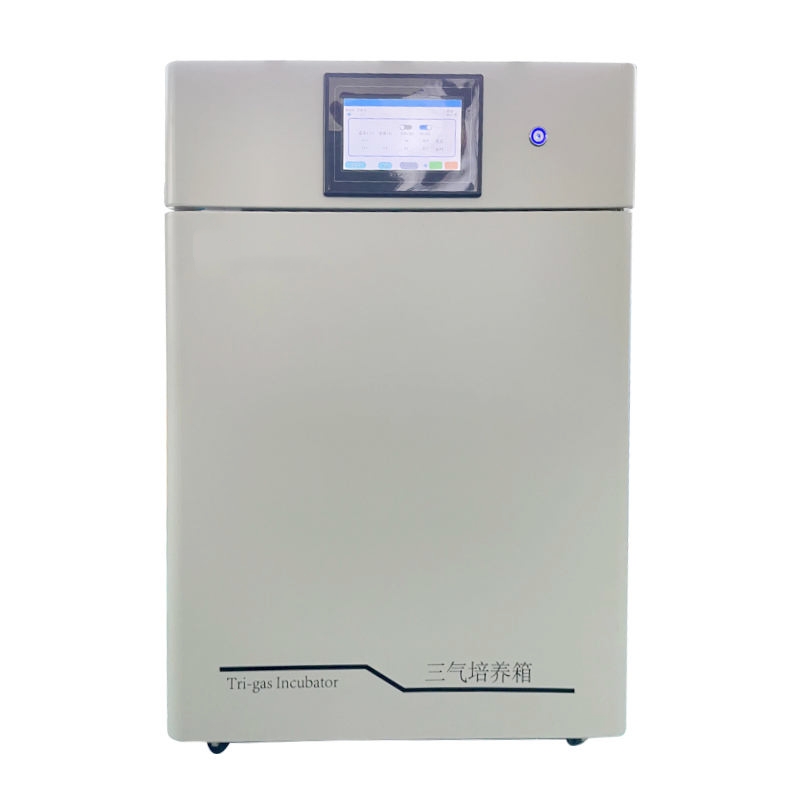

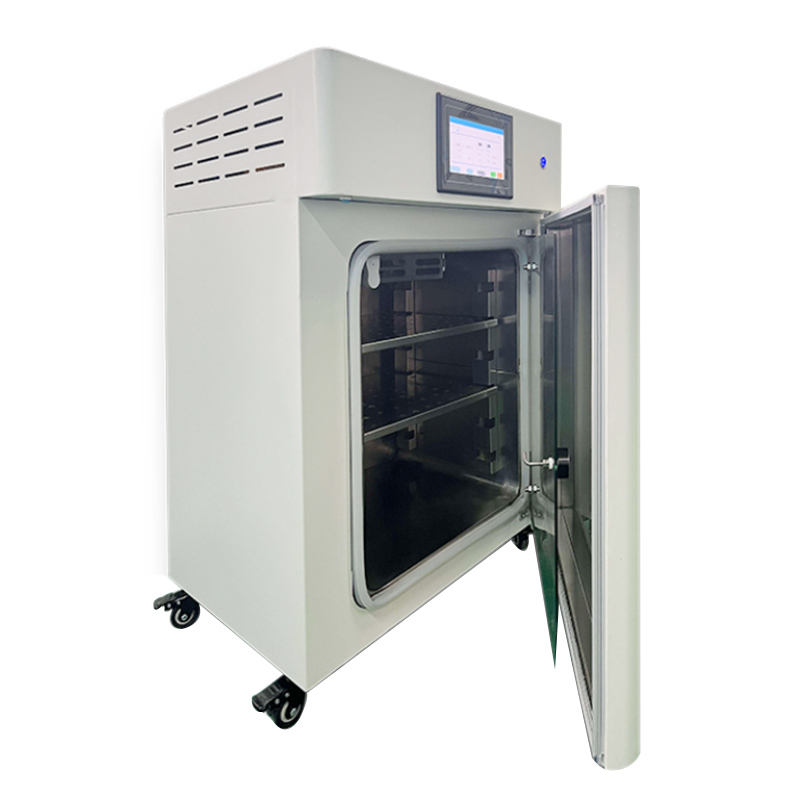

Tri-gas Incubator CO2 O2 N2 Incubator

OSQ Series tri-gas incubator(CO2 O2 N2 incubator) can accurately control the ratio of three gases (oxygen, nitrogen and carbon dioxide), simulate the growth environment of microorganisms, tissues, cells, etc., and provide oxygen and carbon dioxide concentrations close to physiological conditions, which helps to improve the quality and efficiency of cell culture. It is widely used in the reproduction and cultivation of cells, tissue culture and some special microorganisms.

Compliance: CE Certified
Customized: OEM/ODM
Package: Plywood case package

Products

DESCRIPTION

The tri-gas incubator is mainly used in research institutions that have high requirements for gas control and need to accurately control the gas ratio to simulate the in vivo environment, such as cell dynamics research, collection of mammalian cell secretions, research on the carcinogenic or toxicological effects of various physical and chemical factors, research and production of antigens, culture of hybridoma cells to produce antibodies, in vitro fertilization (IVF), stem cells, tissue engineering, drug screening and other fields. The tri-gas incubator usually has the ability to quickly restore temperature and gas ratio, which is essential for maintaining the stability of the culture environment.

FEATURES

  1. IR infrared sensor is used for CO2 gas concentration detection to calculate CO2 gas concentration. When working, the sensor has no mechanical wear, fast response speed, high reliability, good stability and long service life.
  2. Imported electrochemical oxygen sensor is used for CO2 gas concentration detection, which has the characteristics of good linearity, accurate detection, long service life and can fully meet user needs.
  3. All temperature detection uses imported PT100 resistance temperature sensor, which has stable performance and good linearity. Independent jacket temperature and door temperature control, the jacket temperature of five sides and the door temperature of one side are used to synthesize the studio temperature, with high accuracy.
  4. When the O2 gas concentration is less than 19.8%, high-purity N2 gas and CO2 gas are used to ensure the accuracy of CO2 gas concentration and O2 concentration.
  5. When the O2 gas concentration is greater than 23%, high-purity O2 gas and CO2 gas are used to ensure the accuracy of CO2 gas concentration and O2 concentration.
  6. The chamber adopts breeze circulation mode to make the air circulation close to the natural air convection, shorten the recovery time of temperature, humidity, O2 concentration and CO2 concentration, and ensure the balance of temperature, humidity, O2 concentration and CO2 concentration.
  7. When the chamber door is opened, the solenoid valve automatically closes and the breeze circulation stops automatically, reducing gas loss and saving gas source, and reducing the pollution caused by the outside air entering the chamber.
  8. The separate door temperature control system makes the constant temperature control in the chamber rarely affected by the change of ambient temperature.
  9. The temperature and gas concentration are both digitally displayed, which is intuitive, clear and accurate.
  10. It has multiple protection functions. When the displayed temperature exceeds the preset temperature, all heating power can be automatically cut off. It has an independent over-temperature relay protection function to ensure that the temperature does not exceed the preset value. 11. The water pan is naturally evaporated and humidified, and the humidity reaches 95%. It is made of 304 stainless steel, arc, and easy to clean.
  11. Sterilization system: UV lamp sterilization, flexible and controllable, short operation time.

SPECIFICATIONS

ModelOSQ-50OSQ-80OSQ-100OSQ-160OSQ-200
Display5.0 inch touch screen
Nominal volume50L80L100L160L200L
Temperature control rangeRt+3℃-60 ℃
Temperature fluctuation±0.3℃(@37℃)
Temperature uniformity±0.3℃(@37℃)
CO2 concentration control range (VOL%)0-20
CO2 concentration control error (%)±0.1
O2 Concentration control range (VOL%)1-95
O2 Concentration control error (%)±0.3
Ambient temperature ( ℃   )5-30, recommended 25±2
Timing range0-999h or continuous
Supply voltageAC220±22V 50±1HZ
Number of partitions2 pieces
CO2 control methodIR Infrared Sensor
O2 control methodElectrochemical sensors
Relative Temperature≥90% (RH%), this parameter is not controlled
Sterilization methodUV sterilization
Power400W400W450W550W650W
Studio size (L*W*H)340*340*450mm400*400*500 mm410*410*600 mm500*500*650 mm500*530*750 mm
Overall size(L*W*H)480*450*740 mm540*520*790 mm550*530*890 mm640*620*940 mm640*650*1040 mm
