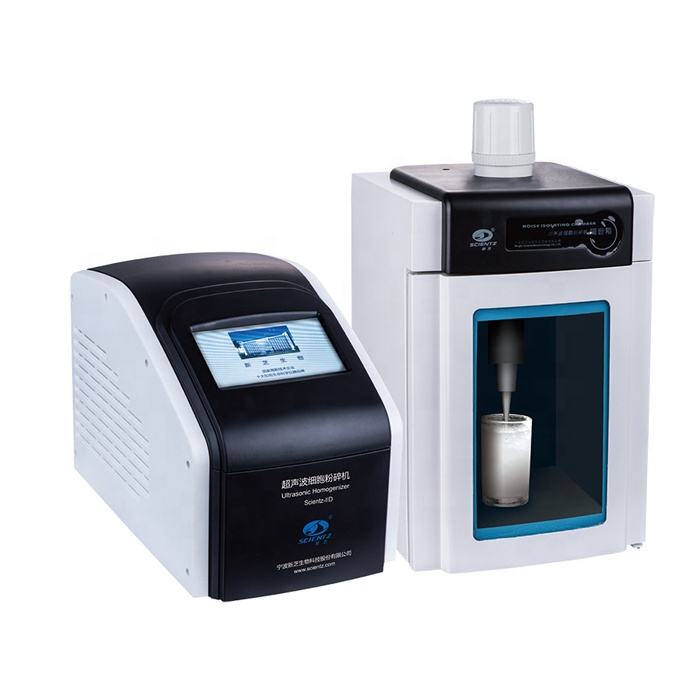

DESCRIPTION
Ultrasonic cell crusher can be used for crushing various cells, bacteria, viruses, animal and plant tissues, and can also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, preparation of nano materials, dispersion and acceleration of chemical reactions. Widely used in biology, medicine, agronomy, chemistry, materials science, pharmacy and other fields of teaching, scientific research and production.
FEATURES
1. PWM controlled switching power supply with continuously adjustable power
2. The instrument uses a 7-inch TFT touch screen display with high resolution.
3. Central microcomputer centralized control
4. Set the ultrasonic time and power arbitrarily
5.Sample temperature detection display, power display
Microcomputer Tracking and Automatic Fault Alarm
6. The cubicle device is made of sheet metal, plastic spray and ABS material, and is designed in a mold with door lock function
SPECIFICATIONS
| Model | UCC-IID | UCC92-IIN | LUCC98-IIIDN | UCC98-IIIN | UCC92-IIDN |
| Output power | 1000W（1%-99%） | 650W（1%-99%） | 1200W（20%-99%） | 1200W（20%-99%） | 900W（1%-99%） |
| Max volume | 0.5-600ml | 0.5-500ml | 50-1000ml | 50-1000ml | 0.5-600ml |
| Timer | 0～999min | / | |||
| Display Mode | LCD Display | ||||
| Show content | Time, power, temperature | / | |||
| An optional horn is available | 2/3/10/15 mm | 2/3/10/12/15mm | 15/25mm | 2/3/10/12/15mm | |
| Random horn | 6 mm | 20mm | 6mm | ||
| Alarm | Over temperature, overload, time | overload, time | Temperature, overload, time | ||
| Working frequency | 20-25KHz | 19.5-20.5KHz | 20-25KHz | ||
| Duty ratio | 0.1-99.9% | 1-99% | 0.1-99% | 1-99% | 0.1-99.9% |
| Working mode | Gaps/Continuity | / | |||
| Data storage | 20 groups | / | |||
| Host+ Transducer Weight | / | 14Kg | 14.5Kg | 14.5Kg | 14.2Kg |
| Power supply | / | 220/110V 50Hz/60Hz | / | / | 220/110V 50Hz/60Hz |
| Temperature alarm | 0℃-99℃ | NO | YES | NO | 0-99℃ |
| Power chassis size | 430*255*300mm | 430*250*300mm | 430*255*300mm | ||
| Speaker size | 345*340*570mm | ||||
APPLICATION
Microbiology and Cell Culture- Biochemical and Enzyme Research
- Chemical and Pharmaceutical Research
- Molecular Biology and Genetics
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

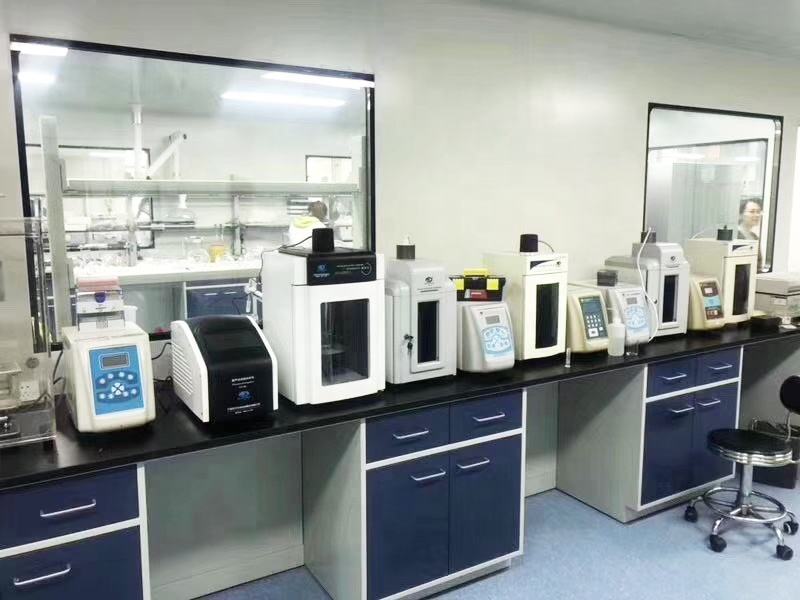

CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
