DESCRIPTION

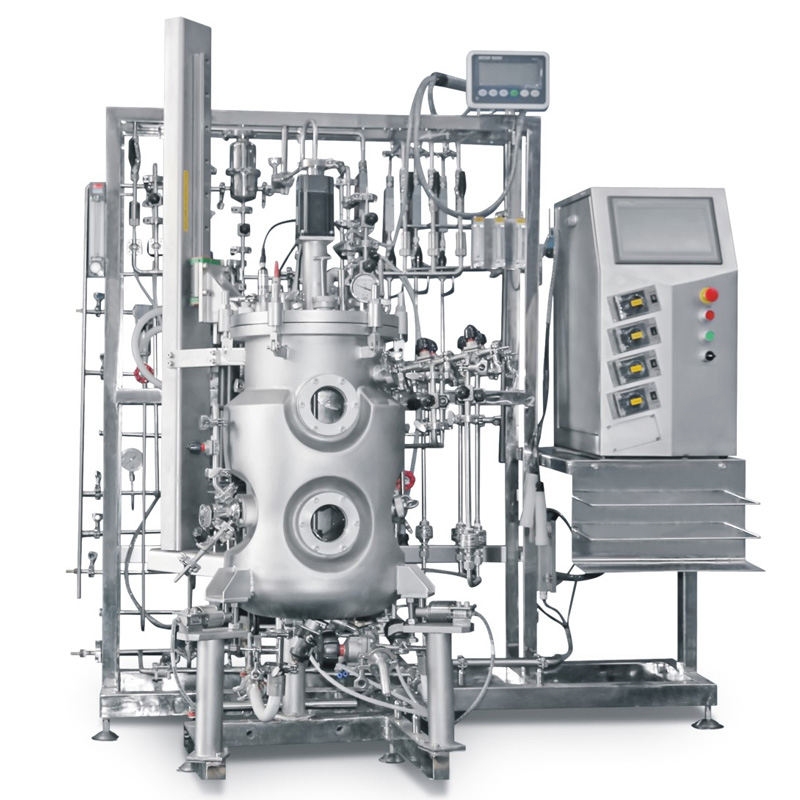

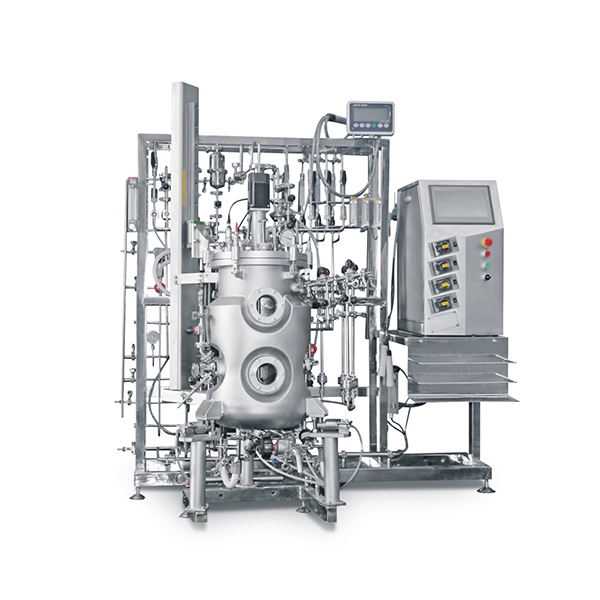

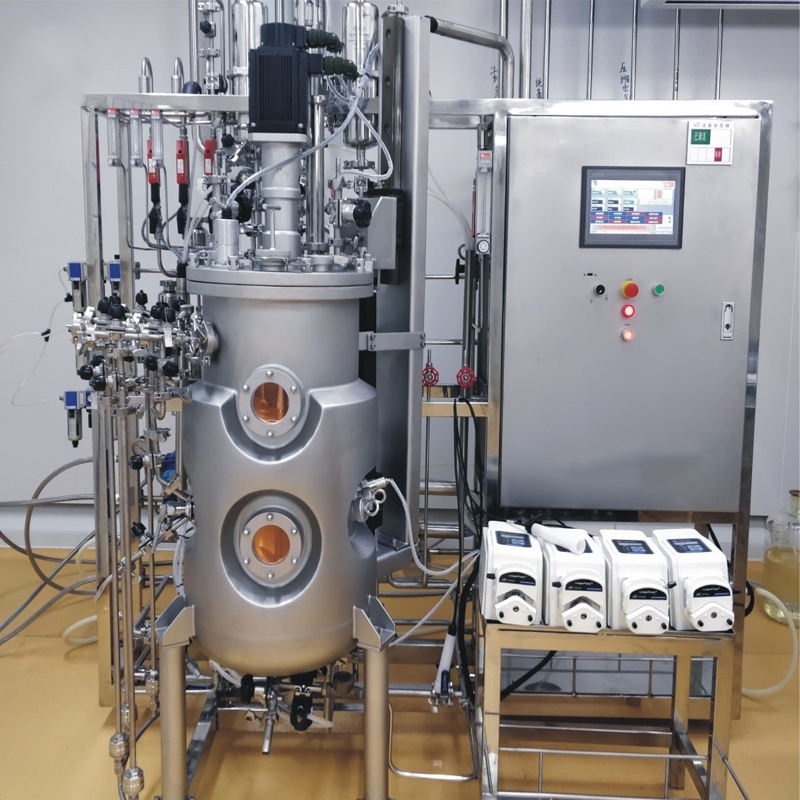

Stainless steel shaft coupling drive bioreactors fermenters using a strong magnetic upper magnetic stirring system, main body is made of all stainless steel 316L tank with no dead corners in the tank, fully sealed, zero leakage, and pollution-free, changing the dynamic seal into a static seal, completely solving the problem of bacterial contamination in the cultivation of biological product tanks, suitable for long cycle and non-dominant bacteria.
FEATURES
1. The material is 316L stainless steel, the view on the tank lid is relatively open, and the operation and cleaning is very convenient; the polishing accuracy of the stainless steel is Ra≤0.4; the part in contact with the material is 316L
2. AC motor, which can run in harsh environments;
3. Rotameter display, adjust the flow of gas according to process requirements
4. Adopt strong magnetic upper magnetic stirring system(full sealing, zero leakage, no pollution, changing the dynamic sealing into static sealing, completely solving the problem of bacterial contamination in the cultivation of biological products tank);
5. Straight blade agitating paddle (two-stage), mechanical compression defoaming paddle (first-stage)
6. Fermentation pH control function: using intelligent PID control, special PH electrode;
7. Fermentation dissolved oxygen degree control function: using intelligent PID control, dedicated DO electrode;
8. Electric heating, water cooling, with good heat exchange efficiency;
9. Complete replenishment system
10 in-situ sterilization;
SPECIFICATIONS
| Model | OQT-XSCUC series |
| Volume | 5~5000L optional |
| Diameter to height ratio | 1:2~2.5 |
| Feeding volume | 70% |
| Material | Stainless steel 304/316 |
| Function | PH/DO/Foam/Temp control |
| Tank pressure | manual adjustment, pressure gauge display; range: 0~0.20Map; |
| Sterilization method | Automatic or manual sterilization |
| Stirring Speed | 50~700rpm stepless speed; accuracy: ±1rpm |
| Temperature detection | range: cooling water temperature +5~55℃; accuracy: ±0.1℃; resolution: 0.1℃; |
| pH detection | range: 2~12ph; control accuracy: ±0.02ph, resolution: 0.01ph; |
| DO detection | range: 0~100%, control accuracy: ±3%; resolution: 0.1%; |
| Foam control | electrode detection, peristaltic pump replenishing |
| Ventilation | manual adjustment, flow meter display; |
APPLICATION
Microbial Fermentation-
Biopharmaceuticals
-
Tissue Engineering
-
Algal Biotechnology
-
Environmental Applications
-
Agricultural Biotechnology
-
Biofuels and Renewable Energy
-
Food and Beverage Industry
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES

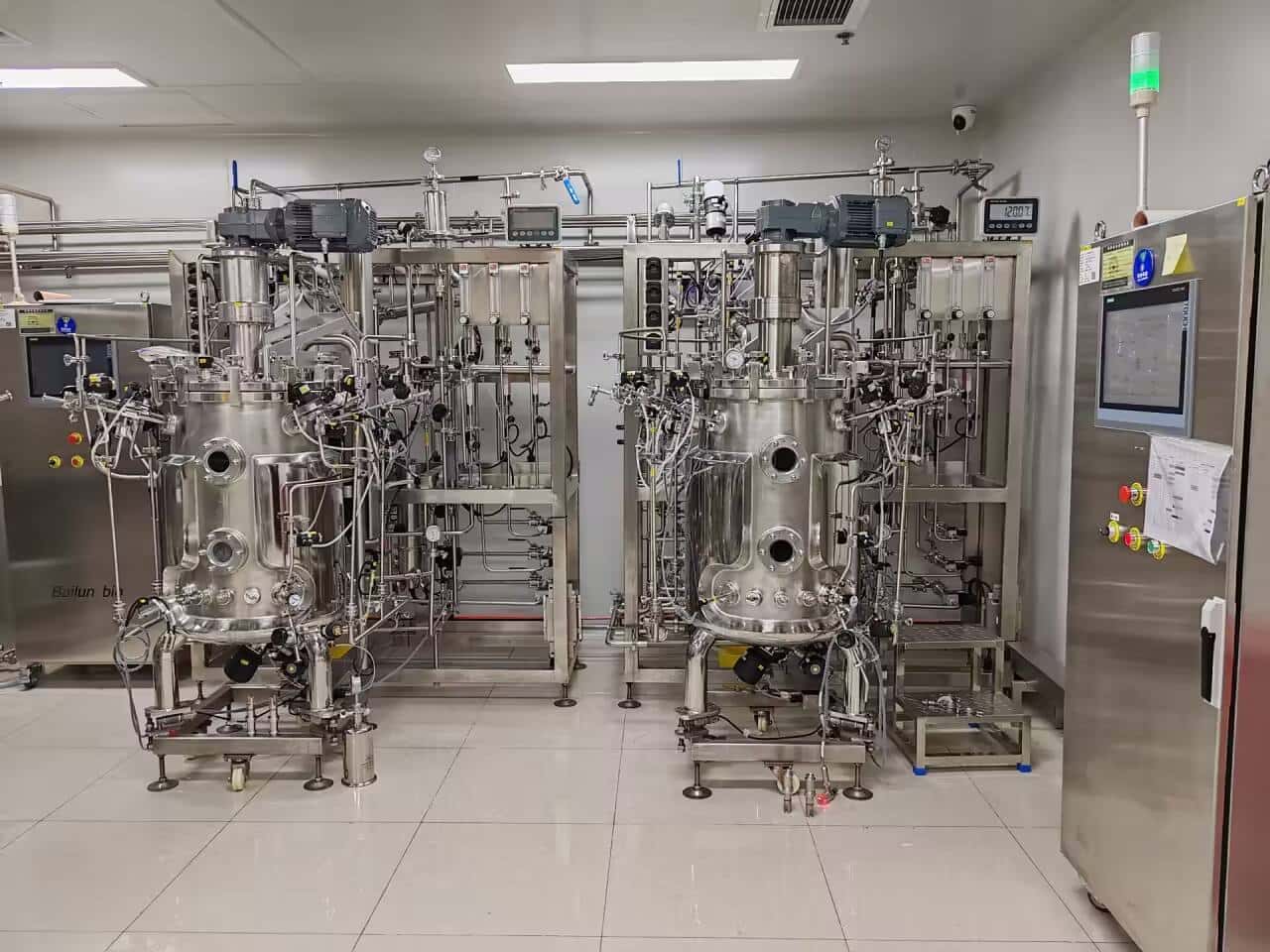

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
