DESCRIPTION
LED top light source all stainless light incubator applicable to life sciences, cell microorganisms, molecular genetics and other research; for experimental research in the fields of bioengineering, medicine, agronomy, aquatic products, animal husbandry, etc. Provide precise experimental conditions of constant temperature and humidity and simulated light.
Safety：
1. Compressor overheat protection, over temperature protection, overload, leakage and under voltage protection.
2. Gas-liquid separator to prevent liquid from damaging the compressor, thus prolonging the life of the compressor.
FEATURES

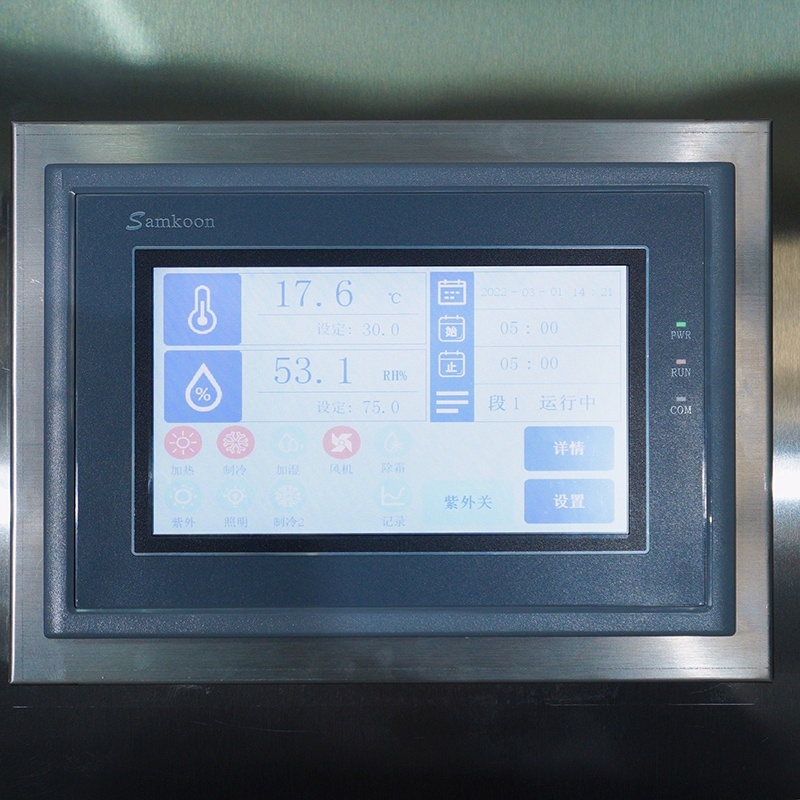

1.Microcomputer control, 7-inch color LCD touch screen, can read data curve analysis in real time.
2.Programmable control mode: 50-segment programming can be realized.
3.Three-level permission password setting, audit trail function, data output in PDF format, which cannot be changed, which is conducive to experimental data protection and tracking query.
4.Hot start and power failure memory function, power on again and continue to run at the original set value from the power failure point.
5.The interface adopts various icon-type display functions, so that operators can quickly identify them.
6.Intelligent low-temperature long-term refrigeration anti-icing technology ensures that there is no need to defrost and no freezing above 0°C.
7.Supercharged ultrasonic humidification method, temperature and humidity related control system to achieve humidity control.
8.German EBM cooling fan, low noise and quiet, durable.
9.Full-spectrum LED planar lighting panels, each panel consists of 540 LED lights.
10.Built-in low-power 220V waterproof power supply for active experiments such as BOD.
11.485 communication, which can realize data collection, monitoring and remote setting.
SPECIFICATIONS
| Model | OQT-260T | OQT-300T | OQT-380T | OQT-450T | OQT-530T | OQT-820T | OQT-1000T | OQT-1260T | OQT-1500T |
| Working power | 220V/50hz | ||||||||
| rated power | 800W | 800W | 800W | 1000W | 1000W | 1200W | 1200W | 1500W | 1800W |
| Operating power | 550W | 600W | 600W | 800W | 800W | 1000W | 1000W | 1300W | 1500W |
| volume | 260 L | 300 L | 380 L | 450 L | 530 L | 820 L | 1000 L | 1260 L | 1500L |
| Opening structure | Single door | Single door | Single door | Single door | Single door | Double doors | Double doors | Three doors | Three doors |
| Temperature control range | 0-70℃ (no light), 10-70℃ (with light) | ||||||||
| Volatility: | ≤±0.5 °C | ||||||||
| Temperature distribution accuracy | ±0.5°C （no light）,±1℃（with light） | ||||||||
| temperature resolution | 0.1℃ | ||||||||
| Heating time | 0 °C to 40 °C≤50 minutes | ||||||||
| cooling time | 0 °C to 40 °C≤50 minutes | ||||||||
| Humidity control range | 40 ° to 10 ° less than or equal to 50 minutes | ||||||||
| Humidity control range | 40-95％ | ||||||||
| Humidity Uniformity | ±5%R.H | ||||||||
| Humidity resolution | ±5%R.H | ||||||||
| lighting method | 1%RH | ||||||||
| lighting method | Top vertical light (optional side light ） | ||||||||
| Light usage range | 0-10000 (LX) (0-20000 LX is optional) | ||||||||
| light color | Red, yellow and white three-color light (four-color light is optional, and 8 spectral ratios are | ||||||||
| Dimming method | Stepless adjustable, three layers of light intensity, layered control | ||||||||
| number of light layers | 3 layers. All-optical submerged LED light panel | ||||||||
| controller | 7-inch color LCD touch screen 32-bit microcontroller control. | ||||||||
| Humidification method | Supercharged ultrasonic atomization humidification | ||||||||
| run sign | Screen display function and fault indication | ||||||||
| Timing function | 1 – 9999hour | ||||||||
| Temperature Sensor | PT100 | ||||||||
| Humidity Sensor | Imported chips, electronic sensors | ||||||||
| Sterilization function | UV ultraviolet germicidal lamp | ||||||||
| Refrigerant | 134a | ||||||||
| Interior | 304 mirror stainless steel | ||||||||
| Exterior | Stranded stainless steel (anti-fingerprint | ||||||||
| Thermal cut | Polyurethane foaming integral molding | ||||||||
| Number of laminates | 3 layers, height can be adjusted freely | ||||||||
| Laminate material | 304 mirror stainless steel hollow forming (non-wire welding) | ||||||||
| Max. load per shelf | 30Kg | ||||||||
| data storage | USB fast storage. Data can be exported. Can record 100,000 data (temperature data of more than 6 months) | ||||||||
| communication function | 485 port for remote monitoring and equipment | ||||||||
| Studio dimensions （ W*D*H/Width*Depth*Height ） | 510x480x1050 | 500x455x1300 | 500x575x1300 | 600x575x1300 | 600x685x1300 | 1100x575x1300 | 1100x690x1300 | 1700x570x1300 | 1350x800x1400 |
| Dimensions （ W*D*H/Width*Depth*Height ） | 600x700x1590 | 600x700x1940 | 600x800x1940 | 720x820x1940 | 700x900x1940 | 1210x820x1940 | 1210x920x1940 | 1800x720x1940 | 1500x1000x1940 |
| Optional | Mobile phone APP remote control, embedded printer, additional laminate, upper computer analysis and monitoring software, electronic door lock and magnetic card for opening the door. The experimental chamber can be customised according to various functions, sizes and materials. | ||||||||
