DESCRIPTION

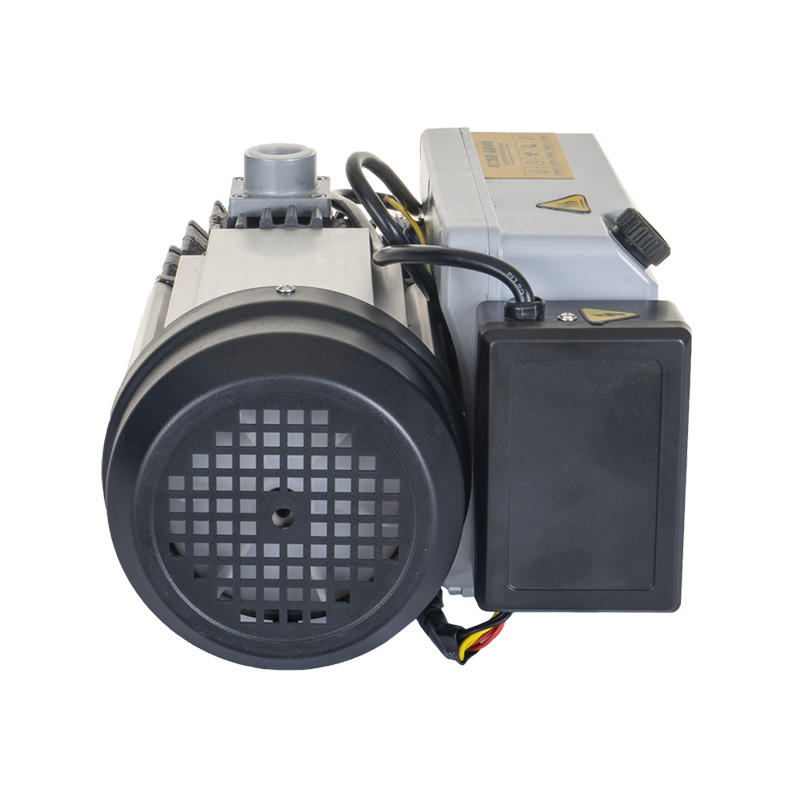

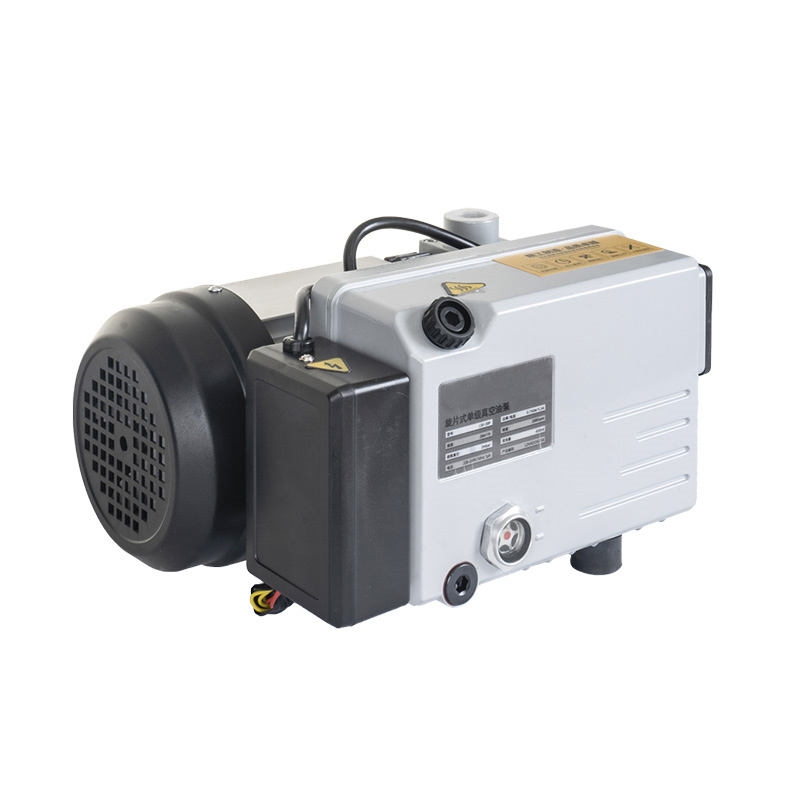

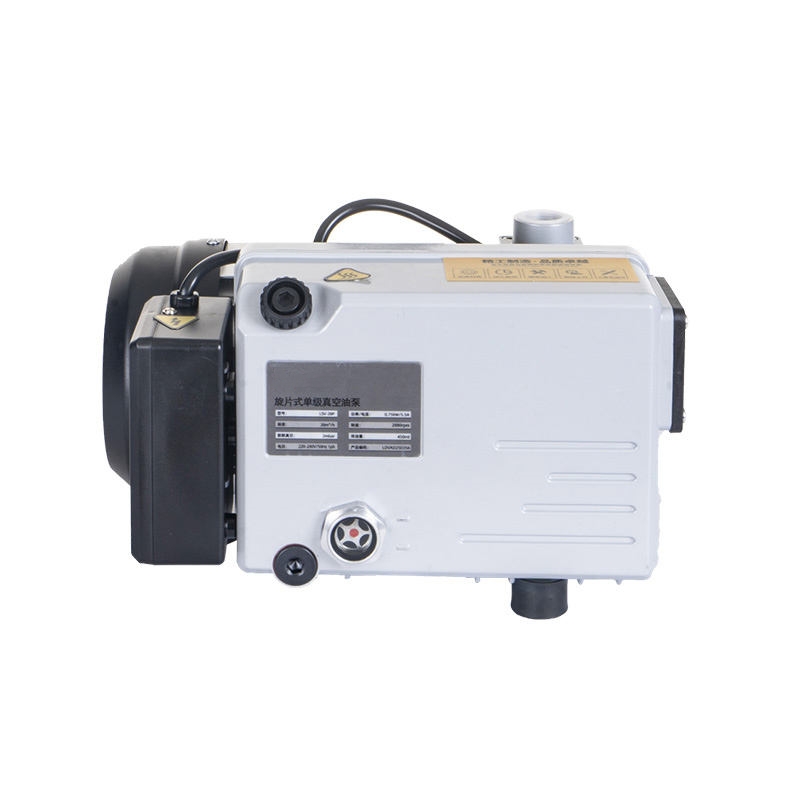

The single stage rotary vane vacuum pumps LSV series with Integral cylinder structure, compact appearance, pump and motor integral design, lighter and smaller, to meet the size of various applications. Built-in high quality oil mist filter, effectively filtering oil mist, avoiding oil mist pollution and protecting the environment. Good heat dissipation, air-cooled structure, no need for external water-cooling tank.
Application
Analysis (mass spectrometry, electron microscopy)
Coating technology (surface protection, decorative layer, display, screen)
Vacuum metallurgy (vacuum brazing, vacuum sintering, vacuum alloying, furnace manufacturing)
Leak detection technology (vacuum equipment, car fuel tank, airbag box, packaging)
Lighting industry (lamp manufacturing)
Drying industry (vacuum drying, transformer drying)
Food packaging (vacuum packaging machine, vacuum pre sealing)
Pre stage pump used (as Roots pump, vacuum system maintenance use)
FEATURES
- Anti-oil return structure. Effectively avoid and solve the problem of oil return in unexpected situations, so that your equipment will not be contaminated because of oil return.
- Open type gas town. Long-term work, effectively solve the vacuum pump oil emulsification phenomenon.
- Efficient oil mist filter . Built-in high-quality oil mist filter, effectively filter oil mist to avoid oil mist pollution of the environment, to protect the environment clean.
- Fluorine rubber seals. Improve corrosion resistance and solve the problem of oil leakage.
SPECIFICATIONS
| Model | OSV-20 | OSV-20P | OSV-40 | OSV-63 | OSV-100 | OSV-200 | OSV-300 |
| Rated flow rate | 20m³/h 50Hz | 40m³/h 50Hz | 63m³/h 50Hz | 100m³/h 50Hz | 200m³/h 50Hz | 300m³/h 50Hz | |
| 24m³/h 60Hz | 48m³/h 60Hz | 76m³/h 60Hz | 120m³/h 60Hz | 240m³/h 60Hz | 360m³/h 60Hz | ||
| Extreme vacuum | 1 mbar | 0.5 mbar | 0.1 mbar | ||||
| Interface | G3/4″ G1/2″ | G1-1/4″ | G2″ | ||||
| Voltage | 220-240v 50Hz | 200-240/345-415v 50Hz | 220-240/380-415v 50Hz | ||||
| 220-240Vh 60Hz | 220-275/380-480v 60Hz | 220-280/380-440v 60Hz | |||||
| Motor power | 0.75/0.9 KW | 1.5 KW | 2.2 KW | 3.0 KW | 5.5 KW | 7.5 KW | |
| Electric current | 5.5/2.3A | 5.0/2.9A | 8.5/4.9A | 11.8/6.8A | 9.0/5.2A | 16.7/9.6A | |
| 6/4A | 5.4/3.1A | 9.2/5.3A | 13.0/7.5A | 9.4/5.2A | 17.3/11.0A | ||
| Rotational speed | 3000/3600 r/min | 1440/1720 r/min | 1140/1720 r/min | 1405/1720 r/min | 1455/1720 r/min | ||
| Noise | 68/70dB | 63dB | 64dB | 65dB | 69dB | 72dB | |
| Oil quantity | 0.5L | 1.5L | 2L | 2L | 6.0L | 8.0L | |
| Weight | 18.5 kg | 43 kg | 56 kg | 70 kg | 149 kg | 193 kg | |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
