DESCRIPTION

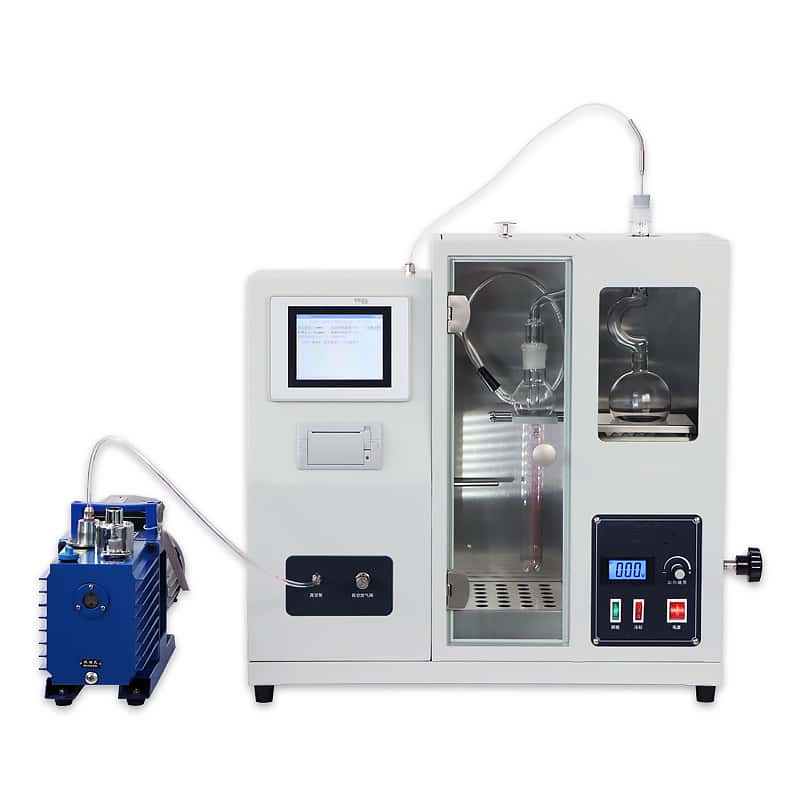

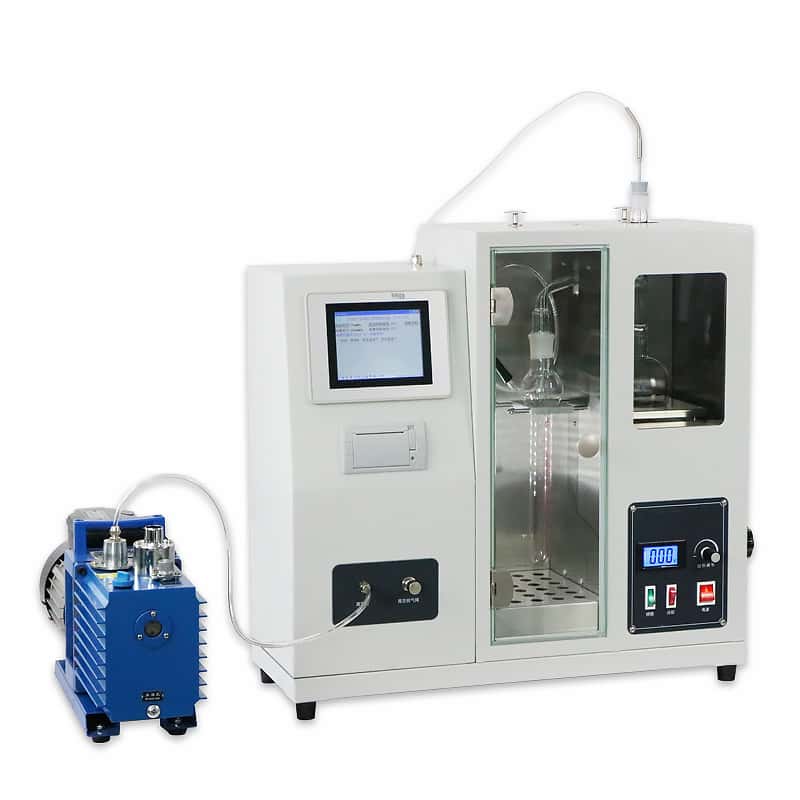

This instrument is designed and made as per industrial standard SH/T 0165-92 Standard Test Method for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process.It is suitable to determine the distillation characteristics of wax oil, lubricating oils and other petroleum products with high boiling point range.
FEATURES
1. It adopts single-chip machine technology to control the vacuum pressure automatically.
2. It adopts high accuracy temperature sensor to detect the steam temperature automatically. No need to observe it by naked eye.
3. It adopts LCD technology, can input, modify and show parameters and control them by touch screen.
4. It equips a micro-printer to save and print test results.
SPECIFICATIONS
| Model | LYD-0165B |
| Power supply | AC(220±10%)V, 50Hz |
| Heating furnace of distillation flask | (0～1300)W, adjustable |
| Heating power of receiver | 350W，automatically controlled |
| Temperature control point of receiver | Ambient to 99℃±3℃，adjustable |
| Setting range of vacuum residual pressure | (2～99) mmHg±0.1mmHg |
| Measurement range of vacuum residual pressure | (2～150) mmHg±0.1mmHg, automatic pressure maintenance |
| Volume of buffer vessel | 1000ml |
| Illumination light in the air bath | Energy saving lamp |
| Working condition | （0~200）mmHg |
| Illumination light in the air bath | Energy saving lamp |
| Working condition | Ambient temp.：(5～35)℃ RH：< 85％ |
| Dimension： | 600mm×230mm×605mm |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
