DESCRIPTION

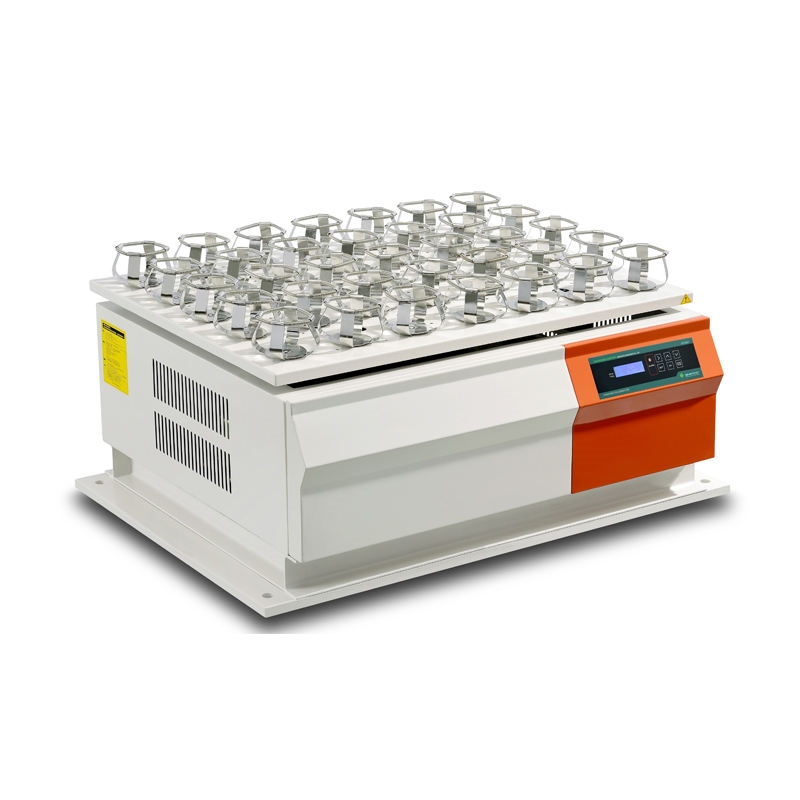

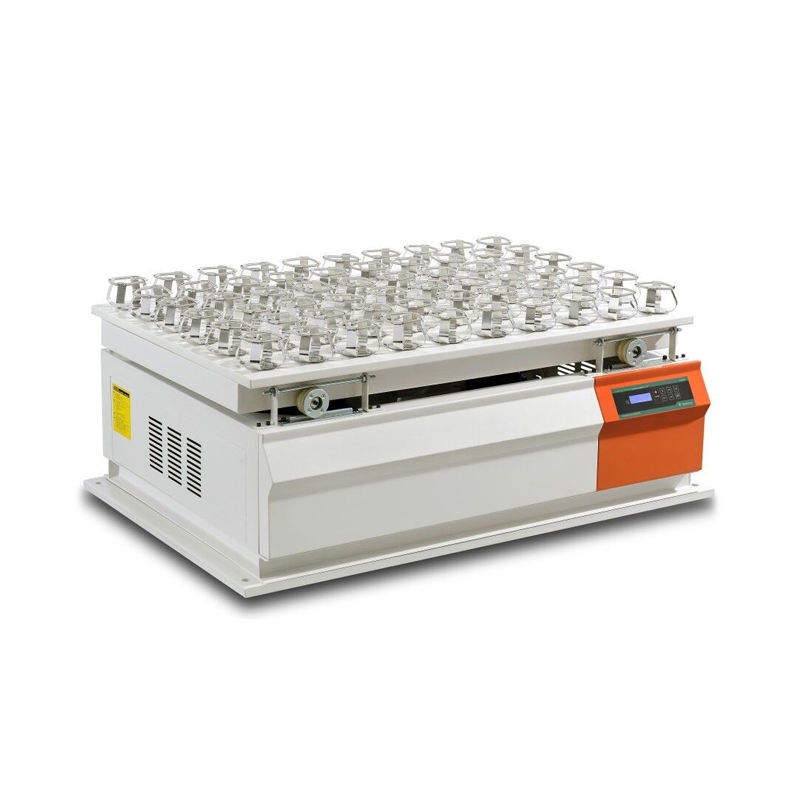

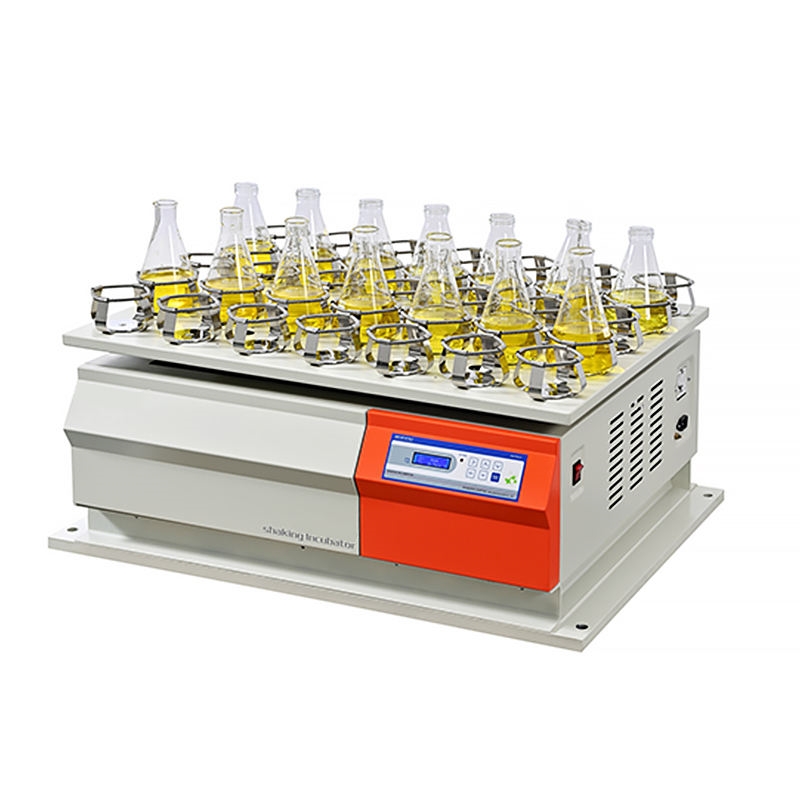

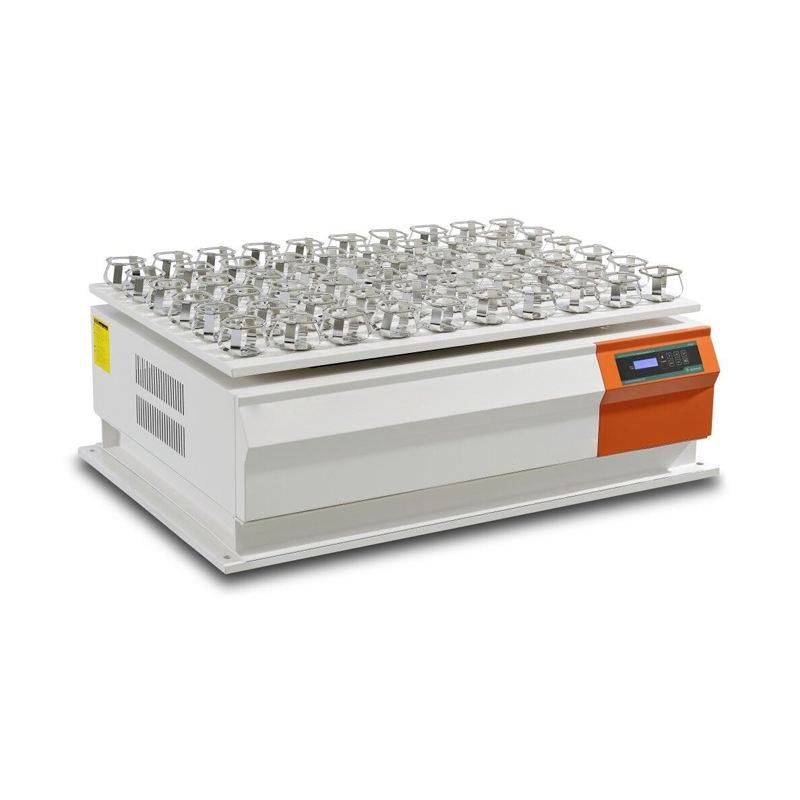

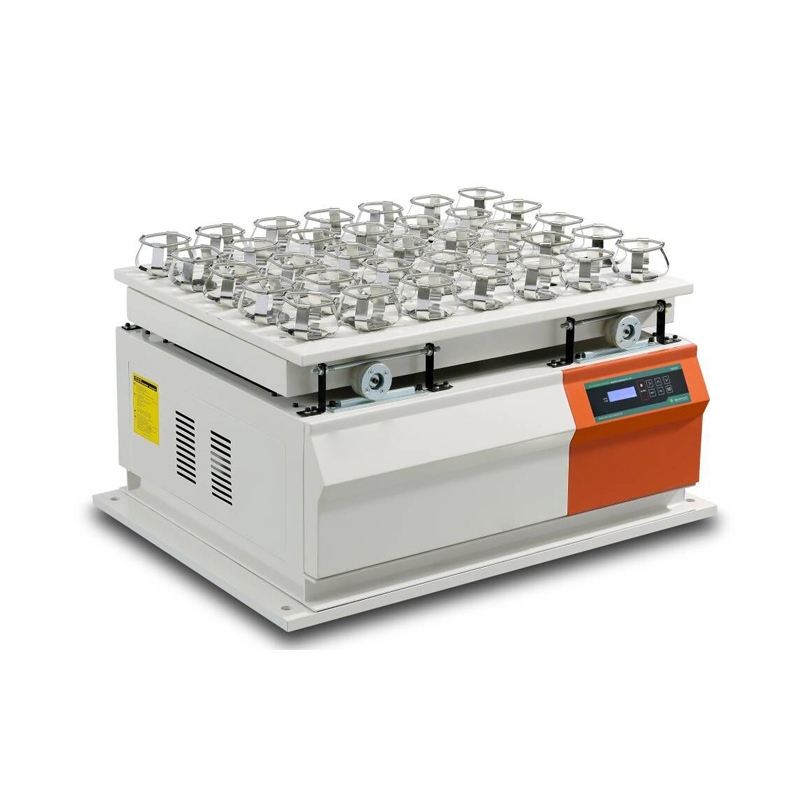

OH series flask shaker is suitable for centralized constant temperature and cluster oscillation in a specific constant temperature room. Not only can it provide a high level of oscillation efficiency for mass production operations and biopharmaceutical research applications in pilot trials and mass strain screening, but also has strong economic and practicality.LH-311TD/322TD is an extra large amplitude type with an amplitude of 100mm.LH-300D/311D/322D is a single-layer type with an amplitude of 50mm.LH-3112/3222/3332/3432 is a double-layer large-capacity type with an amplitude of 50mm.LH-331/332/3312 is a reciprocating oscillation type .
FEATURES
1. Eight sections of self-programming, each program can set different speed and time to realize the programming operation of speed and appointment time.
2. Automatic operation, automatic stop, timed operation, clock display, call recovery, parameter memory.
3. Watchdog timers, independent overspeed sound/light alarms, independent leakage, and over-current protection devices do not affect other equipment.
4. The PID microprocessor control/monitoring system provides simple button operation and easy programming of time and speed.
5. The original single-axis drive mechanism in China is quiet and durable.
6. The most advanced finishing technology in the country ensures the stability and reliability of mechanical operation.
7. The key parts of the movement are made of expensive chrome alloy material, high quality cast iron and original imported bearings.
8. The last set speed is automatically memorized and slowly accelerated to the last running speed after power on.
9. The unique slow start line prevents sudden starts and splashes, ensuring safe reagents.
10. Unique motor overheating, temperature out of control automatic power off protection device.
11. Unique high-precision frequency control system with frequency accuracy of ±1rpm.
12. The most advanced large torque motor, maintenance-free, and guaranteed continuous operation.
13. The electrostatic color spray box is beautiful and rustproof, and has an aesthetic design concept.
14. The cabinet is made of high quality, high strength cold rolled steel, medium, channel, angle and cast iron.
Security
1. Leakage current and overcurrent protection systems ensure operator safety.
2. Ultra-temperature, over-speed sound and light alarm emergency control system to ensure sample safety.
SPECIFICATIONS
| Model | OH-331 | OH-332 | OH-3312 |
| Control method | PID microcomputer environment scanning micro-processing chip control | ||
| Display method | LCD liquid crystal display | ||
| Programming control | Eight-segment user-programming | ||
| Safety protection | Automatic operation, automatic stop, timed operation, clock display, call recovery, parameter memory | ||
| Accessory function | Watchdog timer, independent overspeed sound/light alarm, independent leakage, leakage overcurrent protection device | ||
| Cyclic mode | Natural convection | ||
| Oscillation mode | Reciprocating oscillation | ||
| Drive mode | Track balanced drive | ||
| Environmental requirements | User-specific thermostat or environment | ||
| Rotation frequency | 30-300rpm | ||
| Timing range | 0-999.59 hours / sustainable | ||
| Rotation accuracy | ±1rpm | ||
| Pendulum amplitude | Φ25mm | ||
| Rocker size | 840*620(mm) | 1108*740(mm) | 840*620(mm) |
| Number of rocking plates | one | one | two |
| Net weight | 200kg | 250kg | 250kg |
| Dimensions | 900*650*480 (mm) | 1210*795*480 (mm) | 910*680*850(mm) |
| Outer box material | High quality and high strength cast iron, channel steel, angle steel, cold rolled steel | ||
| Power supply | AC 200-240V 50-60HZ | ||
| Motor | 120W Inverter motor) | 250W Inverter motor | 250W Inverter motor |
| Power | 150W | 280W | 280W |
APPLICATION
Microbiology and Cell Culture- Biochemical and Enzyme Research
- Chemical and Pharmaceutical Research
- Molecular Biology and Genetics
