DESCRIPTION

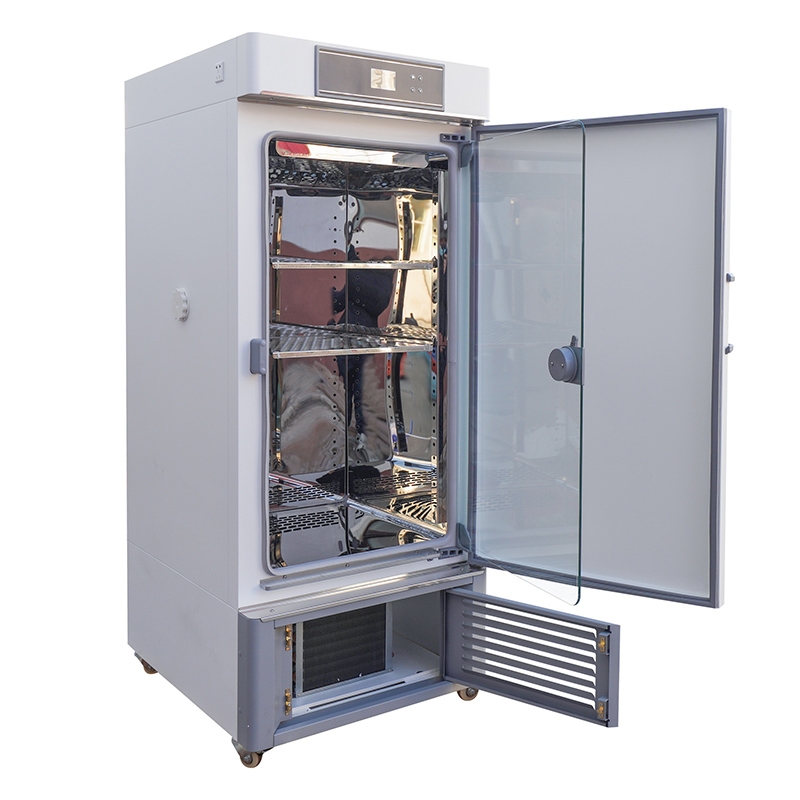

The Mold incubator applicable to environmental protection, health and epidemic prevention, drug supervision, agricultural and livestock, aquatic products and other scientific research, colleges and production departments. It is a special thermostat for water body analysis and BOD determination, bacteria, mold, microbial culture, preservation, plant cultivation, and breeding experiments.
FEATURES
- LCD multi data full screen display, power failure memory, power failure compensation
- Convenient operation, constant value operation, regular operation and automatic stop
- Special function key to realize temperature setting
- Auxiliary menu, realize over rising alarm, deviation correction and menu locking
- Forced air supply by centrifugal turbine makes the temperature more uniform
- Power off protection, parameter memory and call recovery
- Compressor overload protection
Functionality
- LCD 30 segment program control, repeated step, step operation
- Loop self diagnosis, sensor fault alarm, upper and lower line over temperature alarm
- Intelligent defrosting
- Monitor the timing
- Over lift preventer
SPECIFICATIONS
| Model | OQT-80L/
OQT-80P |
OQT-150L/
OQT-150P |
OQT-250L/
OQT-250P |
|
| Mode | Forced convection | |||
| Performance | Temperature control range | No humidification: 0-65℃
With humidification: 10-65℃ |
||
| Temperature resolution | 0.1℃ | |||
| Constant temperature fluctuation | ±0.5℃ | |||
| Temperature uniformity | ±0.8℃（Test point 37℃） | |||
| Humidity distribution accuracy | ±3% | |||
| Humidity control range | 50%-90% | |||
| Humidity fluctuation | ±3% | |||
| Constitute
|
Interior decoration | Mirror stainless steel | ||
| Exterior decoration | Cold rolled steel sheet, surface coating | |||
| Thermal insulation material | Rubber and plastic sponge | |||
| Heater | Stainless steel heating pipe | |||
| Heating power | 600w | 800w | 1000w | |
| Humidification power | 400w(L-type none) | |||
| Compressor power | 114W | 125W | 139W | |
| maximum power | 800W | 1000W | 1200W | |
| compressor | Air cooled hermetic compressor | |||
| Cryogen | R134A | |||
| Defrosting structure | Automatic | |||
| Humidity control mode | Automatic | |||
| Lead hole | One with inner diameter of 52mm | |||
| Controlled external power supply | One external 5-hole socket | |||
| Controller | Temperature control mode | L: Single stage timing control;
P: 30 Segment LCD program |
||
| Temperature setting mode | L: Touch four key;
P: touch six key LCD |
|||
| Temperature representation | Color printing LCD controller | |||
| Timer | L: 0-99.9h; P: 0-99.9*30(with timing waiting function) | |||
| Operation function | L: fixed value operation, timing operation | |||
| P: fixed value operation, program running | ||||
| Program mode | L:none P: standard | |||
| Additional functions | L: deviation correction, menu key locking, power failure compensation, power failure memory, fixed value mechanical temperature limiting switch | |||
| P: there are also loop self diagnosis, intelligent defrosting, electronic digital temperature limiter | ||||
| Sensor | Pt100、Imported Honeywell humidity sensor（L type non humidity sensor） | |||
| Safety device | L: over rise alarm and overload protection;
P: with over rise preventer and loop self diagnosis |
|||
| Specifications
|
Internal dimensions (mm) | 420*350*500 | 500*400*750 | 500*500*950 |
| Dimensions (mm) | 574*668*1213 | 653*716*1414 | 653*821*1664 | |
| Outer package size | 734*793*1328 | 814*843*1530 | 801*947*1780 | |
| Internal volume | 80L | 150L | 250L | |
| Diaphragm bearing | 15kg | |||
| Number of diaphragm layers | 10 | 15 | 22 | |
| Diaphragm spacing | 35mm | |||
| Rated current | AC220V/5.4A | AC220V/6.3A | AC220V/7.2A | |
| Net / gross weight | 85/110 | 120/159 | 130/180 | |
| Accessories | Partition | 2 | ||
| Partition frame | 4 | |||
| Configuration can be increased | Diaphragm, RS485 interface, printer, recorder, external communication, remote control, wireless SMS alarm, U disk data storage | |||
