DESCRIPTION

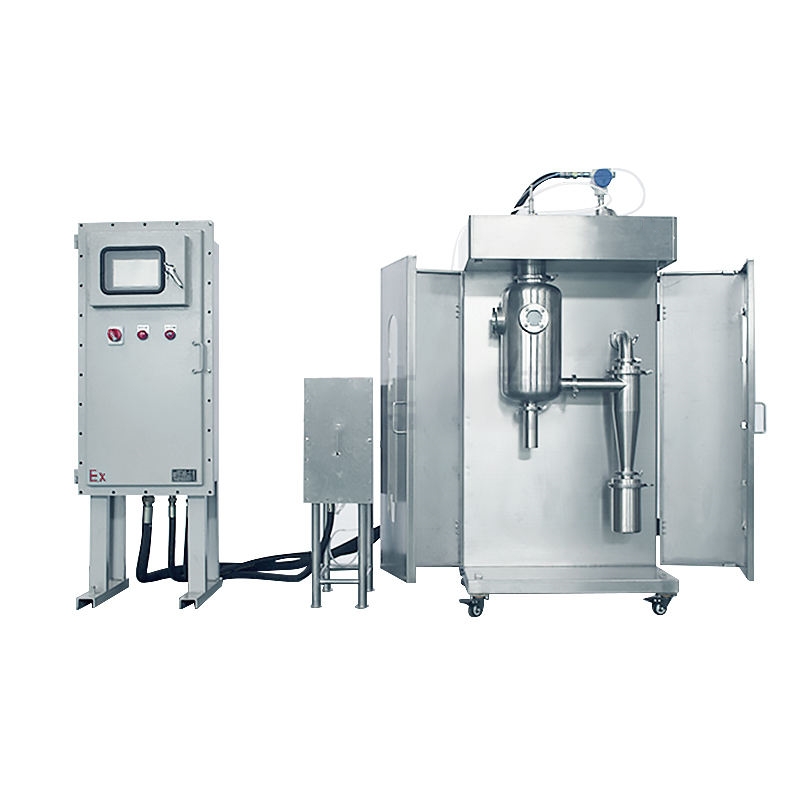

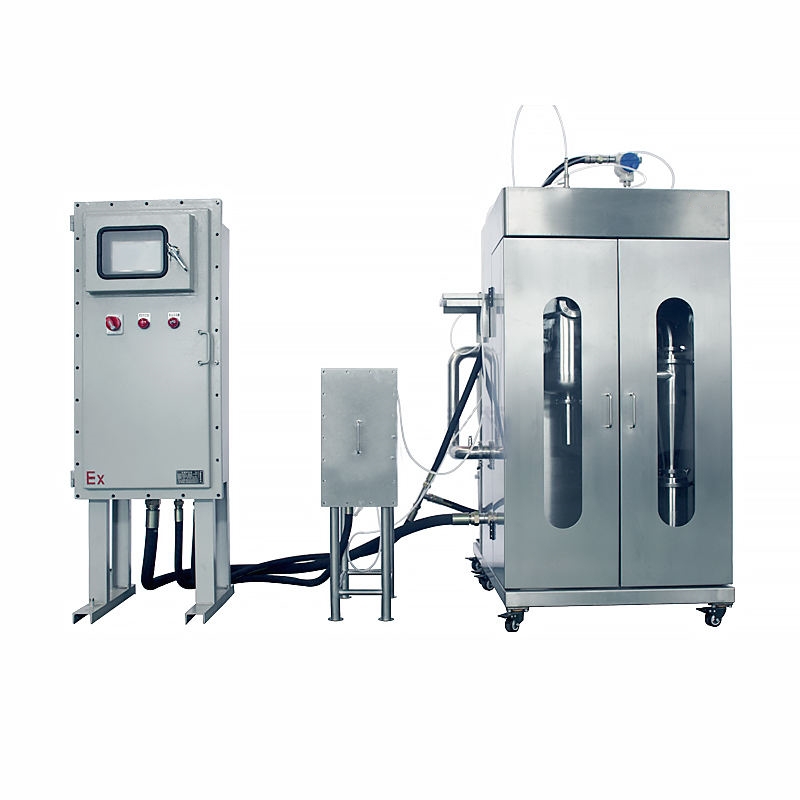

Small closed spray dryer, special for pharmaceuticals, explosion-proof grade, the device is especially for organic solvents, and the inert gas medium formed by circulating nitrogen is used to replace the usual air medium for spray drying. In addition to recovering products, organic solvents can also be recovered. This set of closed circulation spray system is specially designed for organic solvents with low flash point or slightly toxic characteristics, flammable and explosive characteristics.
FEATURES
1. Can prevent oxidation, avoid danger and improve quality;
2. It is composed of material design system, heating system, atomization system, spray drying system, inert gas circulation system, product recovery system and condensation system.
3. Using the innovative (ES-VER2018-1A) atomization system, this system adopts the hard contact of the mechanical structure, without any gasket, and without leakage. Different from ordinary electric centrifugal nozzles, the superheated corrosive steam contacts the wires of the electric nozzle for a long time under positive pressure, thereby corroding the wires, causing the plastic skin on the surface of the wires to corrode, soften and fall off, thus forming a short circuit.
4. It can achieve ultra-fine powder in the range of 1-8 microns, which is suitable for the preparation of battery materials
SPECIFICATIONS
| Model | OQL-D1Z |
| Ethanol evaporation | 0.8Kg/h |
| Minimum feed amount | 50ml |
| Atomization structure | Atomization system |
| Electronic control system | Special for closed loop atomization system |
| Inlet air temperature (Celsius) | 140 |
| Drying chamber diameter (mm) | ￠300 |
| Drying tower height (mm) | ￠600 |
| Explosion-proof disk diameter (mm) | 65 |
| heater capacity | 2Kw |
| Induced fan [power (kw), air volume (m³/h)] | [1.5, 250] |
| Compressor [power (kw), air volume (L / min)] | [0.58, 108] |
| Chiller | 50-60Hz (built-in cryogenic cooling circulation pump) |
| Electronic control main accessories standard (including PLC, analog module, touch screen) (optional) | Wecon control module (standard) |
| Selection criteria for electric control auxiliary accessories (including contactors, etc.) (optional) | Chint (Standard) |
| Parts in contact with the material (optional) | SUS304 (standard) |
| Exhaust gas reuse, saving energy by more than 30% (optional) | Not assembled (standard) |
| Atomizing nozzle (optional, diamond coating or not) | SUS304 (standard) |
| Equipment Warranty | 1 year (standard, a certain maintenance fee will be charged for the above) |
| Electricity (installed capacity) | 4Kw |
| Pulse bag filter | PTFE coating material,2pcs |
| Dimensions (mm) (L×W×H) Reference | 1400×1000×1600 |
| Installation weight (reference) | 200Kg |
| Power supply | 380V/-3￠ (Related voltages can be customized according to different national standards) |
| Notes | 1: Ethanol evaporation is based on the inlet air temperature of 140°C; 2: If you need equipment with larger evaporation capacity, please inquire online or call our company |
APPLICATION
Food Beverage Industry-
Pharmaceutical Industry
-
Chemical Industry
-
Environmental and Waste Management
