DESCRIPTION
It is a necessary equipment for colleges, biology, agriculture, and scientific research departments to store strains, biological culture, and conduct scientific research.
FEATURES

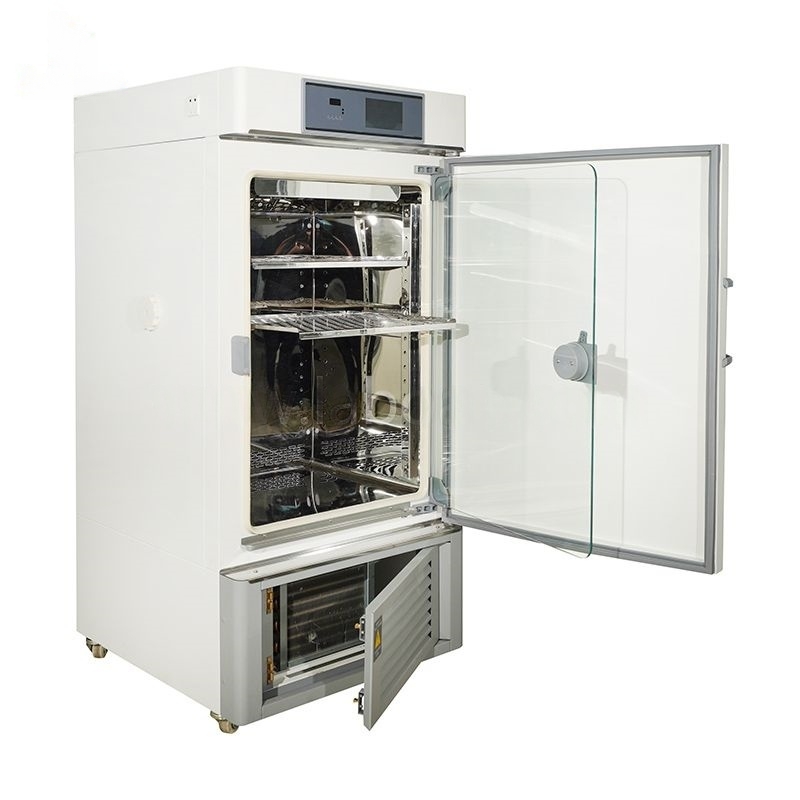

- Inner glass door for easy real-time viewing of internal conditions.
- LCD full-screen display for multiple operating data.
- Convenient operation, supporting constant-value operation, timed operation, and automatic stop.
- Dedicated function keys for temperature setting.
- Auxiliary menu enabling over-temperature alarm, deviation correction, and menu lock.
- Turbine centrifugal forced air supply with top-mounted air distribution system for uniform temperature.
- Power failure protection, parameter memory, power recovery resumption, and compressor overload protection.
- Hidden hot humidification system with compact structure and uniform humidity.
- Directly detachable air intake grille for easy condenser cleaning.
- Internal lighting, and external 5-hole socket.
- Bottom universal casters for easier cabinet movement.
- Automatic defrosting to prevent evaporator icing faults.
- Drawable stainless steel grilles for convenient sample placement and retrieval.
- Automatic switching of dual evaporators for seamless defrosting and minimal cabinet temperature disturbance.
- LCD 30-segment program control, supporting repeated step movement and stepwise operation.
Program type (P):

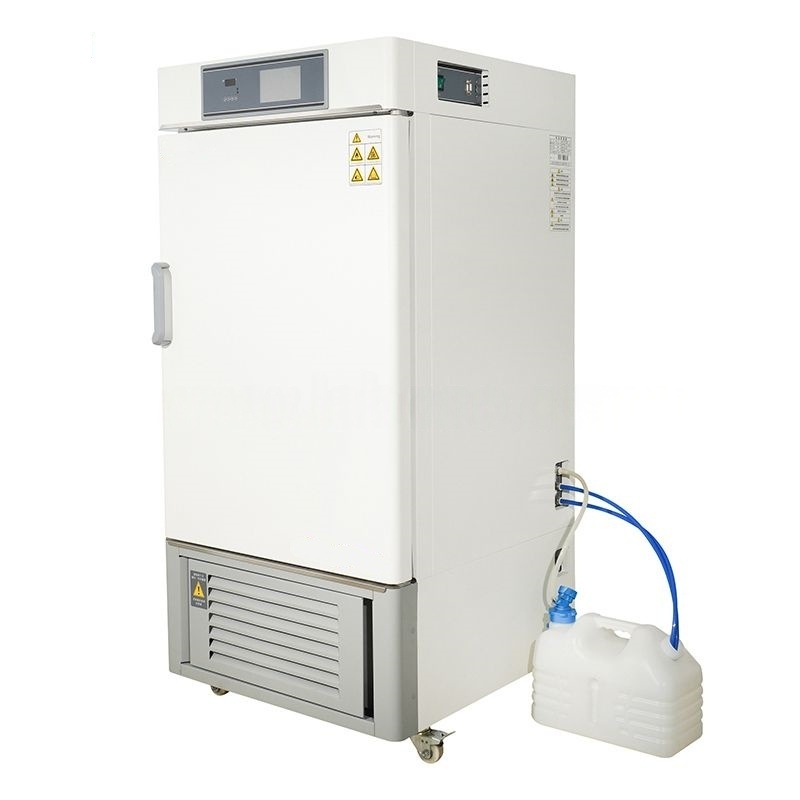

*Independent digital display temperature limiter for safer operation. Imported Honeywell humid ity sensor; automatic water supply system with a built-in water storage tank inside the cabinet, which automatically replenishes water when water is insufficient.
*Circuit self-diagnosis, with sensor fault alarm, over-temperature alarm, over-humidity alarm, water filling fault alarm, and dry-heating alarm.
Color screen touch type (T):
Added curve function, 485 interface, and U disk data export on the P-type basis.
Safety Features:
Over-temperature Alarm, Menu Lock, Over-temperature Prevention, Overload Protection, Power Failure Protection.
SPECIFICATIONS
| Model | OQT-80P/
OQT-80T |
OQT-150P/
OQT-150T |
OQT-250P/
OQT-250T |
|
| Mode | Forced convection | |||
| Performance | Temperature control range | No humidification: 0-65℃
With humidification: 10-65℃ |
||
| Temperature resolution | 0.1℃ | |||
| Constant temperature fluctuation | ±0.5℃ | |||
| Temperature uniformity | ±0.8℃（Test point 37℃） | |||
| Humidity distribution accuracy | ±3% | |||
| Humidity control range | 35%-90%RH | |||
| Humidity fluctuation | ±3% | |||
| Constitute
|
Interior decoration | Mirror stainless steel | ||
| Exterior decoration | Cold rolled steel sheet, surface coating | |||
| Thermal insulation material | Rubber and plastic sponge | |||
| Heater | Stainless steel heating pipe | |||
| Heating power | 600w | 800w | 1000w | |
| Humidification power | 400w | |||
| Compressor power | 114W | 125W | 139W | |
| maximum power | 800W | 1000W | 1200W | |
| compressor | Air cooled hermetic compressor | |||
| Cryogen | R134A | |||
| Defrosting structure | Non inductive switching of double evaporator (no freezing phenomenon) | |||
| Humidity control mode | Automatic，Hidden thermal humidification | |||
| Lead hole | One with inner diameter of 52mm | |||
| Controlled external power supply | One external 5-hole socket | |||
| Controller | Temperature control mode | 30 Segment LCD program（T-type with temperature and humidity curve function） | ||
| Temperature setting mode | T: touch screen setting, color screen display;
P: touch six key LCD |
|||
| Temperature representation | P: Color printing LCD controller
T: 5-inch color touch screen controller (with built-in electronic manual) |
|||
| Timer | T: 0-99.9h*30(with timing waiting function); P: 0-99.9*30 Infinite cycle operation | |||
| Operation function | fixed value operation, timing operation, program running, auto stop / appointment start(T-type booking switch) | |||
| Program mode | Standard | |||
| Additional functions | P: deviation correction, menu key locking, power failure compensation, power failure memory, fixed value mechanical temperature limiting switch | |||
| T: there are also loop self diagnosis, intelligent defrosting, electronic digital temperature limiter | ||||
| Sensor | PT100、Imported Honeywell humidity sensor（P type non humidity sensor） | |||
| Safety device | P: over rise alarm and overload protection;
T: with over rise preventer and loop self diagnosis |
|||
| Specifications
|
Internal dimensions (mm) | 420*350*500 | 500*400*750 | 500*500*950 |
| Dimensions (mm) | 574*668*1213 | 653*716*1414 | 653*821*1664 | |
| Outer package size | 734*793*1328 | 814*843*1530 | 801*947*1780 | |
| Internal volume | 80L | 150L | 250L | |
| Diaphragm bearing | 15kg | |||
| Number of diaphragm layers | 10 | 15 | 22 | |
| Diaphragm spacing | 35mm | |||
| Rated current | AC220V/5.4A | AC220V/6.3A | AC220V/7.2A | |
| Net / gross weight | 85/110 | 120/159 | 130/180 | |
| Accessories | Partition | 2 | ||
| Partition frame | 4 | |||
| Configuration can be increased | Diaphragm, RS485 interface, printer, recorder, external communication, remote control, wireless SMS alarm, U disk data storage | |||
