DESCRIPTION

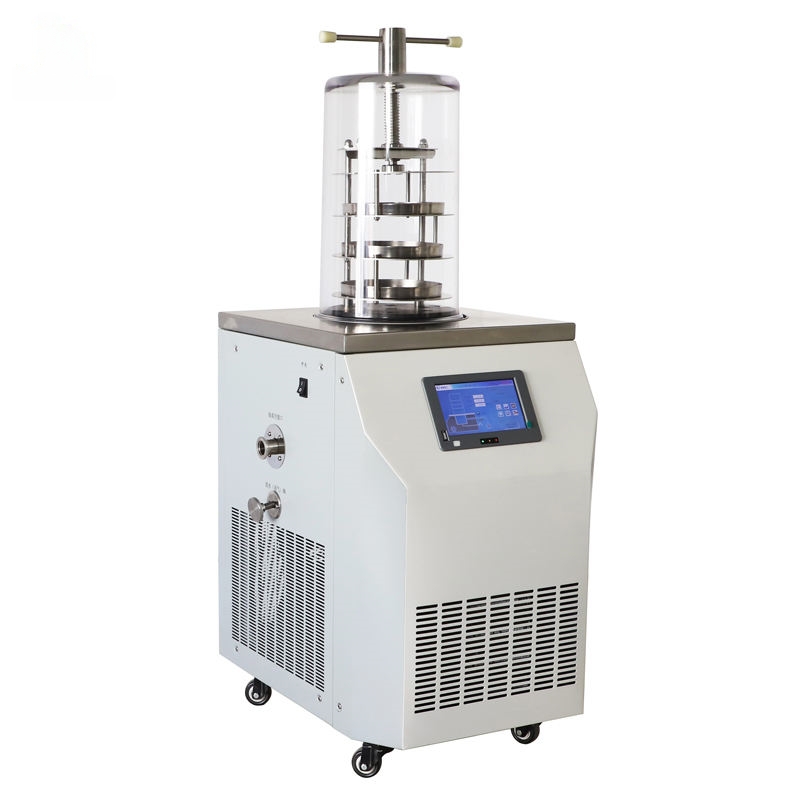

Vacuum freeze dryers are widely used in the fields of medicine, pharmaceuticals, biological research, chemicals and food. The lyophilized articles are easy to store for a long time, and can be restored to the state before lyophilization and maintain the original biochemical characteristics after adding water. The OQT-B freeze dryer is a small vertical freeze-drying machine with shelf heating and programmable functions for laboratory use or small production to meet the routine freeze-drying requirements of most laboratories.
FEATURES
1. One-piece structure design, small size, no external flange, easy to use, no leakage.
2. All materials in contact with the product are made of inert materials to meet the requirements of GLP.
3. The cold trap and the operating table are made of stainless steel, which is corrosion-resistant and easy to clean.
4. All stainless steel inflatable (discharge) valve The company design, production, safety, anti-corrosion, no leakage.
5. The cold trap has a large opening, no inner coil, and sample pre-freezing function, no need for a low temperature refrigerator.
6. Patented gas guiding technology, the ice trap is evenly trapped and the ice trapping ability is strong.
7. Internationally renowned brand compressors, high efficiency, energy saving, long service life and low noise.
8. Well-known brand vacuum pump, pumping speed, to achieve a higher ultimate vacuum.
9. Vacuum pump protection function, can set the vacuum pump to start the cold trap temperature and protect the service life of the vacuum pump.

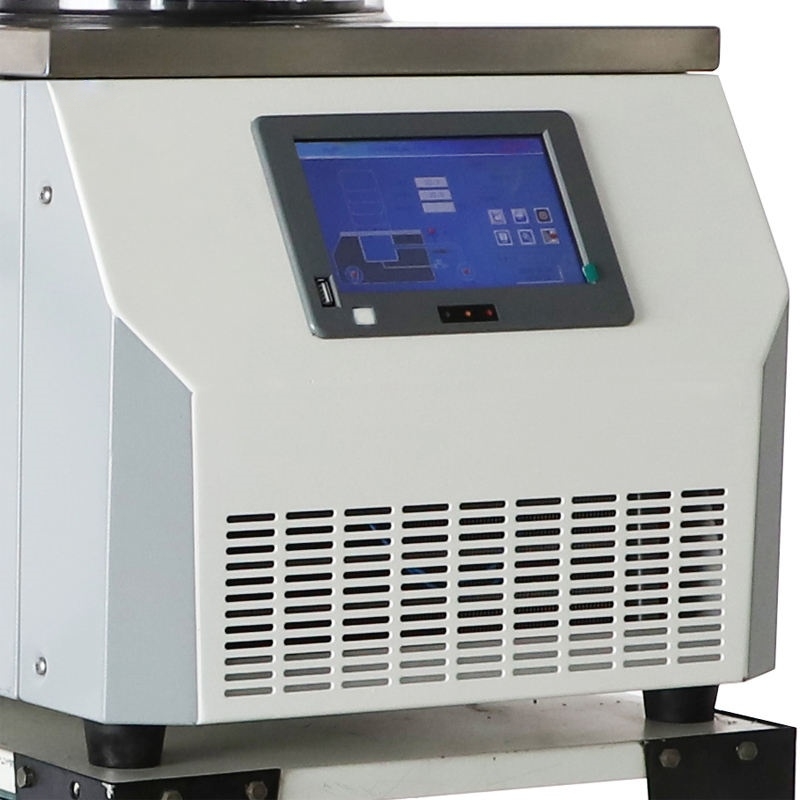

10.7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.
11. Professionally designed FD-EMB control system can save hundreds of process recipes, each set contains 50 temperature control sections to improve process optimization rate.
12. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed by computer and printed.
13. The plate layer heating safety voltage (36V) temperature control system can control the heating rate.
14. Flexible manual + automatic control mode, manual groping process, automatic batch production.
15. Real-time alarm display and historical alarm query function, convenient for fault diagnosis and equipment maintenance.
16. User level and password can be set and decentralized for operation management.
17. Powerful sensor calibration to ensure accurate measurement of long-term use.
18. The intelligent AI electric defrost SH-10KCQ uses safe voltage and combines multi-dimensional fuzzy control technology to significantly improve defrosting efficiency.
SPECIFICATIONS
| Model | OQT-12SB |
| Freeze-dried area | 0.08m2 |
| Temperature range of tray | -40~+60℃ |
| Material plate size | Φ180mm |
| Number of material trays | 3 |
| Material plate spacing | 70mm |
| Cold trap temperature | ≤ -56 ° C (no load), optional ≤ -80 ° C (no load) |
| Cold trap depth | 240mm |
| Cold trap diameter | Ф220mm |
| Water catching capacity | 3-4kg/24h |
| Pumping rate | 2L/S |
| Ultimate vacuum | ≤5pa (no load) |
| Installed power | 1400w |
| Host weight | 62kg |
| Mainframe dimensions | 580×500×720mm |
| -80 °C mainframe dimensions | 770 × 550 × 720mm |
| Drying chamber size | Φ260×470mm |
| Cooling method | air cooling |
| Defrost mode | Nature defrost |
| Plate loading material | 0.8L (material thickness 10mm) |
| Vial bottle capacity | |
| Vial bottle Φ12mm | 492 |
| Vial bottle Φ16mm | 297 |
| Vial bottle Φ22mm | 147 |
APPLICATION
Food Industry- Pharmaceutical Industry
- Biotechnology and Research
- Floral and Herbal Industry
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
