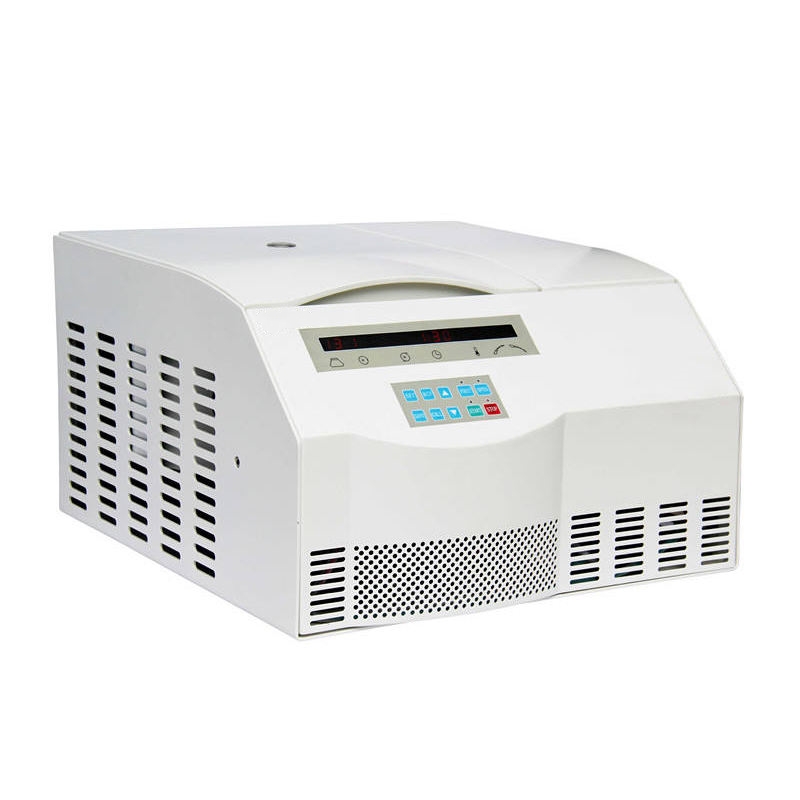

4 Advantages Of OQT Benchtop High Speed Centrifuge
- 1. Visual window for speed measurement and calibration.
- 2. Built-in stainless steel explosion-proof protective inner sleeve, stainless steel centrifugal chamber, three-layer protection, safe and reliable.
- 3. LCD display, display all parameters of the instrument in real time.

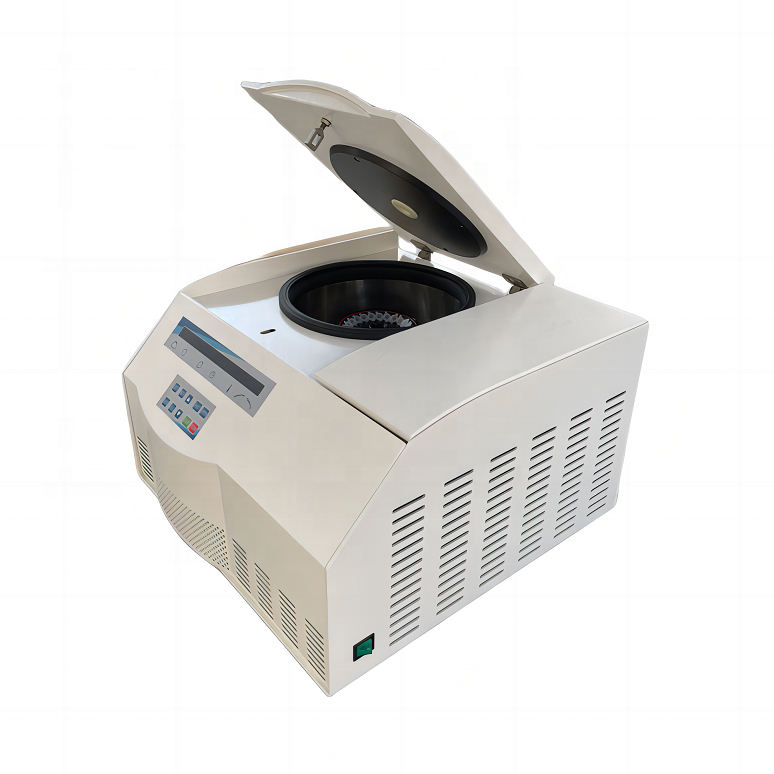

- 4. The hydraulic lever makes it easier to open and close the lid.
DESCRIPTION
High speed centrifuge is a technique which involves the application of centrifugal force to separate particles from a solution. It is widely used in the field of medicine, life science, agriculture science, institute and so on, used in the area of protein precipitation, RNA extraction and clinical sample processing.
FEATURES
1. Three types of centrifuge methods: Speed, RCF or centrifugation at ω2t angular velocity. Can reach the best centrifugal effect.
2. Brush frequency conversion motor.
3. Microcomputer processor for precise control. Digital display for speed, temperature, time and other parameters, button programming, switch display operating parameters and RCF values.
4. 30 sets of programs can be stored and recalled, and 10 lifting rates are available.
5. Automatic door lock, overspeed and over temperature automatic protection, unbalance protection, the body is made of high quality steel structure; safe and reliable, easy to use.
6. Unique spring cone sleeve is used to connect the rotor and the spindle. Easy to change the rotor, more safety and reliable, and easy to use.
7. Equipped with a variety of rotors to choose from, and can be designed according to the test requirements of a variety of adapters, a multi-purpose machine.
8. Three-stage vibration reduction, to reach the best centrifugal result.
9. LCD screen is optional.
SPECIFICATIONS
| Max. speed | 21000r/min |
| Max. RCF | 30910×g |
| Max. volume | 6×100ml |
| Temperature range | -20°C～40°C |
| Timer | 1～99h/59min |
| Dimension | 608×570×380mm |
| Speed Accuracy | ±50r/min |
| Temperature Accuracy | ±1°C |
| Noise | ≤58dBA |
| Net weight | 82KG |
| Power supply | AC 220V 50HZ 15A |
Optional rotors:
| NO. | Rotor type | Max. speed (r/min) | Capacity (ml) | Max RCF (×g) |
| No30801 | Angle rotor | 20000 | 12×1.5/2ml | 25430 |
| No30802 | Angle rotor | 15000 | 40×0.5ml | 22920 |

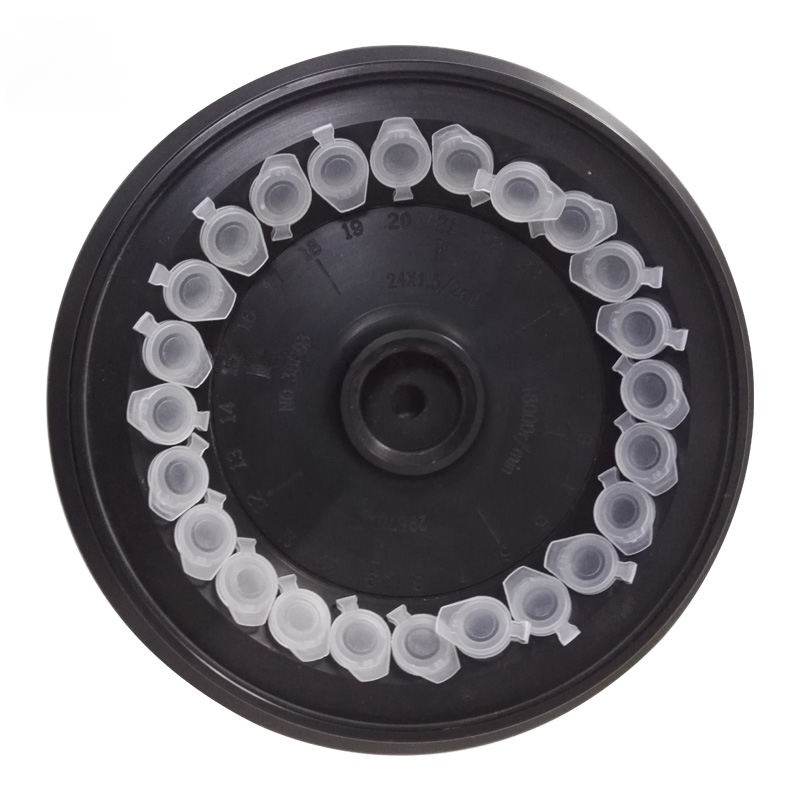

| No30803 | Angle rotor | 17000 | 24×1.5/2ml | 26460 |
| No30404 | Angle rotor | 13500 | 30×1.5/2ml | 19340 |
| No30805 | Angle rotor | 16000 | 16×5ml | 22020 |
| No30806 | Angle rotor | 16000 | 12×7ml | 21380 |
| No30407 | Angle rotor | 10000 | 12×15ml | 11840 |
| No30808 | Angle rotor | 15000 | 12×10ml | 22680 |
| No30809 | Angle rotor | 15000 | 8×20ml | 22680 |
| No30810 | Angle rotor | 14000 | 6×30mi | 19060 |
| No30811 | Angle rotor | 12000 | 6×50ml | 16050 |
| No30812 | Angle rotor | 12000 | 6×70ml | 15570 |
| No30813 | Angle rotor | 12000 | 4×100ml | 14850 |
| No30814 | Angle rotor | 10000 | 6×100ml | 11380 |
| No30815 | Angle rotor | 16000 | 6×10ml | 21500 |
| No30816 | Angle rotor | 18000 | 30×0.5ml | 26660 |
| No30844 | Angle rotor | 13000 | 48×1.5/2ml | 17930 |
| No30480 | Swing rotor | 15000 | 4×5ml | 19920 |
| No30435 | Vertical rotor | 16000 | 16×5ml | 16540 |
| No30676 | Bucket rotor | 4000 | 2×3×48hole | 2300 |
APPLICATION
Biotechnology Biochemistry- Clinical Diagnostic Laboratories
- Pharmaceutical Chemical Industries
- Environmental and Research
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
