DESCRIPTION

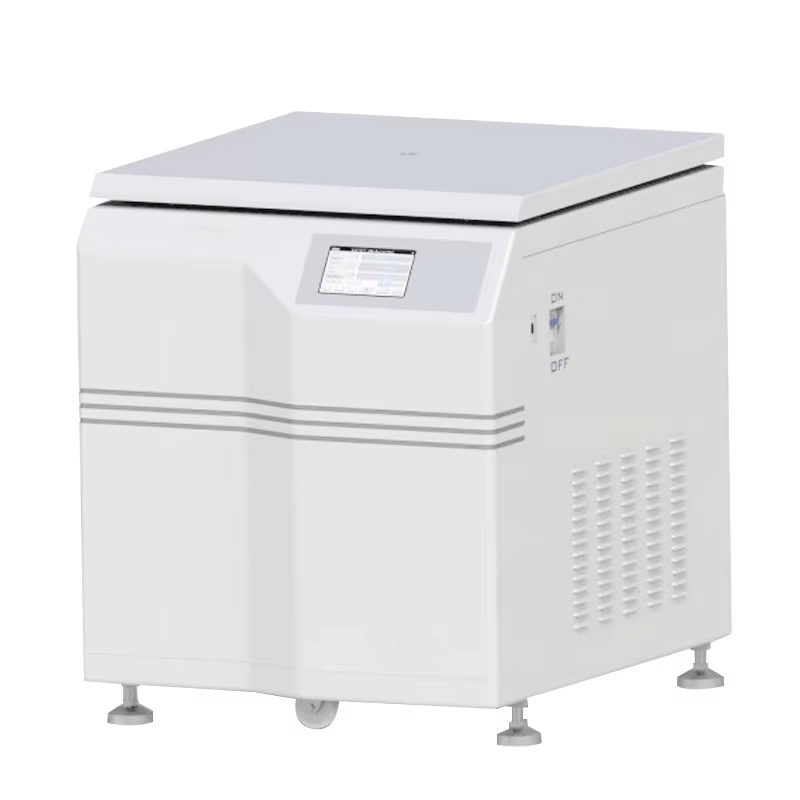

The OQR-30 laboratory ultra high speed centrifuge has a maximum speed of 30,000 rpm/min, a speed error of less than 0.1%, a fully automatic vacuum system, and can be equipped with a titanium alloy angle rotor. The fastest acceleration and deceleration time from 0-30,000 rpm (8×50ml angle rotor) is within 5 minutes. It is safer and more reliable, and can meet the various experimental needs of customers. It is widely used in scientific research, pharmaceuticals, biological products, and other fields.
FEATURES
1. Maintenance-free AC variable frequency motor speed regulation, high precision, ultra-low noise.
2. 7-inch high-definition color touch screen: can store up to 100 sets of commonly used programs, and can simultaneously display speed (centrifugal force) time, cavity temperature, lifting gear, rotor number, fault code, speed, time, temperature and other parameters can be modified during centrifugation.
3. Rotor dynamic inertia detection to increase the safety of the operator.
4. The rotor has a self-locking function, which is safe and reliable.
5. The rotor automatic identification system sets the maximum speed of the rotor to prevent overspeed.
6. Constant speed timing function: the operation time starts from reaching the set speed;
7. Electric locking cover device to achieve the best operating performance.
8. SOFT function for gentle start and brake.
9. 10 preset acceleration and deceleration curves.
10. The motor is equipped with an unbalance protection mechanism, and the motor automatically stops after exceeding the set unbalance value.
11. Temperature range: between -20℃ and +40℃, intelligent standby cooling function, ensures reliable cooling of sensitive samples before and after centrifugation, even at the highest speed, and can keep the centrifuged sample temperature ≤4℃.
SPECIFICATIONS
| Model | OQR-30 |
| Max. speed | 30000rpm |
| Max. RCF | 106848×g |
| Max. volume | 6×1000ml |
| Timer | 1~9h59min |
| Noise | ≤ 62dB |
| Temperature range | -10℃~40℃ |
| Speed accuracy | ±50r/min |
| Power | 220V/50HZ, 5kw |
| Dimension (W*D*H) | 790×923×920mm |
| Net weight (Kg) | 270KG |
OPTIONAL

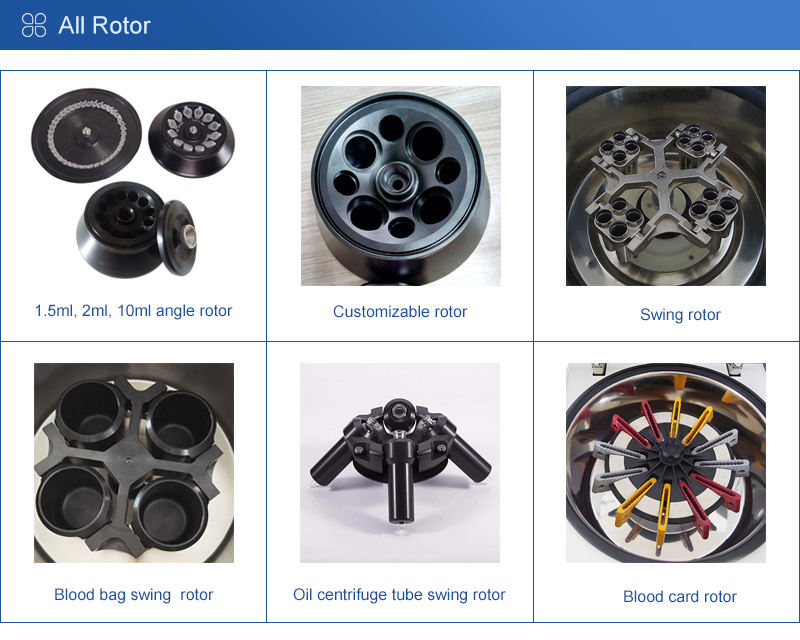

Optional Rotors:
| Rotors type | Max. Speed(r/min) | Volume | Max. RCF |
| Angle rotor (titanium alloy) | 30000rpm | 8x50ml | 106848xg |
| Angle rotor | 25000rpm | 8x50ml | 75620xg |
| Angle rotor | 25000rpm | 24x15ml | 74200xg |
| Angle rotor (titanium alloy) | 31000rpm | 6x50ml | 103326xg |
| Angle rotor | 22000rpm | 48×1.5/2.2ml | 52524xg |
| Angle rotor | 21000rpm | 18x10ml | 49800xg |
| Angle rotor | 18000rpm | 10x100ml | 47900xg |
| Angle rotor | 16000rpm | 6x100ml | 33123xg |
| Angle rotor | 15000rpm | 12x50ml | 31991xg |
| Angle rotor (pointed bottom) | 15000rpm | 8x15ml | 25956xg |
| Angle rotor | 13500rpm | 6x250ml | 30300xg |
| Angle rotor (pointed bottom) | 12000rpm | 12x50ml | 23310xg |
| Angle rotor | 10000rpm | 6x500ml | 17248xg |
| Angle rotor | 8000rpm | 6x1000ml | 14766xg |
| Angle rotor | 9000rpm | 4x1000ml | 17054xg |
| Adapter | 9000rpm | 20x50ml | 10823xg |
| Adapter | 9000rpm | 36x15ml | 11254xg |
| Horizontal rotor | 4200rpm | 4x750ml | 3060xg |
APPLICATION
Biotechnology Biochemistry- Clinical Diagnostic Laboratories
- Pharmaceutical Chemical Industries
- Environmental and Research
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
