2 Advantages Of OQT Drying Oven/Incubator(Dual-use)
- 1. Multi-function control panel
- 2. Multi-function button settings

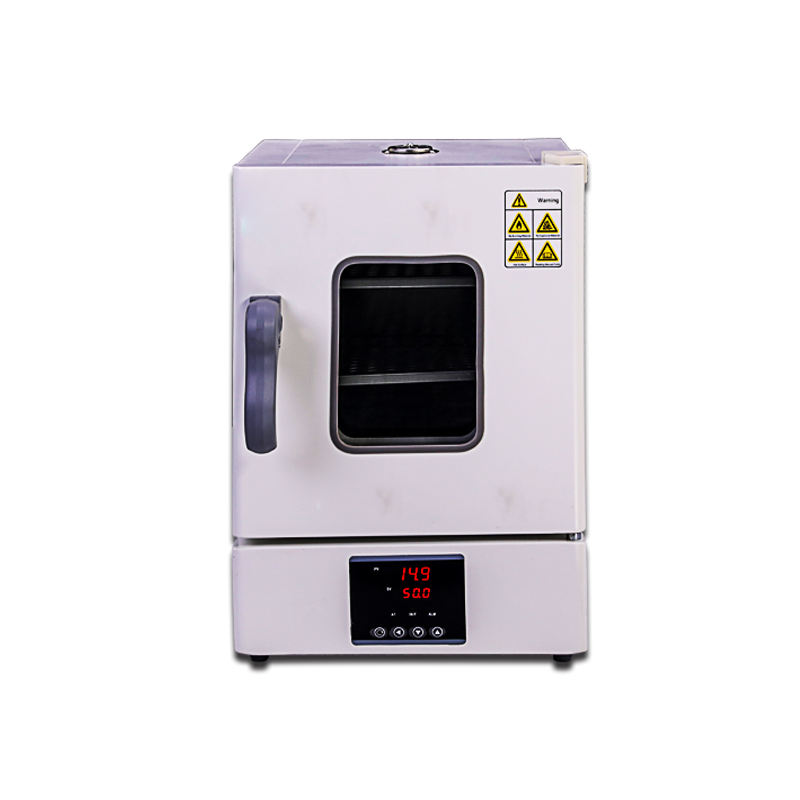

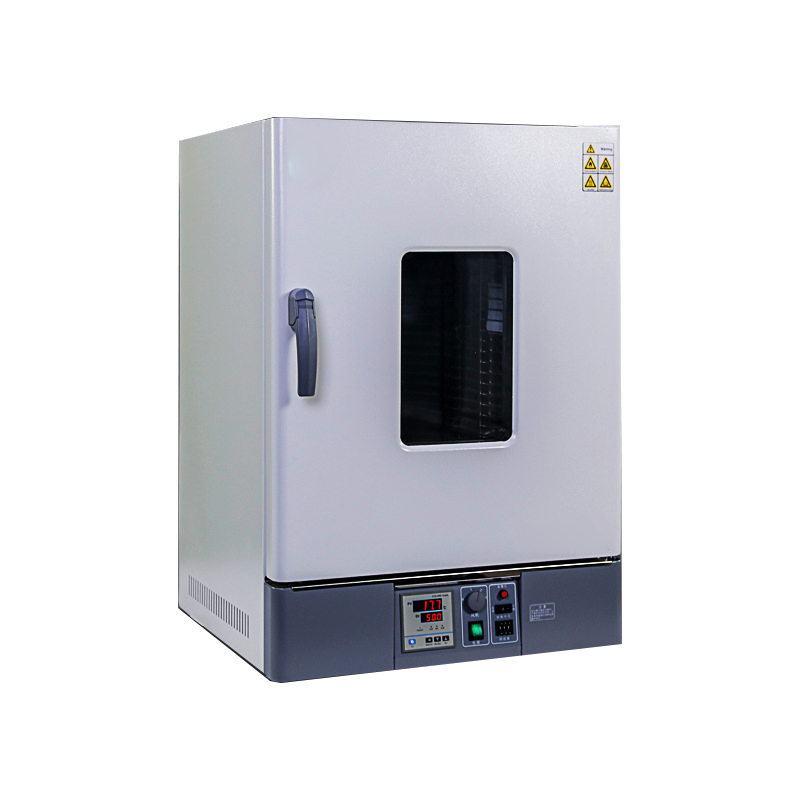

DESCRIPTION
The culture/drying (dual-use) box has the characteristics of high quality, reliability and safety, and the cover is used for air forced convection. Widely applicable to universities, research and production units.
FEATURES
1. High precision, high efficiency, safety, wide range
2. Vertical double duct air sleeve
3. Convenient operation, constant value operation, regular operation and automatic stop
4. Special function key to realize temperature setting
5. Auxiliary menu, realize over rising alarm, deviation correction and menu locking
6. Forced air supply by centrifugal turbine makes the temperature more uniform
7. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan <50 ℃, long-term and long-life operation
8. Speed-regulating fan enables the use of light, small and powdery samples
SPECIFICATIONS
| Model | OQP-30B/
OQP-30BE |
OQP-45B/
OQP-45BE |
OQP-65B/
OQP-65BE |
OQP-125B/
OQP-125BE |
|
| Mode | Double duct forced convection | ||||
| Performance | Temperature control range | Dry oven:RT+5-80℃; incubator:80-250℃ | |||
| Temperature resolution | 0.1℃ | ||||
| Constant temperature fluctuation | Dry oven:±0.5℃ ; incubator:±1℃ | ||||
| Temperature uniformity | Dry oven:±1℃ ; incubator:±2.5% | ||||
| Constitute | Interior Material | stainless steel | |||
| Exterior Material | Cold rolled steel sheet, surface coating | ||||
| Thermal insulation material | Polyurethane | ||||
| Heater | Stainless steel heating pipe | ||||
| Rated power Dry oven | 0.8kw | 1.2kw | 1.6kw | 2.3kw | |
| Rated power incubator | 0.3kw | 0.3kw | 0.4kw | 0.6kw | |

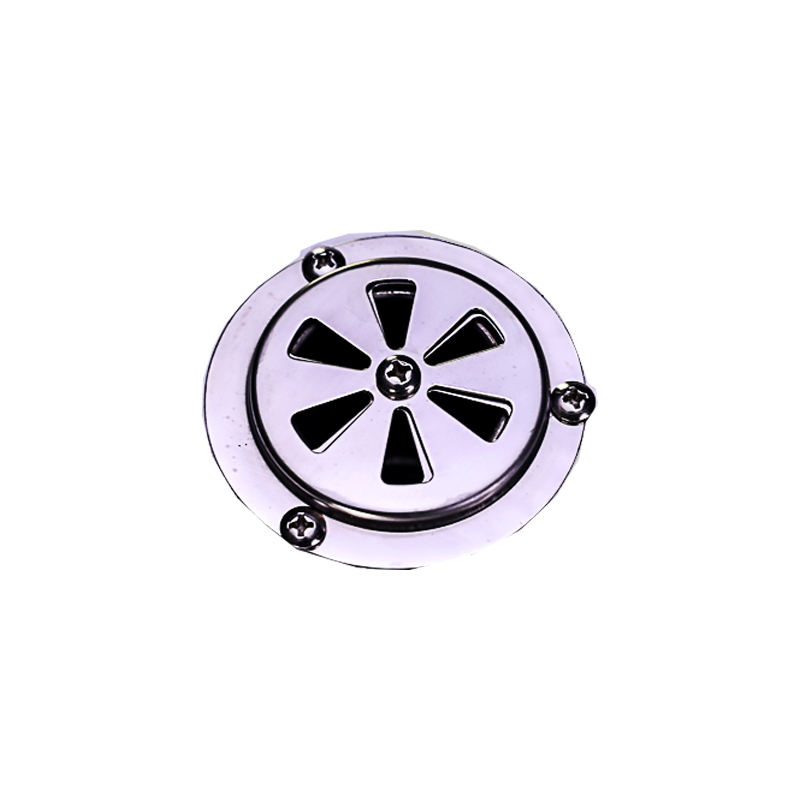

| Exhaust vent | Inner diameter 28mm*1, located at the top | ||||
| Controller | Temperature control mode | B: Digital tube dual-row PID; BE: LCD | |||
| Temperature setting mode | Touch four-button setting | ||||
| Temperature representation | Measuring temperature display: Four-digit digital upper display; Setting temperature display:Four-digit digital lower display | ||||
| Measuring temperature display: LCD upper position; Setting temperature display: LCD bottom position | |||||
| Timer | 0~9999min (with timing waiting function) | ||||
| Operation function | fixed value operation, timing operation, automatic stop | ||||
| Program mode | Optional | ||||
| Additional functions | Deviation correction, menu key locking, power failure compensation, power failure memory BE:Overrise preventer | ||||
| Sensor | Pt100 | ||||
| Safety device | Overload protection, BE:Overrise preventer | ||||
| Specifications | Internal dimensions (mm) | 310*310*310 | 350*350*350 | 400*360*450 | 500*450*550 |
| External Dimensions (mm) | 445*487*671 | 485*527*722 | 534*538*822 | 634*628*922 | |
| Package size | 560*560*830 | 600*600*857 | 670*620*960 | 760*700*1060 | |
| Internal volume | 30L | 45L | 65L | 125L | |
| Diaphragm bearing | 15kg | ||||
| Number of shelves | 6 | 7 | 9 | 13 | |
| Shelf spacing | 35mm | ||||
| Rated current | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/10.5A | |
| Net / gross weight | 37/32 | 37/43 | 43/49 | 60/66 | |
| Accessories | Partition frame | 4 | |||
| Shelf | 2 | ||||
| Configuration can be increased | Shelf, RS485 interface, printer, recorder, external communication, remote control, Program temperature controller, wireless SMS alarm, U disk data storage | ||||
APPLICATION
Research and Development-
Biotechnology Pharmaceutical
-
Food and Beverage Processing
-
Industrial Applications
-
Environmental Testing
-
Textile and Apparel Industry
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
