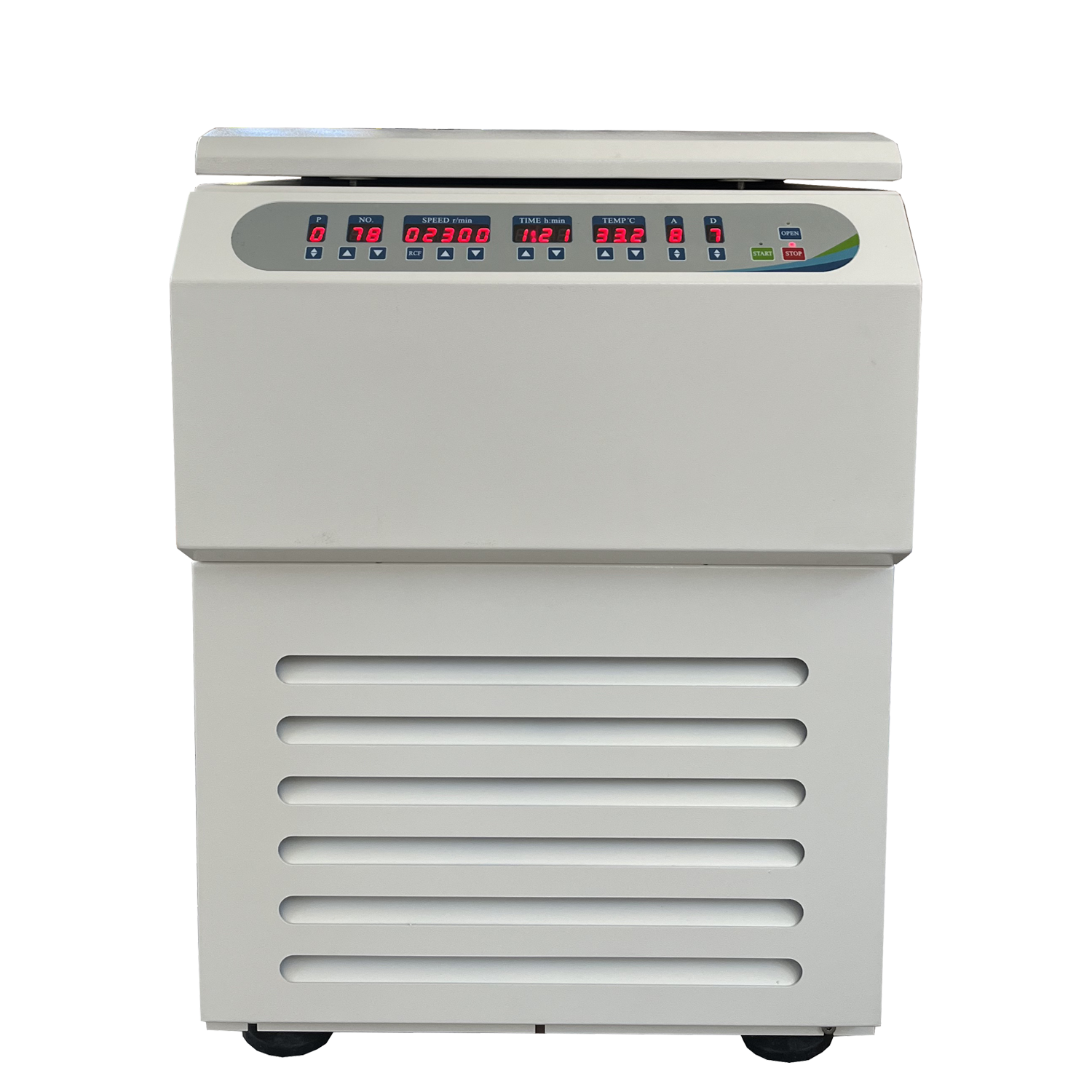

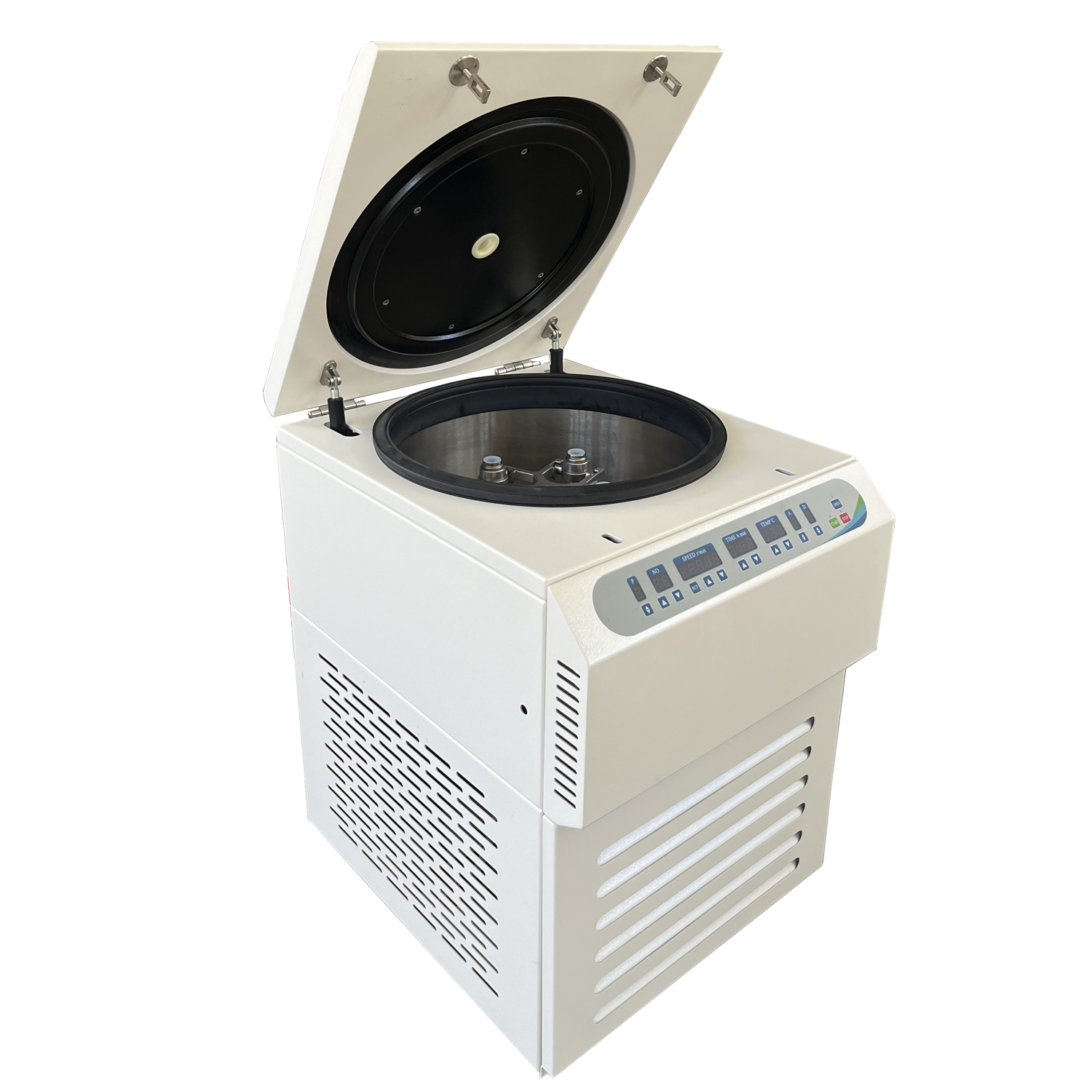

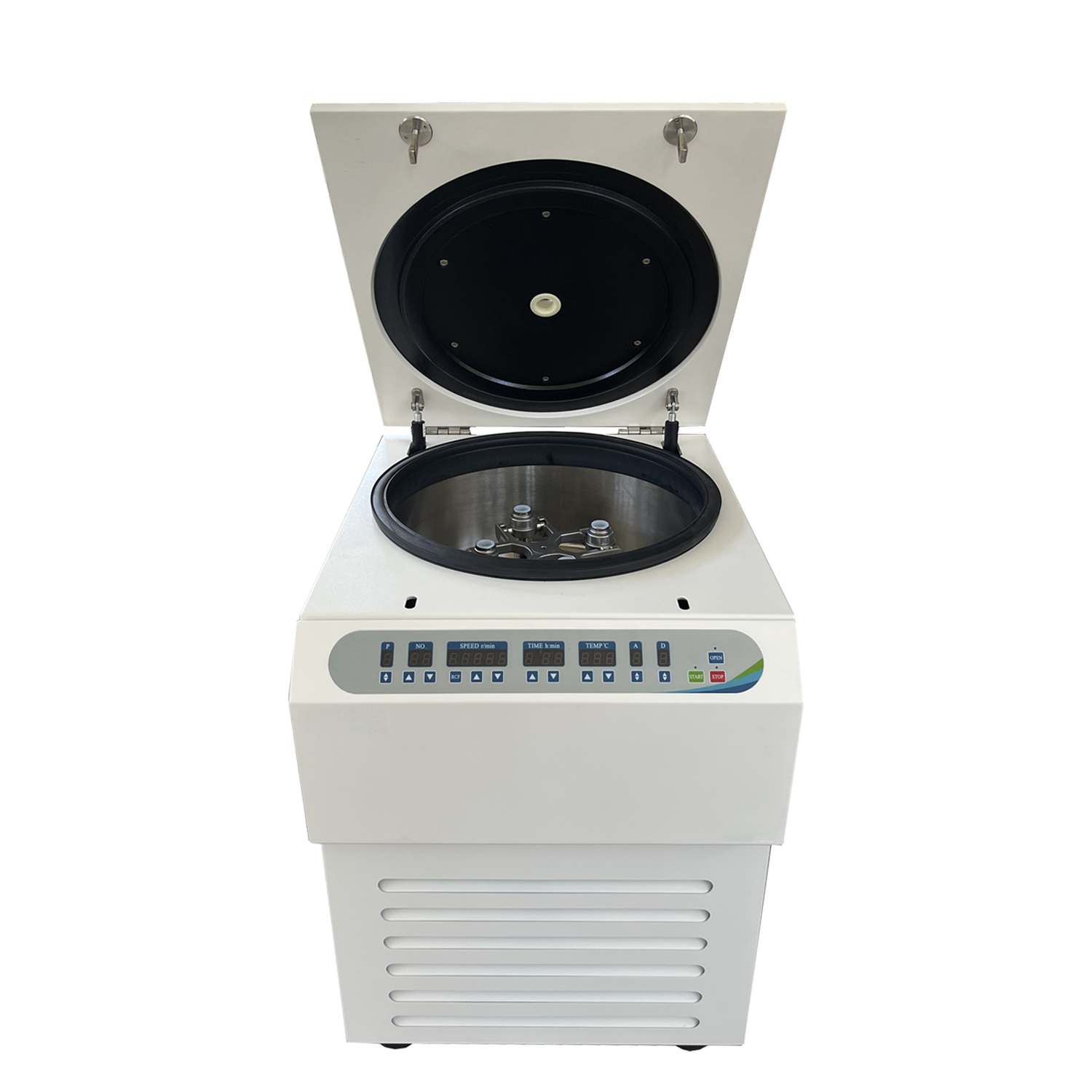

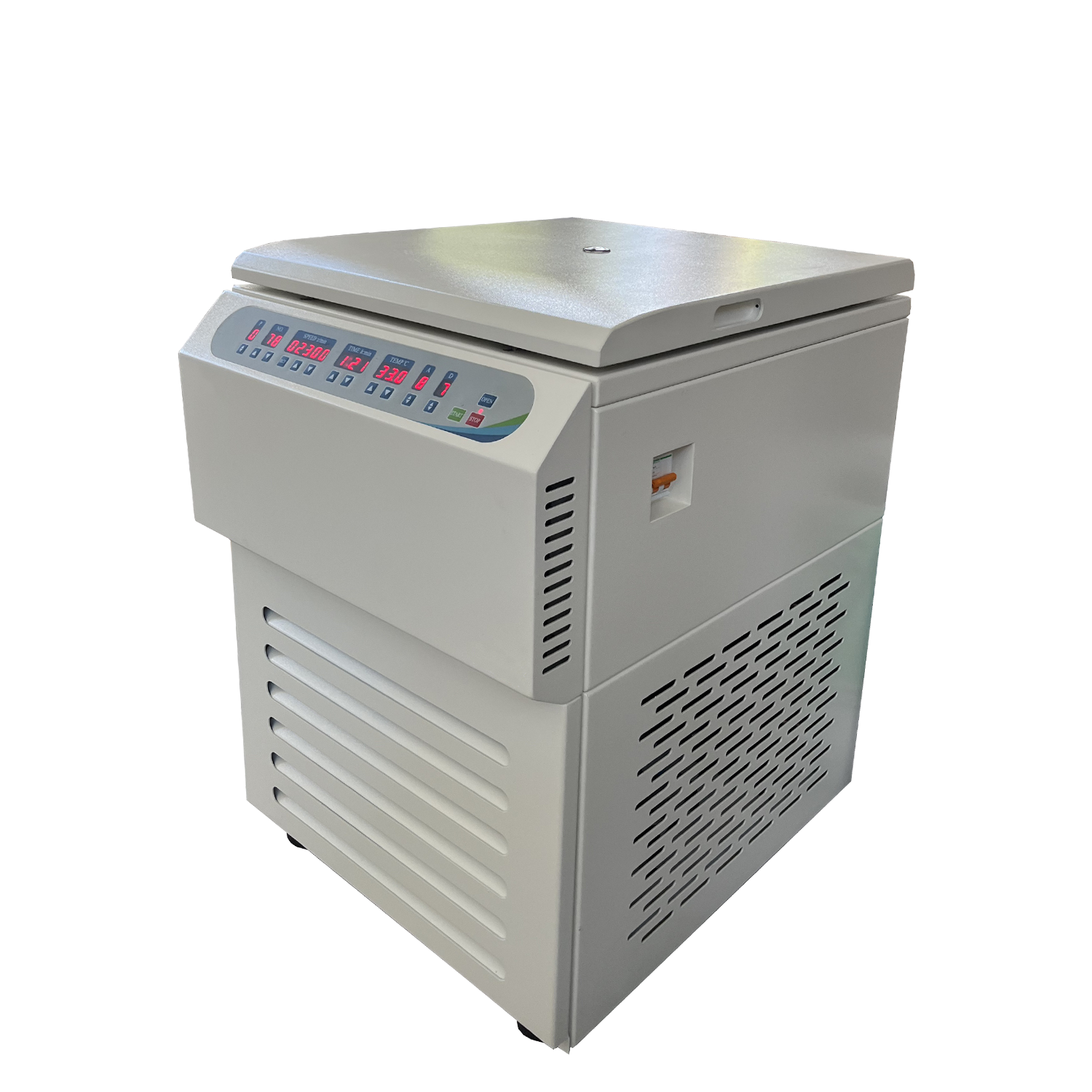

DESCRIPTION
OQ-6 low speed centrifuge widely used in the field of blood station、pharmaceutical factory、biochemistry、biological products and so on. it is the ideal instrument for blood separation、protein precipitation and cell collection.
FEATURES
1. Brushless DC inverter motor, no dust, maintenance-free, large torque, fast lifting speed.
2. The flexible shaft drive system directly drives the rotor, which runs smoothly, with low vibration and low noise.
3. Door cover independent motor servo, reduce the labor intensity of the operator, overspeed, over temperature automatic protection, unbalance protection, the fuselage uses high quality steel structure; safe and reliable, easy to use.
4. The microcomputer processor precisely controls the speed and time, and displays the running speed and RCF value in real time. 10 kinds of lifting speed, 10 kinds of program storage.
5. A variety of rotors are available for selection and various adapters can be designed according to test requirements.
6. Three-stage damping, the best centrifugal effect.
SPECIFICATIONS
| Model | OQ-6 |
| Max speed | 6000r/min |
| Max. RCF | 6600×g |
| Max volume | 4×1000ml |
| Noise | ≤55dBA |
| Timer | 1～99h/59min |
| Speed accuracy | ±20r/min |
| Power supply | AC 220V 50HZ 20A |
| Net weight | 95 KG |
| Dimension | 792×640×855mm |
Optional rotors:
| NO. | Rotor type | Max. speed (r/min) | Max. volume (ml) | Max. RCF (xg) |
| No 32897 | Swing rotor | 4000 | 4×1000ml | 4060 |
| 40201—40208 Adaptor | ||||
| No 30221 | Angle rotor | 6000 | 4×300ml | 5390 |
| No 30222 | Angle rotor | 6000 | 6×300ml | 5660 |
| No 30223 | Angle rotor | 6000 | 6×500ml | 6600 |
| No 31494 | Bucket rotor | 4000 | 4×4×96 hole | 4430 |
APPLICATION
Biotechnology Biochemistry- Clinical Diagnostic Laboratories
- Pharmaceutical Chemical Industries
- Environmental and Research
