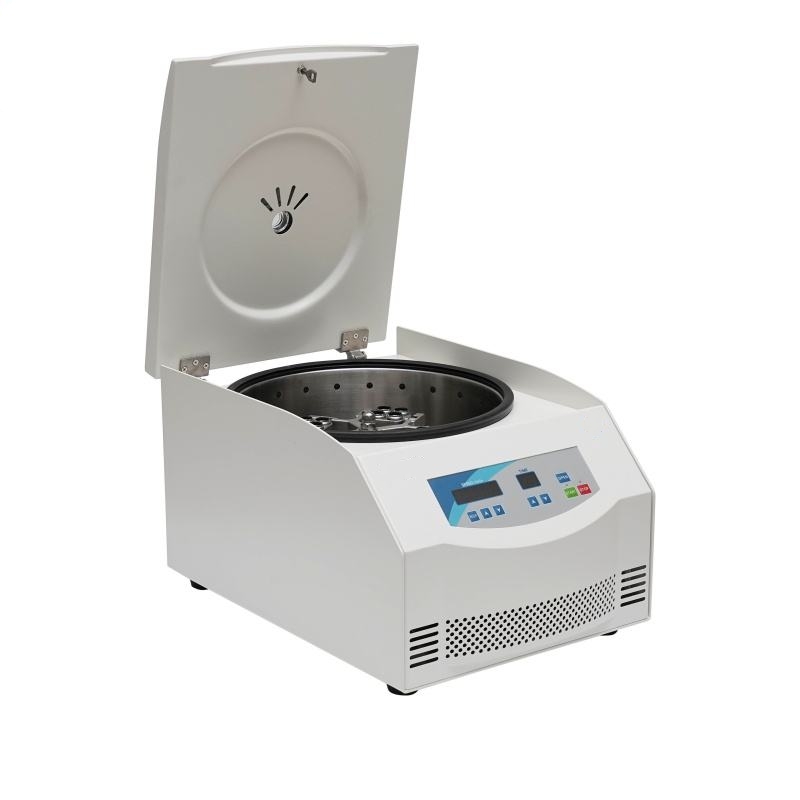

DESCRIPTION
Low-Speed Centrifuge are used for general laboratory applications, including biological sample separations of cellular materials, blood, urine, sperm etc. They are also used for clinical applications of PRP, PRF, lipid cell separation, stemcell isolation Low-speed, gentle centrifugation of microbead containing microplate Gentle, soft spin-down or washing of primary cells & cell line.
FEATURES
1. The desktop centrifuge has a large capacity and can hold 4 250ml blood bags or 4 500 test bottles.
2. Microcomputer processor for precise control, digital display of speed, time and other parameters, button programming, switching display operating parameters and RCF values.
3. High-torque brushless DC motor, which is easy to operate; it is maintenance-free, dust-free. Speed increasing and decreasing is very fast.
4. Door cover independent motor servo, reduce the labor intensity of the operator。 Overspeed and unbalance protection, the body is made of high quality steel structure.
5. Unique spring taper sleeve is used to connect the rotor and the spindle. The loading and unloading rotor is quick and easy, non-directional, safe and reliable, and easy to use
6. Equipped with a variety of rotors, and can be designed according to the test requirements of a variety of adapters, a multi-purpose machine.
The third-stage vibration reduction achieves the best centrifugal effect.
SPECIFICATIONS
| Max speed | 5000r/min |
| Max RCF | 3860×g |
| Max volume | 4×800ml |
| Timer | 0～99min |
| Dimensions | 685×500×405mm |
| Speed accuracy | ±50r/min |
| Power supply | AC 220V 50HZ 2A |
| Noise | ≤58dBA |
| Net weight | 108 KG |
Optional rotors:
| Rotor No. | Rotor type | Max . speed (r/min) | Capacity | Max. RCF |
| No31495 | Swing rotor(Round cup) | 4000 | 2×750ml(500mlTest cup) | 3380 |
| No31496 | Swing rotor(Round cup) | 4000 | 4×750ml(500mlTest cup) | 3380 |
| Suitable 40301—40308 Adaptor | ||||
| Swing rotor(elliptical cup) | 4000 | 4×500ml | 3380 | |
| No31392 | Swing rotor(Round cup) | 4000 | 4×300ml(250mlTest cup) | 2920 |
| Suitable 40401—40408 Adaptor | ||||
| No31389 | Swing rotor | 4000 | 4×22×5ml(vacuum tube) | 2840 |
| 4×31×5ml(Exempting tube) | ||||
| No31390 | Swing rotor | 4000 | 4×22×7ml(vacuum tube) | 3140 |
| 4×31×7ml(Exempting tube) | ||||
| No31491 | Swing rotor(elisa plate) | 4000 | 2×4×96holes | 2490 |
| No31494 | Swing rotor(elisa plate) | 4000 | 4×4×96holes | 2840 |
| No31376 | Swing rotor(elisa plate) | 4000 | 2×3×48holes | 2300 |
| No31479 | Swing rotor(Square cup) | 4000 | 4×500ml | 3310 |
| Suitable 40101—40108 Adaptor | ||||
| No31493 | Swing rotor | 4000 | Cream bottle | 3830 |
| No30627 | Angle rotor | 5000 | 30×15ml | 3830 |
| No30638 | Angle rotor | 5000 | 6×15ml | 2540 |
| No30607 | Angle rotor | 5000 | 12×15ml | 3080 |
| No30639 | Angle rotor | 5000 | 24×15ml | 3500 |
| No30640 | Angle rotor | 5000 | 4×50ml | 2520 |
| No30611 | Angle rotor | 5000 | 6×50ml | 2850 |
| No30641 | Angle rotor | 5000 | 12×50ml | 3860 |
| No30642 | Angle rotor | 4000 | 24×50ml | 2970 |
| No30613 | Angle rotor | 5000 | 4×100ml | 2630 |
| No30614 | Angle rotor | 5000 | 6×100ml | 3130 |
| No30643 | Angle rotor | 4000 | 12×100ml | 2970 |
| No30671 | Swing rotor | 4000 | 4X800ml | 3450 |
APPLICATION
Biotechnology Biochemistry- Clinical Diagnostic Laboratories
- Pharmaceutical Chemical Industries
- Environmental and Research
