DESCRIPTION

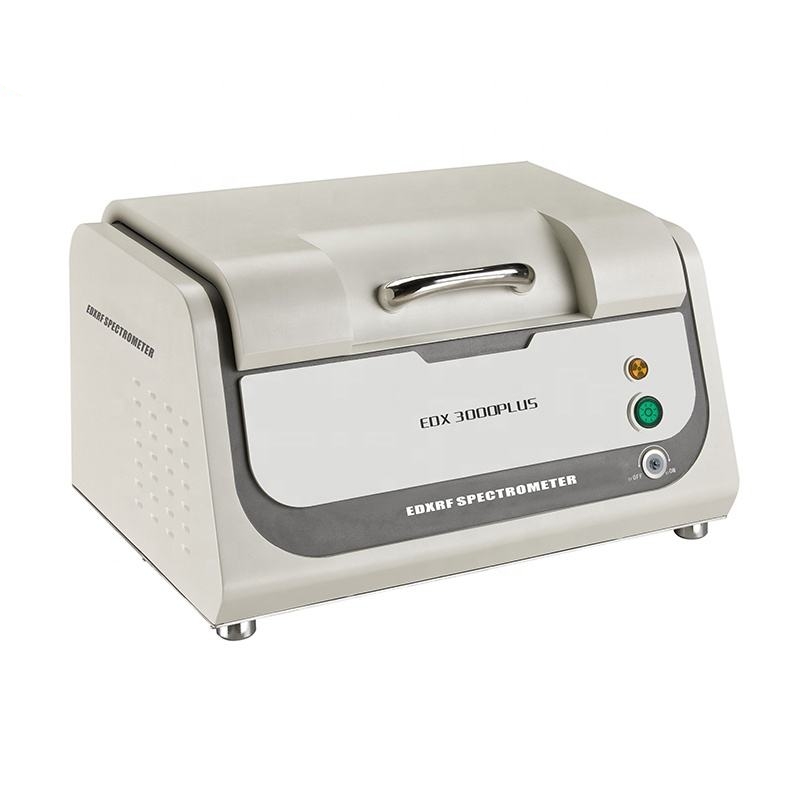

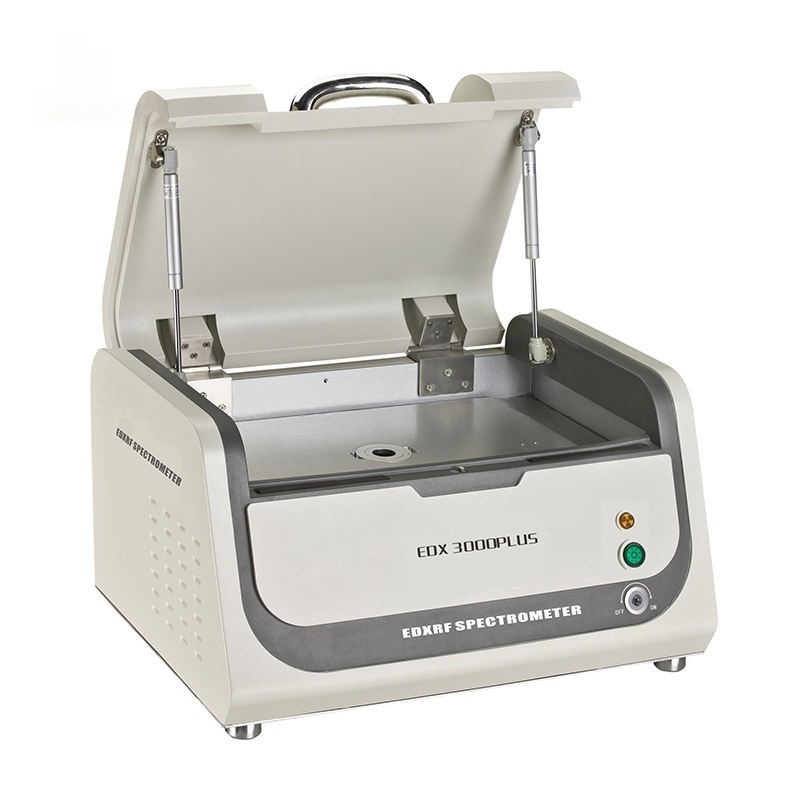

EDX3000 PLUS most obvious features are outstanding high precision, high resolution, HD camera. One-key intelligent operation, simples the testing of precious metals.
Application fields
Content testing of gold, platinum, silver and other precious metals in various kinds of ornaments. Precious metals mainly refer to gold, silver and platinum family (Ruthenium, rhodium, palladium, osmium, tetroxide, iridium, platinum).
FEATURES
1. Equipped with the best silicon drift detector (SDD), the instrument, with the resolution of 139±5ev, compared to the common Si-PIN detector resolution of 160±5eV, can better test the content of iridium and gold in platinum.
2. Equipped with 25m㎡beryllium window detector, it greatly enhances the sample’s receiving ability of X-ray fluorescence. With digital multi-channel analysis technology, it improves the analytical speed and integral processing ability. Its counting rate accounts to 80,000, increasing by 5 to 10 times as compared to common Si-PIN 6m㎡ detector and its precision improves by 2 to 4 times.
3. Providing mare clear images and achieving precise positioning.
4. Fully application of basic parameters method, it only needs one-key for matching the curves.
SPECIFICATIONS
| Model | EDX3000 Plus |
| Analytical Content | ppm to 99.99% |
| Measurable range | S to U |
| Long-term working stability | 0.05% (content≥96%) |
| Ambient temperature | 15°C to 30°C |
| Power input | AC 220V±5V (equipped with purified stabilized voltage power supply is recommended) |
| Energy resolution | 139±5ev |
| Sample chamber dimension | 439mmx300mmx50mm |
| Instrument dimension | 550mmx410mmx320mm |
| Weight | 45kg |
CONFIGURATION LIST
- Signal-to-Noise Enhancer
- SDD Detector
- Digital multi-channel analysis system
- High & low voltage power supply
- Big power X-ray light tube
APPLICATION
Alloy and Metals Analysis-
Environmental Monitoring and Analysis
-
Mining and Exploration
-
Geological Archaeological Research
-
Pharmaceuticals Medical Research
-
Quality Control Processes
-
Art Conservation and Authentication
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
