DESCRIPTION

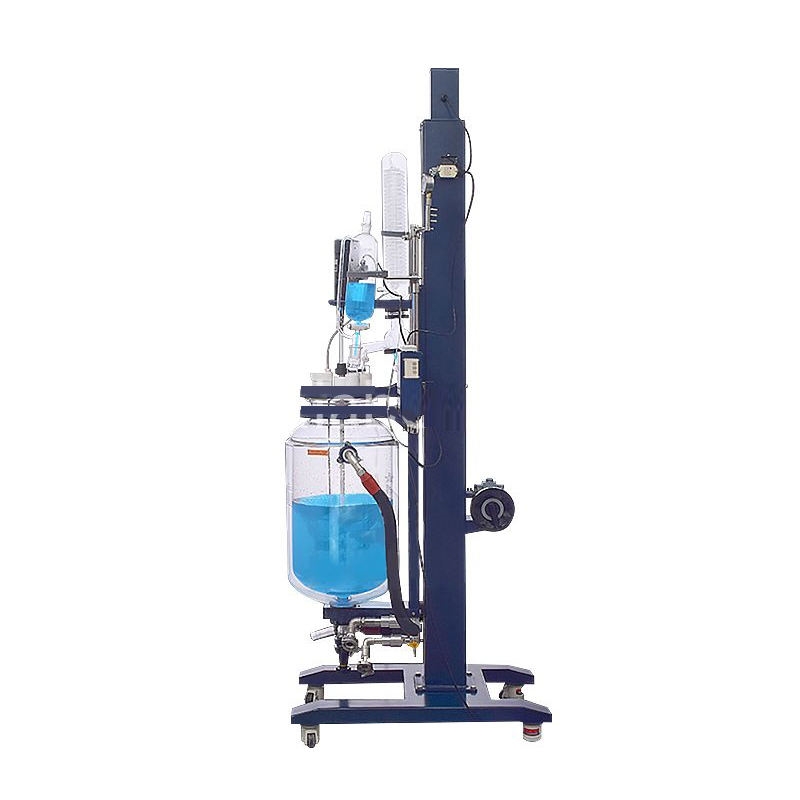

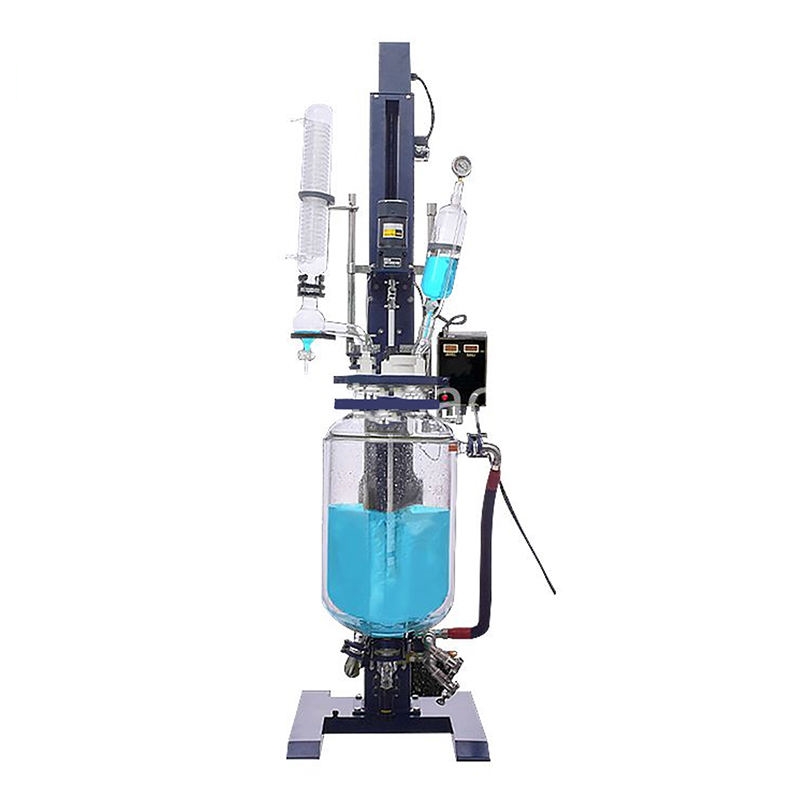

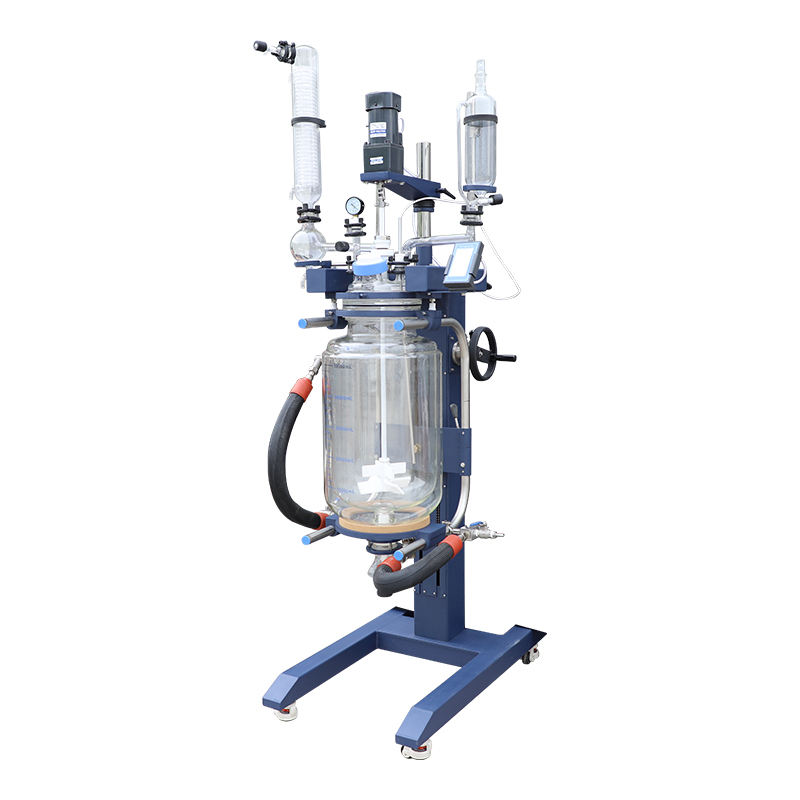

Glass reactor (device) series products are mainly used in the test and production of pharmaceutical, chemical, biological products and other industries. This product is under the condition of vacuum and negative pressure, using the principle of constant speed stirring to evenly stir the raw materials, so that the materials can react in the kettle body, the glass interlayer can be connected with high-temperature circulation equipment to heat, evaporate, separate, solvent recovery, etc. ;It can also be connected with external refrigeration cycle equipment for low-temperature reaction of the materials in the kettle; if there are two needs of heating and cooling during the material reaction process, an external high-low temperature cycle device can be connected. And all parts in contact with materials are made of high temperature and corrosion resistant borosilicate glass and polytetrafluoroethylene materials, which are especially suitable for the reaction of biological products that are easy to decompose and denature, and are not easy to produce chemical reactions with various materials.
FEATURES
1. The reactor body is made of borosilicate glass (GG-17), which has excellent physical and chemical properties, and the bottle is transparent and visible.
2. The main body is made of stainless steel frame + aluminum alloy, which is beautiful and strong and corrosion resistant.
3. Stainless steel stir bar is surrounded by PTFE, suitable for a variety of solvent agitation, pollution-free and corrosion-resistant.
4. The stirring motor and the lifting motor are all low-speed booster motors, which are stable in operation, large in torque, non-sparking and long in life.
5. PTFE components + mechanical seals, proprietary technology, good vacuum and long service life.
6. This product governor is the speed and temperature double digital display. The speed can be set by the speed control knob, which is intuitive and convenient. It is also equipped with a temperature probe (PT100) in the kettle (the temperature of the material in the kettle can be displayed).
7. The overall structure is compact and reasonable, with a brake universal wheel, which can be moved as a whole and is easy to operate.
8. There is no dead angle glass oblique discharge valve, which can effectively reduce the dead angle of mixing and convenient feeding.
9. This product is equipped with a vacuum display function, which can select the best working vacuum for high boiling point materials.
SPECIFICATIONS
| Model | OQT-10S | OQT-20S | OQT-30S | OQT-50S | |
| Kettle capacity | 10L inner diameter 230mm, outer diameter 290mm, inner length 354mm | 20L inner diameter 290mm, outer diameter 330mm, inner length 386mm | 30L inner diameter 330mm, outer diameter 365mm, inner length 481mm | 50L inner diameter 365mm, outer diameter 410mm, inner length 576mm | |
| Mezzanine capacity | about 8L | about 7L | About 9L | About 16L | |
| Voltage frequency | 220V/50Hz | ||||
| Total power | 130W | 160W | 160W | 160W | |
| Stirring motor power | 90W 1/3 | 120W 1/3 | 120W 1/3 | 120W 1/3 | |
| Lifting motor power | 40W 1/12.5 | ||||
| Stirring speed | 0-450rpm/min | ||||
| Kettle body temperature range | -80℃～+250℃ | ||||
| Temperature measurement accuracy | ±1℃ | ||||
| Vacuum | 0.098Mpa | ||||
| Kettle cover Φ265mm; six ports (full PTFE cover) | Stirring port | Φ50mm screw port | |||
| Condensation return port | 50# ball grinding port | ||||
| Constant pressure funnel mouth | 40# standard mouth | ||||
| Pressure relief port | 34# standard mouth | ||||
| Temperature measuring port | 24# standard mouth | ||||
| Solid feeding port | Φ80mm threaded port, inner diameter 50#mm | ||||
| Stirring paddle | Φ17×700H(mm), leaf span 150mm | Φ17×750H(mm), leaf span 190mm | Φ17×1000H(mm), leaf span 190mm | Φ17×1000H(mm), leaf span 190mm | |
| Condenser | Φ100×600H(mm), lower Φ60 flange | Φ100×600H(mm), lower Φ60 flange | Φ120×600H(mm), lower Φ60 flange | Φ120×600H(mm), lower Φ60 flange | |
| Condensation area | 0.4㎡ | 0.4㎡ | 0.5㎡ | 0.5㎡ | |
| Return elbow | Upper Φ60 flange port, left 50# ball mill plug | ||||
| Constant pressure funnel | 1L, the upper 29# standard port is equipped with a glass plug, the lower 40# standard plug; the lower part is equipped with a 40# standard port × 40# standard plug S-shaped adapter and the lid of the kettle | 2L, the upper 29# standard port is equipped with a glass plug, the lower 40# standard plug; the lower part is equipped with a 40# standard port × 40# standard plug S-type adapter and the lid of the kettle | |||
| Pressure reducing valve | 34# standard plug valve, air release nozzle (pagoda joint), outer diameter 12mm | ||||
| Mezzanine entry and exit circulation port | Φ45mm flange port is equipped with 6-point buffer device, and the external interface is 4-point wire port | ||||
| Discharge port | Φ75mm flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, 300mm from the ground | Φ75mm flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, 300mm from the ground | Φ75mm flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, 300mm from the ground | Φ75mm flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, ground clearance 290mm | |
| Vacuum nozzle | The outer diameter of the pagoda joint is 12mm | ||||
| Condensing coil inlet and outlet circulation nozzle | The outer diameter of the pagoda joint is 15mm | ||||
| Host lifting stroke | 600mm (actually, the stirring rod is 50mm away from the upper opening of the kettle lid) | 660mm (actually, the stirring rod is 50mm away from the upper opening of the kettle lid) | 640mm (actually, the stirring rod is 50mm away from the upper opening of the kettle lid) | 740mm (actually, the stirring rod is 50mm away from the upper opening of the kettle lid) | |

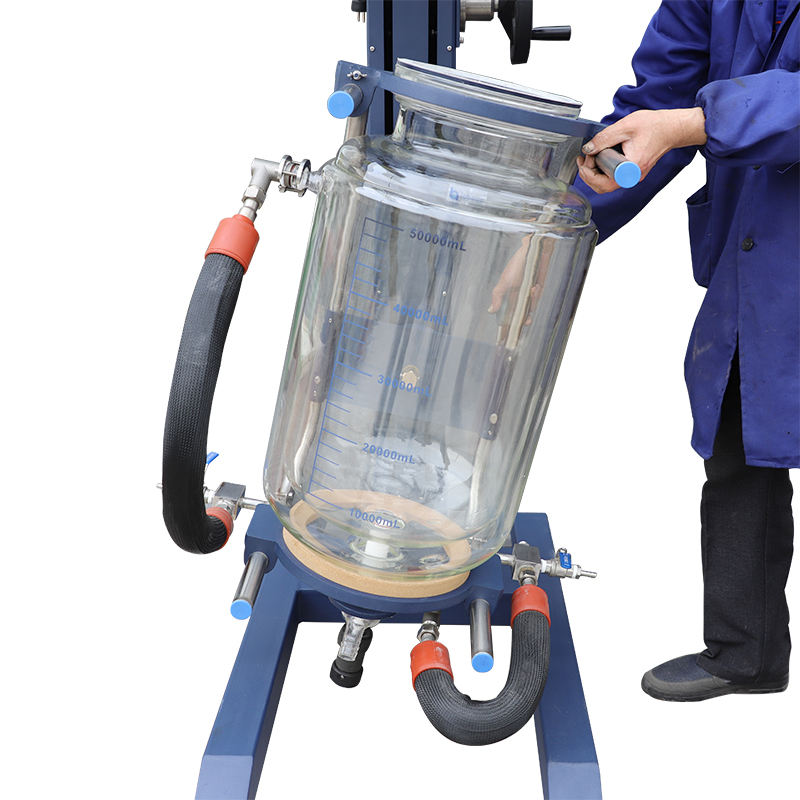

| Kettle rotation | Rotate left 150° | ||||
| The space occupied by the whole machine (W×D×H) | 700×850×(1820×2250 raised) mm | 750×920×(1920×2400 raised) mm | 750×950×(2150×2700 raised) mm | 750×950×(2320×2950 raised) mm | |
| Machine net weight | 120kg | 130kg | 142kg | 148kg | |
| Package Size | 1870×600×1020mm, wooden box 1.15m³ | / | 2180×680×1080mm, wooden box 1.6m³ | 2380×680×1080mm, wooden box 1.75m³ | |
| Package weight | 170kg | 185kg | 205kg | 225kg | |
