DESCRIPTION

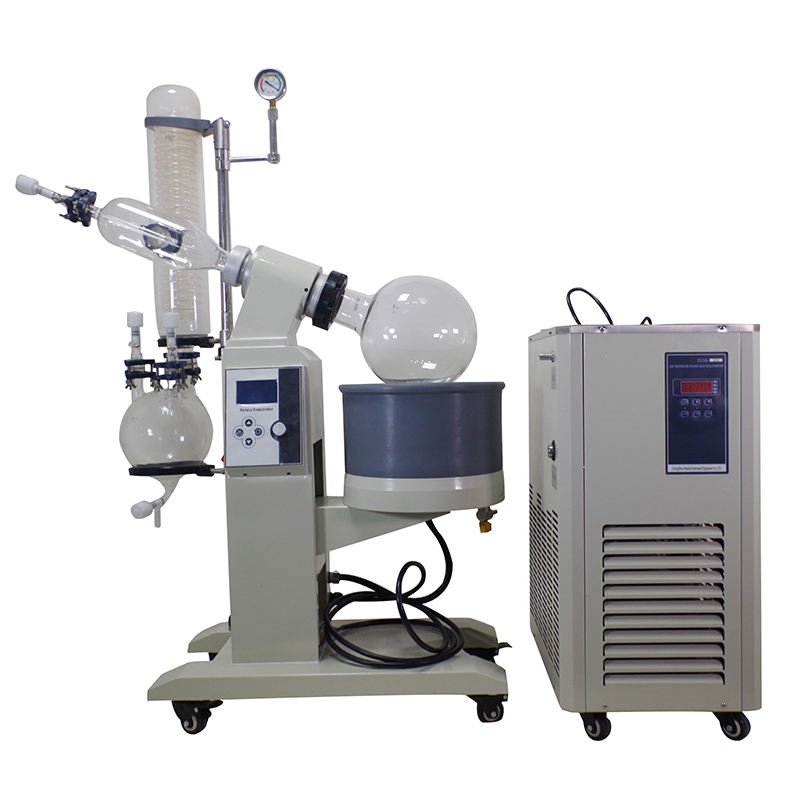

Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
FEATURES
1. The main body of the use of stainless steel + aluminum alloy, reasonable structure, materials stress.
2. Glass parts are all high borosilicate glass (GG-17), high temperature, anti-corrosion.
3. Sealing system imported fluorine rubber and Teflon two-way combination of sealed, corrosion-resistant long life, to maintain high vacuum.
4. Vacuum pressure gauge shows real-time vacuum, oily table with anti-vibration characteristics.

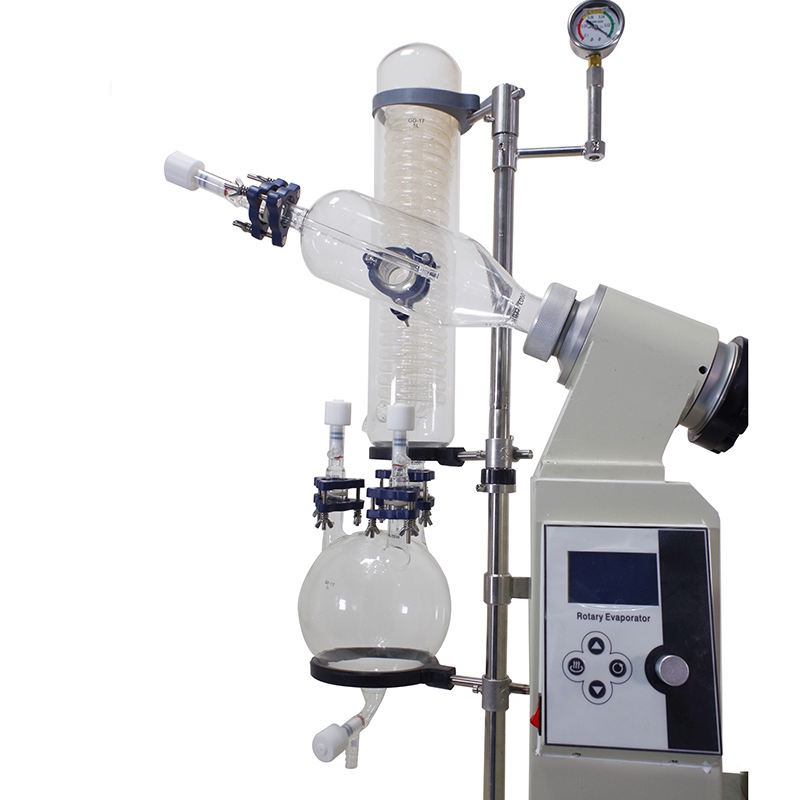

5. Vertical three-tier serpentine coil condenser, the main cold + cold dual condenser to ensure high recovery rate.
6. Can be continuous feeding for customers to use, valve-type feeding valve sets of tetrafluoroethylene tube.
7. Collection of bottles with a discharge material to facilitate the evaporation of the collection of extract, discharge.
8. Check valve control, continuous discharge, the machine in the working state, can be vacuum switch.
9. All valves with the latest one hand wheel valve, good sealing, the operation is more simple and convenient
10. Microcomputer power switch control.

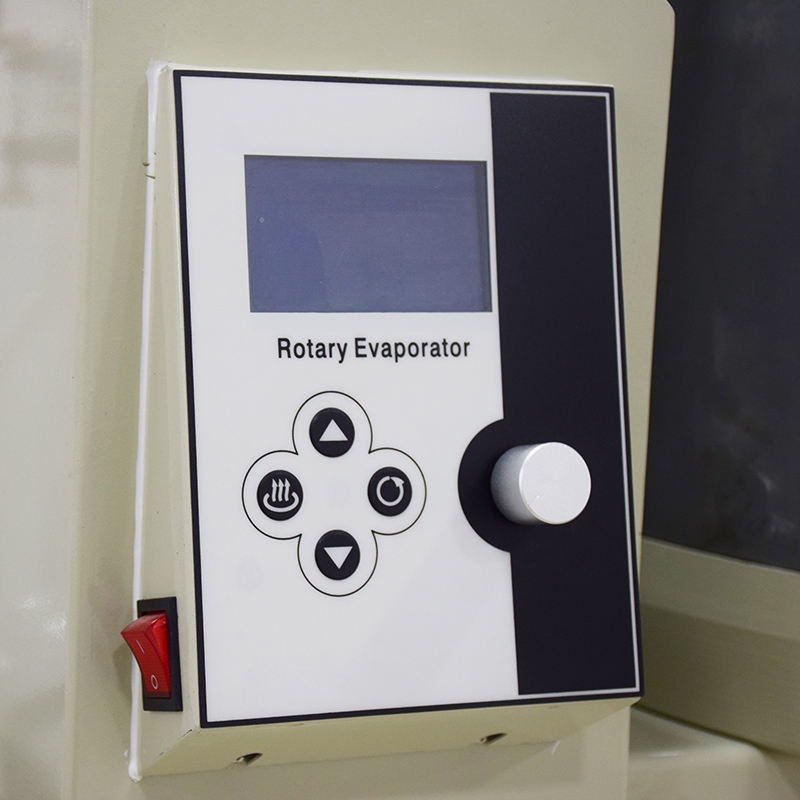

11. LCD full screen display, temperature, speed double digital display, bath pot thermostat control, PT100 sensor fast and accurate delivery temperature.
12. DC brushless motor, rotating stability, no spark, slow increase force.
13. Bath electric lift, lift part of the use of slowdown power motor, lifting process more smoothly.

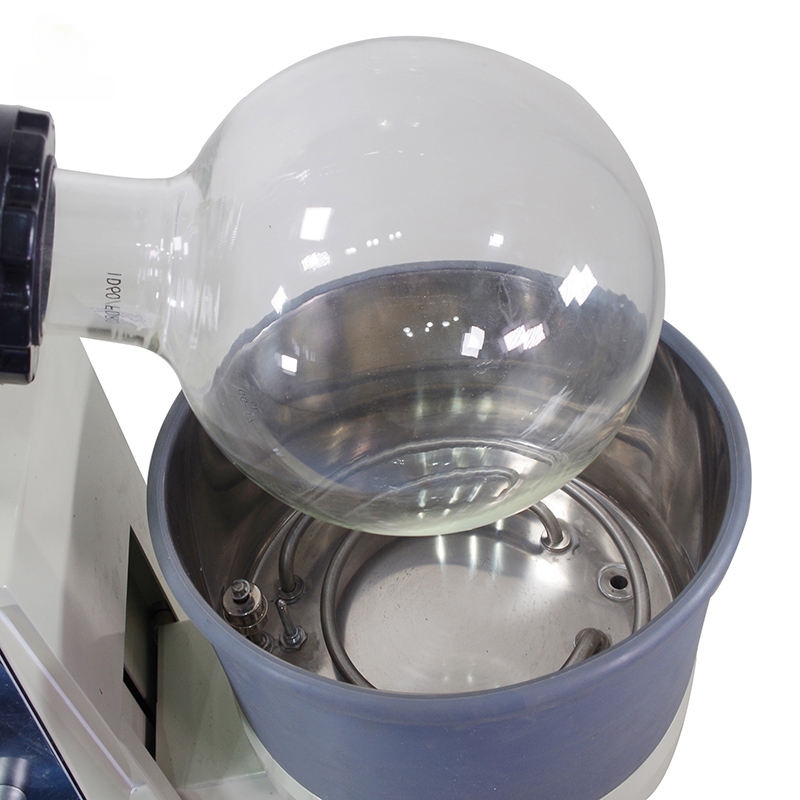

14. pot gallbladder with high quality 304 stainless steel, corrosion and durable, pot gallbladder outer layer of silicone layer, high temperature use more secure.
15. Over-temperature safety protection function, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically turn off the power.

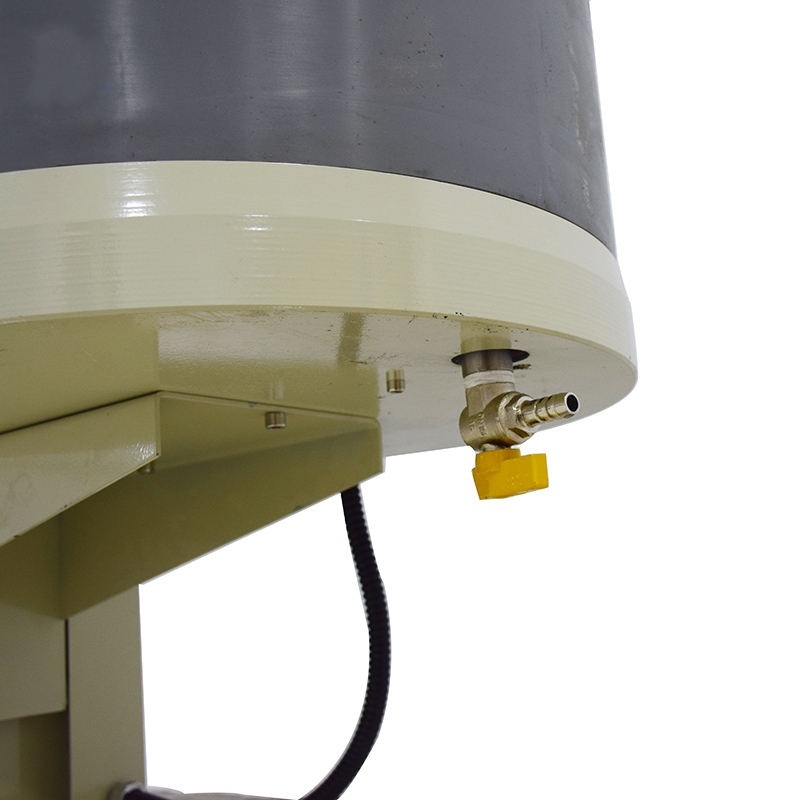

16. anti-dry function, heating pot water level below the heating pipe, the machine will automatically power off.
17. If the machine is suddenly powered off and the power is turned on again, the machine will automatically stop heating.
SPECIFICATIONS
| Model | OQT-5 |
| Voltage/Frequency | 220V/50HZ |
| Whole power | 2100W |
| Rotary power | 60W 1/5 |
| Lifting power | 40W 1/12.5 |
| Heating power | 2000W |
| Vacuum degree | 0.0095Mpa |
| Rotary flask volume | 5L,Φ230mm/Φ80 Flange port |
| Receiving flask volume | 3L,Φ195mm/Upper with Φ50 *Φ35 falnge *2, down with Φ50 flange port |
| Rotary speed | 0-120rpm/min |
| Temp.cotrolling range | room temperature -180℃ |
| Temp. accuracy | ±1℃ |
| Flask lifting distance | 140mm |
| Condenser size | Φ120*600H(mm), side Φ50 flange port * down with Φ50 flange port |
| Condensation area | 0.5㎡ |
| Air guide bottle | Left with Φ35 flange port , side with Φ50 flange port, right with Φ50 flange port |
| Charging valve | Φ35 flange port, glass+PTFE valve, feed nozzle (pagoda-shape connectors) outer diameter 12mm |
| Vacuum suction nozzle | Pagoda-shape connectors, outer diameter 10mm |
| Condensing coil in and out circuation nozzle | Pagoda-shape connectors, outer diameter 16mm |
| Vent valve | Φ35 flange port*2, glass+PTFE valve, vent nozzle (pagoda-shape connectors), outer diameter 12mm |
| Baiting valve | Φ50 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 260mm from the floor |
| Pot bravery size | Φ295*170H(mm) about 12L |
| Overall dimensions (W*L*H) | 980*480*1260mm |
| Net weight | 46kg |
| Packing dimensions | 800*450*1090mm , 0.39m³ |
| Packing weight | 68kg |
APPLICATION
Chemical Laboratories-
Pharmaceutical Industry
-
Essential Oil Extraction
-
Cannabis Industry
-
Food and Beverage Industry
-
Environmental Analysis
-
Academic Research
