DESCRIPTION
The system adopts multi-step purification process and ultraviolet sterilization and ultrafiltration technology. It is especially suitable for various physical and chemical testing, biochemical analysis, blood examination, microanalysis, and washing, HPLC, IC, GC, analytical experiments and other experimental projects.
FEATURES
1. Suitable for national water quality, the case adopts plastic spraying technology.
2. All the filter elements in the system adopt mold opening and injection molding technology and are built in the chassis.
3. Korean quick insert cartridges make replacement and maintance convenient.
4. Complete separation of electrical appliances from waterways to avoid circuit failures caused by moisture and water leakage.
5. Water quality online monitoring system, real-time measure water quality.
6. Automatic RO film anti-scaling and washing program，automatic stop when tap water is cut off, automatic stop when water is cut off, automatic fill water in storage bucket, automatic stop when water is full.
7. All pipelines have obtained NSF certification and have the function of upgrading water quality and quantity.
8. Equipped with portable TDs pen，it can test TDs content, conductance and water temperature anytime and anywhere.
9. Double electric water intake, two kinds of water quality, ready to use.
10. Front and back door design，easy and fast filter element replacement, the whole process without using any tools, easy to complete the filter element replacement.
SPECIFICATIONS
| Model | Standard; Eliminating endotoxin; Low TOC; Synthesizing | |||
| LD-WFUP-10 | LD-WFUP-F10 | LD-WFUP-V10 | LD-WFUP-VF10 | |
| LD-WFUP-20 | LD-WFUP-F20 | LD-WFUP-V20 | LD-WFUP-VF20 | |
| LD-WFUP-30 | LD-WFUP-F30 | LD-WFUP-V30 | LD-WFUP-VF30 | |

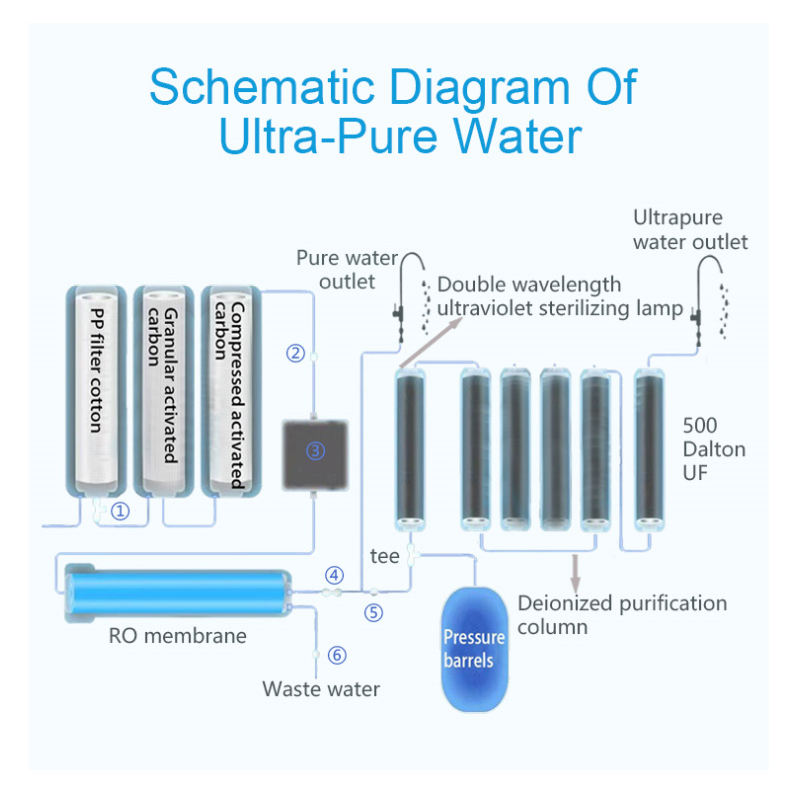

| Process | PP+ AC+ AC+ RO+ UP+ TF | PP+ AC+ AC+ RO+ UP+ UF+ TF | PP+ AC+ AC+ RO+ UP+ UV+ TF | PP+AC+AC+RO+UP+UV+UF+TF |
| Output(25℃） | 10L/H, 20L/H, 30L/H | |||
| Flow rate | Up to 2 liters/minute(with pressure tank) | |||
| Pure water outlet | 2: reverse osmosls water, ultra-pure water | |||
| Ultra pure water quality | ||||
| Resistivity(25℃） | 18.2MΩ.cm | |||
| TOC | <10ppb | <10ppb | <3ppb | <3ppb |
| Bacteria | <0.1cfu/ml | |||
| Particle(>0.22μm） | <1/ml | |||
| Endotoxin | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml |
| RO water quality | ||||
| Ion rejection rate | 95%-99%(new RO membrane) | |||
| Particles and bacteria rejection rate | >99% | |||

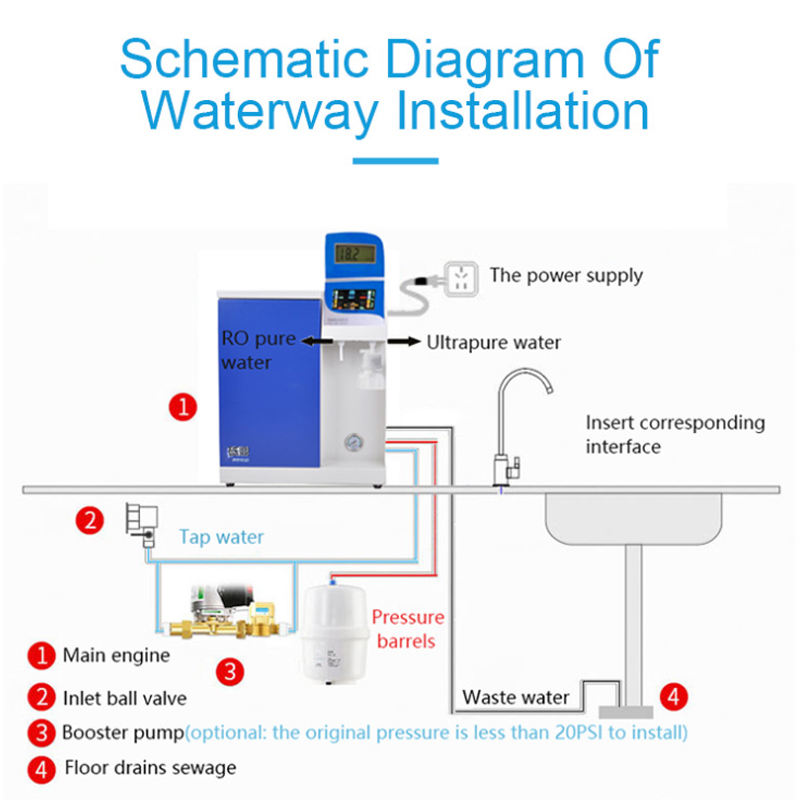

| Feed water requirements | Tap water, temperature: 5-45℃, pressure: 0.15-0.4Mpa | |||

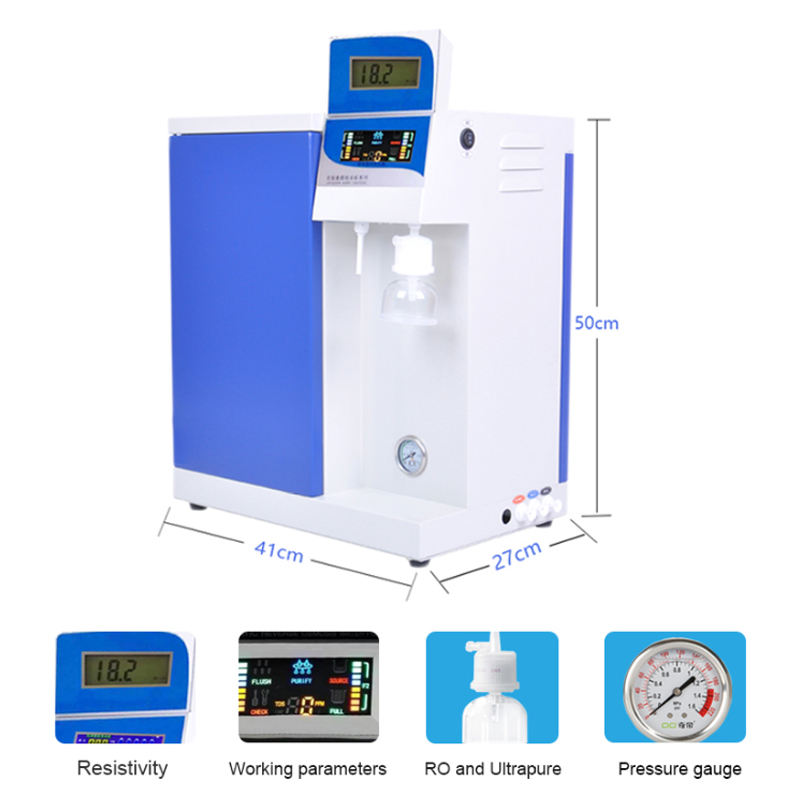

| Dimension and weight | L*W*H: 41*27*50cm/Weight: about 23KG | |||
| Electrical requirements | AC110-240V, 50/60Hz | |||
| Power | 48-72W | |||
| Standard configuration | Machine(including 1 set of cartridge)+12 liter pressure tank | |||
