DESCRIPTION

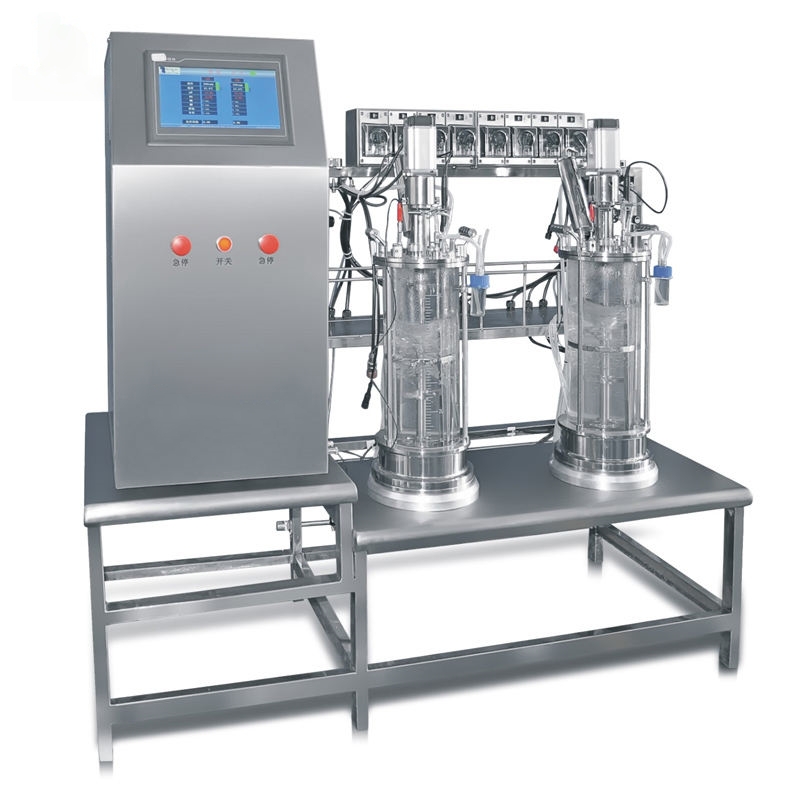

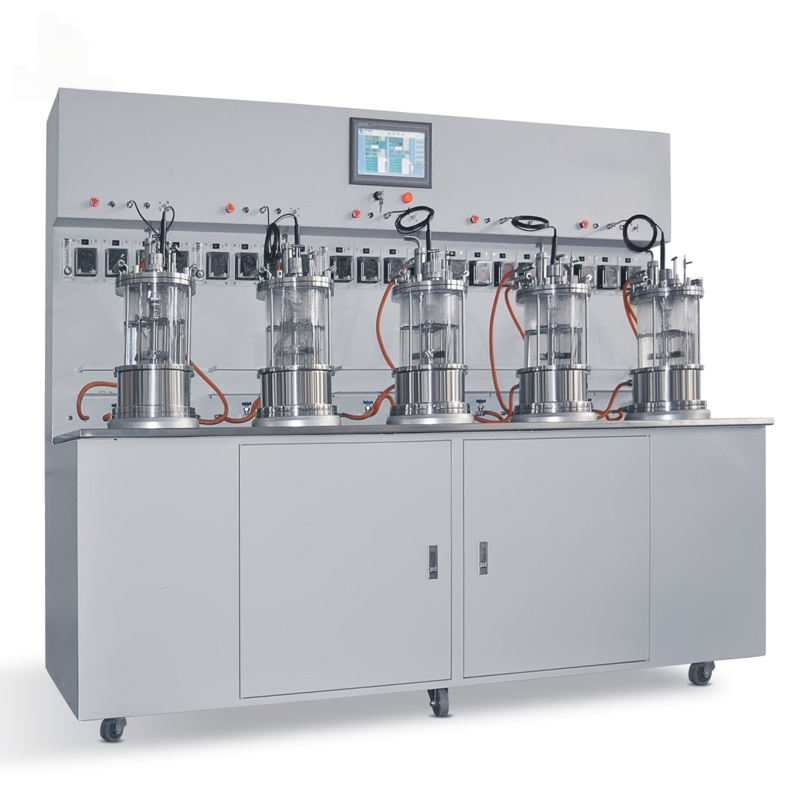

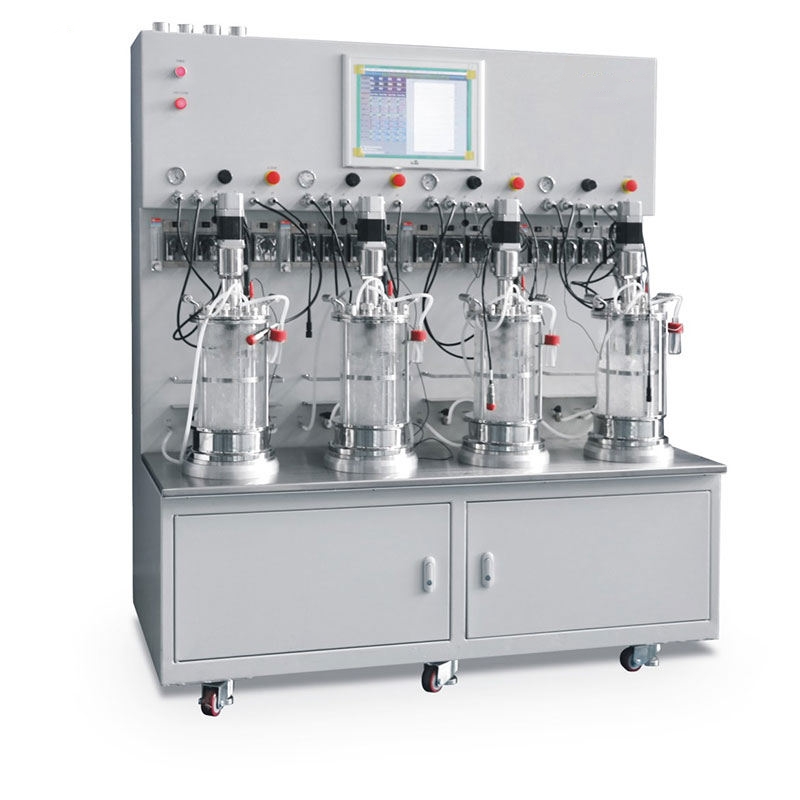

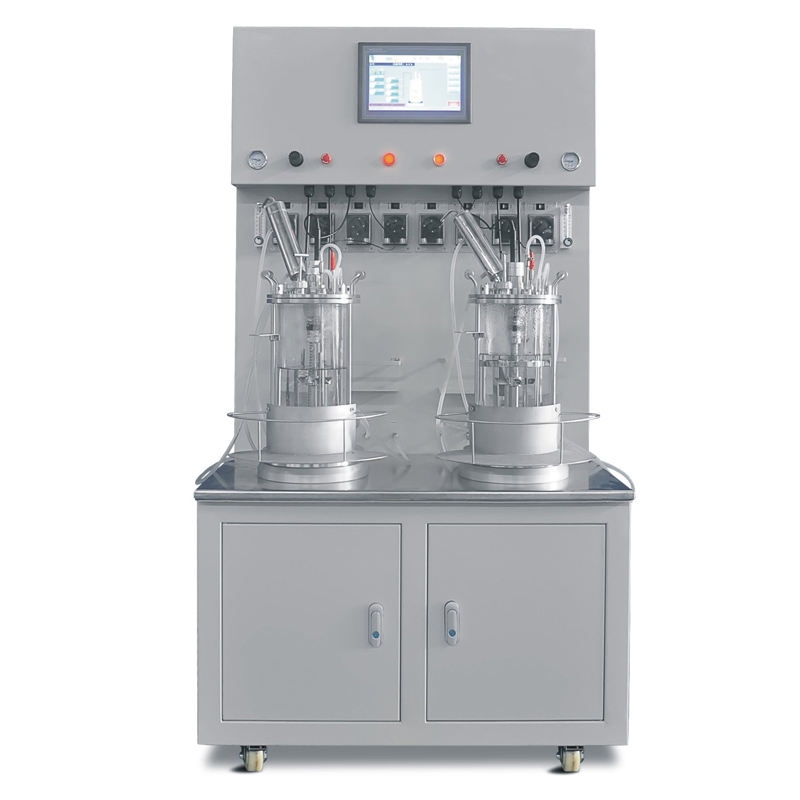

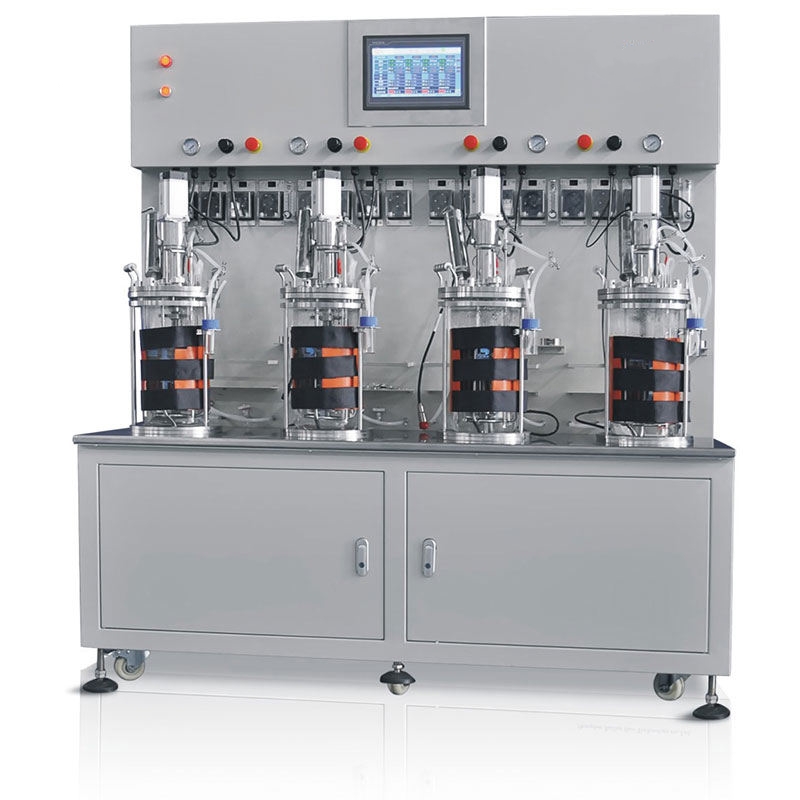

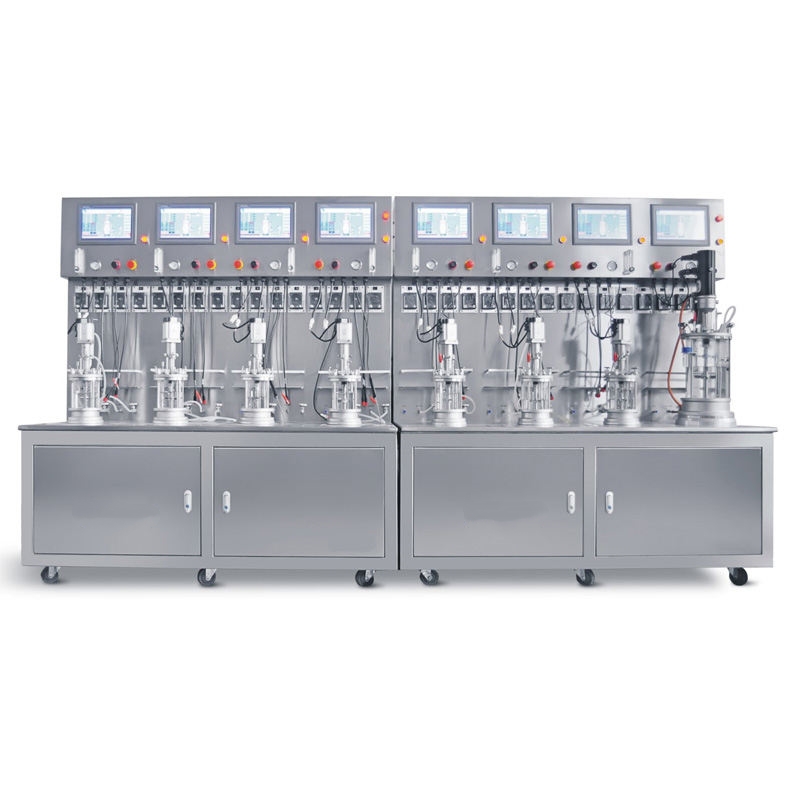

Introducing the Off-site Sterilization Six to Twelve Conjoined Glass Bioreactor, a cutting-edge laboratory fermentation equipment with automatic control, ideal for diverse purposes including batch, batch feeding, and animal cell culture. Its color touchscreen display streamlines user interaction. This multiple glass bioreactor boasts four peristaltic pumps per tank, supplying acid, alkali, defoamer, and culture medium. The controller monitors pH, DO, temperature, and speed, while its compact design accommodates the integration of diverse components. The direct coupling mechanical stirring method ensures stability. Perfect for parallel orthogonal experiments, it optimizes process research and reduces valuable research time.
FEATURES
1. Seamlessly Control with Siemens PLC: Utilizing a Siemens PLC control system and a user-friendly vinylon LCD touch screen, our bioreactor displays all measurements and control parameters. This intuitive setup greatly enhances user operation. Additionally, the system supports versatile data management – use USB for data transmission, sampling, tank data display, system data analysis, and even settings adjustment.
2. Reliable Pumping System: Each tank is thoughtfully equipped with four peristaltic pumps situated adjacent to the front tank. These pumps expertly supply essential components such as acid, alkali, defoamer, and culture medium directly into the fermentation tank.
3. Comprehensive Monitoring: Monitoring fermentation processes is hassle-free. The controller enables real-time tracking of pH, DO, temperature, and speed parameters. What’s more, all these crucial data points and control parameters can be seamlessly transmitted to either a computer or the controller for analysis.
4. Space-Efficient Design: Our bioreactor boasts a compact structure, making it ideal for streamlined laboratory environments. This design not only saves space but also facilitates the integration of various essential components into the fermentation system.
5. Stirring Methods for Stability: Choose between a direct coupling mechanical stirring method driven by the upper part or a magnetic indirect coupling mechanical stirring method driven by the lower part. Both options offer a simple yet stable operational structure, ensuring consistent and reliable operation.
Experience advanced control, efficient supply, comprehensive monitoring, space optimization, and stable operation – all in one exceptional bioreactor system.
SPECIFICATIONS
|
Model
|
OQT-GCM/GJM Series
|
|
Volume
|
0.2/0.3/0.4/0.5/0.7/0.9/1L
|
|
Multiple
|
2/4/5/8/10/12 (can be customized)
|
|
Working volume
|
70% optimum
|
|
Vessel Material
|
glass body and stainless steel lid and bottom
|
|
The high ratio
|
1:2~3
|
|
Mixing method
|
Magnetic drive or Mechanical agitation drive
|
|
Stirring speed
|
50~1000rpm accuracy: ±1rpm
|
|
PH control
|
using intelligent PID control, automatic acid/alkali replenishment; range: 2~12ph; control accuracy: ±0.02ph
|
|
DO control
|
Intelligent PID control, which can be associated with the feed speed; range: 0~100%, control accuracy: ±3%;
|
|
Temperature control
|
intelligent PID control; electric heating water cooling; range: cooling water temperature +5~60℃; accuracy: ±0.1℃;
|
|
Foam control
|
electrode detection, peristaltic pump replenishing defoamer, automatic control;
|
|
Ventilation
|
manual adjustment, flow meter display;
|
|
Tank pressure
|
manual adjustment, pressure gauge display; range: 0~0.20Map;
|
|
Sterilization method
|
Off-site sterilization or In-situ sterilization
|
|
Control system
|
Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected to the computer
through the USB interface, the data |
OPTIONAL
1. Weighing with replenishing balance
2. Tank weighing
3. Air flow automatic control
4. Tank pressure detection
5. Bypass pure oxygen
6. Redox potential online detection
7. Methyl (ethyl) alcohol content online detection and control
8.Tail gas O2, CO2 content online detection
9. Automatic sterilization function
10. Automatic tank cleaning function
11. can lid automatic lifting function
APPLICATION
Microbial Fermentation-
Biopharmaceuticals
-
Tissue Engineering
-
Algal Biotechnology
-
Environmental Applications
-
Agricultural Biotechnology
-
Biofuels and Renewable Energy
-
Food and Beverage Industry
