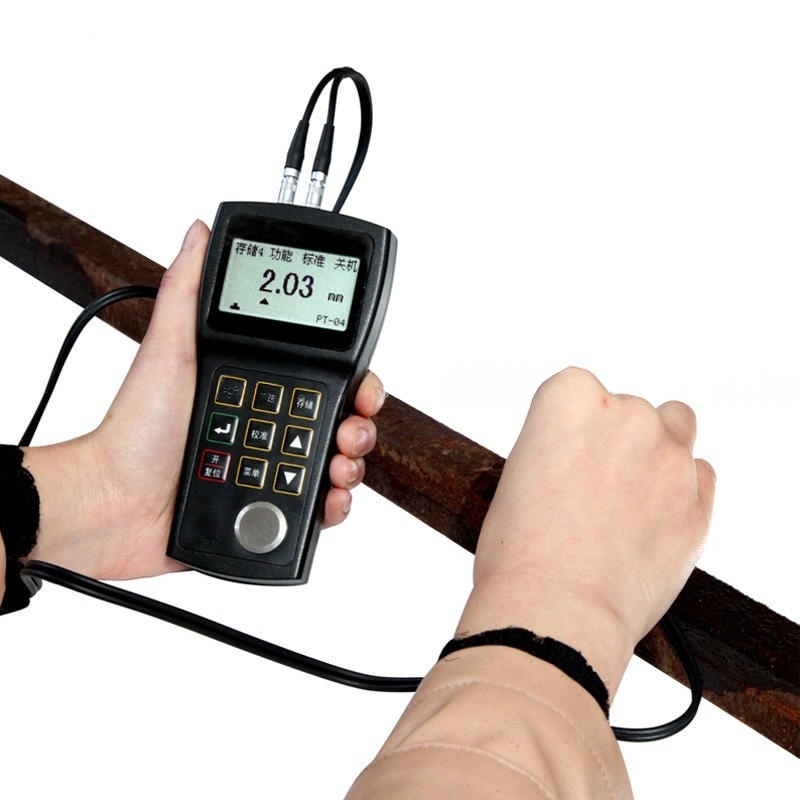

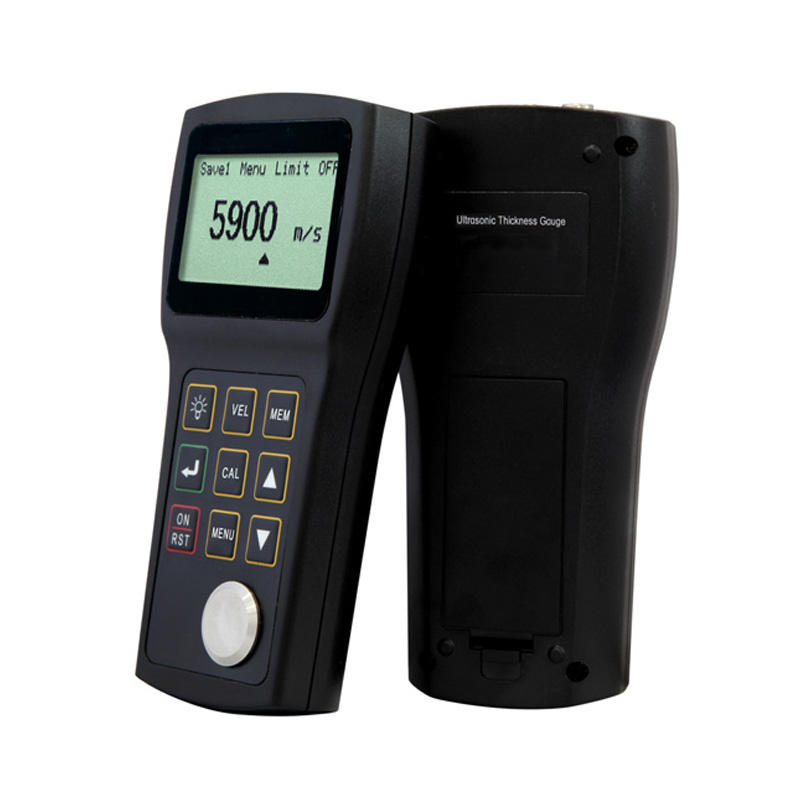

DESCRIPTION
The LM-2 series thickness gauge has extremely high measuring performance, and the indication value has high stability and accuracy.
LM-2D has the function of penetrating the coating, and can directly measure the thickness of the substrate without removing the coating on the surface of the object to be measured. Coatings applicable to this function include: paint layer, plastic coating, etc. This function is realized by measuring two continuous bottom echoes of the substrate. This mode also has more advantages: zero-free calibration, high stability of indication value and zero drift.
FEATURES
1. The working principle: Pulse-echo mode (standard mode, used for ordinary thickness measurement), Echo-echo mode (coating mode, used to measure the net thickness of the substrate without removing the paint layer)
2. One point calibration: used for routine measurement;
Two-point calibration: increases measurement accuracy when measuring wall thickness of curved surface or in special application.
3. Measurement error: ±0.05 mm (less than 10 mm), ±5% H+0.01 (more than 10 mm) Note: H is the thickness of the object to be measured.
4. V path correction: v sound path correction to compensate nonlinearity of bimorph probe

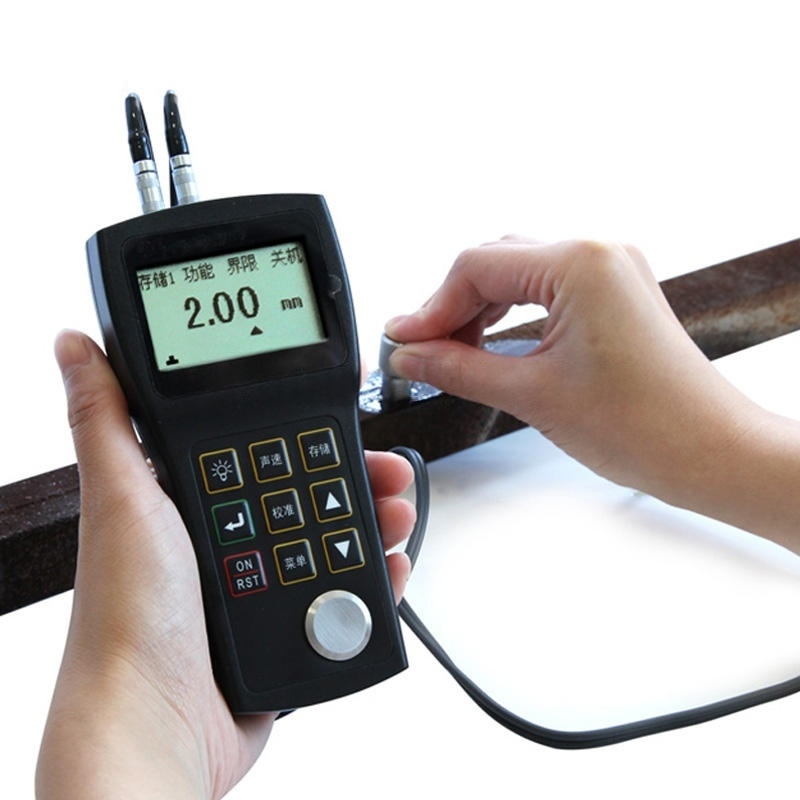

5. Minimum scanning: drag the probe along the surface of the object to be measured, and the instrument can automatically find a place to measure the thinnest thickness.
6. Application software: UmView software is used to transmit, store, analyze and edit documents of measurement data (optional)
7. Has the function of penetrating the coating, the measuring range is 3-20mm. (Use standard probe LM-2D Only)
SPECIFICATIONS
| Model | LM-2 | LM-2D |
| Measuring range | 0.8-300 mm (Depending on the probe and the material to be tested, the standard measurement range:1-100mm) | |
| Penetration mode | NO | 3-18 mm |
| Working principle | Pulse-echo mode | Pulse-echo mode, Echo-echo mode |
| Probe compensation line | A probe compensation line is built in | 7 kinds of probe compensation wires are built in and matched with 7 kinds of probes. |
| Measurement resolution | 0.1mm | |
| Display | 128× 64 Dot Matrix LCD Display with EL Backlight, Adjustable contrast | |
| Repeatability | ±0.05mm | |
| Unit and Display Resolution | Millimeter-0.01,0.1 inch-0.001,0.01 | |
| Calibration mode | zero calibration, two-point calibration | |
| The measurement update rate | 4Hz | |
| The sound speed range of the material | 1000～9999m/s or 0.0394～0.3937in/us | |
| The storage function | divided into 5 arrays, which can store 500 thickness values. | |
| Alarm function | set the thickness limit and give an alarm to the measured value outside the limit. | |
| Sound speed storage | store the sound speed of 5 different materials. | |
| Language | Chinese or English | |
| Communication interface | USB interface or RS232 serial port (optional) | |
| Power supply | two 1.5V AA batteries. When the power is insufficient, there will be a low voltage prompt. | |
| Operating time | Two No.5 Batteries can be used for 200 hours (no backlight) | |
| Automatically shut down | after 5 minutes without operation | |
| Working temperature | -10℃ ~+50℃, with special requirements up to -20℃ | |
| Size | 149*73*32mm | |
| Weight | 200g (including battery) | |
| Standard configuration | thickness gauge host, standard probe, instrument box, two alkaline batteries, coupling agent, operation manual, certificate of approval and packing list | |

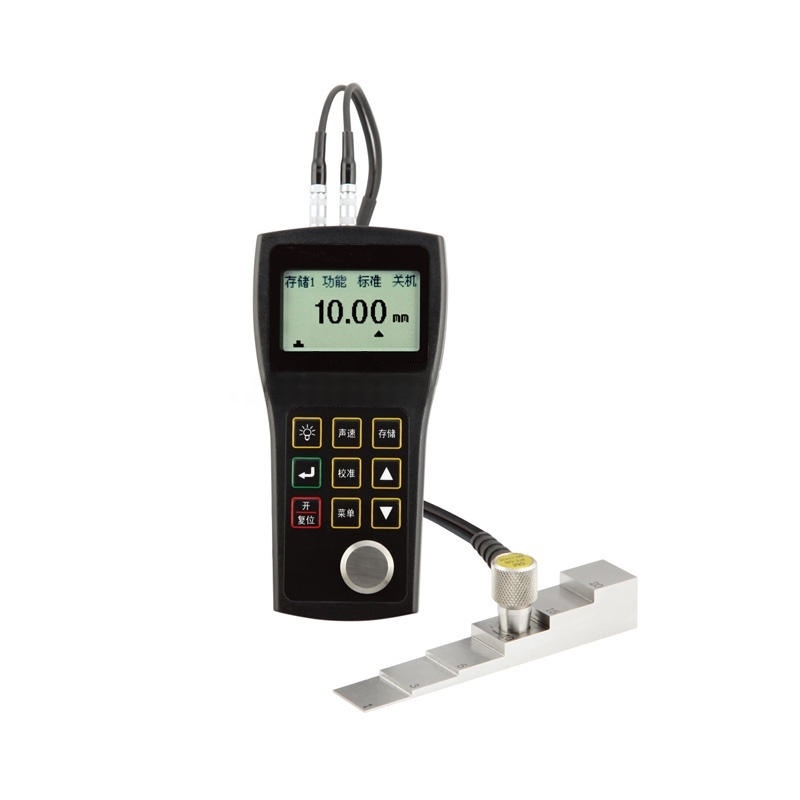

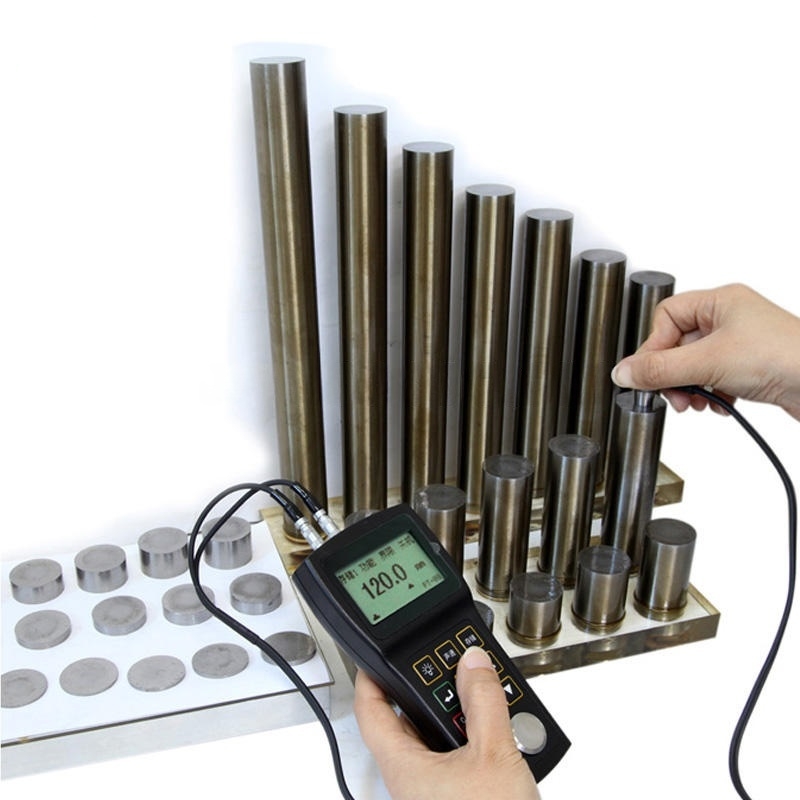

| Optional accessories | rubber sheath, a variety of optional probes; Step test block for calibration; Coupling agent and high temperature coupling agent | |
Optional probe
| Model | PT08 | PT06 | PT04 | ZT12 | GT12 |
| Type | Standard | Small crystal tube | Fingertips | Coarse crystal (cast iron) | High temperature |
| Frequency | 5MHZ | 7.5MHZ | 10MHZ | 2MHZ | 5MHZ |
| Contact diameter | 11.5mm | 8.7 mm | 7.3 mm | 17 mm | 15 mm |
| Measuring range | 0.8~100mm | 0.8~30mm | 0.7~12mm | 4.0~508mm | 4.0~80mm |
| Allowable temperature | -10℃ ~+50℃ | -10℃ ~+50℃ | -10℃ ~+50℃ | -10℃ ~+50℃ | Below 480℃ |
| Configuration list | |
| Mainframe | 1 |
| Coupling agent | 1 |
| Probe | 1 |
| Battery | 2 |
| Packing document | 1 |
| Instrument seal box | 1 |
| Note: If send it by air, not including batteries, it’s an empty bottle for Coupling agent. | |
