DESCRIPTION

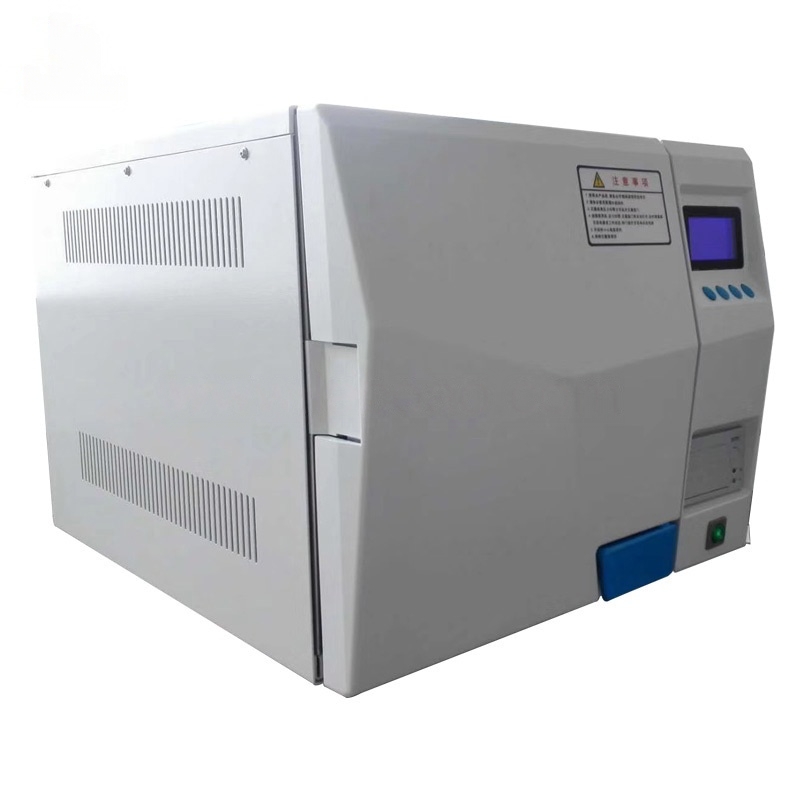

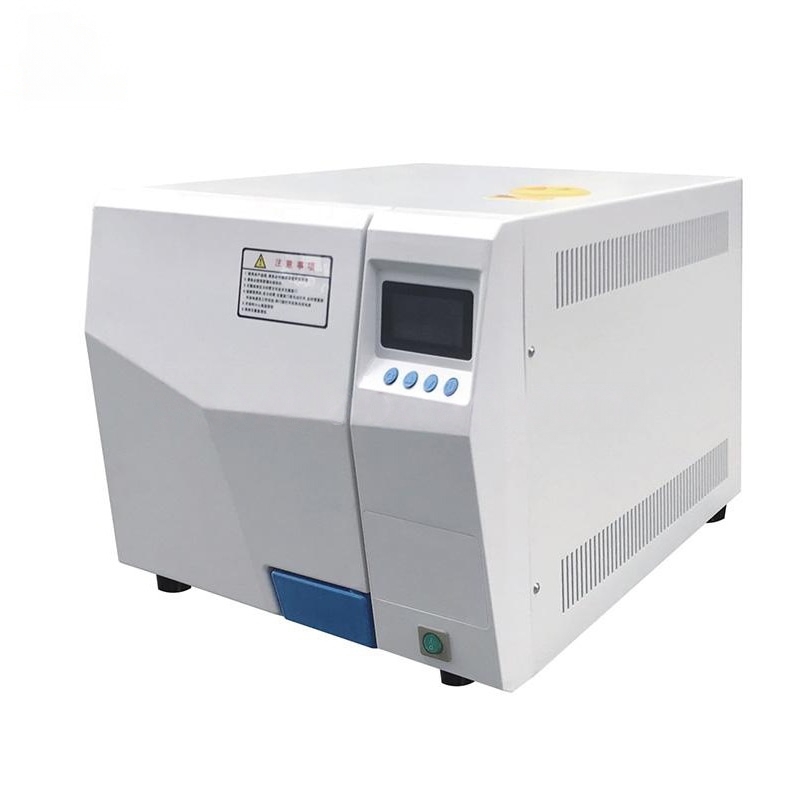

The steam sterilizer is a safe, reliable and automatically controlled sterilization device, which is consisting of a heating system, a microcomputer control system and a overheat overpressure protection system. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, power saving and durability, and low cost, and is an ideal equipment for disinfecting and sterilizing surgical instruments, dressings, utensils and culture media by medical and scientific research units.
FEATURES
1. European Class B standard with three-pulse pre-vacuum and post-vacuum drying function, the remaining humidity of the device is <0.2%.
2. LCD display working status, touch button.
3. Vacuum degree up to -0.8bar, suitable for all kinds of packaged, unpackaged, solid, Class A hollow, porous and internal pipelined instruments
4. Ensure efficient removal of air from the hollow instruments (such as high-speed dental drills) so that high-temperature steam can reach every corner.
5. Full computer control, modular and simple operation interface.
6. BOWIE & DICK test for steam penetration testing.
7. With vacuum test to ensure vacuum performance at any time.
8. Fast independent steam generator.
9. Built-in micro printer for detailed recording of sterilization data.
10. With safety valve, manual safety door lock, pressure locking system, fault self-test, over-temperature and over-pressure automatic protection.
11. Inactivates HIV, hepatitis B (HBV), mad cow virus and Bacillus
12. This product is designed as an open water tank. The water and sewage tanks are separated for convenience and intuitiveness.
SPECIFICATIONS
| Model | OL-20DV | OL-24DV |
| Sterilizing chamber volume | 18L | 24L |
| φ250×360mm | φ250×470mm | |
| Maximum working pressure | 0.22Mpa | |
| Maximum working temperature | 134℃ | |
| Adjustment of temperature | 105-134℃ | |
| Timer | 0-99min | |
| Heat average | ≤±1℃ | |
| Power | AC220V.50Hz/2KW | AC220V.50Hz/2KW |
| Size | 560*470*400 | 675*470*400 |
| Packing size（mm） | 655*560*495 | 765*560*495 |
| Gross/ Net weight | 52/47Kg | 58/53Kg |
APPLICATION
Healthcare Facilities- Pharmaceutical Biotechnology
- Food Beverage Processing
- Scientific Research Institutions
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
