DESCRIPTION

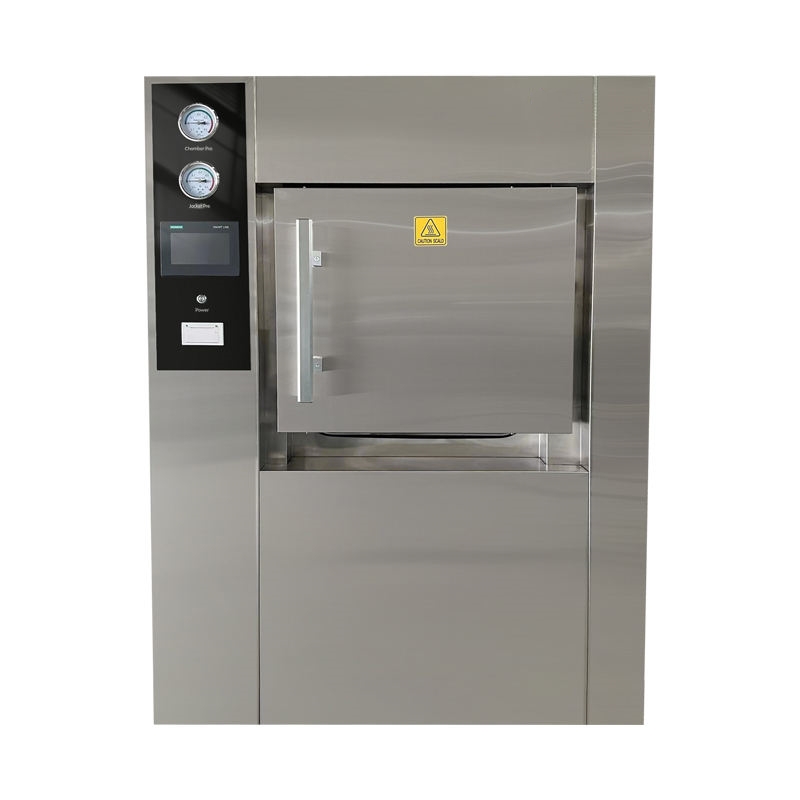

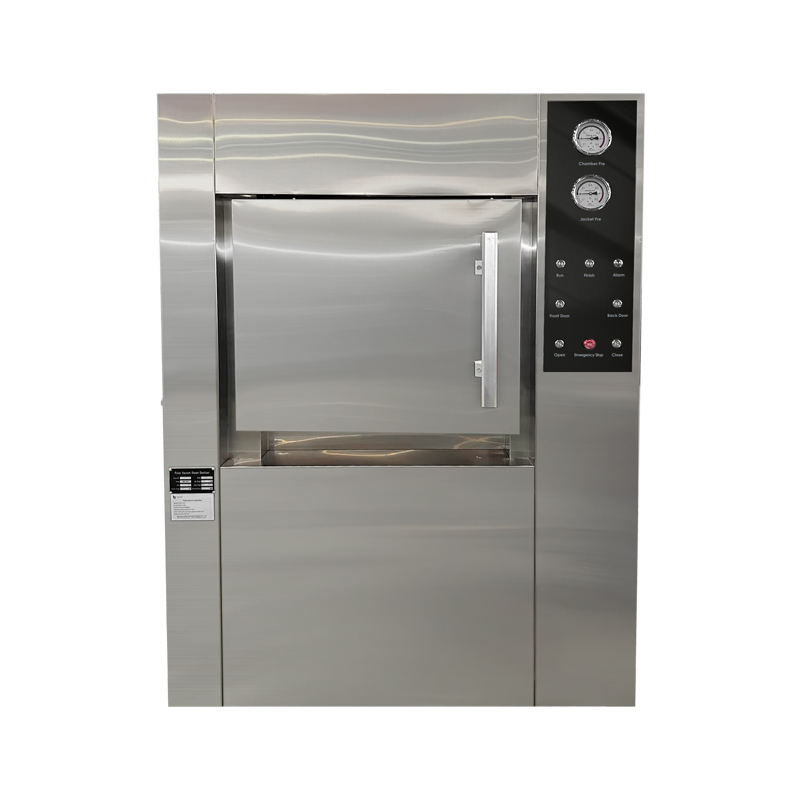

This series of pulsating vacuum sterilizers utilizes saturated steam as a sterilizing medium. When saturated steam condenses, it releases a large amount of latent heat physical properties, so that the items to be sterilized are in a state of high temperature and humidity, and after a period of heat preservation, sterilization is achieved. The purpose is to eliminate the influence of cold air on the temperature by pulsating vacuum exhaust, and finally vacuum dehumidification combined with the layer to dry and sterilize the articles.
FEATURES

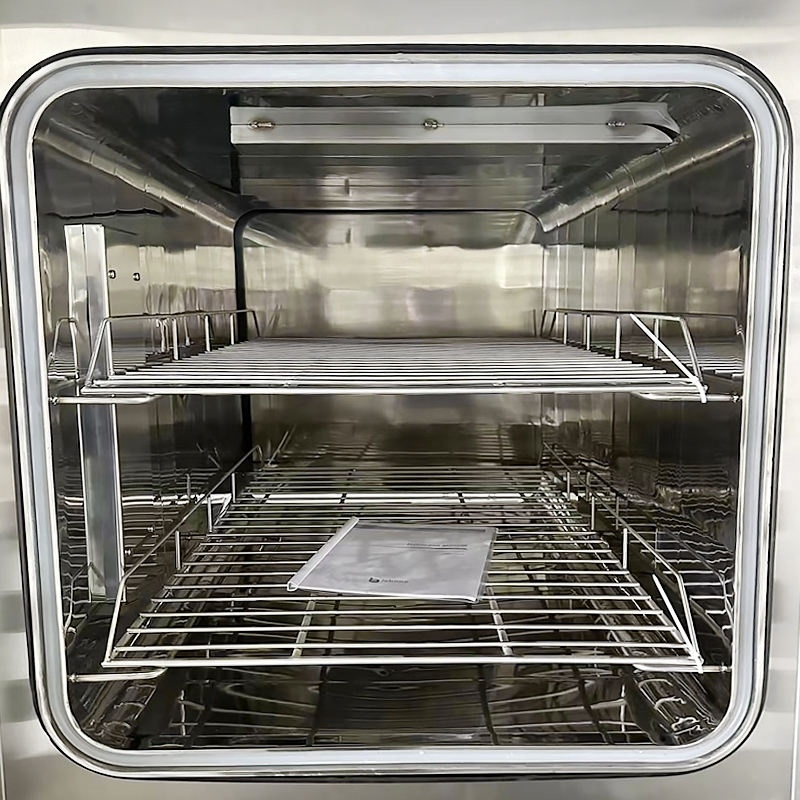

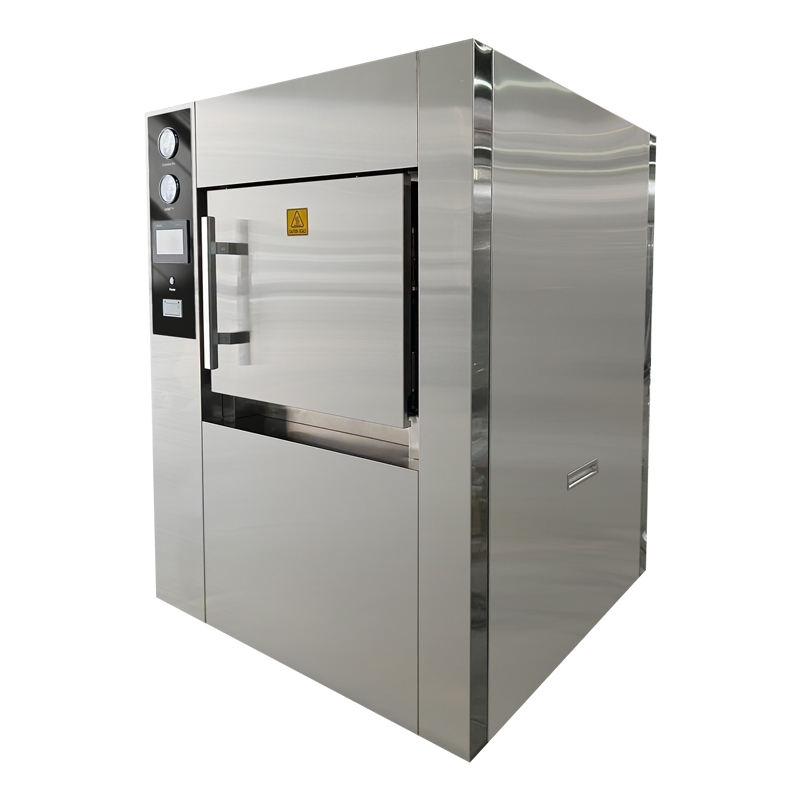

1. Horizontal rectangular double-layer structure, the inner tank uses S30408.
2. The door sealing method is pneumatically sealed, and the double door interlock fully meets the requirements of the specification.
3. The device has a standard GMP authentication interface.
4. Sterilizer piping system: The most favorable configuration of the pipeline design industry, the main accessories are imported and domestic quality brands.
5. Sterilizer control system: Siemens PLC + Siemens touch screen
6. The F0 value and the temperature time ensure the sterilization effect, and can also be controlled by a single parameter, and have a complete sterilization record.
SPECIFICATIONS
| Design pressure | 0.245MPa |
| Work pressure | 0.225MPa |
| Operating temperature | 105-134℃ |
| Set temperature | 139℃ |
| Temperature uniformity | ≤±1℃ |
| Vacuum degree | -0.09MPa |
| Water source pressure | 0.15-0.3MPa |
| Compressed air pressure | 0.3-0.7MPa |
| Steam pressure | 0.3-0.7Mpa |
| Power supply | 3-phase 5-wires AC380V.50HZ |
| Model | Dimensions
L×W×H(mm) |
Interior size
L×W×H(mm) |
Steam consumption (KG) | Water consumption (KG) | Power supply
(KW) |
Net weight (KG) |
| OQ-0.25 | 1100×1350×1900 | 800×600×600 | 18KG | 35KG | 2+24KW | 900KG |
| OQ-0.36 | 1300×1350×1900 | 1000×600×600 | 25KG | 40KG | 2+24KW | 1000KG |
| OQ-0.6 | 1500×1360×1950 | 1200×610×910 | 30KG | 45KG | 3+36KW | 1400KG |
| OQ-0.8 | 1800×1360×1950 | 1500×610×910 | 40KG | 50KG | 3KW | 1600KG |
| OQ-1.2 | 1750×1440×1950 | 1450×680×1180 | 48KG | 55KG | 4KW | 1800KG |
| OQ-1.5 | 2150×1440×1950 | 1850×680×1180 | 55KG | 60KG | 4KW | 2000KG |
| OQ-2.0 | 1950×1750×2200 | 1600×900×1400 | 65KG | 65KG | 4.5KW | 2500KG |
| OQ-2.5 | 2300×1750×2200 | 1950×900×1400 | 75KG | 75KG | 6KW | 3000KG |
| OQ-3.0 | 2700×1750×2200 | 2400×900×1400 | 90KG | 90KG | 8KW | 3500KG |
APPLICATION
Healthcare Facilities-
Pharmaceutical Biotechnology
-
Food Beverage Processing
-
Scientific Research Institutions
