DESCRIPTION
The sterilizer is easier and more convenient to operate with a lifting system, which is convenient for placing various types of sterilized drugs, and the independent steam setting is more energy-saving, and has multiple fixed program mode settings and is equipped with a standard detection interface.
FEATURES

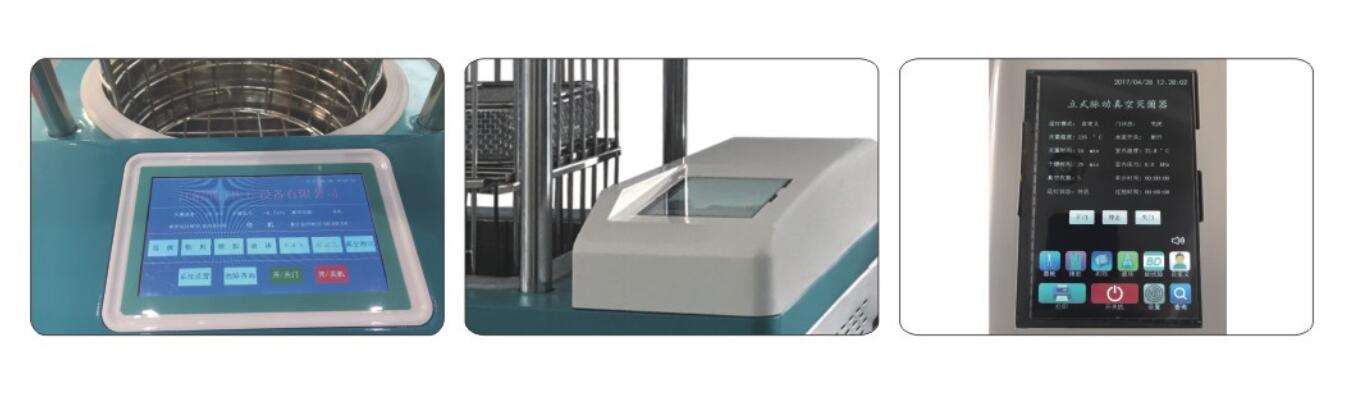

1. The seven-inch capacitive touch screen is fully automatic and easy to operate.

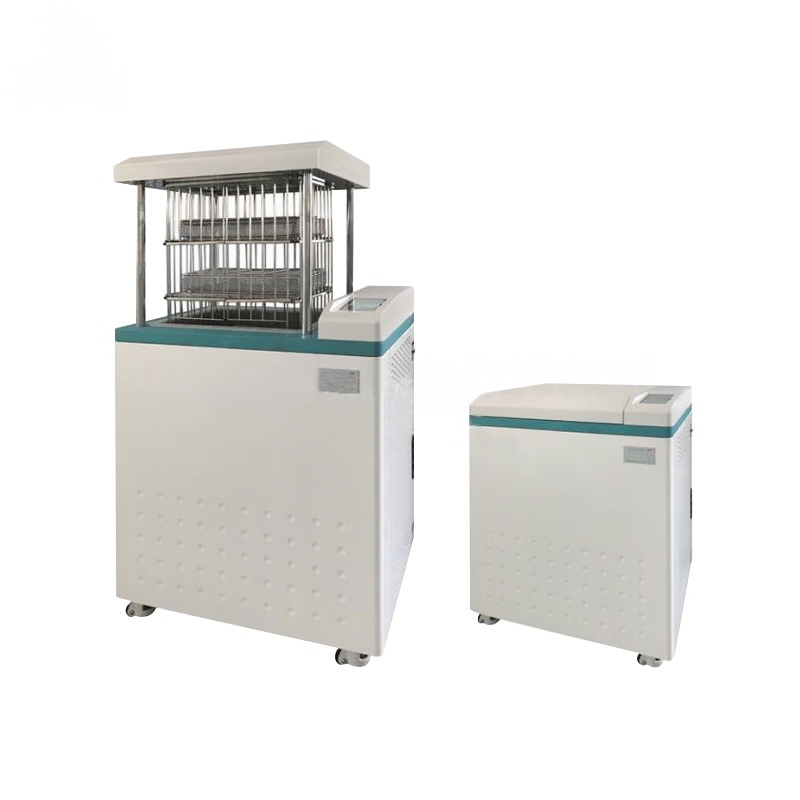

2. New vertical lift door switch door design for easy placement of all types of sterilized items. Greatly reduce the labor intensity of operators.
3. The sterilizer is filled with water, pulsating, vacuuming, heating, sterilizing, draining, venting and vacuum drying. The whole process is automatically completed with one-button setting
4. Pulsating vacuum mode, the lower vacuum limit is -0.080Mpa, making sterilization more thorough.
5. Independent steam generator design, which is more energy efficient than ordinary heating, less damage to sterilized items, and less oxidation of sterilized items.
6. The operator interface has multiple fixed program modes, allowing the user to freely select a sterilization program based on the sterilized items.
7. The product does not have a standard PT/TT test interface for inspection by the inspection department.
8. The product is equipped with the German Sartorius aseptic ventilation filter midisart2000 0.20μm to ensure that sterile air enters the vacuum environment to avoid contamination.
9. Soda water circulation system, does not discharge steam to ensure clean and dry environment.
SPECIFICATIONS
| Model | OS-60SV | OS-80SV | OS-100SV | OS-120SV |
| Sterilization chamber effective volume | 60L
φ396×490mm |
80L
φ396×650mm |
100L
504×404×502mm |
120L
504×404×590mm |
| Height after rising | 1310 | 1590 | 1475 | 1565 |
| Work pressure | 0.22Mpa | |||
| Operating temperature | 134℃ | |||
| Thermal uniformity | ≤±1℃ | |||
| Timing selection range | 0-99min | |||
| Temperature selection range | 105-134℃ | |||
| Power/voltage power supply | Steam generator power: 3KW
Drying belt power:2.4KW/AC220V 50HZ |
Steam generator power：3.6KW
Drying belt power:2.4KW/AC220V 50HZ |
||
| Dimensions(mm) | 686×556×913 | 686×556×1035 | 840×600×970 | 840×600×1060 |
| Transport volume(mm) | 789×656×1013 | 786×656×1135 | 940×610×1000 | 940×610×1075 |
| Gross weight / net weight | 210Kg/180Kg | 230Kg/200Kg | 300Kg/270Kg | 325Kg/295Kg |
APPLICATION
Healthcare Facilities-
Pharmaceutical Biotechnology
-
Food Beverage Processing
-
Scientific Research Institutions
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
