DESCRIPTION

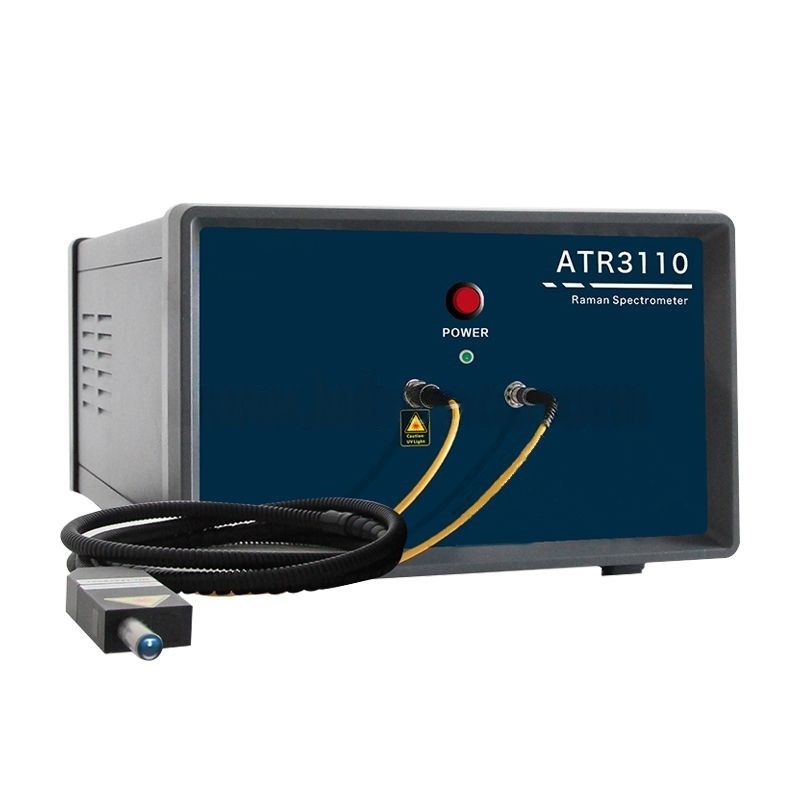

LATR3110 is designed with compact size, lightweight and low consumption, so it can provide laboratory Raman detection at any place. It suits to scientific research in the laboratory for accurate and reliable detecting results. Its excellent low stray light enables spectrometers to be applied to a wide variety of sectors, especially in biochemistry analyzer, food safety, pharmaceutical engineering etc. Its multi-functional software promotes the spectral analysis process in the application.
LATR3110-1064nm has the lowest fluorescence, and it avoids fluorescence interference to be applied to many high fluorescent samples, such as dyes, inks, petroleum products, biological samples etc.
Application:
1. Bioscience
2. Material science
3. Pharmaceutical engineering
4. Forensic analysis
5. Agriculture and food safety
6. Gemstones identification
7. Environmental science
8. Graphene
9. Nano materials
| Item | Excitation Wavelength （nm） |
Maximum laser power（mW） | Spectral range cm-1 |
Resolution(nm) | Feature |
| LATR3110-27 | 785 | 550 | 250-2700 | 6 | Available for most application |
| LATR3110-35 | 200-3500 | 8 | |||
| LATR3110-43 | 200-4300 | 10 | |||
| LATR3110-266 | 266 | 50 | 200-3000 | 25 | |
| LATR3110-532 | 532 | 100 | 200-3200 | 10 | |
| LATR3110-633 | 633 | 80 | 200-3200 | 10 | |
| LATR3110-830 | 830 | 550 | 200-3300 | 7 | higher skin permeance suit to biological samples, etc. Non-invasive blood glucose, early cancer diagnosis |
| LATR3110-1064 | 1064 | 500 | 200-2600 | 13 | Fluorescence-free, non-destructive, high-sensitivity, high-SNR. Available samples: dark-color samples, fluorescence sample, biology sample, bacteria, plastic, fuel, petroleum product, vegetable oil, explosive etc. |
FEATURES
1. 2048 Cooled CMOS；
2. 2048 CMOS cooled, Down To -5℃,
3. Ultra-low Noise Circuit;
4. Powerful Embedded Software;
5. Windows 10 Operating System;
6. Peak Finding And Display;
7. USB 2.0;
8. User-friendly Human And Machine Interface;
SPECIFICATIONS
| Model | LATR3110 |
| Interface | USB 2.0 |
| Integration time | 1ms – 60s |
| Operating Temperature | -10~40 ℃ |
| Operating humidity | < 95% |
| Dimension(L*W*H) | 329.4x256x164.5mm |
| Weight | 5 Kg |
| Power Voltage | DC 5V(+/-5%) |
| Maximum Power Output | ≥500 mW |
| Raman Spectrometer Reliability | |
| Spectral stability | σ/μ < 0.5% (COT 8 hours) |
| Temperature stability | Spectral shift ≤ 1 cm-1 (10-40 ℃) |
| Variation of intensity(in 5 ~ 40 ℃) | <±5% |
| Raman Spectrometer Optical Parameters | |
| Spectral range (cm-1) | 200-2700cm-1 200-3500cm-1 200-4300cm-1 |
| resolution (cm-1) | 200-2700cm-1 6nm 200-3500cm-1 8nm 200-4300cm-1 10nm |
| SNR | >3000:1 |
| Entrance slit | F/4 Crossed C/T |
| Focusing | 112mm for incidence and output |
| Sensitivity | 1800:1 |
| Raman Spectrometer Detector | |
| Item | Ultra-high sensitivity, quick cooling CCD |
| Detector cooled down to | -5 ℃ |
| Detecting range | 200-1100 nm |
| Effective pixels | 2048*64pixels |
| Dynamic range | ＞10000:1 |
| Pixel size | 14×200μm |
| Raman Spectrometer Laser Parameters | |
| Central wavelength | 785nm |
| Laser Linewidth | ≤0.1nm |
| Power output | ≥600 mW |
| Power stability | σ/μ <±0.5% |
| Raman Spectrometer Probe | |
| Operating distance | 6 mm |
| Rayleigh scattering resistance | OD>8 |
| Numerical Aperture | 0.3 |
| Aperture | 7mm |
APPLICATION
Materials Analysis-
Pharmaceutical and Biomedical Research
-
Forensic Identification
-
Environmental Monitoring and Analysis
-
Narcotics Hazardous Chemical Detection
-
Agricultural Monitoring and Food Safety
-
Gem Identification and Mineral Screening
-
Art and Archaeology
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

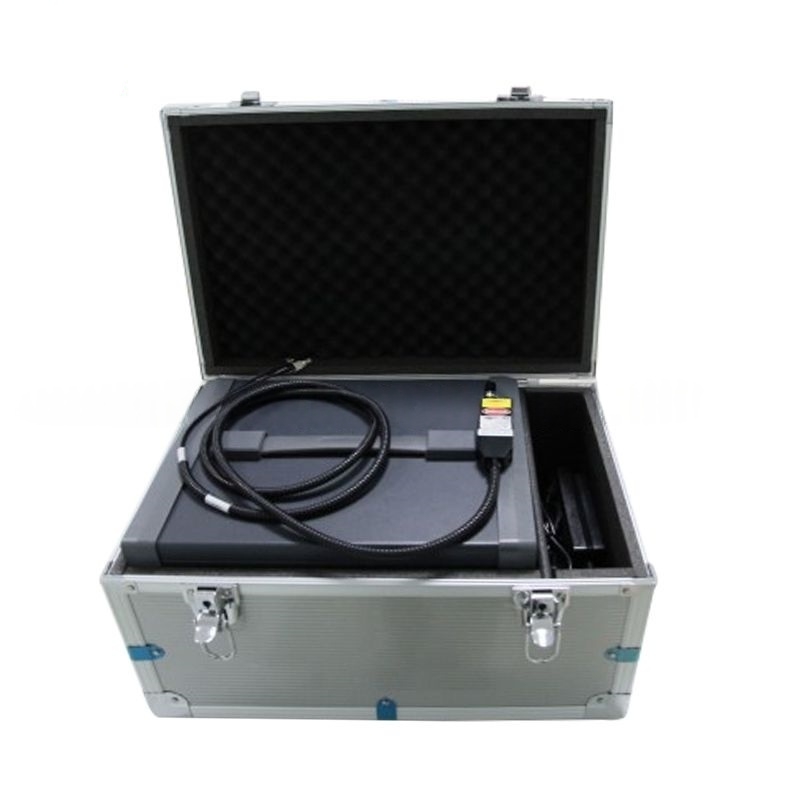

PACKAGING & SHIPPING
