DESCRIPTION
The constant temperature shaker has a stainless-steel universal clamp, digital display temperature control, stepless speed regulation and good thermal cycle function. It is a multi-purpose biochemical device, which is a plant, biology, microbiology, genetics, virus, environmental protection, medicine and other scientific research. education and production departments for precision culture preparation of indispensable laboratory equipment.
FEATURES
1. Two oscillation modes, cyclotron oscillation or reciprocating oscillation mode.

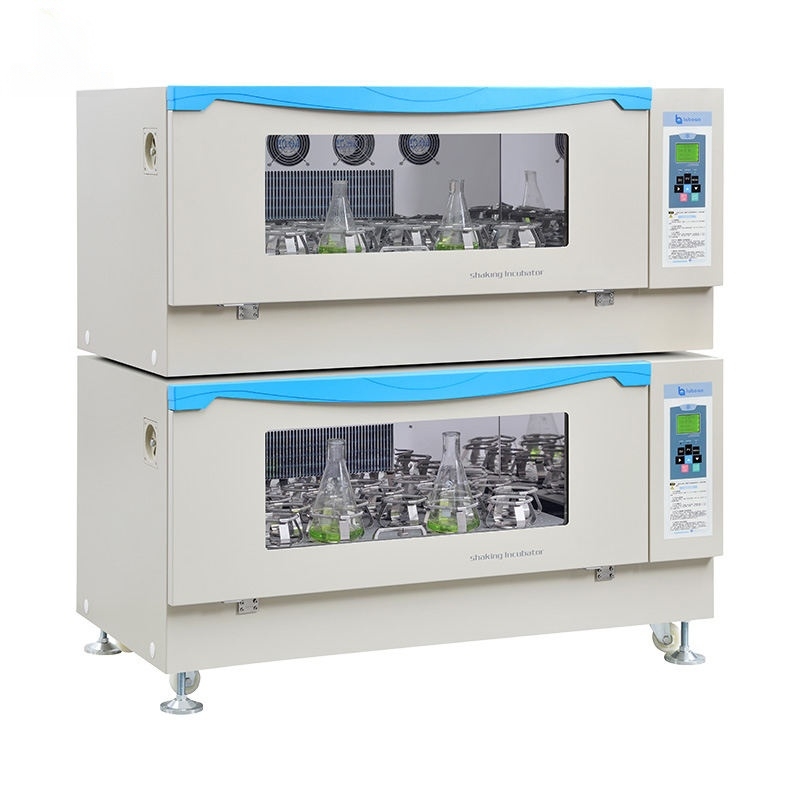

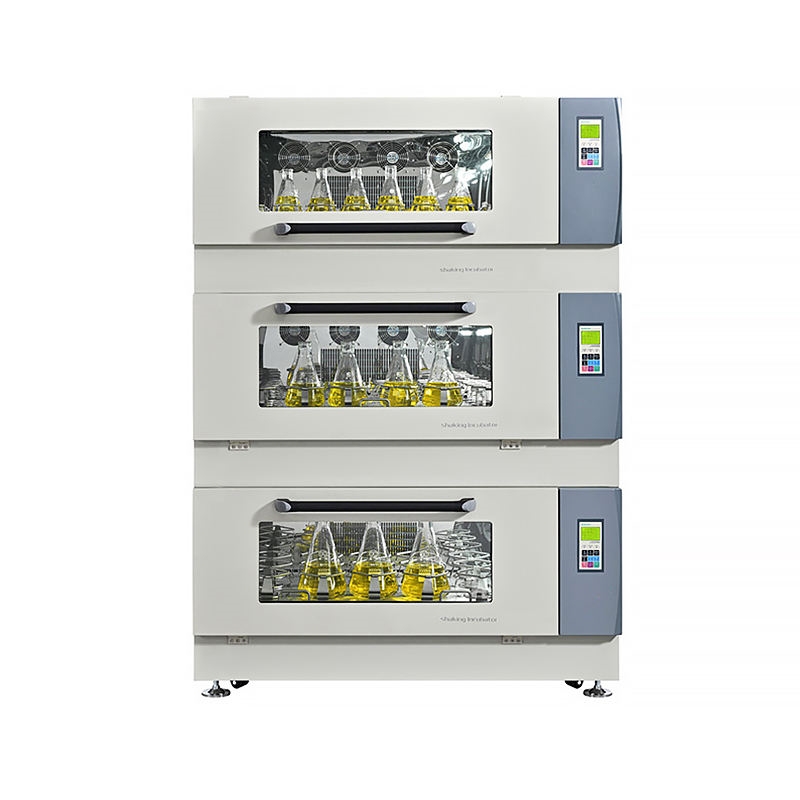

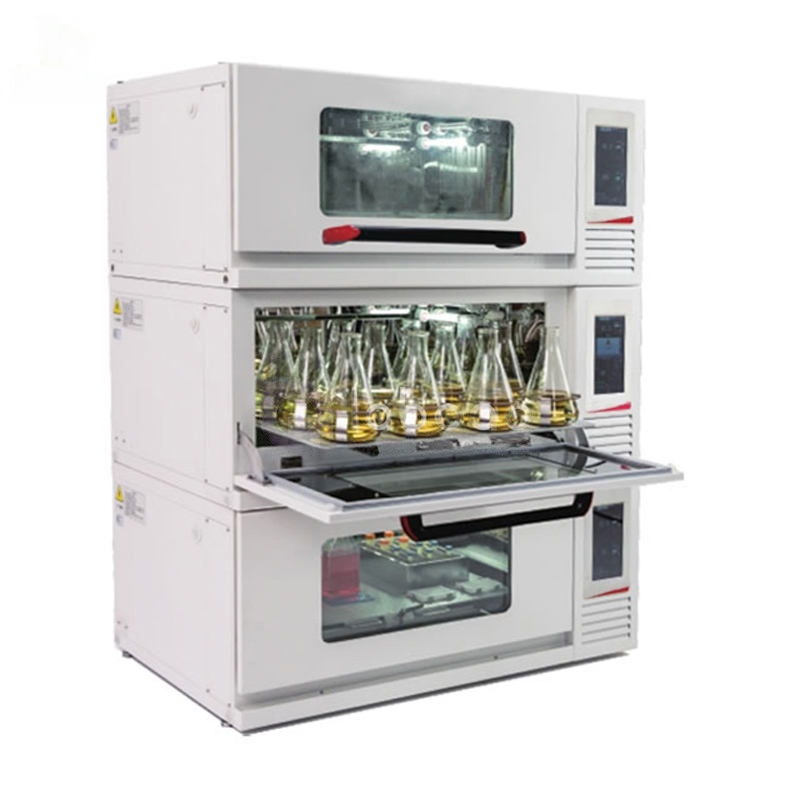

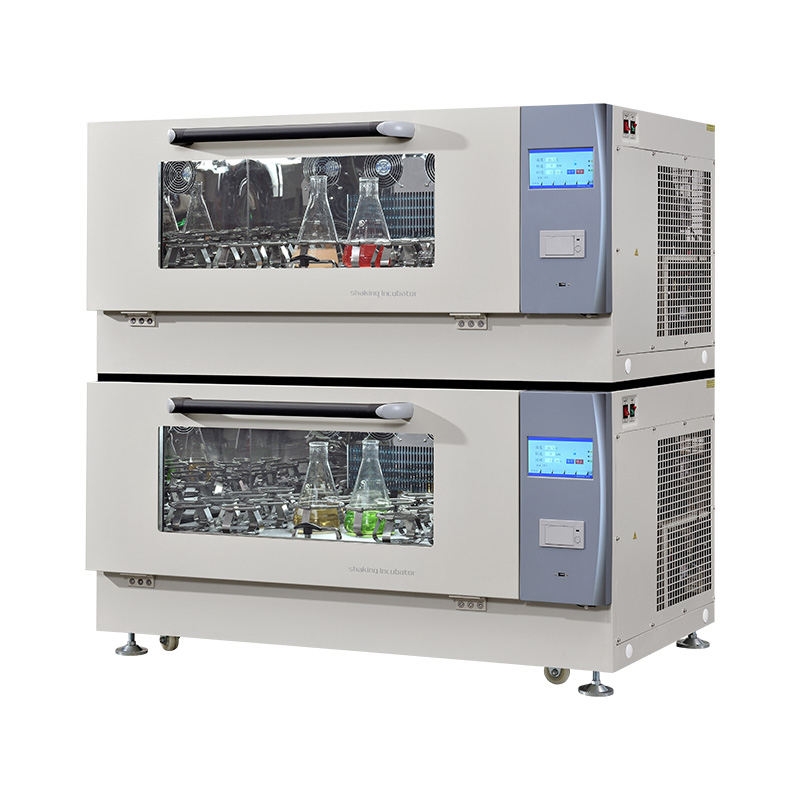

2. The three stacks are stacked together, but still occupy only one shaker area.
3. The humanized down-opening door design is in line with ergonomics.
4. The slide platform has a large bearing area and a smooth sliding.
5. The rocker is made of electroplated aluminum to avoid rust or corrosion.
6. The large internal space can accommodate up to 2L of culture flasks.
7. Available in both temperature and low temperature ranges.
8. The transparent viewing window and built-in lighting design make it easy to view samples at any time.
9. Simultaneous observation of temperature, oscillation speed, time
10. Sound and light report alarm environment scanning processing chip, with more powerful data processing functions.
11. Eight sections of self-programming, each program can set different speed and time to realize the programming operation of speed and appointment time.
12. Independent overspeed sound/light alarm, independent leakage, and over-current protection devices do not affect other equipment.
13. The original single-axis drive mechanism in China is quiet and durable.
14. The oscillation frequency can be extended over a wide range to 50-300 rpm.
15. Unique high-precision frequency control system with frequency accuracy of ±1rpm.
16. international environmental protection requirements
17. Run the parameter memory function to avoid cumbersome operations.
18. The line that controls the acceleration ensures that the shaker is slowly started and smoothly accelerated to ensure the safety of the experimental samples.
19. Over-temperature sound and light alarm function, motor overheating, temperature out of control, abnormal over-temperature instrument automatically cut off their respective power supply.
20. The unique slow start line prevents sudden starts and splashes, ensuring safe reagents.
21. AC induction long life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance free.
22. With power-off recovery function, after the external power supply suddenly loses power and calls again, the device can automatically resume operation according to the original setting program.
23. Unique motor overheating, temperature out of control automatic power off protection device.
24. The electrostatic color spray box is beautiful and rustproof, and has an aesthetic design concept.
25. Stainless steel mirror cavity, no rust and rust.
26. Made of high quality, high strength cold rolled steel, medium, channel, angle and cast iron.
Security
Leakage current and overcurrent protection systems ensure operator safety.
Ultra-temperature, over-speed sound and light alarm emergency control system to ensure sample safety.
Application range
Cell culture
Solubility test
Extraction experiment
Diagnostic test
Mixing samples
Bacterial suspension preparation
Dyeing and bleaching
Elution process
Hybrid experiment
SPECIFICATIONS
| Model | OJS-2016 | OJS-F2016 | OJS-D2016 | OJS-2016R | OJS-F2016R | OJS-D2016R | ||||
| Temperature control method | Single temperature control | Full temperature control | ||||||||
| Control method | P.I.D (microcomputer environment scanning micro processing chip) | |||||||||
| Display method | LED (large screen LCD dual display) | |||||||||
| Cyclic mode | Forced convection | |||||||||
| Oscillation mode | Rotate | Reciprocating | Rotate | Rotate | Reciprocating | Rotate | ||||
| Drive mode | Single-axis balancing device (Chinese patent ultra-low mute) | |||||||||
| Temperature range | +5℃-60℃ | 4℃-60℃ | ||||||||
| Temperature accuracy | ±0.1℃ | |||||||||
| Temperature uniformity | ±1℃ | |||||||||
| Security function | Upper and lower limit over-temperature sound and light alarm; upper and lower limit overspeed alarm, independent over-temperature protector; open door stop protection; leakage or over-current protection device | |||||||||
| Accessory function | Speed storage, one-button factory reset, call recovery, parameter memory, temperature speed correction, clock display, room temperature / measured temperature double display. | |||||||||
| Programming function | Repeat, pacing, eight-segment curve programming | |||||||||
| Rotation frequency | 10-300rpm | |||||||||
| Acceleration | Slow start | |||||||||
| Rotation accuracy | ±1rpm | |||||||||
| Array amplitude | 25mm | 25mm | 50mm | 25mm | 25mm | 50mm | ||||
| The refrigerant | – | CFC-Free (134A) fluorine-free safety refrigeration system | ||||||||
| Cooler | – | 200W | ||||||||
| Heater | 800W | |||||||||
| Timing range | 0.999.59 hours / sustainable | |||||||||
| Rocker size | 920*540(mm) | |||||||||
| Maximum capacity | 250ml*60/500*40/1000*24/2000*15 | |||||||||
| Number of rocking plates | One | |||||||||
| Net weight | 180kg/set | 2000kg/set | ||||||||
| Inner cavity size | 1120*595*398H(mm) | |||||||||
| Dimensions | 1410*785*640H (single) Without foot 90mm | |||||||||
| 1410*785*1280H (Two stacks) Without foot 90mm | ||||||||||
| 1410*785*1920H (Triple stack) Without foot 90mm/ Padded high stool | ||||||||||
| Opening method | The following two layers: drop-down The third layer: upturn | |||||||||
| Annex | UV lamp, lighting | |||||||||
| Power | 980W | 1200W | ||||||||
| Motor | 120W inverter motor | |||||||||
| Power supply | AC 200-240V 50-60HZ | |||||||||
| Inner cavity material | All 304 high quality imported stainless steel mirror panel | |||||||||
| Box material | High quality and high strength channel steel, angle steel, cold rolled steel plate | |||||||||
APPLICATION
Microbiology and Cell Culture- Biochemical and Enzyme Research
- Chemical and Pharmaceutical Research
- Molecular Biology and Genetics
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
