DESCRIPTION

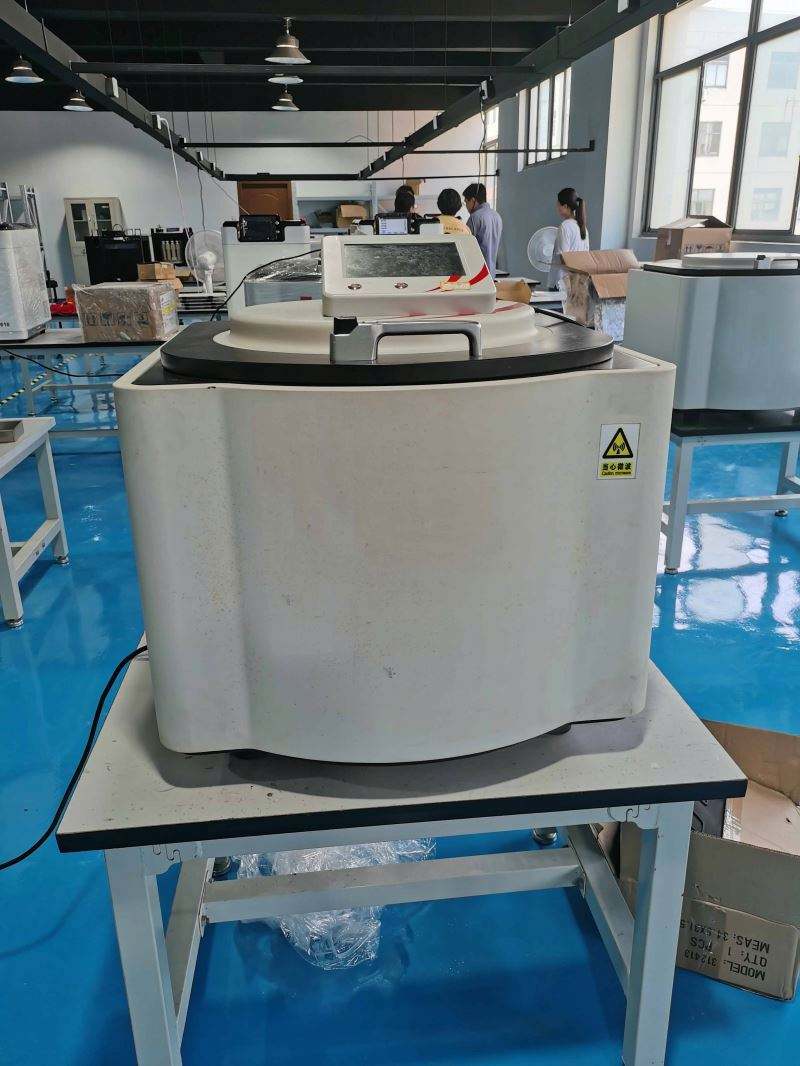

OMD-800 closed intelligent microwave digestion instrument is a high-end intelligent product in the LMD-8 series. It has stable working performance, convenient operation method, intuitive and convenient human-computer interaction interface, and humanized modular structure design. It adopts an intelligent high-end microwave digestion instrument with “zero consumable machine design, full tank temperature-pressure dual control and dual display functions.
FEATURES

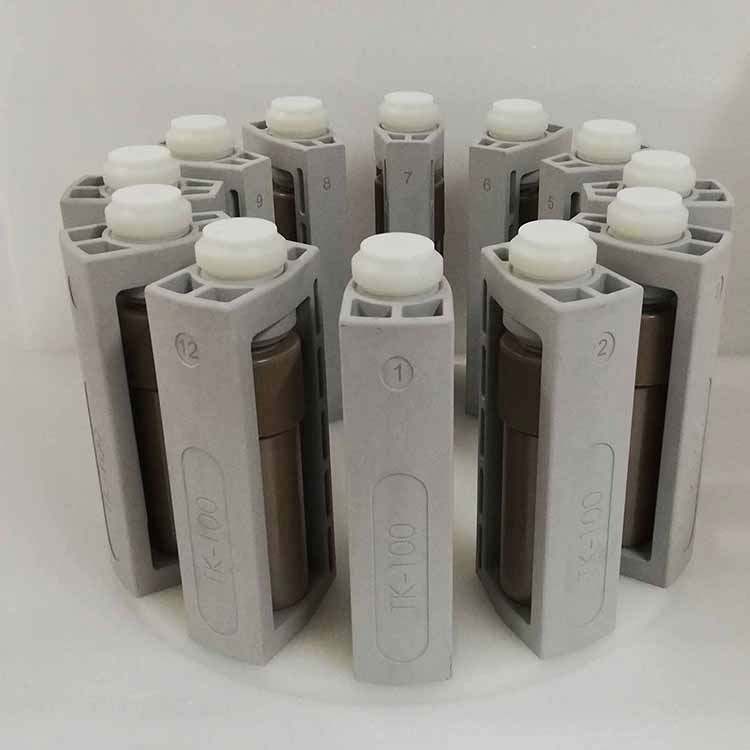

1.Special Designed Sample Digestion Vessel
The automatic vent and self-resealing structure which won national patent ensures the digestion vessels can automatically release pressure and instantly reseal when a sudden over-pressure situation occurs. It prevents waste of batch samples and solutions and also avoids vessel damage.
2.Contact-less Temperature and Pressure Monitoring System
The advanced contact-less IR sensor could measure the real-time temperature of sample solutions in each digestion vessel. Meanwhile, the contact-less pressure sensor could monitor the real-time pressure of each vessel. This realizes isolation between temperature and pressure controlling system, also avoids sample cross-contamination. Each real-time temperature and pressure value is displayed during the whole digestion process,
allowing a clear check of digestion conditions.
3.Large Storage Capacity
It can edit and store 255 types of programs according to user* s requirements and each method program can set parameters (temperature, pressure, time,microwave power) according to their own requirements which provides convenient operation for users.
4.Safety Protection System
With high-strength double locked security door, the real-time temperature and pressure monitoring, automatic adjustment of over-pressure and over-temperature and abnormal sound monitoring, the device can run in a highly safe environment.
5.Power Adjustment
The variable frequency resonance or non-pulse(optional) continues rotating mode ensures high efficient and even microwave throughput. It can be set between 0～3000W according to user’s requirements.
SPECIFICATIONS
| Model | OMD-800 |
| Vessel Quantity | 40 vessels |
| Vessel volume | 50 ml |
| Temperature Control | Scanning control of each vessel |
| Pressure Testing | Contactless pressure sensor |
| Temperature Monitoring | Contactless IR sensor |
| Vessel material | Innerlmported TFM Outer:Imported PEEK+Glass Fiber |
| Display | 7 inches Touch Screen |
| Pressure Control range | 0-10MPa |
| Maximum Working Pressure | 6 MPa |
| Pressure Control Accuracy | 0.01 MPa |
| Temperature Control Range | 50*400*C |
| Dimension | 640*630*590mm |
| Maximum Working Temperatur | 250°C |
| Inner Vessel Temperature Limit | 300°C |
| Rotation Mode | 360 Continuous Rotation |
| Microwave Power | 0-3000W Adjustable |
| Power | AC 220V,16A,50/60Hz |
| Weight | 78KG |
| Temperature Control Accuracy | ±0.3*C |
| Microwave Frequency | 2450Hz |
| Microwave Leak | <5mw/cm2 |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
