DESCRIPTION
The ultrapure water machine is a high performance water purification system engineered to produce ultra-pure water, suitable for a wide range of applications across industries. With advanced filtration and purification technology, this machine ensures a high level of water purity, achieving extremely low levels of contaminants, ions, and organic materials.
FEATURES
1. Double password protection, user password protection, initial password factory mode password protection
2. Has the function of periodic standby and automatic shutdown. When the shutdown time is up, all output is automatically stopped and the system enters the shutdown mode.
3. Perfect deionized water and ultra-pure water water production, system water intake, system circulation and other management functions.
4. Complete no water protection, high pressure water full protection and fault alarm functions.
5. Ultra-low radiation. Advanced electromagnetic compatibility design.
6. Complete historical alarms, historical water intake and consumable life management. provides the USB port to export historical alarm records and water intake records.
7. The chassis adopts spray plastic process and side door opening design. The filtration system adopts 11 “U-shaped Korean quick-insert filter column for easy replacement and maintenance, and has the function of upgrading water quality and quantity.
8. Backlit liquid crystal display, dual water online monitoring, can simultaneously display RO conductivity value, UP resistivity value and equipment operating status indication.
Menu operation, a number of measurement parameters can be modified and set; With a number of operating status display and indicator prompts, timely reflect the equipment operating status of high pressure shutdown, low pressure alarm, water full shutdown.
9. RO water ultra-pure water quality exceeding the alarm, automatic prompt to replace the filter element, can set the water intake time; Touch the button to draw water, RO UP water intake indicator automatically prompts.
10. Equipped with portable test pen, you can test TDS content, conductance, water temperature anytime and anywhere.

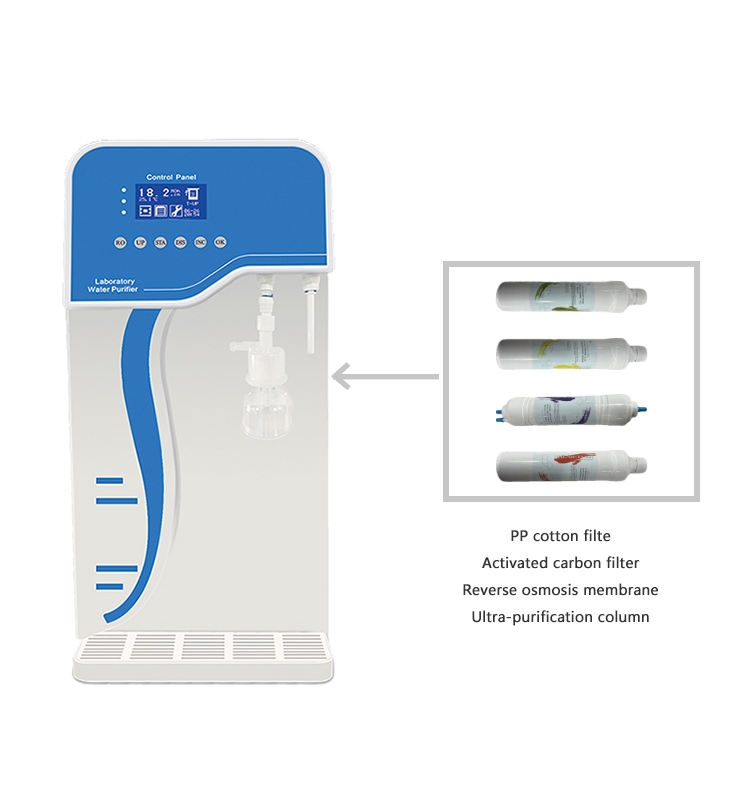

11. Dual wavelength UV UV germicidal lamp, effective sterilization and TOC, original imported 5000D ultrafilter module, effective removal of endotoxin and heat source (optional).
SPECIFICATIONS
| Model | LMN-T | LMN-TF | LMN-TV | LMN-TVF |
| Type | Standard | Low Endotoxin | Low TOC | Comprehensive |
| Water making speed | 10L/H,20L/H,30L/H | |||
| Water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃ | |||
| RO water Parameter | ||||
| Ion rejection rate | 97%-99% | |||
| Organic matter rejection rate | >99% when MW>200 Dalton | |||
| Particle and bacterial rejection | > 99% | |||
| Application | Front system of ultra-pure water machine, buffer configuration, photosensitive film washing, water supply for stability experiment box, meteorological experiment equipment, hydrogen generator, battery adding liquid, electroplating and other instruments | |||
| UP water Parameter(ASTM TYPE I grade water) | ||||
| Resistivity | 18.25 M Ω. cm @ 25 ℃ | |||
| Heavy metal ion | < 0.01 ppb | |||
| Total organic carbon (TOC) * | <10 ppb | <3 ppb | ||
| Bacteria | < 1 cfu/ml *(with terminal filter) | |||
| Particulate matter | <1/ml | |||
| Pyrogen | N/A | < 0.001 Eu/ml | N/A | < 0.001 Eu/ml |
| Ribonuclease | N/A | <1pg/ml | N/A | <1pg/ml |
| Deoxyribonucleases | N/A | <5pg/ml | N/A | <5pg/ml |
| Application | All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment | PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute | Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, High sensitivity ICP/MS， environmental monitoring, biochip development, trace organic matter analysis | Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing |
| System configuration | Main machine (including 1 set of purification column)+12 L external pressure water storage tank +TDS pen + accessory kit | |||
| Electrical requirements | 100-240V, 50/60Hz, 48-72W | |||
| Dimensions | 312×475×475mm | |||
| Weight | 30Kg | |||
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
