DESCRIPTION
It is suitable for drying heat-sensitive materials such as biological products, biological pesticides, enzyme preparations, etc. Because the sprayed materials are only subjected to high temperature and instantaneous heat when sprayed into mist, so these active materials maintain their active ingredients after drying.
FEATURES
1. The use of self-designed concentric coaxial atomizer, nozzle aperture can be customized.
2. The use of wear-resistant and corrosion-resistant 16# silicone tube, can meet the needs of most heat-sensitive materials conveying.
3. The feeding device is an embedded peristaltic pump, precise speed control, one-way rotation is safer.
4, Supporting good light transmission, and acid and alkali resistant high borosilicate glass drying components.
5. The clamps of fixed components are made of high quality aluminum alloy, tight and durable without dead ends.

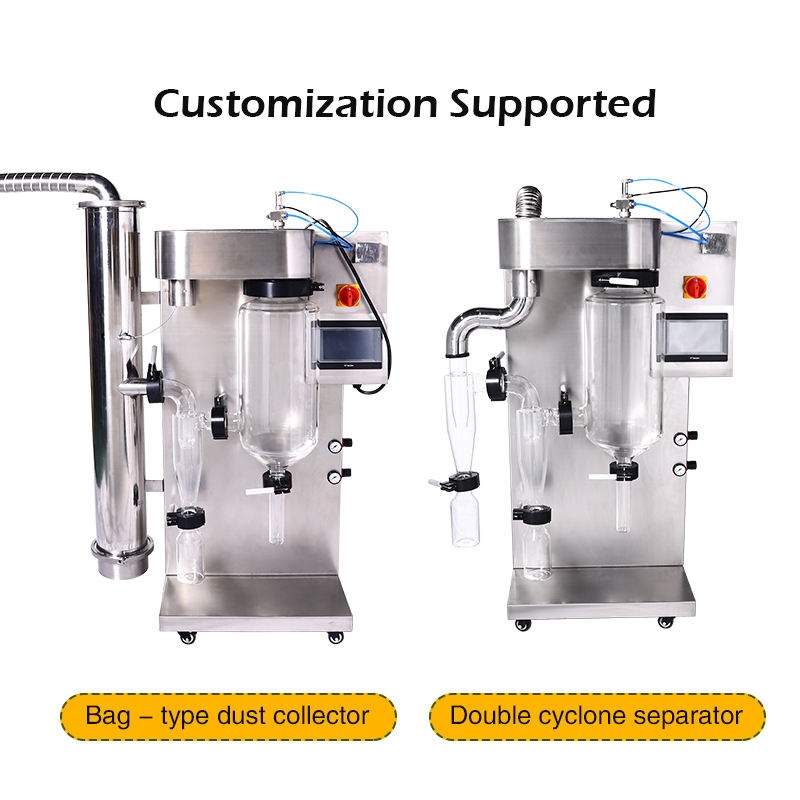

6. The cyclone separator and the bag type dust removal device can be switched to use, which can sieve and collect materials of different particle sizes.
7. The use of imported oil-free air compressor from Taiwan, low pollution, low noise, can work continuously.
8. Adopt high precision PID temperature control technology, temperature control precision range 1℃, electric heating heat source is stable and more environmental friendly.
9. intelligent man-machine interactive interface, simple operation, support Chinese and English switching
10. the finished dry powder after drying, its granularity is more uniform, more than 95% of the dry powder is in the same granularity range.
11. For viscous materials, there is a nozzle cleaner (through-needle), which will be cleared automatically when the nozzle is blocked, and the frequency of through-needle can be adjusted automatically.
12. Stainless steel drying chamber can do tower wall blowing.
13. Accept customization (such as fully equipped with imported accessories, the appearance of sandblasting, according to the laboratory environment design models, etc.)
SPECIFICATIONS
| Model | OQT-2000B | OQT-2000BS |
| Water evaporation | 1000mL-2000 mL/h | |
| Minimum feed volume | 50ml | |
| Liquid delivery pump | 4-link rotor pump (feed tube: imported silicone peristaltic tube) (6-link rotor pump is optional) | |
| Fogging method | Refined two-fluid atomization nozzle (one air and one liquid) (optional refined plastic two-fluid atomization nozzle) | |
| Nozzle diameter | (Spraying System) optional 07/1.0/1.5/2.0/2.2mm, with the machine standard configuration 1.0mm (optional silicon carbide material, wear resistance is about 10 times the stainless steel) | |
| Average drying time | 1.0～1.5S | |

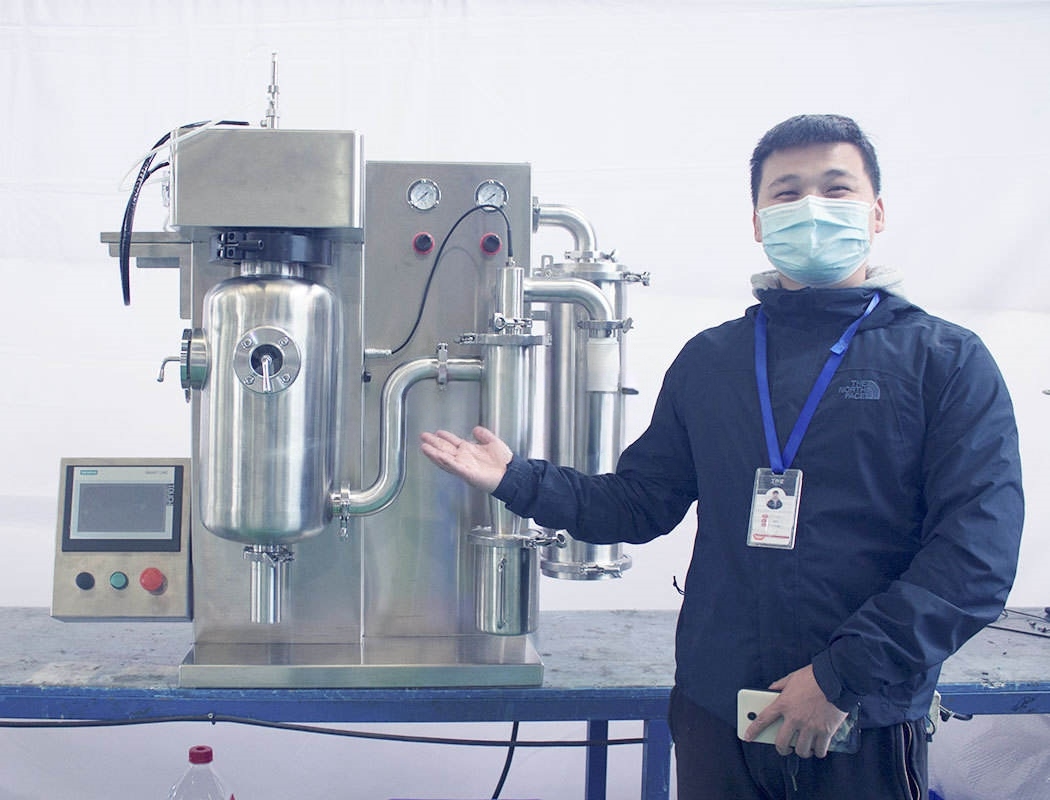

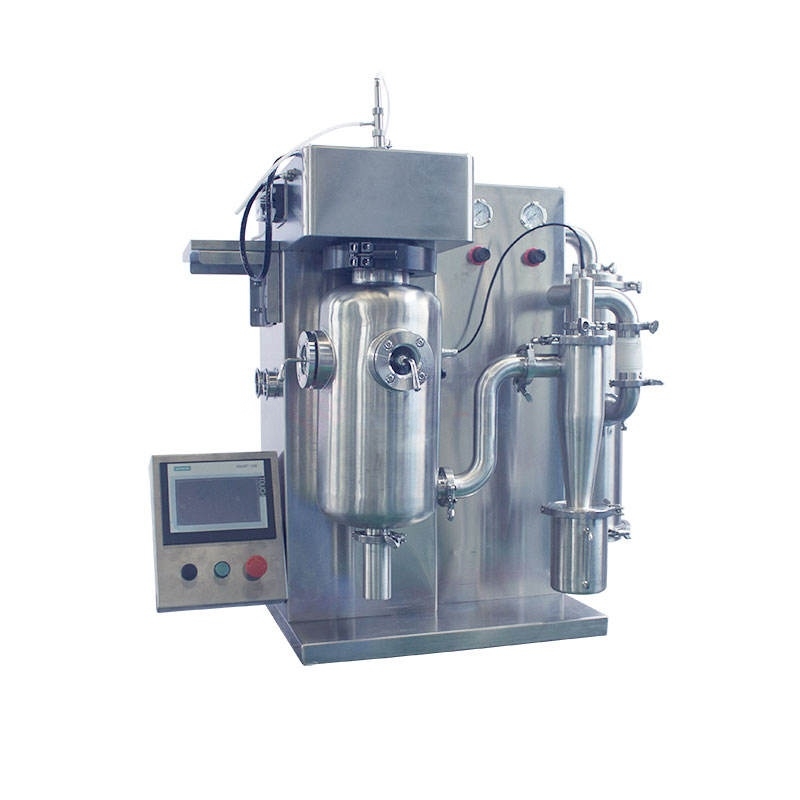

| Atomization tower | High borosilicate glass | SUS304 stainless steel |
| cyclone separator | High borosilicate glass | SUS304 stainless steel |
| Receiving bottle | High borosilicate glass | SUS304 stainless steel |
| Temperature Setting Range | 30-300℃ PID automatic control; (temperature can be set) | |
| Temperature adjustment accuracy | Inlet temperature ±1℃ | |
| Fans | Single-phase low-noise fan, fan flow; 3.2m³/min, wind pressure; 19KPa9 (Taiwan imported fan, silent and powerful) | |
| Temperature Sensor | PT-100 Thermocouple | |
| Spray adjustment range | 0-0.8 MPa (0.2 MPa recommended) | |
| Spray pressure intake volume | 106L/min; exhaust volume; 36L/min; input power 580W | |
| Air compressor for spraying | Optional | |
| Electric heater power | 3.5KW | |
| Rated voltage | 220V/50HZ | |
| Inlet air treatment | Fiber cotton filter | |
| Liquid delivery pump flow range adjustment | 0-26ml/min | |
| Electrical box cooling | Brushless DC motor fan fan heat | |
| Air connection diameter for spraying | 6mm outer diameter air hose | |
| Function Protection | Fan does not start, heater does not start, air compressor does not start, peristaltic pump does not start | |
| Dimension(W×D×H)mm | 1090×600×890 | |
| Equipment control mode | Touch Screen | |
| Whole machine material/weight | 304/105KG | |
APPLICATION
Food Beverage Industry-
Pharmaceutical Industry
-
Chemical Industry
-
Environmental and Waste Management
