DESCRIPTION

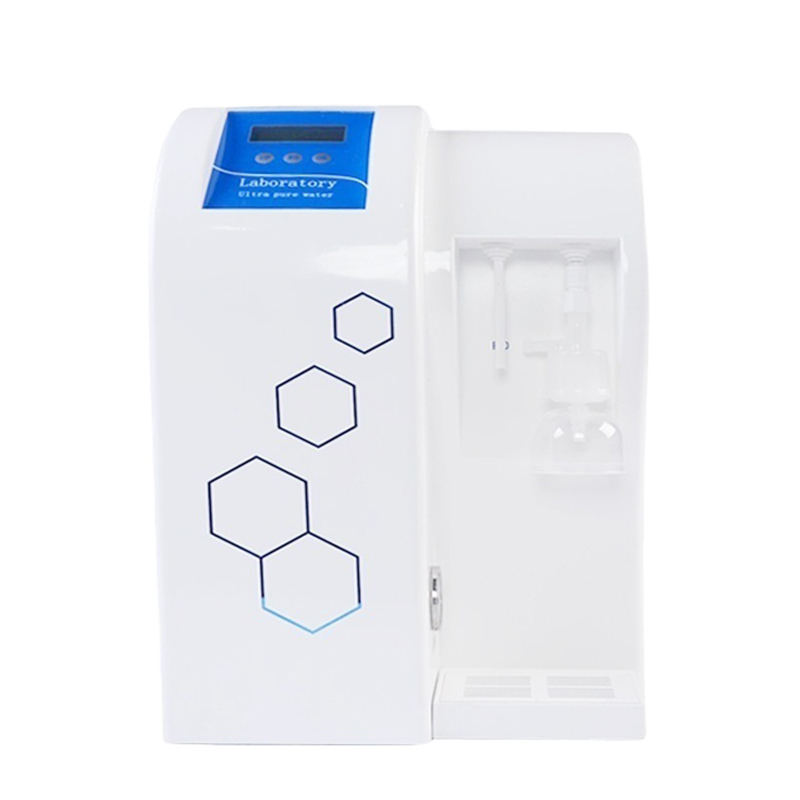

Laboratory ultrapure water machine STAR series: The output of this series of products is 10-30 liters/hour, and the water quality reaches 18.25MΩ.cm@25℃ ultrapure water machine.
FEATURES
1. The case adopts ABS plastic spraying process; the appearance adopts curve design to be more beautiful and generous with removable drain tank;
2. All Korean-style quick-inserted filter columns in the entire system are built into the chassis; easy maintenance and replacement;
3. Water quality online monitoring system, which can measure the water quality of the produced water immediately;

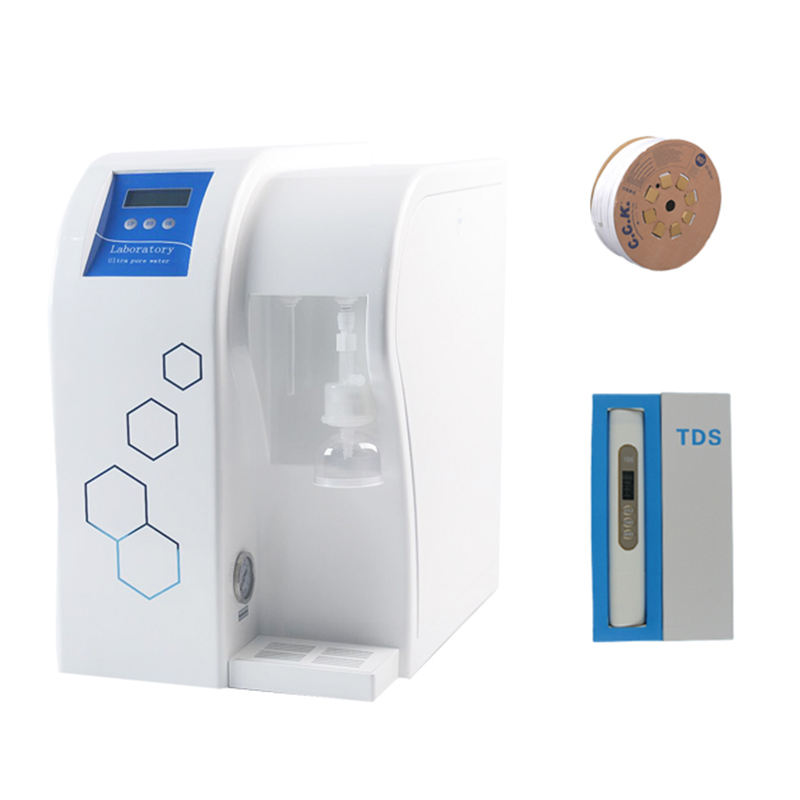

4. Equipped with a portable TDS pen, which can test TDS content, conductance and water temperature anytime and anywhere;
5. Touch the keys, two water quality, ready to use;
6. Touch the door to open the door design, the replacement of the filter element is simple and fast, the entire process does not require any tools, and the filter element replacement is easily completed;
7. Support WIFl expansion interface, provide mobile APP remote monitoring function, improve user experience;(optional)
8. English/Chinese LCD display and user-friendly operation interface allow you to fully monitor the working status and real-time data of the controller;
9. Four user passwords and factory password protection;
10. Perfect RO pure water and ultra-pure water to make water, system water extraction, system flushing and other functions;
11. Perfect raw water pressure display, no water protection, high pressure water full protection functions and fault alarm function;
12. Complete consumable life management function, support the unique lD identification function of consumables, a eliminate counterfeit and inferior non-original consumables;(Optional)
13.It adopts low-voltage 24VDC as the main power supply，which complies with the safety regulations and meets the use in humid environments without causing harm to people;
SPECIFICATIONS
| Model | Standard; Eliminating endotoxin; Low TOC; Synthesizing | |||
| STAR-10 | STAR-F10 | STAR-V10 | STAR-VF10 | |
| STAR-20 | STAR-F20 | STAR-V20 | STAR-VF20 | |
| STAR-30 | STAR-F30 | STAR-V30 | STAR-VF30 | |
| Process | PP+AC+AC+RO+UP+ TF | PP+AC+AC+RO+UP+UF+TF | PP+AC+AC+RO+UP+UV+TF | PP+AC+AC+RO+UP+UV+UF+TF |
| Output(25℃) | 10L/H, 20L/H, 30L/H | |||
| Flow rate | Up to 2 liters/minute(with pressure tank | |||
| Pure water outlet | 2: reverse osmosls water, ultra-pure water | |||
| Resistivity(25℃） | 18.2MΩ.cm | |||
| TOC | <10ppb | <10ppb | <3ppb | <3ppb |
| Bacteria | <0.1cfu/ml | |||
| Particle(>0.22μm） | <1/ml | |||
| Endotoxin | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml |
| Ion rejection rate | 95%-99%(new RO membrane) | |||
| Particles and bacteria rejection rate | >99% | |||
| Feed water requirements | Tap water, temperature: 5-45℃, pressure: 0.15-0.4Mpa | |||
| Dimension and weight | L*W*H: 31.2*47.5*47.5cm/Weight: about 30KG | |||
| Electrical requirements | AC110-240V, 50/60Hz | |||
| Power | 30-40W | |||

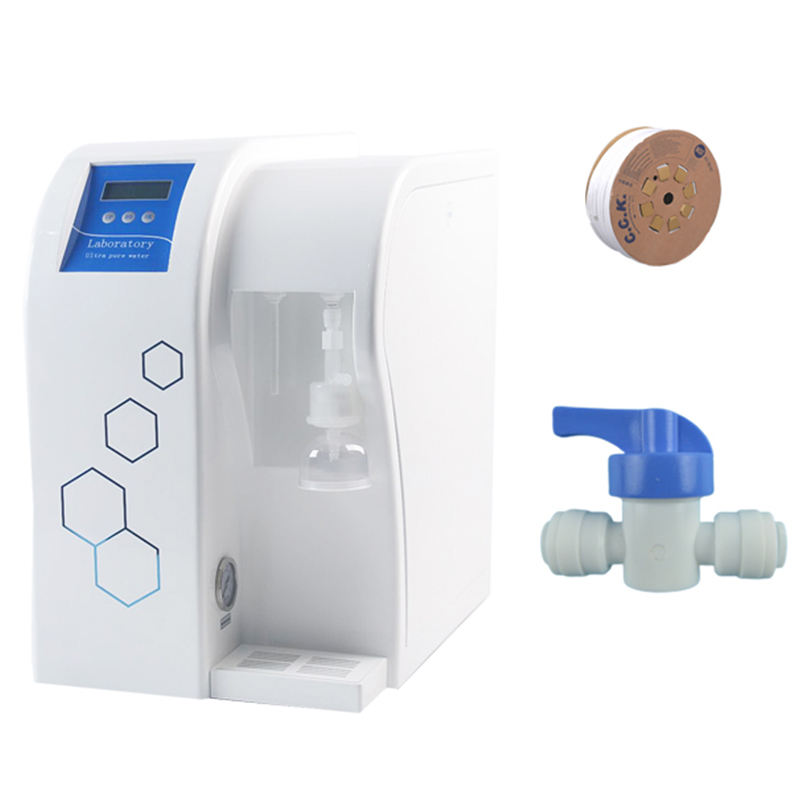

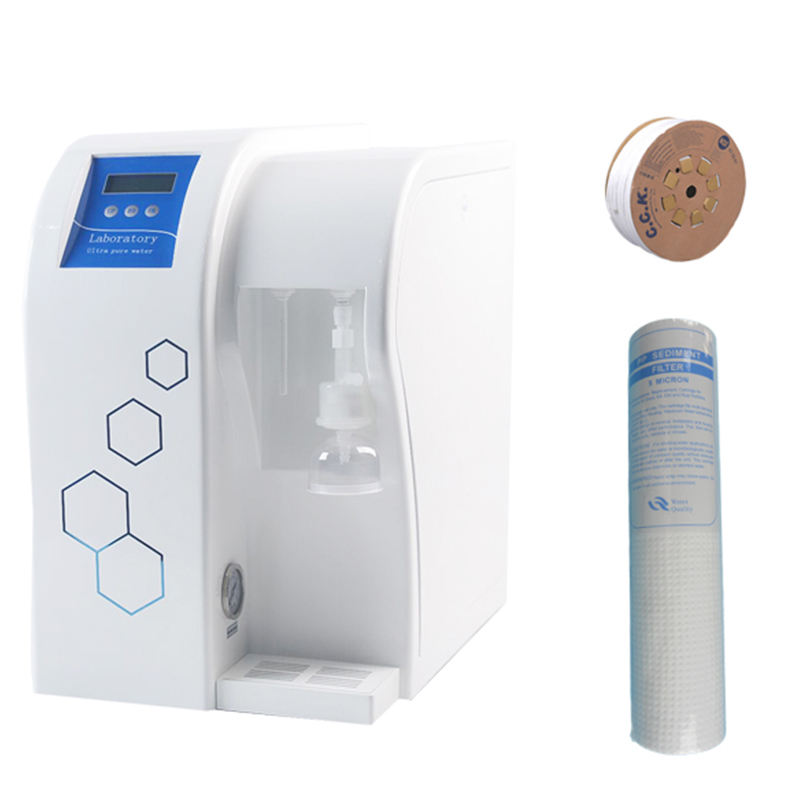

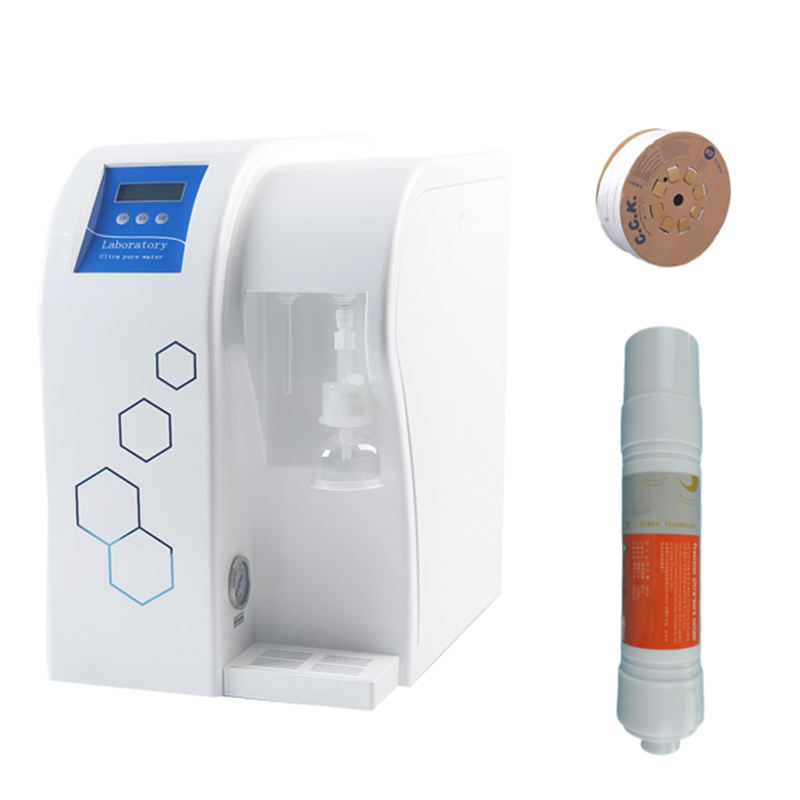

| Standard configuration | Machine(including 1 set of purification column)+12 liters pressure tank+ terminal filter+ accessories package
| |||
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
