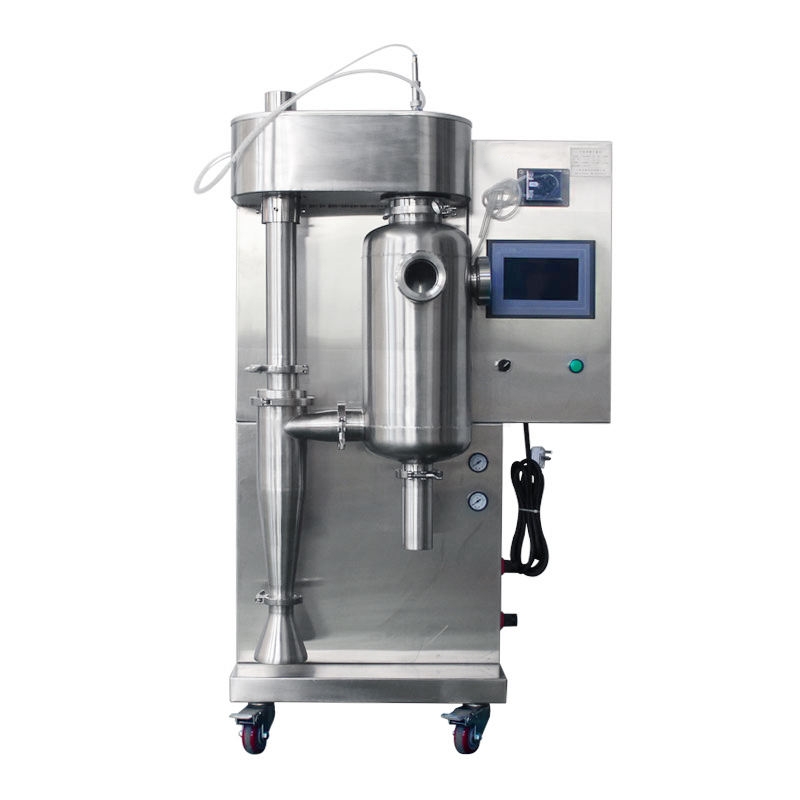

DESCRIPTION
Lab scale spray dryer is our latest type which is the result of our constant innovation in this field of laboratory scale spray drying systems through longtime. It assembles many of new design, for example, small shape for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and function are controlled by PLC, English language.
FEATURES
1. Color large touch screen operation, parameter LCD display.
2. Real-time regulation of PID constant temperature control technology, accurate temperature control, heating temperature control accuracy ± 1 ° C.
3. Filter systems can reduce air pollution and dust.
4. The spray, drying and collecting device is made of transparent high-quality high-temperature resistant borosilicate glass. The whole spray drying experiment process is visible, which is convenient for controlling the experimental process and timely discovering and adjusting the problem.
5. The atomization structure of the two-fluid spray is made of high-precision stainless steel material. The diameter of the powder spray is normally distributed and the fluidity is good.
6. The jet is automatically unblocked (through the needle) and the frequency is adjustable. When the nozzle is blocked, it will be automatically cleared to ensure the continuity of the experiment.
7. The amount of feed can be adjusted by the feed peristaltic pump, the minimum sample experiment volume 50ml.
8. Shutdown protection function: When shutting down, when the heater is above 60°C, the fan cannot be turned off.
9. Built-in imported oil-free air compressor, noise less than 60db.
SPECIFICATIONS
| Model | OQT-8000T |
| Max capacity | 1500-2000ml/h |
| Temperature range of Inlet air | 80℃ -250℃ |
| Temperature range of outlet air | 30℃ -180℃ |
| Precision of temperature | ± 1 ℃ |
| Dryer time | 1.0-1.5 S |
| Min. feeding | 50ml |
| Air compressor power | 0.58 kw |
| Drying air volume | 2787L/min |
| Drying chamber diameter | ￠220 mm |
| Spray system | Two-fluid spray atomization structure with standard 0.7mm nozzle,options of 0.5/1.0/1.5/2.0mm |
| Power | 4.5KW 220V |
| Voltage | 220V |
| Dimensions | 800×600×1300 ( mm ) L x W x H |
| Weight | 100kg |

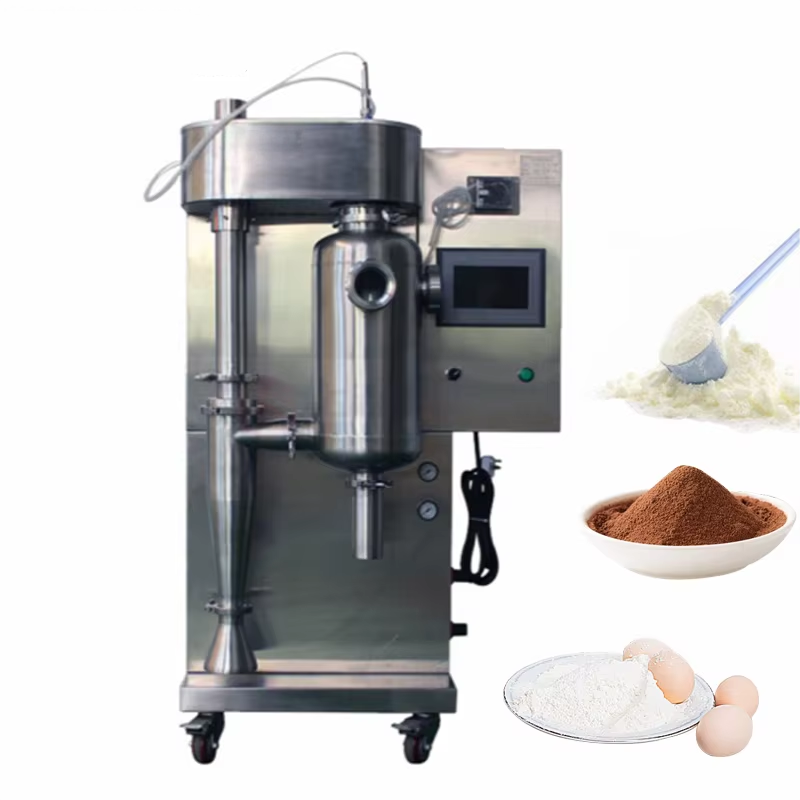

APPLICATION
Food Beverage Industry-
Pharmaceutical Industry
-
Chemical Industry
-
Environmental and Waste Management
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.

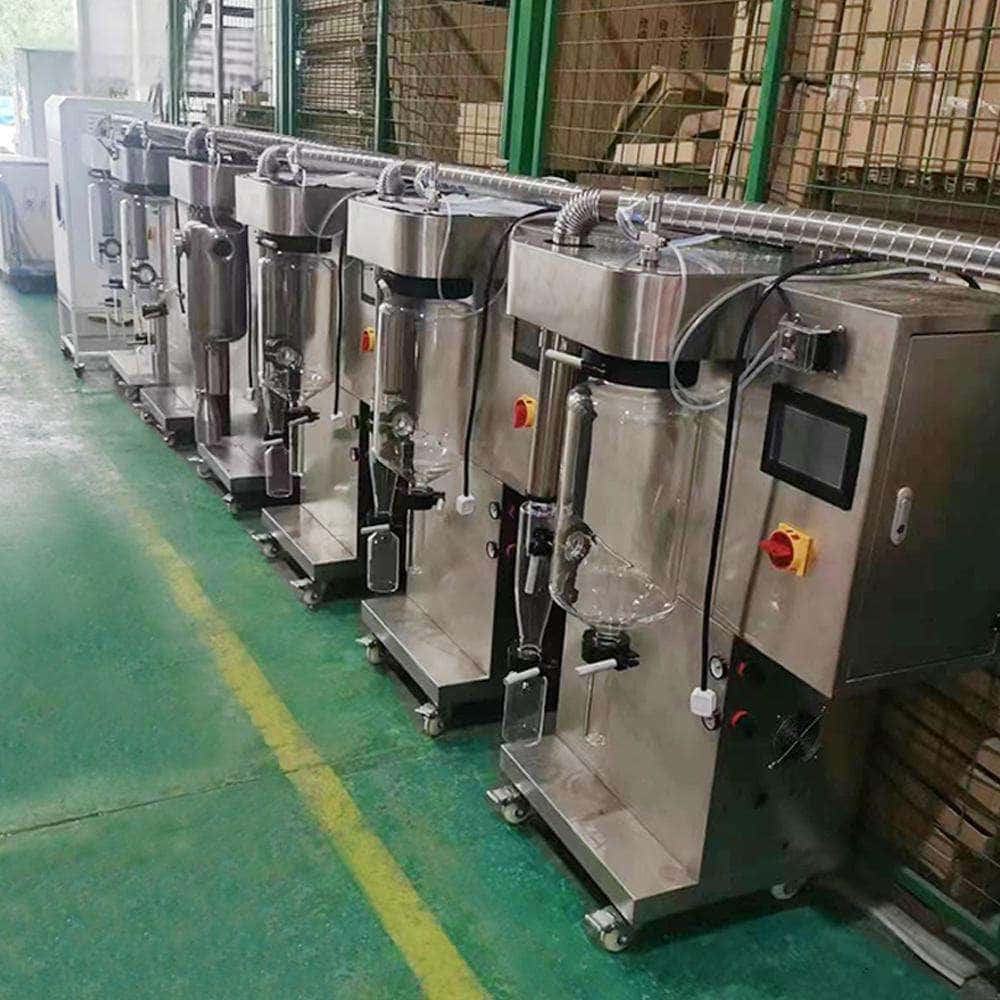

OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
