DESCRIPTION

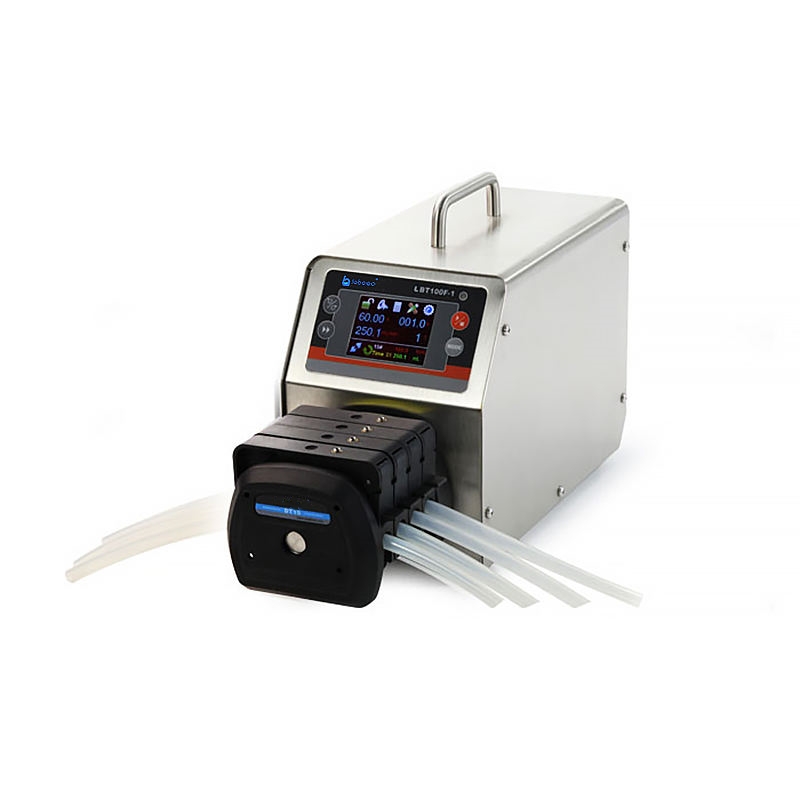

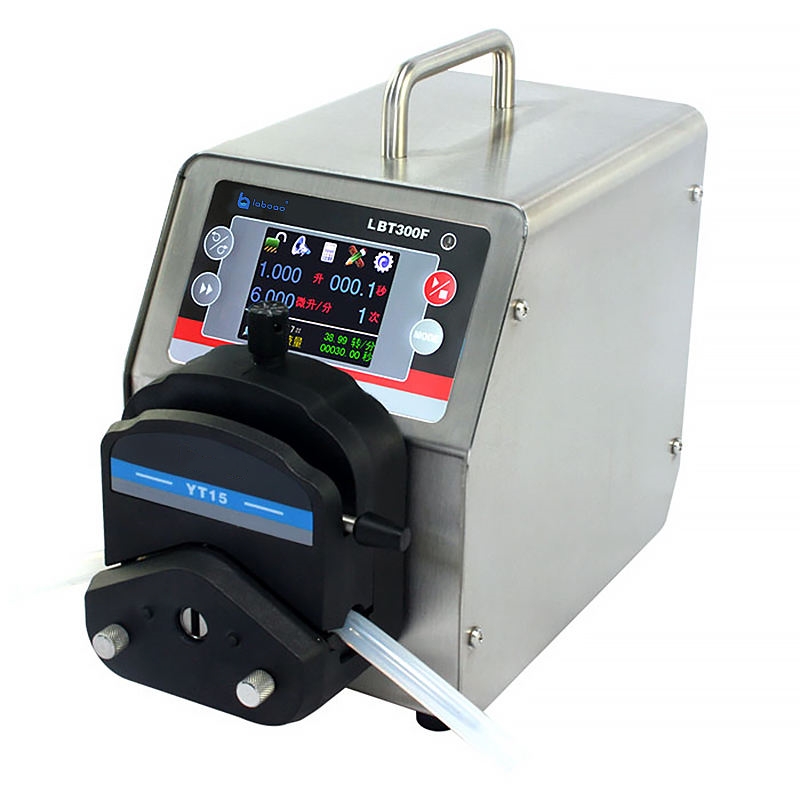

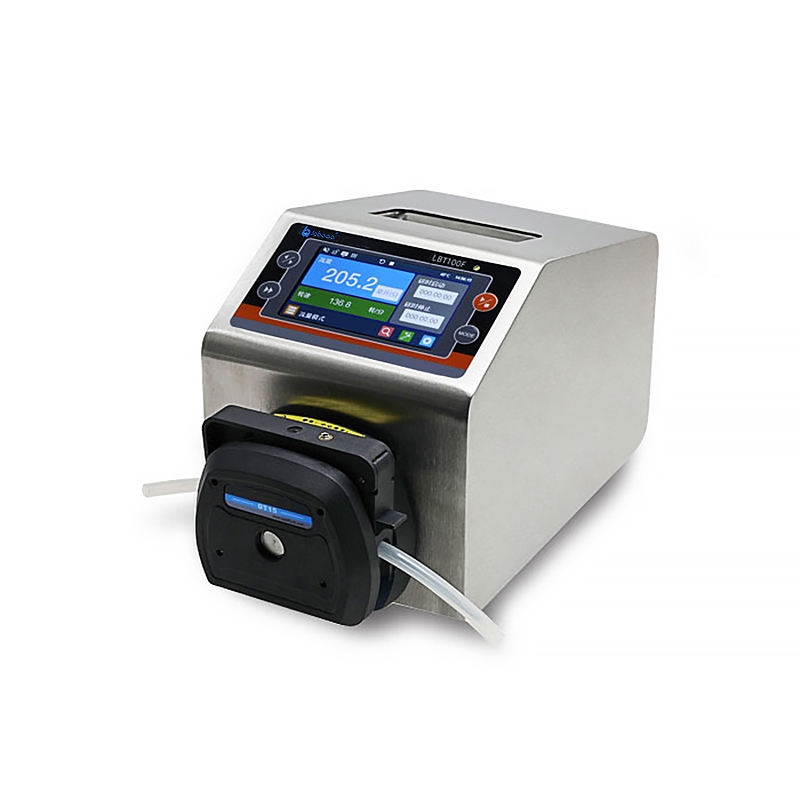

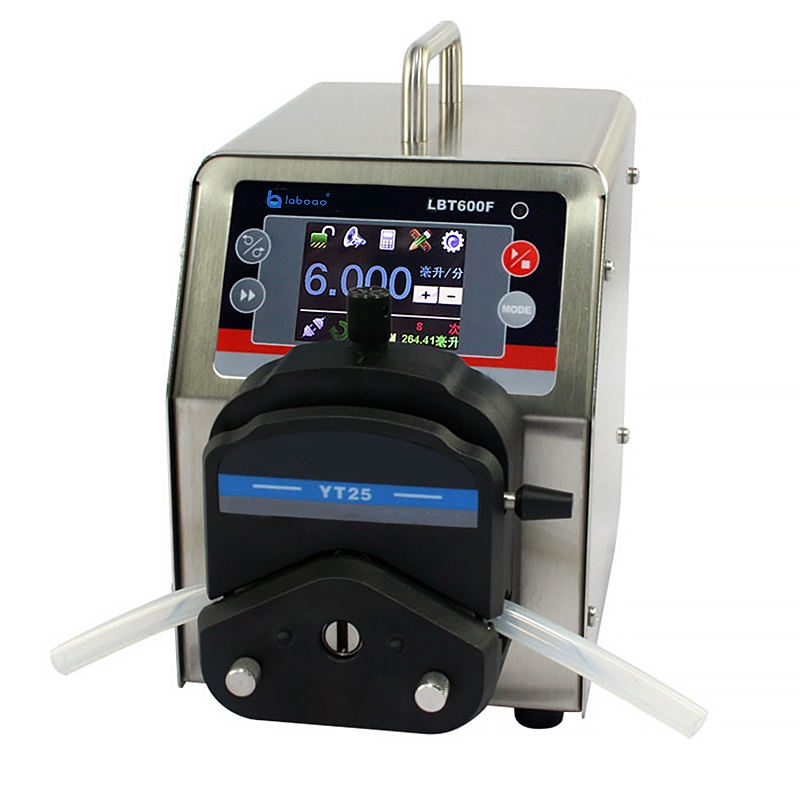

This series of peristaltic pumps adopt stepper servo motors, 4.3 inch HD LCD touch screen display and operation, multiple dispensing modes are available, Through the APP software, the pump can be remotely controlled and the running status can be monitored in real time. It is mainly suitable for high-precision transmission and timing and quantitative dispensing of liquids.
FEATURES
1. 4.3 inch color LCD display, intuitive image.
2. Touch screen with key operation, convenient and fast.
3. LF-Touch-OS software system, efficient and stable, with good human-computer interaction mode, convenient product customization and upgrade.
4. Working modes: flow rate, time dispensing, volume dispensing, programming dispensing (cycle).
5. Five sets of dispensing parameters for volume and time dispensing pre-storage.
6. Programming mode supports 30 different quantitative parameter settings for complex control processes.
7. Start/stop, reversible direction, full speed, suction function, timed start-stop.
8. Accurate flow control and display, microstep algorithm to ensure the dispensing accuracy of different settings.
9. Wizard flow calibration function, easy to use.
10. Unique back suction function to prevent liquid drips.
11. Support for serial print parameters and data.
12. Intelligent temperature control function, automatically adjusting the heat according to the environment, so that the device is always in the best state.
13. WIFI control function, remote operation can be realized through the APP software, and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.
14. External analog adjust speed , external control start-stop ,reversible direction, dispensing, external signal physical isolation.
15. RS485 communication interface, MODBUS protocol is available, can set up communication parameters, convenient to connect various of control equipments.
16. Open multiple control parameters , suitable for OEM custom applications.
17. The circuit board is sprayed with three anti paint technology to achieve the effect of dustproof and moisture-proof.
18. Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
19. Innovative stainless steel housing, easy to clean, effectively prevent the erosion of various organic solvents.
SPECIFICATIONS
| Model | OBT100F | OBT300F | OBT600F |
| Flow range | 0.0001～720ml/min | 0.006~1690 ml/min | 0.006~2900 ml/min |
| Speed range | 0.1~150 rpm | 0.1~350 rpm | 0.1~600 rpm |
| Speed resolution | 0.1rpm | 0.1rpm | 0.1rpm |
| Dispensing volume | 0.05ml～9999l | 0.05ml～9999l | 0.05ml～9999l |
| Dispensing time | 1～999，“0”Infinite cycle | 1～999，“0”Infinite cycle | 1～999，“0”Infinite cycle |
| Dispensing interval time | Dispensing interval time | Dispensing interval time | Dispensing interval time |
| Speed accuracy | ＜±0.2% | ＜±0.2% | ＜±0.2% |
| Power supply | AC100～240V, 50Hz/60Hz | AC100～240V, 50Hz/60Hz | AC100～240V, 50Hz/60Hz |
| Power consumption | <40W | <50W | <60W |
| External control | external control input level 5V-24V, external control analog 0-5V, 0-10V, 4-20mA can set | external control input level 5V-24V, external control analog 0-5V, 0-10V, 4-20mA can set | external control input level 5V-24V, external control analog 0-5V, 0-10V, 4-20mA can set |
| Communication interface | RS485 communication interface, Modbus protocol is available | RS485 communication interface, Modbus protocol is available | RS485 communication interface, Modbus protocol is available |
| Working environment | Temperature 0～40℃, relative humidity<80% | Temperature 0～40℃, relative humidity<80% | Temperature 0～40℃, relative humidity<80% |
| IP Grade | IP31 | IP31 | IP31 |
| Dimension（L×W×H） | 269*160*183mm | 269*160*183mm | 269*160*183mm |
| Weight | 4.8kg | 5.3kg | 5.5kg |
