DESCRIPTION

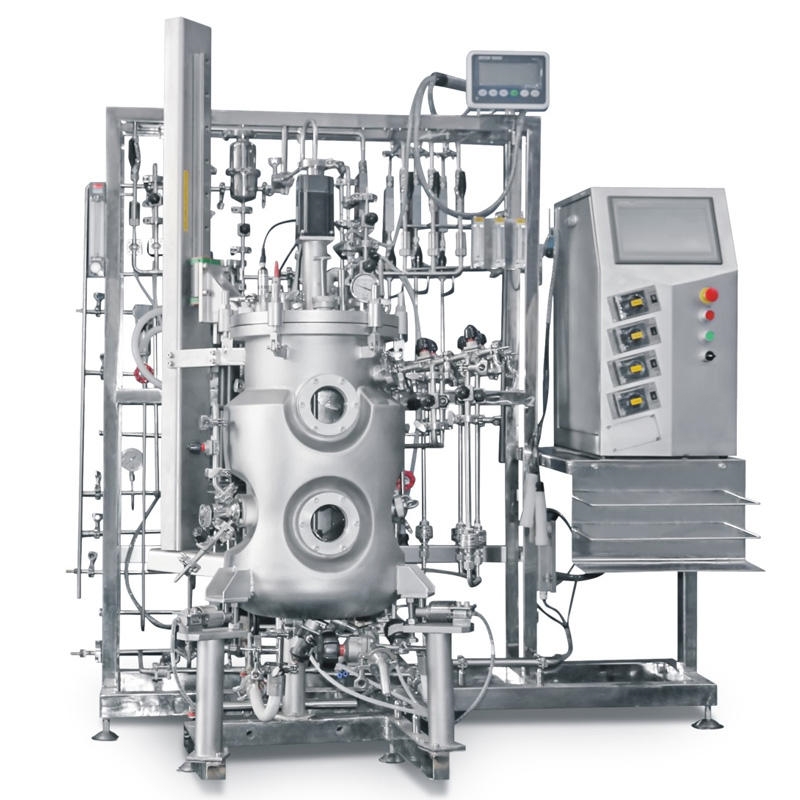

This top magnetic mixing stainless steel bioreactor system is designed for cultivating delicate plant and animal cells with stringent safety requirements. It excels with low-speed mixing and minimal culture medium viscosity, making it ideal for research on long-cycle, non-aggressive bacteria.
FEATURES
1. Enhanced Biosafety: The innovative magnetic stirring system with a static seal eliminates the risk of leakage and contamination, ensuring a secure environment for cultivating delicate cells. 2. User-Friendly Design: The 316L stainless steel tank with a clear view lid simplifies operation, cleaning, and maintenance. 3. Precise Environmental Control: Control and monitor temperature, pH, and dissolved oxygen (DO) to create optimal growth conditions for your cultures. 4. Efficient Low-Shear Mixing: The magnetic stirring system provides gentle and effective mixing suitable for low-speed cell cultures, minimizing stress on your cells. 5. Comprehensive Cultivation Solution: The bioreactor integrates features like electric heating, water cooling, a replenishment system, and in-situ sterilization for a complete cultivation solution.
SPECIFICATIONS
|
Model
|
OQT-XSJ series
|
|
Volume
|
5~5000L optional
|
|
Diameter to height ratio
|
1:2~2.5
|
|
Feeding volume
|
70%
|
|
Material
|
Stainless steel 304/316
|
|
Function
|
PH/DO/Foam/Temp control
|
|
Tank pressure
|
manual adjustment, pressure gauge display; range: 0~0.20Map;
|
|
Sterilization method
|
Automatic or manual sterilization
|
|
Stirring Speed
|
50~700rpm stepless speed; accuracy: ±1rpm
|
|
Temperature detection
|
range: cooling water temperature +5~55℃; accuracy: ±0.1℃; resolution: 0.1℃;
|
|
pH detection
|
range: 2~12ph; control accuracy: ±0.02ph, resolution: 0.01ph;
|
|
DO detection
|
range: 0~100%, control accuracy: ±3%; resolution: 0.1%;
|
|
Foam control
|
electrode detection, peristaltic pump replenishing
|
|
Ventilation
|
manual adjustment, flow meter display;
|
OPTIONAL
1. Weighing with replenishing balance
2. Tank weighing
3. Air flow automatic control
4. Tank pressure detection
5. Bypass pure oxygen
6. Redox potential online detection
7. Methyl (ethyl) alcohol content online detection and control
8. Tail gas O2, CO2 content online detection
APPLICATION
Microbial Fermentation-
Biopharmaceuticals
-
Tissue Engineering
-
Algal Biotechnology
-
Environmental Applications
-
Agricultural Biotechnology
-
Biofuels and Renewable Energy
-
Food and Beverage Industry
