DESCRIPTION

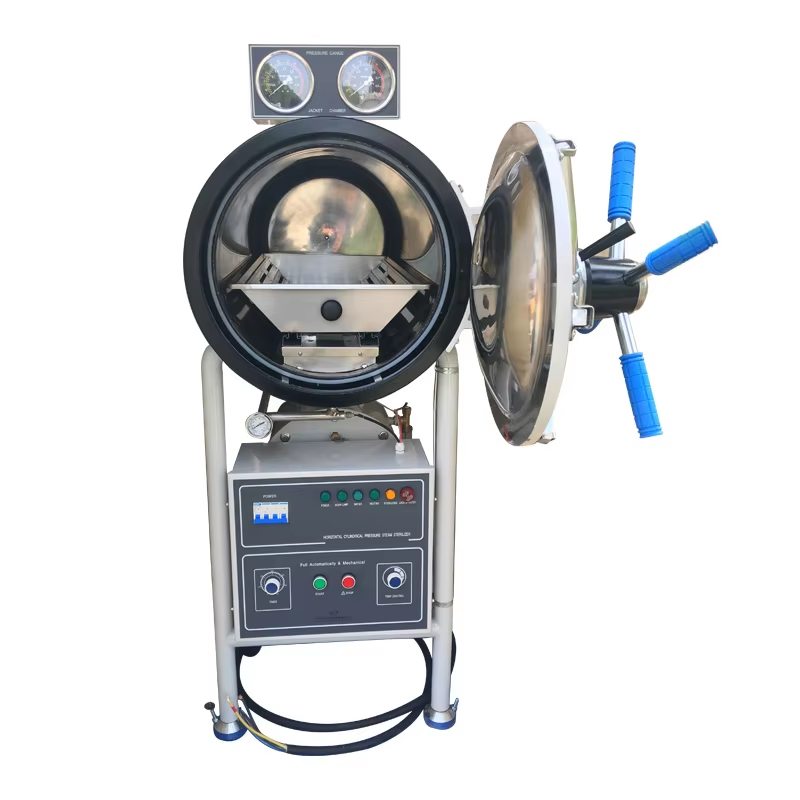

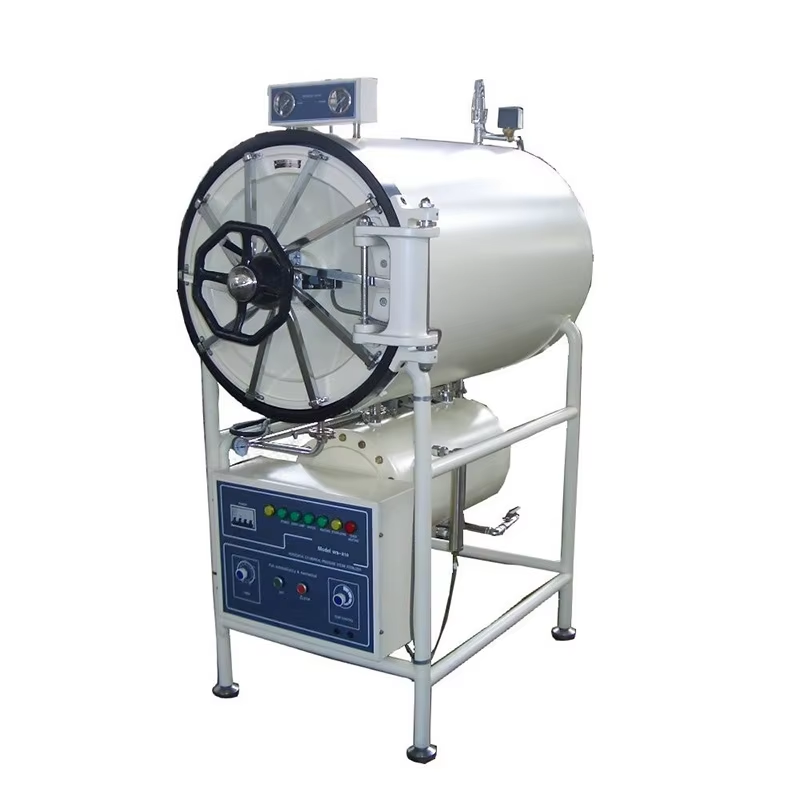

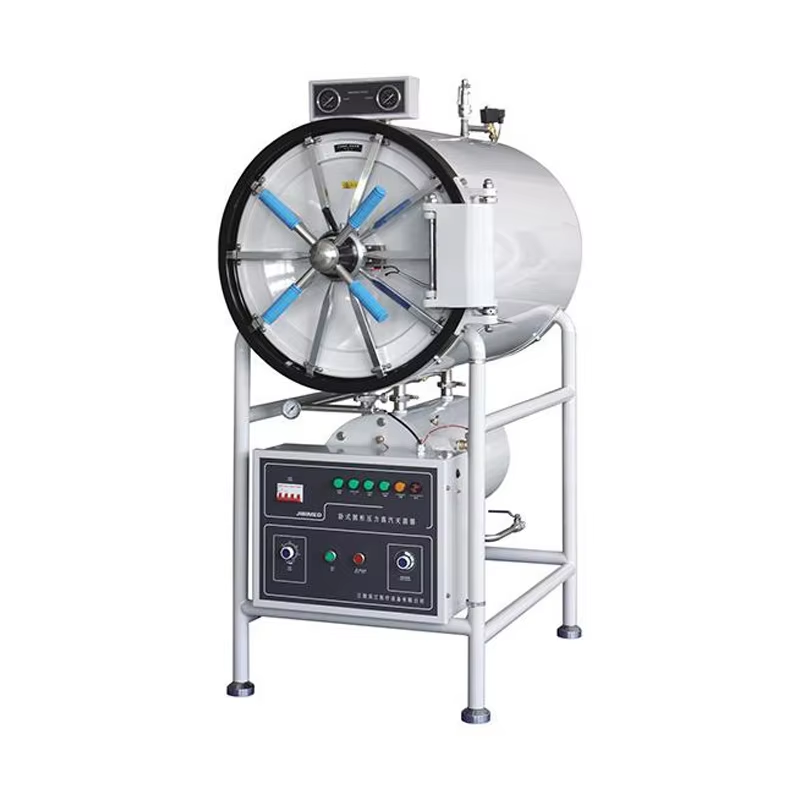

The horizontal pressure sterilizer adopts the gravity displacement method to exclude the cold air in the inner chamber, so that the inner chamber steam has less cold air content and the sterilization is more reliable. At the same time, during the sterilization process, the control system automatically adjusts the steam and steam according to the temperature of the inner chamber. It is mainly used in hospital supply rooms, operating rooms, pharmaceutical factories and research institute laboratories, etc., for the sterilization of medical and experimental cloth articles, surgical instruments and utensils.
FEATURES
1. The sterilization process is automatically controlled, without supervision and easy to use.
2. It has a drying function to achieve the drying effect of sterilized items.
3. With over-temperature and over-pressure automatic protection.
4. Safety interlocking device; steam cannot enter the inner body and overcurrent protection when the door is not closed; the power circuit breaker automatically cuts off the power when the current is overloaded.
5. The alarm indicates that when the pressure in the sterilization chamber is greater than 0.027 MPa, the door is interlocked and the door cannot be opened.
6. Overpressure protection, safety valve automatic pressure relief protection when the pressure exceeds the working pressure. Low water level protection device; water can not be activated when it reaches the high water level, and automatic power failure protection when the low water level is lacking.
7. Overcurrent protection; the power is automatically cut off when the current is overloaded.

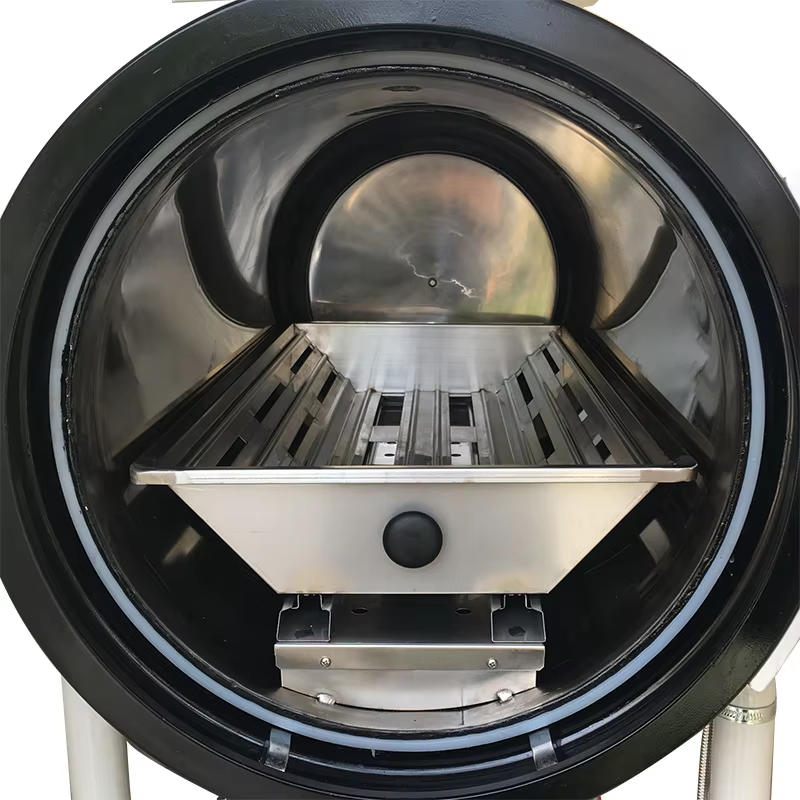

8. The sterilization chamber is made of high quality stainless steel.
SPECIFICATIONS
| Model | OL-150A | OL-200A | OL-280A | OL-400A | OL-500A |
| Sterilizing chamber volume | 150L | 200L | 280L | 400L | 500L |
| φ440×1000 | φ515×1000 | φ600×1000 | φ700×1100 | φ700×1300mm | |
| Maximum working pressure | 0.22Mpa | ||||
| Maximum working temperature | 134℃ | ||||
| Adjustment of temperature | 40℃-134℃ | ||||
| Sterilizing time | 0-60min | ||||
| Drying time | 0-60min | ||||
| Heat average | ≤±2℃ | ||||
| Power | 9kw/380V 50Hz | 9kw/380V 50Hz | 12kw/380V 50Hz | 18kw/380V 50Hz | 18kw/380V 50Hz |
| Size(mm) | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
| Packing size（mm） | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
| Gross/ Net weight | 320/240kg | 350/260kg | 465/365Kg | 530/420Kg | 580/470Kg |
APPLICATION
Healthcare Facilities-
Pharmaceutical Biotechnology
-
Food Beverage Processing
-
Scientific Research Institutions
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
