DESCRIPTION

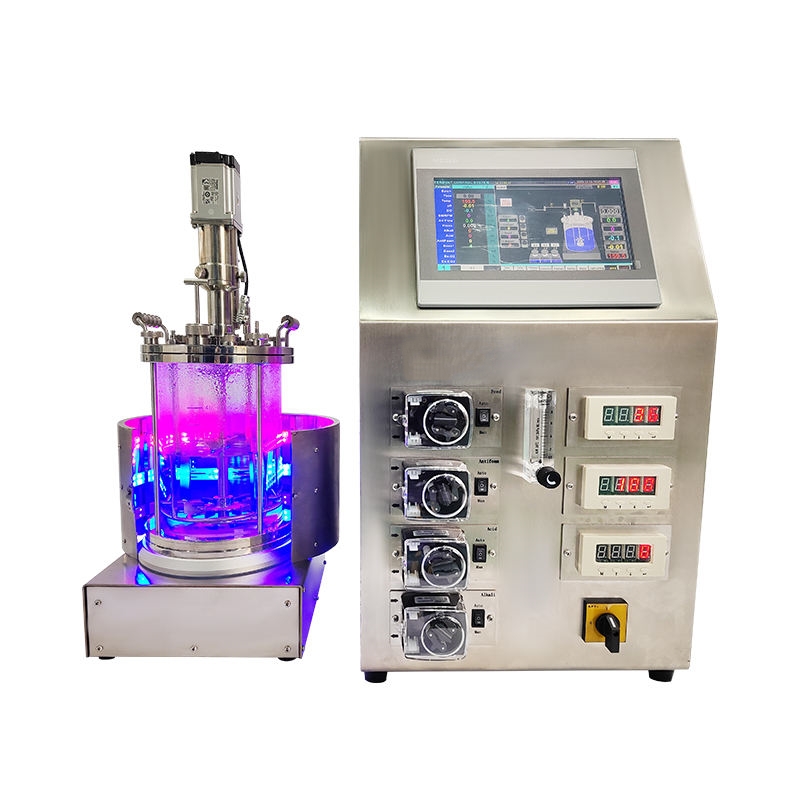

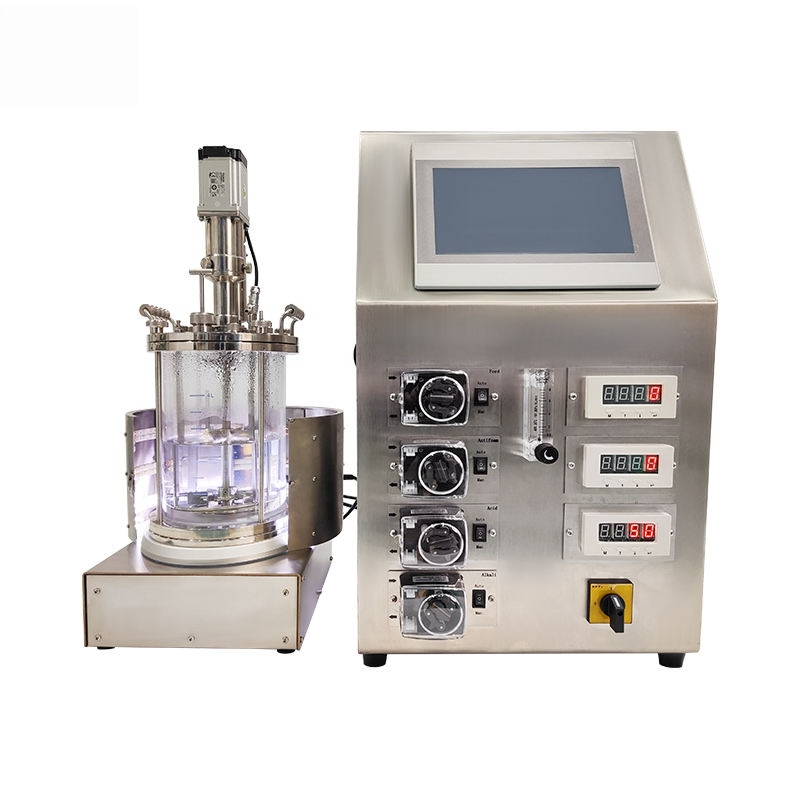

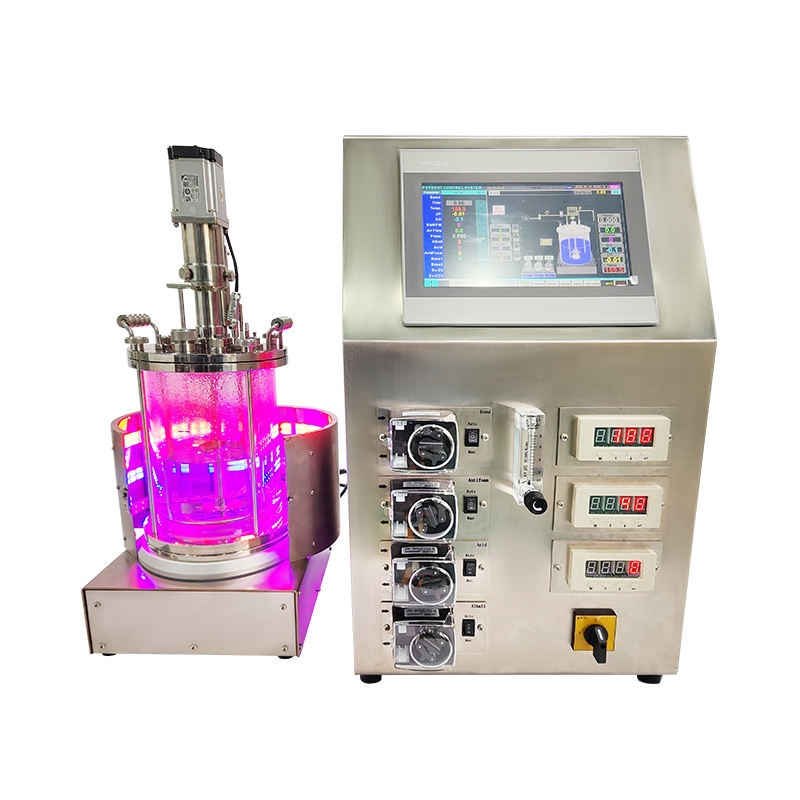

The OQT-XGJG illumination glass biological fermentation system uses a color touch screen to display all measured values and control parameters, which greatly facilitates the user’s operation. Four peristaltic pumps are installed on the front of the control box to add acid, alkali, defoamer and culture medium to the fermenter. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated into the fermentation system.
FEATURES
1. It is provided with specially designed low position cooling jacket and outer casing type light source to ensure the transmission effect of lighting. The light intensity can be adjusted freely according to the percentage, it can simulate various lighting modes, such as day and night alternation.
2. It has various types of mixing paddles for selection such as flat paddle, bevel paddle and turbine paddle.
3. Siemens PLC control system + vinylon LCD touch screen, is used to display all measured values and control parameters, which greatly facilitates the user’s operation. you can use USB for data transmission, sampling and displaying tank data, browsing and analyzing system data, reading settings.
4. Each tank is equipped with 4 peristaltic pumps beside the front tank, which can supply acid, alkali, defoamer and culture medium to the fermentation tank.
5. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer.
6. The structure is compact, and various components can be integrated into the fermentation system.
SPECIFICATIONS
| Name | Off-site sterilization shaft drive glass fermenter(mechanical agitated) | |||||
| Model | OQT-XGJG | |||||
| Volume | 1L/2L/3L/5L/7L/10L | |||||
| Material | 316 stainless steel + high borosilicate glass | |||||
| Stirring method | Shaft coupling drive top mechanical agitation | |||||
| Sterilization method | Off-position autoclave sterilization | |||||
| Tank volume | 1L | 2L | 3L | 5L | 7L | 10L |
| Basic configuration | Temperature, speed, PH, dissolved oxygen, replenishment, defoaming, air flow (manual), tank pressure (manual), light control | |||||
| Illumination function | Light color is optional
Light intensity is adjustable (optional) |
|||||
| Power | 220V/0.8KW | |||||
APPLICATION
Microbial Fermentation-
Biopharmaceuticals
-
Tissue Engineering
-
Algal Biotechnology
-
Environmental Applications
-
Agricultural Biotechnology
-
Biofuels and Renewable Energy
-
Food and Beverage Industry
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
