DESCRIPTION

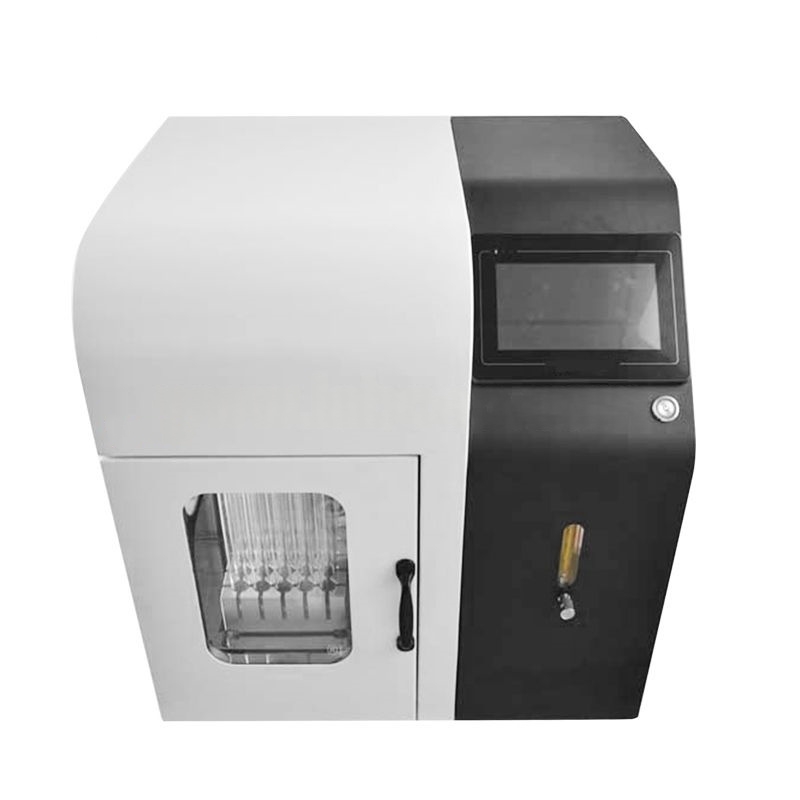

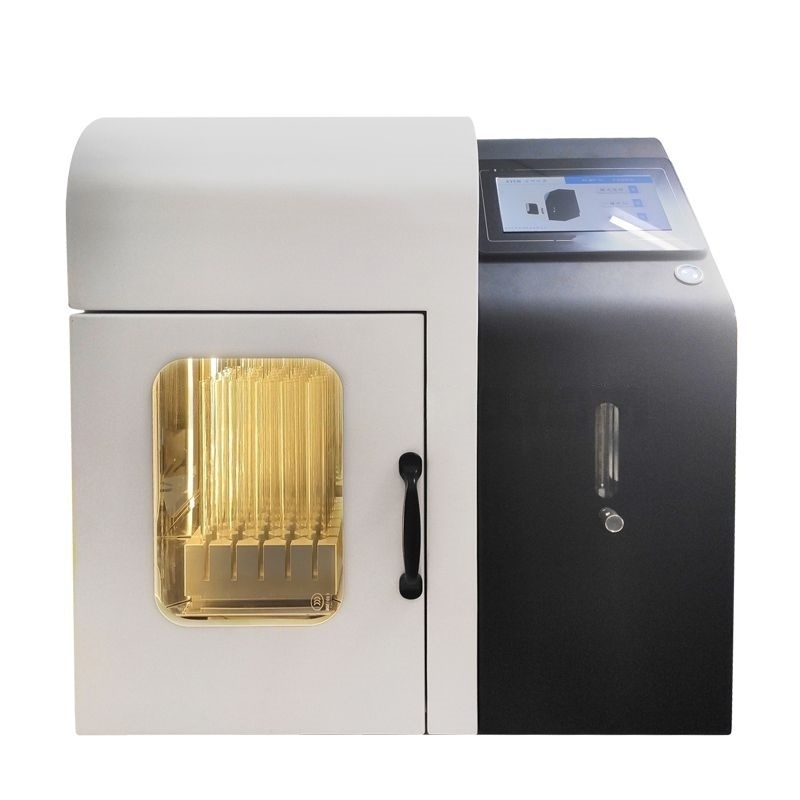

The fully enclosed dry nitrogen blowdown concentrator is one of the new concentration products developed from multiple perspectives, including user convenience, safety, speed and stability. Starting from the convenience of use and the safety of samples, the product is designed with 50-stage program temperature control, electric lifting, high sample visualization, high air tightness and other features, and realizes multiple sets of data storage functions, making the whole concentration process safe and convenient, and one-handed control, making the cumbersome concentration process flexible, worry-free, efficient and safe.
FEATURES
1. Adopt 5 modes, 50-step program temperature control method, high degree of intelligence
2. Dry heating is used for heating to prevent samples from being contaminated by water vapor, ensuring the safety and accuracy of samples
3. The heating module is made of pure aviation aluminum, with fast heating speed and good uniformity, and the module can be replaced at will

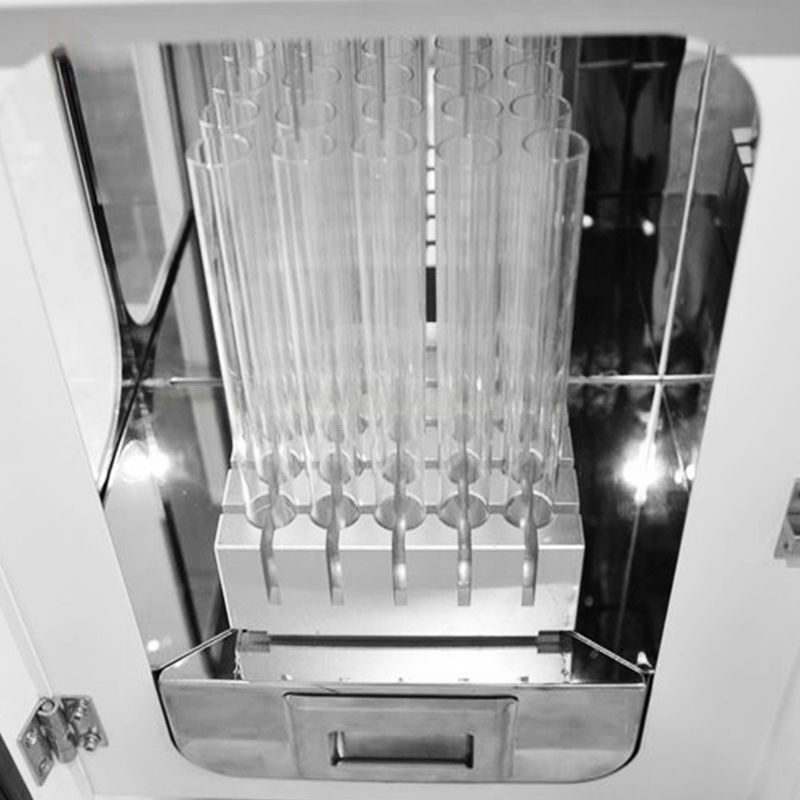

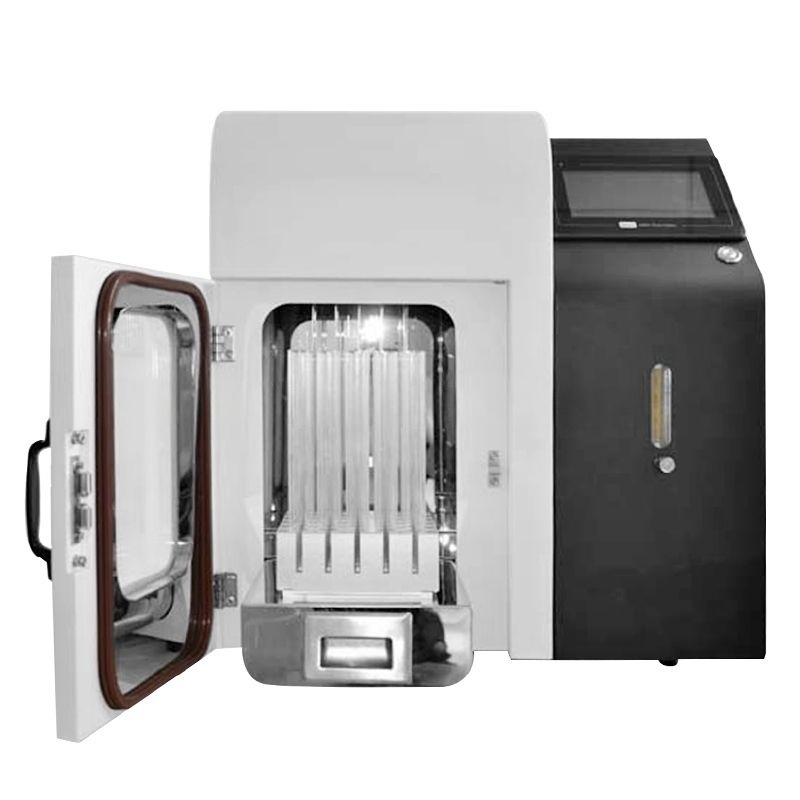

4. The four sides of the module are visualized, and the sample tray adopts drawer-type push-pull sampling, which is very convenient to observe the liquid level without dead angles
5. The blowing needle lifting method adopts two modes: fine-tuning lifting and fast lifting, without manual lifting
6. Adopt automatic pressure regulating device to ensure each gas path The pressure uniformity is guaranteed.
7. Built-in multi-group data storage function allows timely viewing of machine operation data.
8. Double-sealed door mirror protection system and built-in circulating fan system are used, which does not require ventilation windows to ensure no leakage of volatile substances.
9. The chassis uses two observation windows on the front and side to facilitate observation of sample conditions.
10. Nitrogen preheating function, the gas introduced is hot gas (temperature: about 45 degrees), which speeds up the concentration reaction of the sample and prevents condensation between the volatilized concentrate and the blow needle, ensuring that the sample will not be contaminated or cross-infected.
11. Nitrogen preheating function and independent throttling solenoid valve control ensure the air tightness of the gas path and greatly save nitrogen consumption.
SPECIFICATIONS
| Model | OSC-16G | OSC-25G |
| Display mode | 7-inch large LCD touch screen | |
| Mode | 5 | |
| Program temperature control | 50 steps | |
| Number of samples | 16 | 25 |
| Module diameter | 16mm (optional) | |
| Visual surface | 4 sides | 4 sides |
| Timing function | 0-999min | |
| Electric lifting method | 2 | |
| Air pressure adjustment | 0-0.8mpa | |
| Air pressure operation method | 15 bit independent control | 25 bit independent control |
| Temperature range | Room temperature -100°C | |
| Heating method | Dry unified control | |
| Temperature control accuracy | ±1°C | |
| Over-temperature alarm | Yes | |
| Built-in exhaust fan system | Yes | |
| Double sealing door system | Yes | |
| Timing function | Yes | |
| Sampling method | Drawer type | |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
