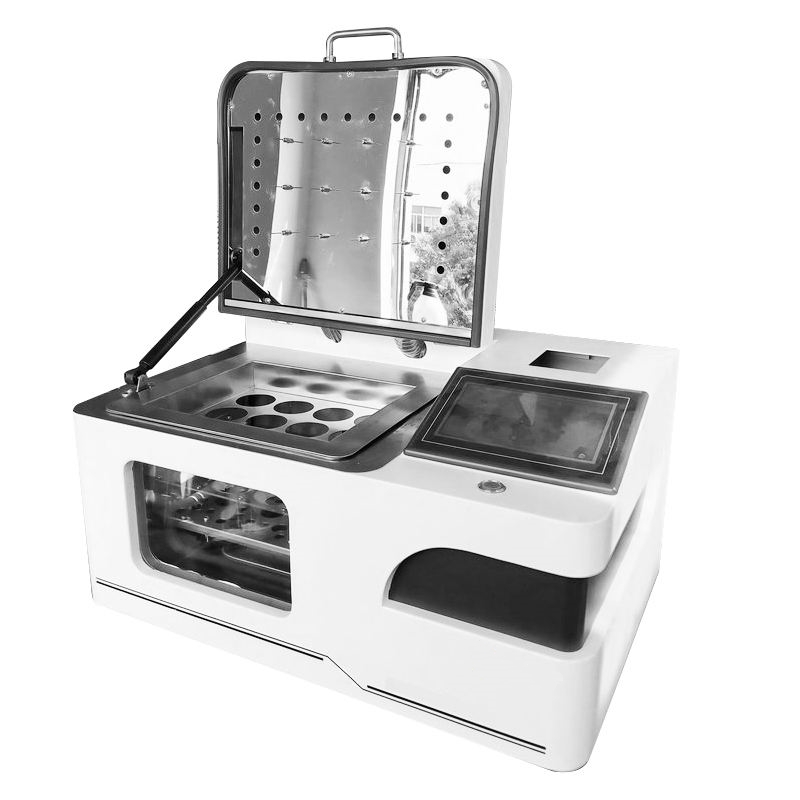

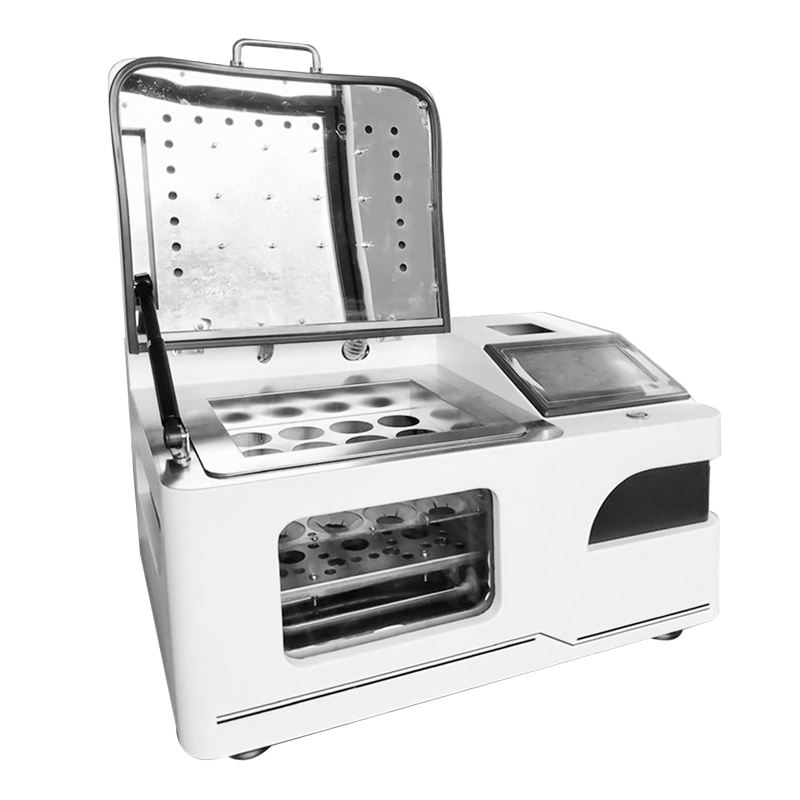

DESCRIPTION

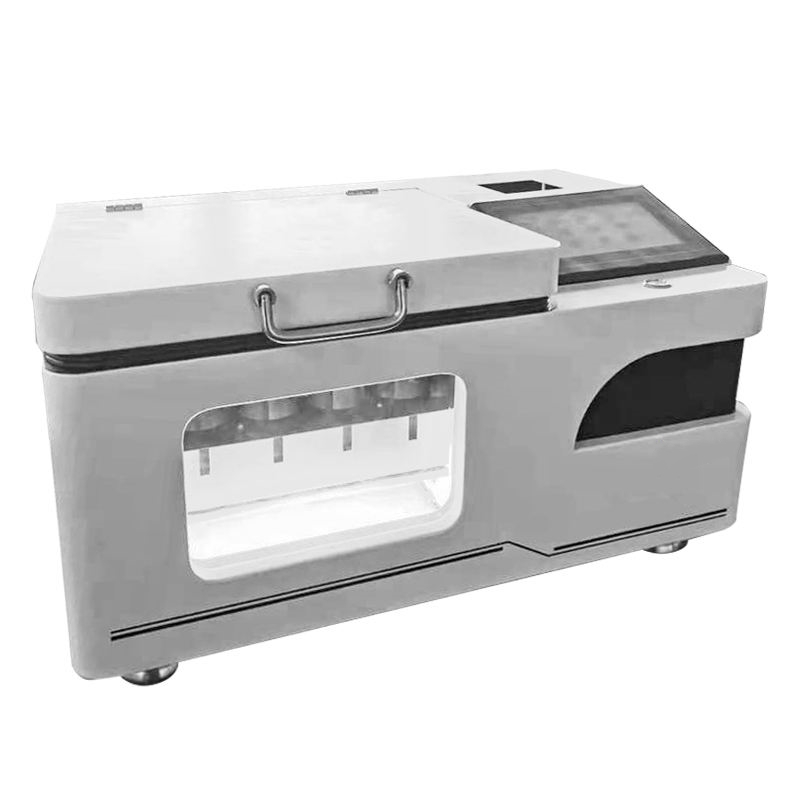

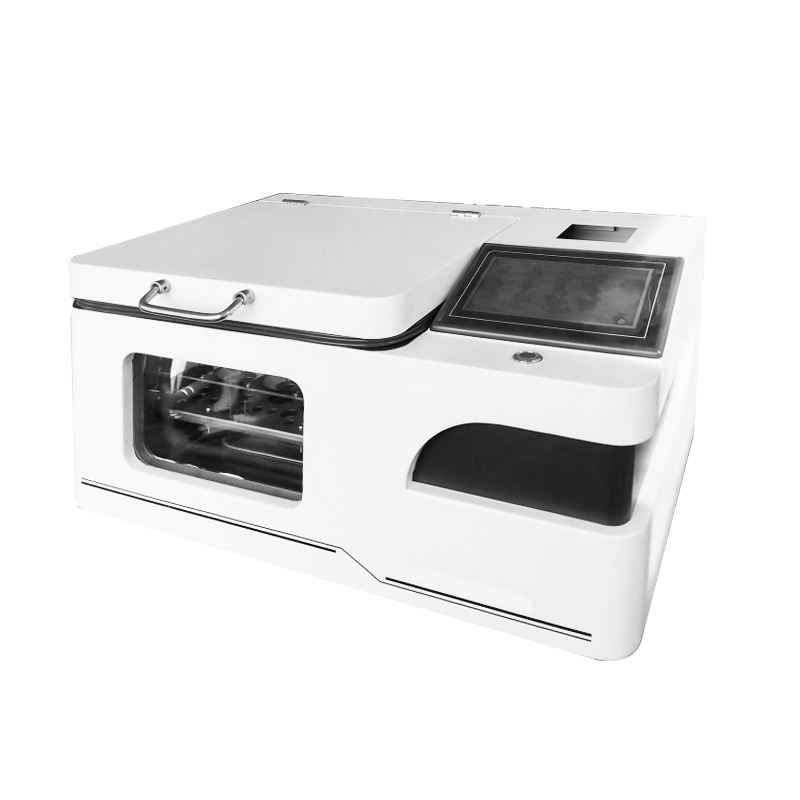

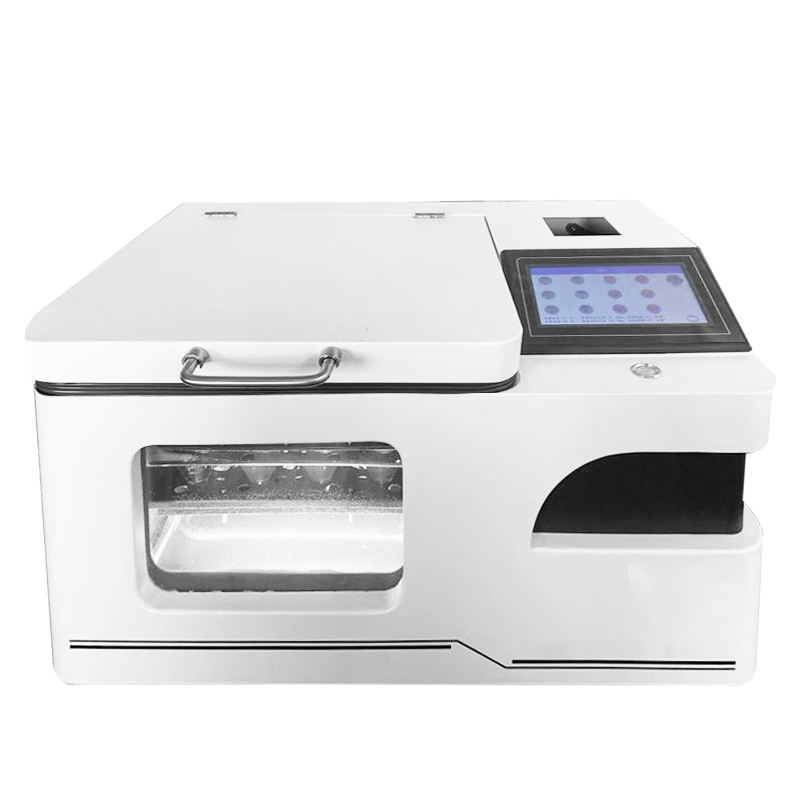

Fully automatic water bath multi-sample quantitative parallel nitrogen concentrator is a new type of concentration fixed volume product upgraded from multiple angles such as user convenience, safety, fast and stable combined with the needs of laboratory use. It has the characteristics of unattended, quasi-determined volume and mass concentration, and can store multiple groups of data to achieve fully automated quantitative and batch concentration. Make the tedious enrichment process flexible, hassle-free, efficient and safe.
FEATURES
1. 7-inch large LCD touch screen control, can handle 1-12 large-volume samples at the same time

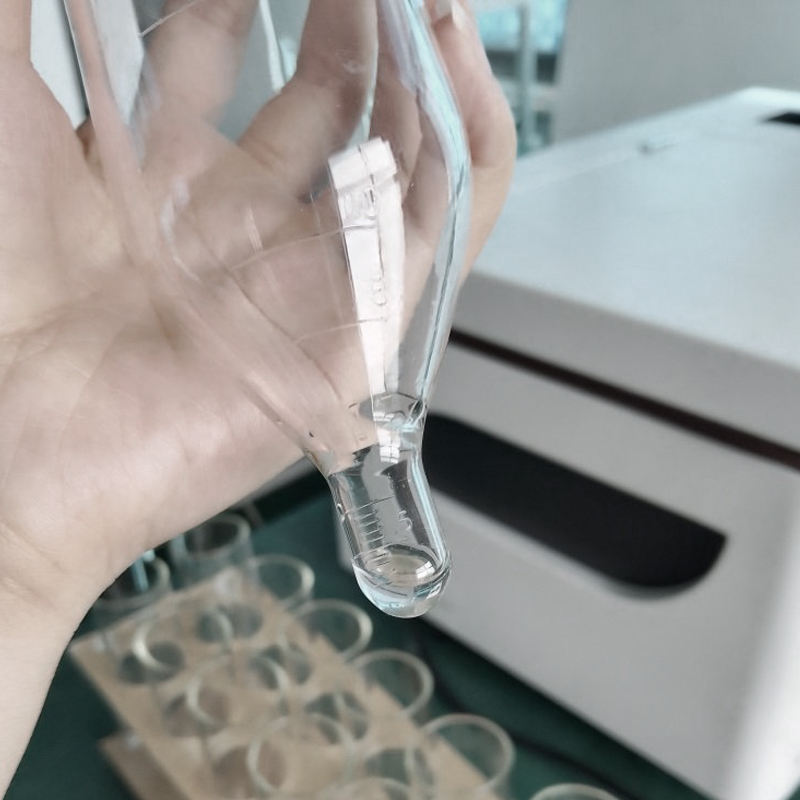

2. Imported optical sensors are used for precise volume setting, which can be accurately set to 0.5ml/1ML/2ML
3. Independent volume adjustment device is used to ensure the accuracy of volume setting of different color solvents
4. When concentrated to the preset capacity, the system automatically stops the nitrogen purge of the corresponding channel and keeps alarming. The alarm function can be turned off or on
5. It has automatic water replenishment function, water shortage alarm and over-temperature alarm system
6. Dual-channel heating system, fast heating speed and high temperature control accuracy
7. Automatic pressure regulating device is used to ensure the uniformity of air pressure in each gas path
8. Built-in multi-group data storage function, can view machine operation data in time
9. It adopts a hydraulic double-sealed door protection system and a built-in circulating fan system to ensure that there is no leakage of volatiles
10. Nitrogen preheating function, the gas introduced is hot gas (temperature: about 45 degrees), which accelerates the concentration reaction of the sample and prevents condensation between the volatile concentrate and the blow needle, ensuring that the sample will not be contaminated and cross-infected
11. The nitrogen preheating function and independent throttling solenoid valve control ensure the airtightness of the gas path and greatly save the nitrogen consumption.
SPECIFICATIONS
| Model | OSC-4SA | OSC-12SA |
| Display mode | 7-inch large LCD touch screen | |
| Mode | 3 | |
| Number of samples | 4-digit | 12-digit |
| Processing volume | 50/100/150/200ml (optional) | |
| Fixed volume specification | Near dry/0.5/1/2ml (optional) | |
| Timing function (min) | 0-999 | |
| Transmittance adjustment method | 4-digit independent adjustment | 12-digit independent adjustments |
| Air pressure adjustment | 0-0.8mpa | |
| Air pressure operation method | 4-digit independent control | 12-digit independent control |
| Temperature | Room temperature -100℃ | |
| Heating method | Water bath unified control | |
| Temperature control accuracy | ±0.5 | |
| Over-temperature alarm | Yes | |
| Automatic water filling | Yes | |
| Drainage and overflow port | Yes | |
| Built-in exhaust fan system | Yes | |
| Double sealing door system | Yes | |
| Timing function | Yes | |
| Fixed volume reminder switch | Yes | |
| Power supply | 220V 50HZ | |
