DESCRIPTION

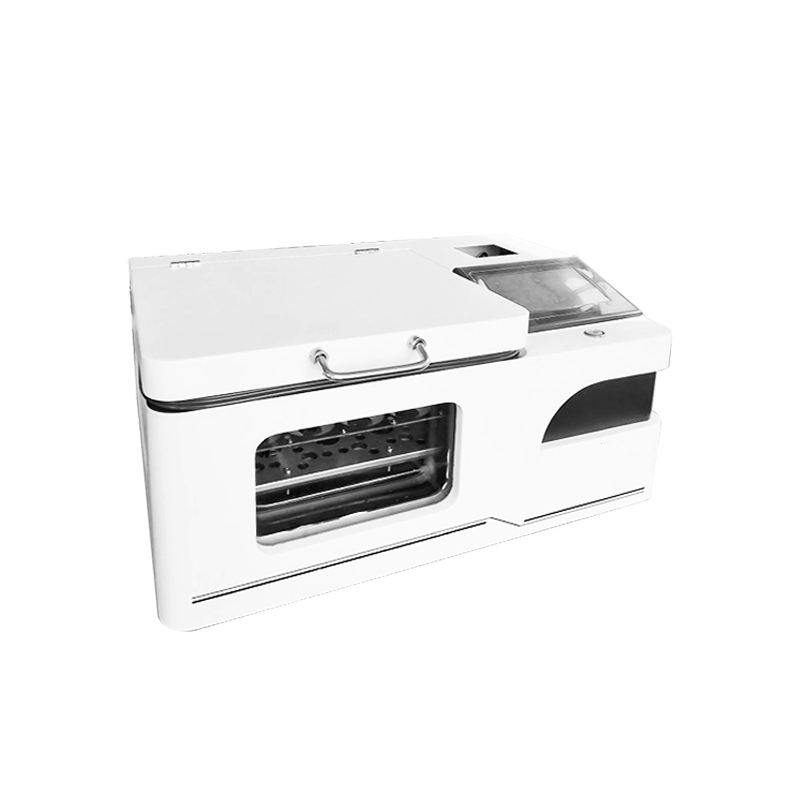

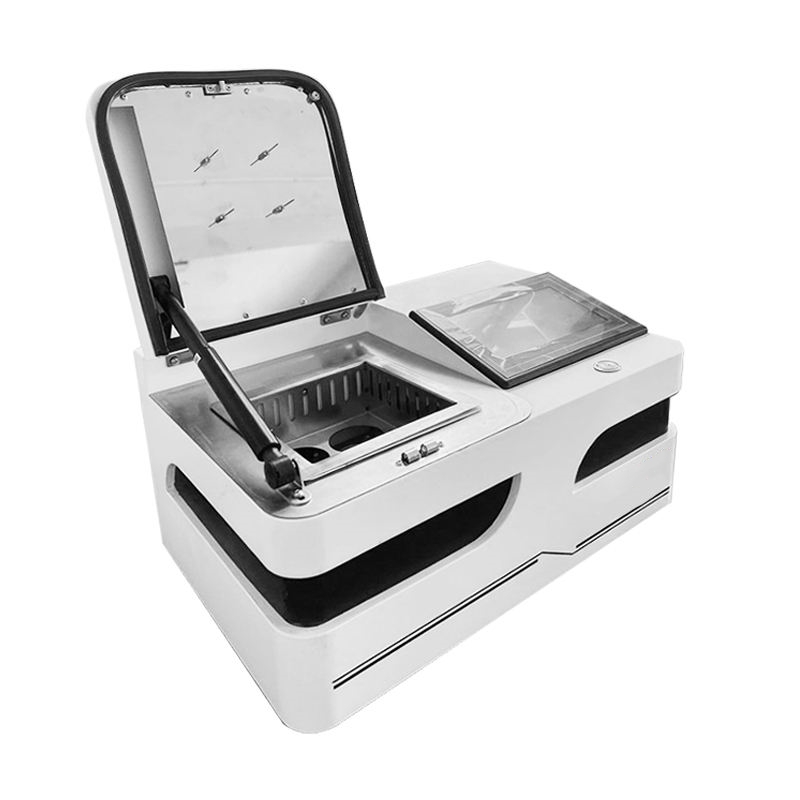

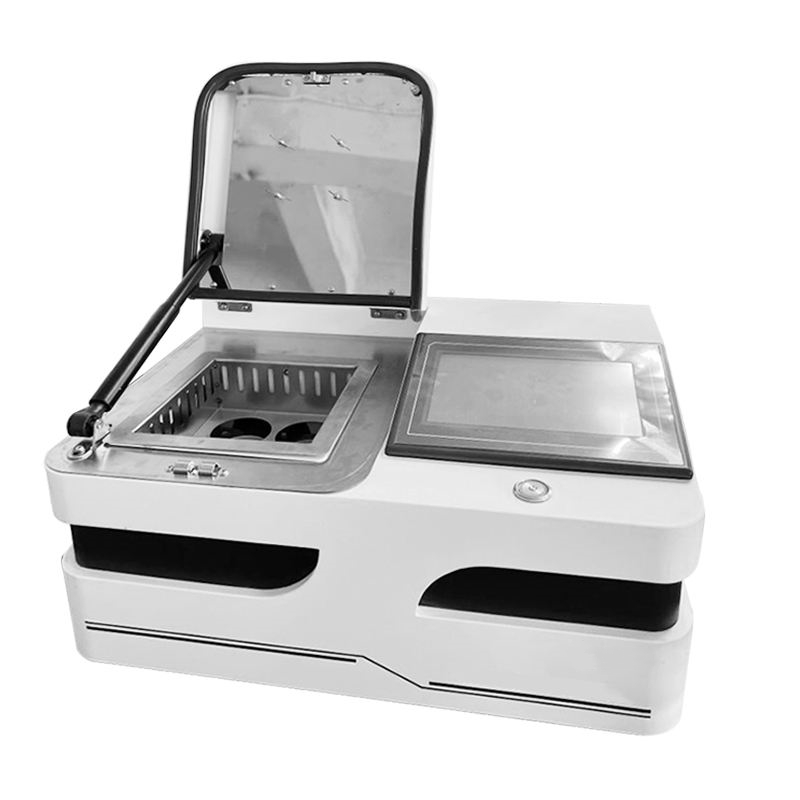

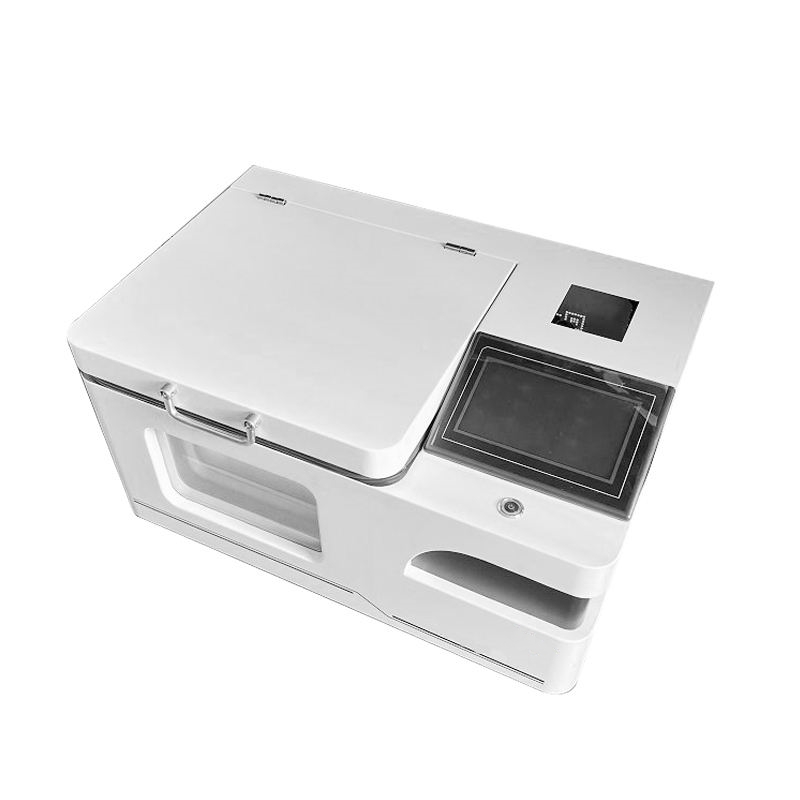

Fully automatic dry nitrogen concentrator is a new type of concentration fixed volume product upgraded from multiple angles such as user convenience, safety, fast and stable combined with the needs of laboratory use. It has the characteristics of unattended, quasi-determined volume and mass concentration, and can store multiple groups of data to achieve fully automated quantitative and batch concentration. Make the tedious enrichment process flexible, hassle-free, efficient and safe.
FEATURES

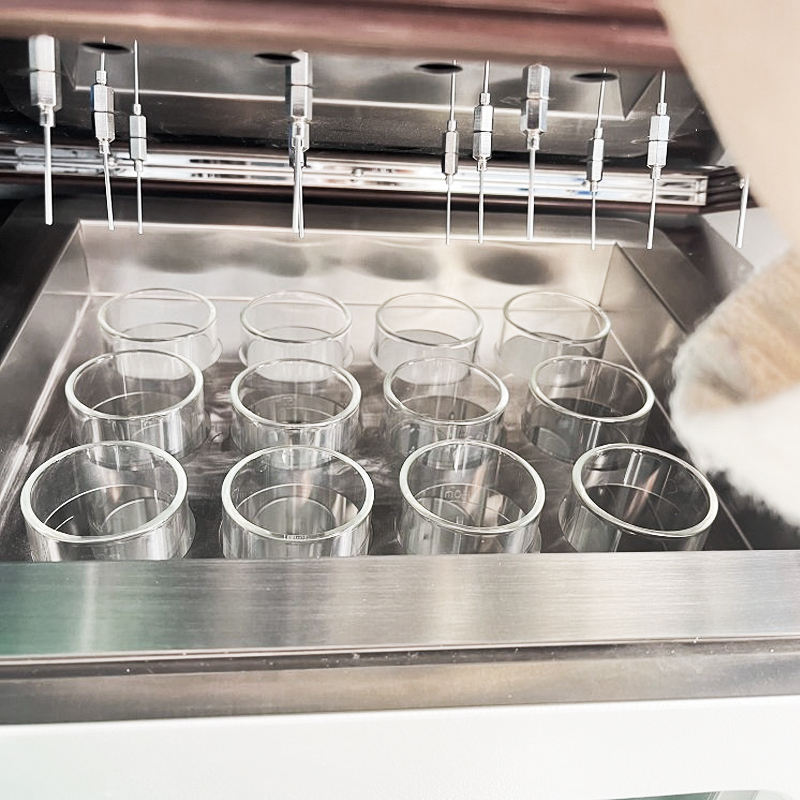

1. 7-inch large LCD touch screen control, can handle 1-12 large-volume samples at the same time
2. Imported optical sensors are used for precise volume setting, which can be accurately set to 0.5ml/1ML/2ML
3. Independent volume adjustment device is used to ensure the volume accuracy of different color solvents
4. When concentrated to the preset capacity, the system automatically stops the nitrogen purge of the corresponding channel and keeps alarming. The alarm function can be turned off or on
5. Dry heating is used to prevent the sample from being contaminated by water vapor, ensuring the safety and accuracy of the sample
6. The heating module is made of pure aviation aluminum, with fast heating speed and good uniformity, and the module can be replaced at will
7 Automatic pressure regulating device is used to ensure the uniformity of air pressure in each gas path
8. Built-in multi-group data storage function, which can view the machine operation data in time
9. Hydraulic double-sealed door mirror protection system and built-in circulating fan system are used to ensure no volatile leakage
10. Nitrogen preheating function, the gas introduced is hot gas (temperature: about 45 degrees) to speed up the concentration reaction of the sample, and also prevent condensation between the volatilized concentrate and the blow needle, ensuring that the sample will not be contaminated and cross-infected
11. Nitrogen preheating function and independent throttling solenoid valve control ensure the air tightness of the gas path and greatly save nitrogen consumption.
SPECIFICATIONS
| Model | OSC-4GA | OSC-12GA |
| Display mode | 7-inch large LCD touch screen | |
| Mode | 3 | |
| Number of samples | 4-digit | 12-digit |
| Processing volume | 50/100/150/200 ml (optional) | |
| Fixed volume specification | Near dry/0.5/1/2ml (optional) | |
| Timing function | 0-999min | |
| Transmittance adjustment method | 4-digit independent adjustment | 12-digit independent adjustments |
| Air pressure adjustment | 0-0.8mpa | |
| Air pressure operation method | 4-digit independent control | 12-digit independent control |
| Temperature range | Room temperature -100℃ | |
| Heating method | Dry type unified control | |
| Temperature control accuracy | ±0.5℃ | |
| Over-temperature alarm | Yes | |
| Built-in exhaust fan system | Yes | |
| Double sealing door system | Yes | |
| Timing function | Yes | |
| Fixed volume reminder switch | Yes | |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
