DESCRIPTION
It has four functions: detecting pharmic dissolution, disintegration, friability/abrasion and hardness of tablet.
Applicable standards:
National standard (Chinese codex) / 2015
Industry standard (Dissolution tester)
Industry standard (Disintegration tester)
Industry standard (Tablet friability tester)
Industry standard (Tablet hardness tester)
FEATURES
1. Intellectualized, auto-control, auto-test, auto-diagnose, auto-alarm.
2. The circular water current pumped by magnetism pump can heat the system equally, and the bath liquid can achieve an even temperature.
3. Temperature is high accurately auto-controlled.
4. Auto stop at timing point.
5. Parameters can be preset at any time, the preset and real data are displayed alternately in time.

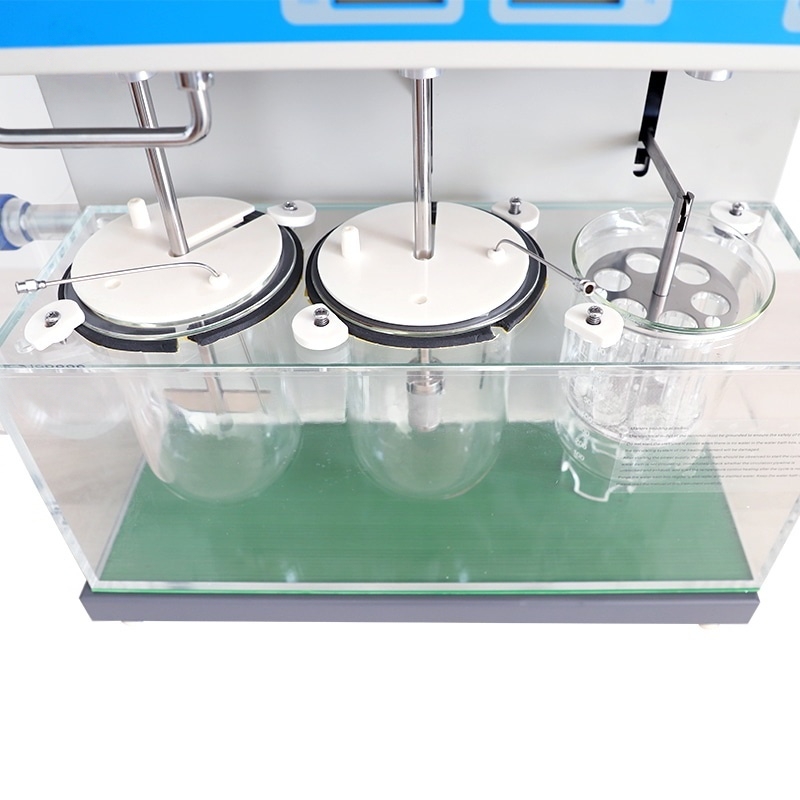

6. It has three vessels and three poles arranged on one line. The head part of the instrument can be artificially turned over smoothly and flexibly.
7. Two disintegrations run synchronously. Auto stop at timing point.
8. High accuracy is achieved in testing rotary speed and counting friability.
9. The hardness has high accuracy press sensor and hardness data is displayed in Newton.
10. It tests tablet hardness continuously. The tablet is loaded and pressed artificially.
11. Auto-display, auto-memorize, auto-reset, auto-retest.
SPECIFICATIONS
| Model | ZPJ-4 |
| Temperature range | (20～45)℃±0.3℃ |
| Speed range | (20～200)rpm±2rpm |
| Automatic time range | (1～900)min±0.5min |
| Stations of dissolution | 3 |
| Paddle radial run-out | ±0.5mm |
| Basket radial run-out | ±1.0mm |
| basket assemblies | 2 |
| Nacelle back and forth frequency | (30～32 )/ min |
| Nacelle back and forth range | (55±2)mm |
| Drum | 1 |
| Drum’s size | radius:Φ286mm depth: 39mm |
| Hardness range | (2～200)N |
| Probe procession range | (3～20)mm |
| Power | 220V/ 50Hz/ 600W or 110V/ 60Hz/ 600W |
| Dimension | 520×380×480mm |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
