DESCRIPTION

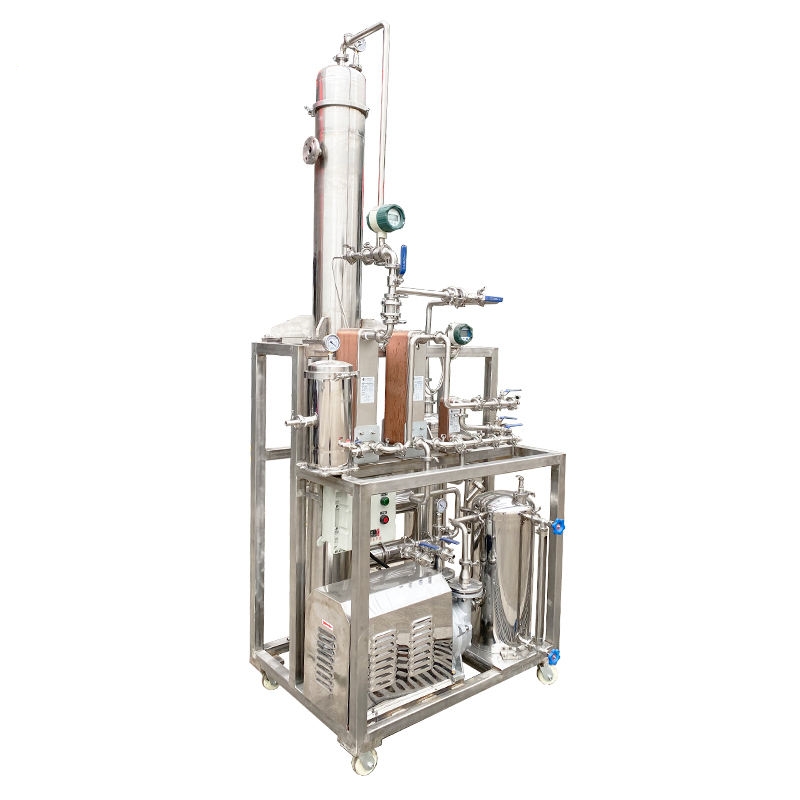

OQT-100 Falling film evaporator is an industrial device to concentrate solutions, especially with heat sensitive components and recover solvents, like ethanol, hexane, heptane, etc. The fluid will create a film along the tube walls, progressing downwards (falling) – hence the name. It is specifically suited to process the products with a low viscosity and a low tendency for fouling.
In general the evaporation takes place inside the vertical tubes, which is called shell-and-tube heat exchanger, crowned by a proprietary liquid distribution device. The fluid distributor is designed carefully in order to ensures an efficient and uniform distribution of the liquid to all the tubes along which the product flows as a continuous film falls, driven by gravity.
The whole solvent recovery system not only includes falling film evaporator, but also equips circulation heater (steam generator as an option), water cooling tower, circulation chiller, vacuum pump and all accessories.
FEATURES
1. 90% – 95% single pass solvent recovery efficiency.
2. Durable S304/S316 sanitary stainless steel construction.
3. Continuous feeding and discharging with optional liquid transfer pumps.
4. Optional upgrade to Engineering Peer Review, GMP and UL standards.
5. Short residence time for the protection of heat sensitive components.
6. Real-time monitoring of vacuum level, temperature and feeding speed.
7. Continuous feeding and discharging with optional liquid transfer pumps.
8. Small footprint with large capacity, 100L/h(ethanol).
9. Turnkey system with supporting chiller, heater or steam generator, vac pumps, etc.
10. Compatible with multiple solvents, like ethanol, hexane, heptane, etc (factory adjustment needed).
11. Dual stage plate heat exchangers to be compatible with water cooling tower for lower equipment and power cost.
SPECIFICATIONS
| Model | Description | Size(mm) | Weight(kg) | |||
| OQT-100 | Evaporation capacity | 100L/H | 760*680*2000 | 400 | ||
| Working power | Heating Power | 24 KW | ||||
| Cooling Power | 6.3 KW | |||||
| Pump Power | 4 KW | |||||
| Connectors (Quick Connectors) | Inlet Joint | 25 Φ | 50.5 Clamp | |||
| Solvent Outlet | 25 Φ | 50.5 Clamp | ||||
| Product Outlet | 25 Φ | 50.5 Clamp | ||||
| Vacuum Outlet | 25 Φ | 50.5 Clamp | ||||
| Chiller Inlet | DN40 Outer wire | |||||
| Chiller Outlet | DN40 Outer wire | |||||
| Heater Inlet | DN25 Flange | |||||
| Heater Outlet | DN25 Flange | |||||
