DESCRIPTION

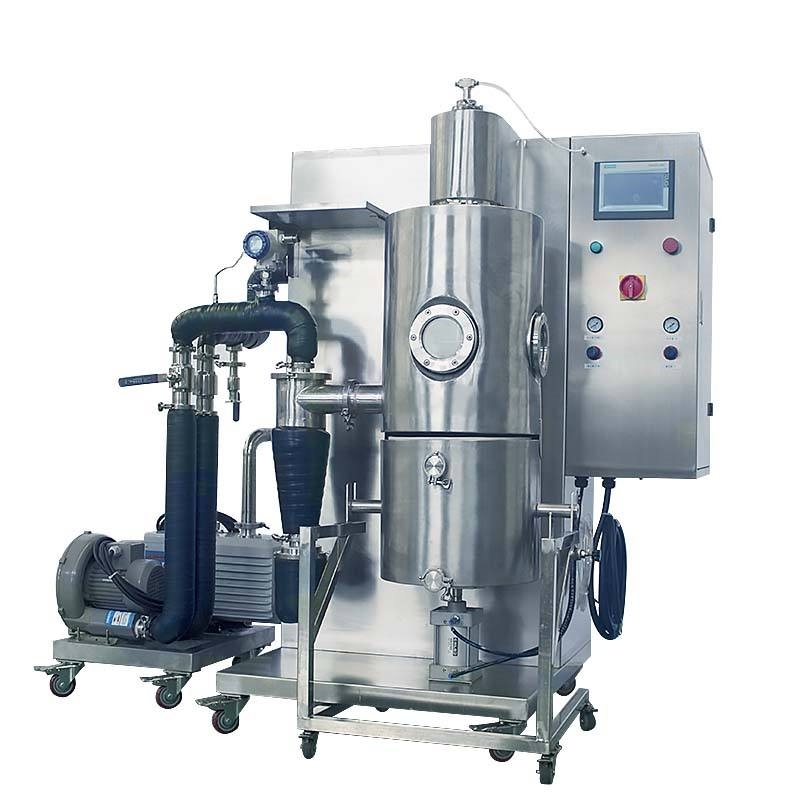

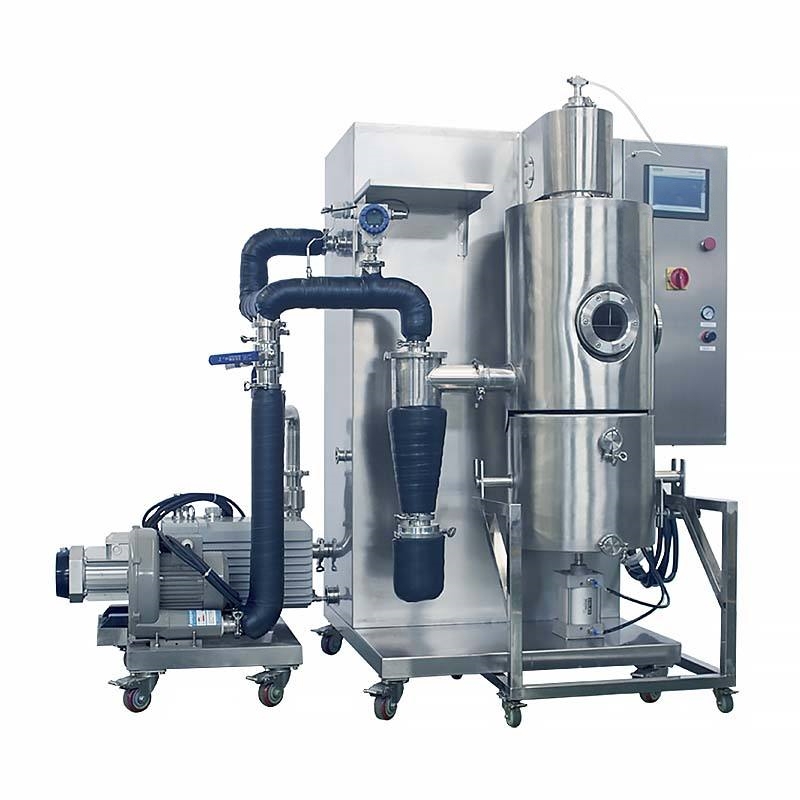

Laboratory refrigerated spray dryer is suitable for low temperature drying of heat-sensitive, viscous, active materials and materials with high sugar content, such as natural product extracts of Chinese herbal medicine, dairy products, biological preparations, enzyme preparations, fruit juice, polymer materials Wait.
FEATURES
1. The laboratory spray freeze dryer organically combines spray drying and vacuum freeze drying. The drying time required is extremely short, and the drying time of some materials does not exceed 5 hours (2000ML/time), which greatly shortens the traditional vacuum drying time. Freeze-drying time, and the dried material is a powdery solid, and the original biological and chemical properties of the spray-freeze-dried items are basically unchanged, and it is easy to store for a long time;
2. The laboratory spray freeze dryer adopts an air-cooled condensing type fully enclosed compressor refrigeration system, which has rapid refrigeration, low freezer temperature, strong water absorption capacity, and digital display of temperature and vacuum degree, which is accurate and intuitive;
3. Freeze spray-dried items are naturally heated and sublimated by air to maintain the safety of samples;
4. The main unit is equipped with a vacuum pump power plug, no need to connect another power supply, and it is easy to use;
5. The vacuum connection adopts the international standard clamp, which is convenient and reliable;
6. Stable performance, easy operation and low noise;
7. Laboratory spray freeze dryer compared to traditional freeze dryer: it can quickly freeze dry liquid materials that are easy to stick to walls and contain organic substances (juice, Chinese medicine extract, etc.), and the dried finished product is in a granular state, with good fluidity and granularity The particle size is adjustable within a certain range.
SPECIFICATIONS
| Model | OQTD-2 |
| Maximum processing capacity | ≥2L/time |
| Operating temperature | ≥-60 degrees |
| Drying process | freeze-spray-sublimation drying |
| Atomization method | ultra-fine freezing spray airflow atomizer |
| Control system | imported Siemens, with one-key start/operation function, touch screen operation interface. |
| Atomization structure | single-hole heteropolar atomization structure (official atomization structure diagram is required) |
| Drying chamber diameter | ≥300mm |
| Bag dust removal system | Include Japan Toray brand, filter aperture 300nm |
| Cooling water circulation temperature | ≤-80 degrees |
| Cold trap temperature | ≤-60 degrees |
| Water catcher capacity | ≥ 2 L |
| Refrigerant type | absolute ethanol |
| Material contact part material | 316L |
| Filter level | 300,000 |
APPLICATION
Food Beverage Industry-
Pharmaceutical Industry
-
Chemical Industry
-
Environmental and Waste Management
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
