DESCRIPTION

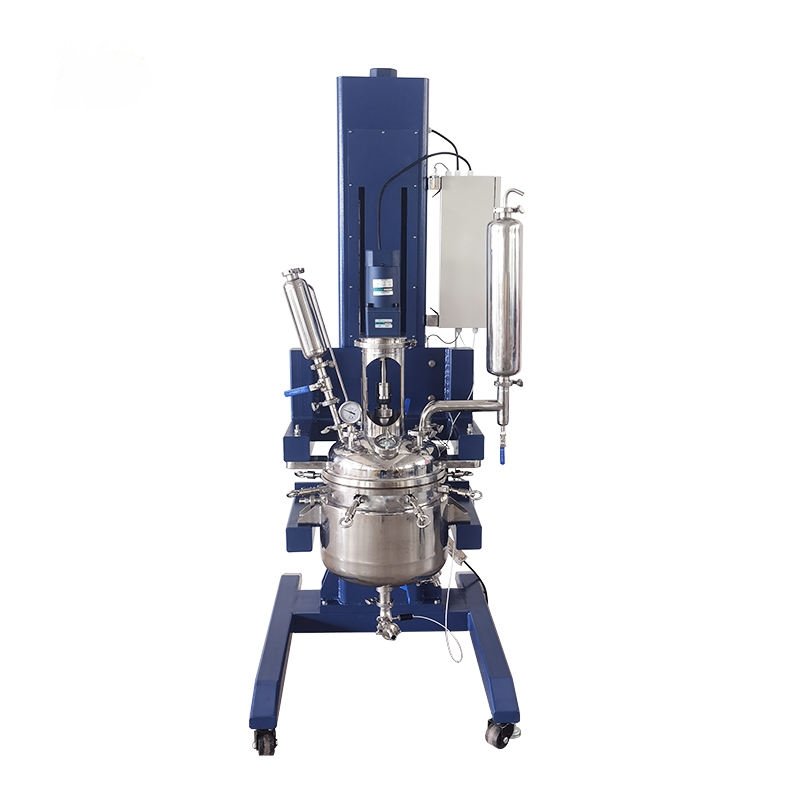

The lifting and rotating reactor is based on the ordinary reactor, which can lift the reactor cover and the part above the reactor cover as a whole. After the stirring rod leaves the reactor body, the reactor body can be rotated 360 degrees to the left by the hand wheel, and the materials can be directly poured out, making it easier to clean the reactor body.
FEATURES
1. Frequency conversion speed regulation, AC induction motor. The speed is constant, no brushes, no sparks, safe and stable, and can work continuously, can be customized ex-proof motor.
2. The entire set of instruments is made of SUS316L/SUS304 stainless steel, acid and alkali resistant, high temperature resistant, which has good chemical and physical properties.
3. The mezzanine interface is connected with hot oil for circulation and heating reaction can be carried out, and the refrigerant liquid is connected with it for low-temperature reaction.
4. It can react at room temperature, and the reaction heat can be quickly taken away by running tap water on it.

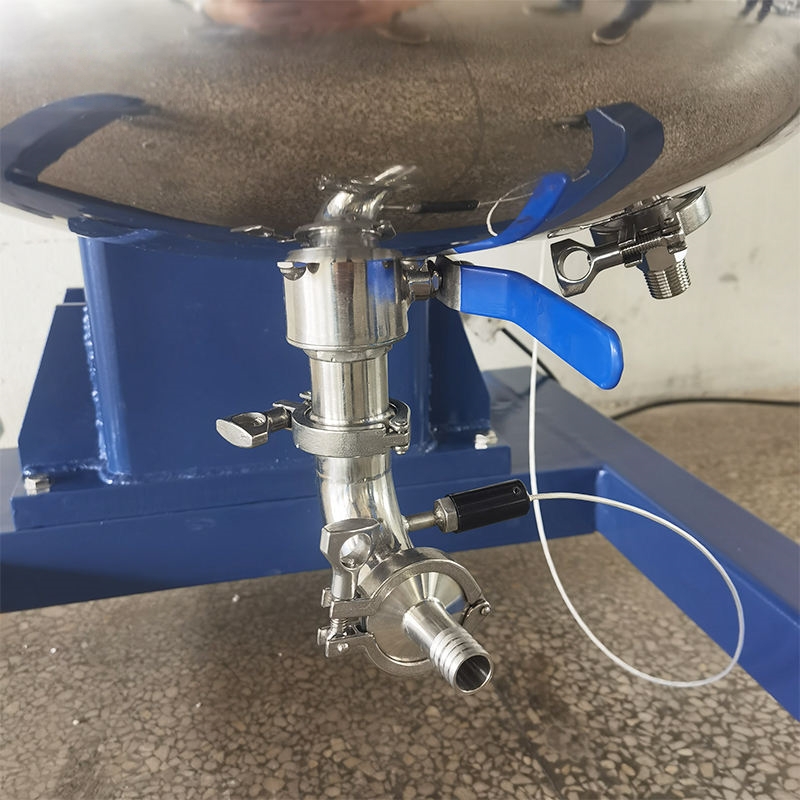

5. The lower discharge port uses a stainless steel ball valve. There is no dead space in the container and it is removable to facilitate the discharge of solid materials.

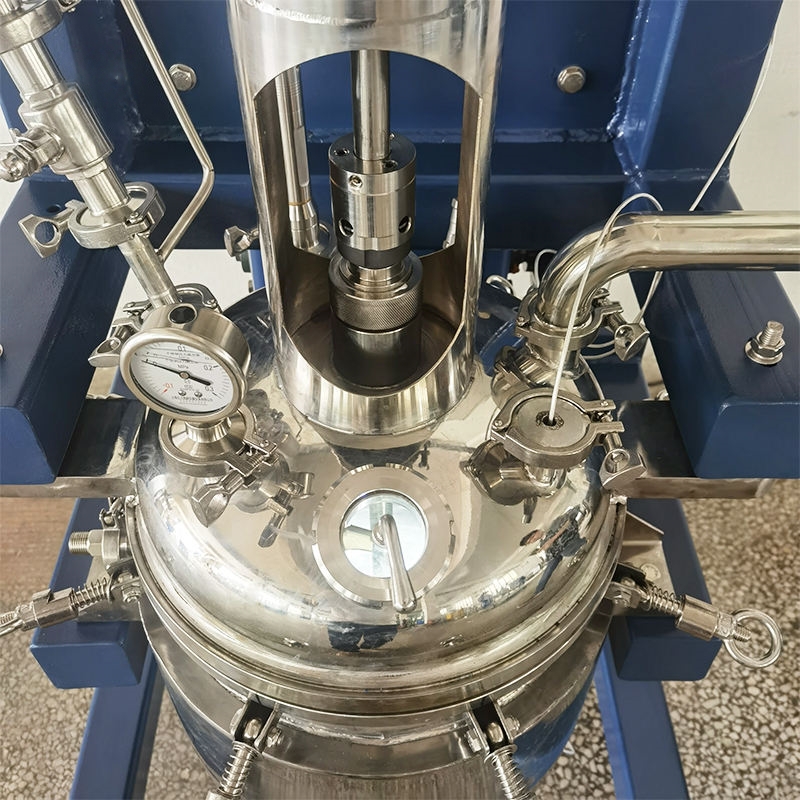

6. Eight-port reactor cover, can be customized, extra-large port design for easy cleaning, standard port socket for optional assembly of reflux and distillation synthesis devices.

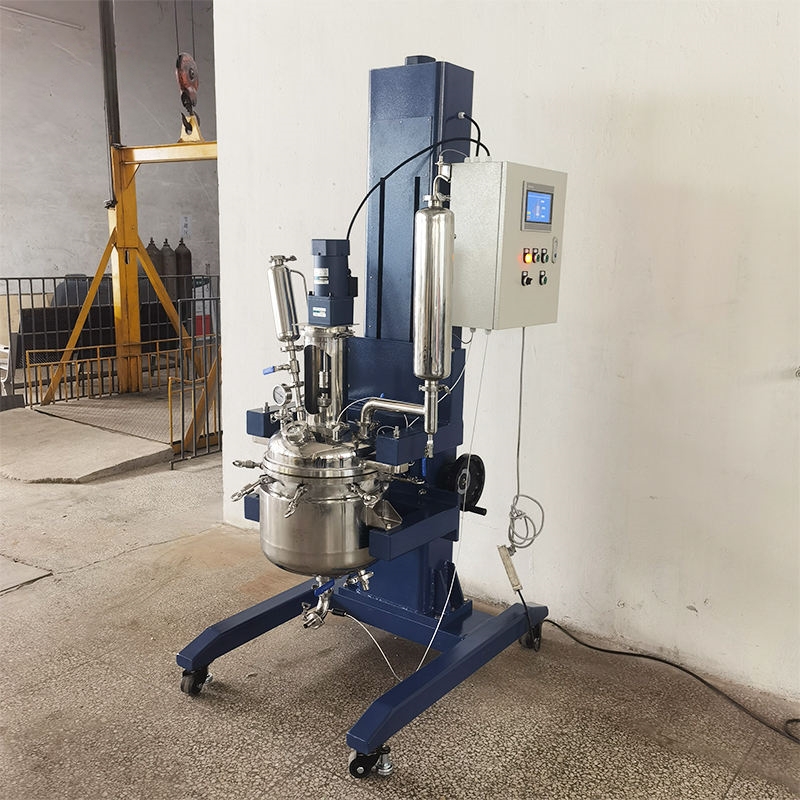

7. The kettle body and kettle cover can be raised and lowered as a whole, and the kettle body can be rotated 360 degrees manually.
SPECIFICATIONS
| Model | OQT-S Series |
| Kettle volume | 10L/20L/30L/50L/100L/200L |
| Mezzanine volume | 3L/5L/10L/20L/30L |
| Voltage/frequency | 220V/50 Hz |
| Reaction temperature | -120~260℃ |
| Pressure | -0.1~0.3Mpa |
| Stirring speed | 0-460rpm |
| Power | 200W |

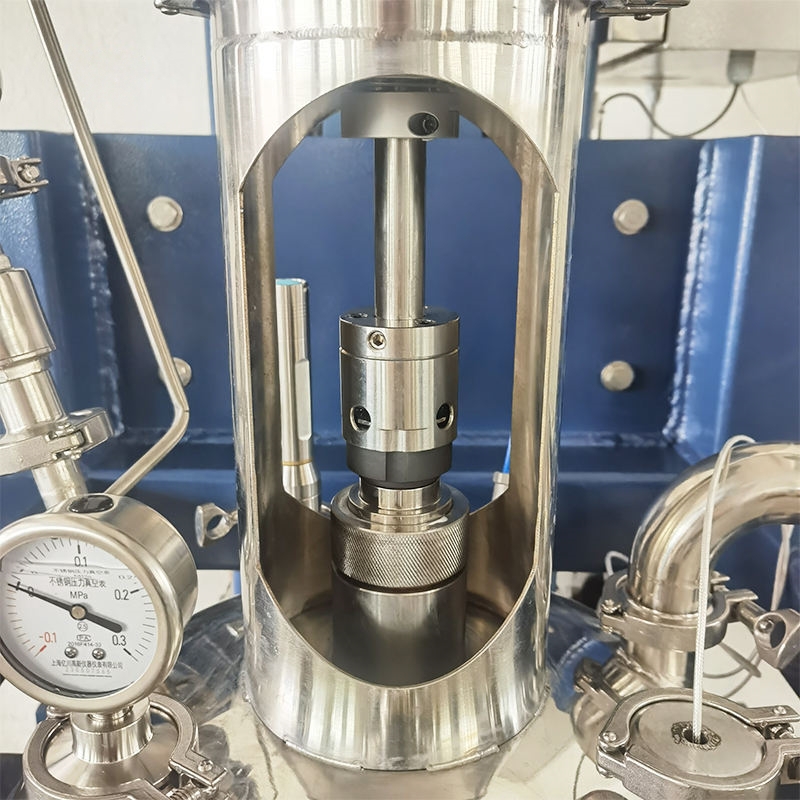

| Sealed form | Stainless steel graphite combination mechanical seal |
| Number of cauldron lid openings | Eight ports (optional) |
| Material | SUS316L/SUS304 |
| Impeller | SUS316L propeller mixing paddle |
| Exhaust | 2-point exhaust valve |
| Bottom valve | Φ35/50.5 chuck |
| Optional(Additional fee) | Explosion-proof whole machine/
electric heating/Total 316L/collection tank/ mobile frame /spraying PTFE |
APPLICATION
Chemical Synthesis-
Pharmaceutical Production
-
Petrochemical Industry
-
Material Science
-
Food and Beverage Industry
-
Environmental Analysis
-
Academic Research
-
Biochemical Engineering
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
