3 Advantages Of OQT Drying Oven/Incubator(Dual-use)

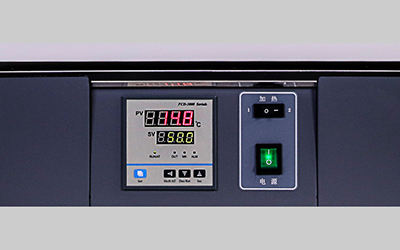

- 1. Multi-function control panel
- 2. Vent

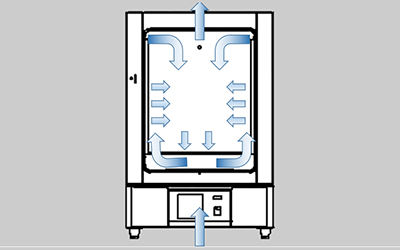

- 3. Heating curve
DESCRIPTION
OQL series desktop electric heating constant temperature drying oven has a cavity volume of 18L, natural convection mode, use temperature room temperature +5~300 degrees Celsius, PID precise temperature control temperature accuracy is +-3.5%..
OQP series desktop incubator has a cavity volume is 18L, natural convection mode, the operating temperature is room temperature +5~65 degrees Celsius, and the PID precision temperature control temperature accuracy is +-2.0%
FEATURES
1. Classic heat transfer method, uniform temperature distribution.
2. Double-layer tempered glass observation window, easy to check the experimental status at any time.
3. Convenient operation, fixed value operation, timing operation and automatic stop.
4. Dedicated function keys realize temperature setting.
5. The auxiliary menu can realize over-rise alarm, deviation correction, and menu lock.
6. Over-rise alarm, menu lock.
SPECIFICATIONS
| Model | OQL-25A
/OQL-25AB |
OQP-25A
/OQP-25AB |
|
| Mode | Natural convection | ||
|
Performance |
Temp. range | RT+10~300℃ | RT+5~65℃ |
| Temp. resolution | 0.1℃ | ||
| Temp. fluctuation | +-1℃ | +-0.5℃ | |
| Temp. distribution | +-3.5% | +-2.0% | |
| Constitution | Interior | A-type:high strength carbon steel plate
AB-type:stainless steel plate |
|
| Exterior | cold-rolled steel plate, surface coating with chemical resistance | ||
| Thermal insulation material | aluminum silicate fiber | ||
| Heater | Ni-Cr alloy heating wire OCr27AL7Mo2 | ||
| Rated power | 0.6kw | 0.18kw | |
| Exhaust port | I.D. 28mm*1, top | ||
| Controller | Temp control mode | digital tube dual-row PID | |
| Temp setting method | Tap four buttons to set | ||
| Temp display method | Measuring temp display: 3-digit digital upper;
Set temp display: 3-digit digital lower |
||
| Timer | 0-9999 minutes ((with timing wait function) | ||
| Running function | fixed value running, timing running, automatic stop | ||
| Program mode | optional | ||
| Additional functions | deviation correction, menu button lock, power failure compensation, power failure memory | ||
| Sensor | Pt100 | ||
| Safety device | Overheating alarm | ||
| SPEC | Internal dimensions | 260*260*260(W*L*H)mm | |
| External dimensions | 376*464*548(W*L*H)mm | ||
| Outer packaging size | 450*490*615(W*L*H)mm | ||
| Internal volume | 18L | ||
| Partition bearing capacity | 15kg | ||
| Partition layers | 6 layers | ||
| Space between partitions | 35mm | ||
| Power supply(50/60Hz)
rated current |
AC220/2.7A | AC220/0.8A | |
| Net weight/Gross weight | 21/23 kg | ||
| Accessories | Partition | 2 pieces | |
| Configuration that can be added | Partition, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm, U disk data storage. | ||
APPLICATION
Research and Development-
Biotechnology Pharmaceutical
-
Food and Beverage Processing
-
Industrial Applications
-
Environmental Testing
-
Textile and Apparel Industry
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
