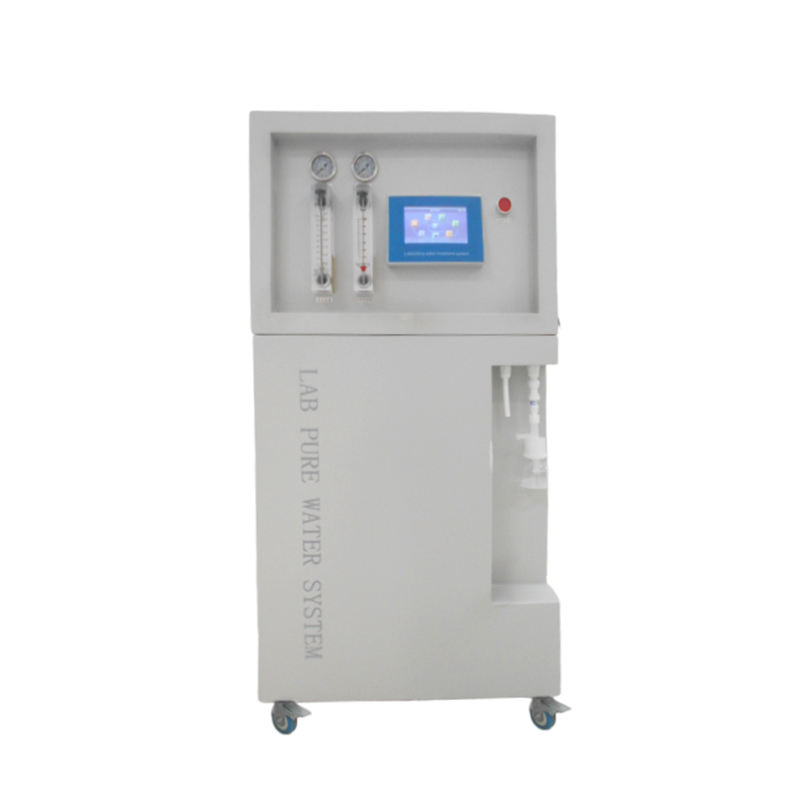

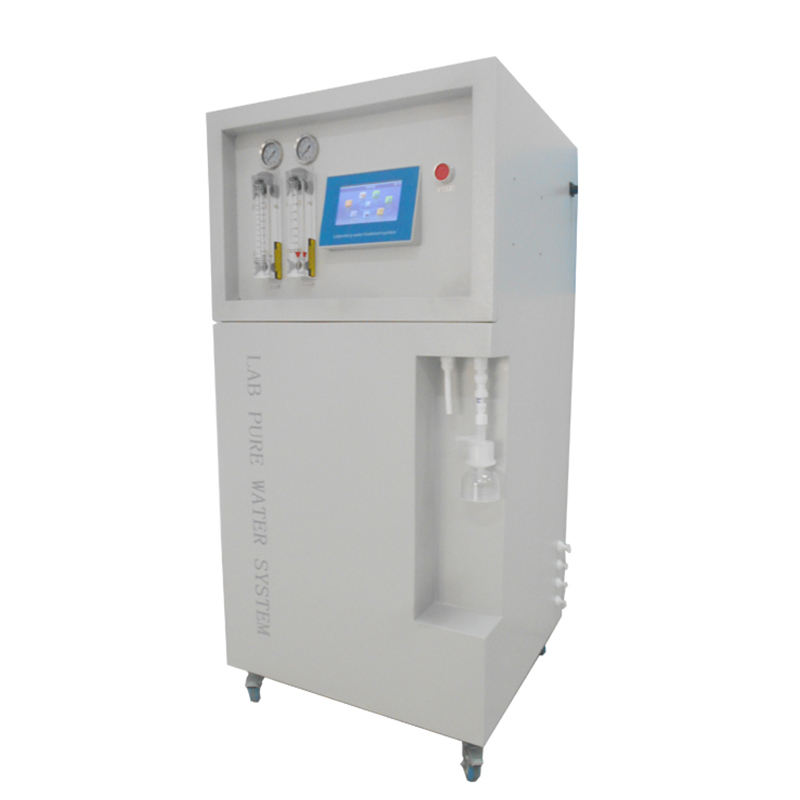

DESCRIPTION
The ultrapure water plant is suitable for automatic biochemical instrument water supply, general chemistry, biological histology, microbial analysis, sample dilution reagent preparation, water quality analysis, high performance liquid chromatography, photographic film processing, fine chemicals, etc.
FEATURES
1. Full-automatic microcomputer control display monitors power supply, water shortage, water production, water full, flush, and strong flush control in real time.
2. Fully automatic Ro membrane anti-fouling washing program and regular washing program to prolong the service life of RO membrane.
3. Real-time online water flow monitoring, water pressure monitoring, water production monitoring, and water pressure monitoring.
4. On-line resistivity monitoring of water quality, on-line detection of multiple working states, and real-time operation data.
5. The main components are imported brands to ensure excellent water quality and a variety of different configurations to meet your experimental needs.
6. Floor-standing design，with movable and fixed feet at the bottom，making installation and movement more convenient
7. The front of the machine is equipped with an independent water intake end, which is convenient and quick.
8. Double electric water intake: Ro water, ultra-pure water, two kinds of water outlets.
9. Free portable TDs water quality testing pen.
10. Configure ultra-large capacity purification tank.

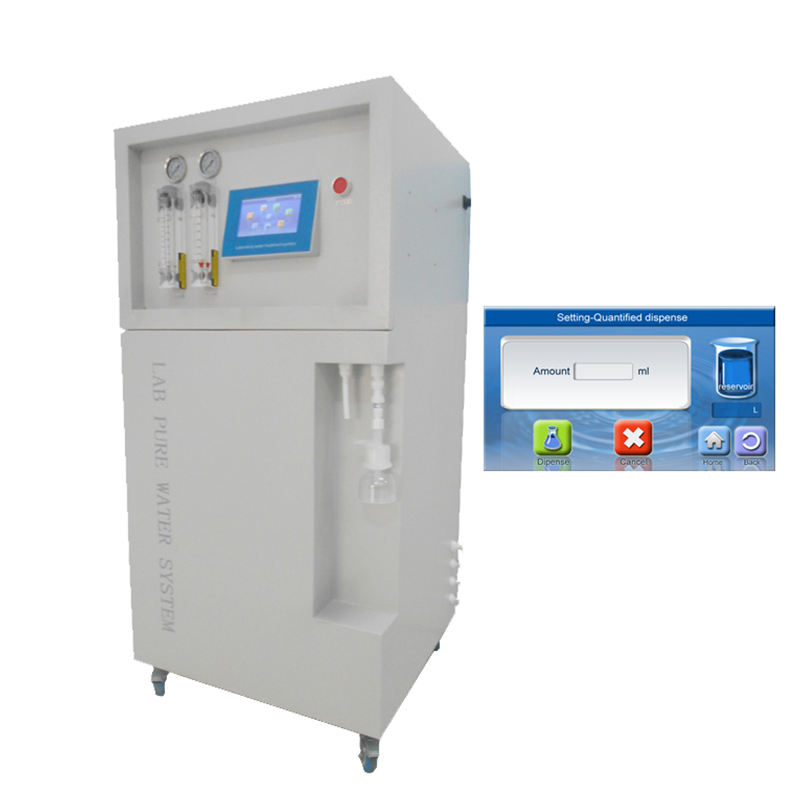

11. Large-screen color touch LCD display intelligent operation man-machine interface;
12. Three-way water quality monitoring, which can simultaneously display R0 conductivity value, UP resistivity value, temperature value, raw water TDS value and pressure, and equipment operating status indication;
13. Double password protection, user password protection, initial password factory mode password protection
14. Equipped with USB Host interface, it supports data export function of historical alarm record and historical water intake record.
15. With automatic standby timer, it will automatically stop all output and enter shutdown mode after the shutdown time.
SPECIFICATIONS
| Model | Standard; Eliminating endotoxin; Low TOC; Synthesizing | |||
| PRO-S-UP-40 | PRO-S-UP-F40 | PRO-S-UP-V40 | PRO-S-UP-VF40 | |
| PRO-S-UP-60 | PRO-S-UP-F60 | PRO-S-UP-V60 | PRO-S-UP-VF60 | |
| PRO-S-UP-80 | PRO-S-UP-F80 | PRO-S-UP-V80 | PRO-S-UP-VF80 | |
| PRO-S-UP-100 | PRO-S-UP-F100 | PRO-S-UP-V100 | PRO-S-UP-VF100 | |
| PRO-S-UP-120 | PRO-S-UP-F120 | PRO-S-UP-V120 | PRO-S-UP-VF120 | |
| Process | PP+ AC+ AC+ RO+ UP+ TF | PP+ AC+ AC+ RO+ UP+ UF+ TF | PP+AC+AC+RO+UP+UV+TF | PP+AC+AC+RO+UP+UV+UF+TF |
| Output(25℃） | 40L/H, 60L/H, 80L/H, 100L/H, 120L/H | |||
| Flow rate | Up to 2 liters/minute(with pressure tank) | |||
| Pure water outlet | 2: reverse osmosls water, ultra-pure water | |||
| Ultra pure water quality | ||||
| Resistivity(25℃） | 18.2MΩ.cm | |||
| TOC | <10ppb | <10ppb | <3ppb | <3ppb |
| Bacteria | <0.1cfu/ml | |||
| Particle(>0.22μm） | <1/ml | |||
| Endotoxin | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml |
| RO water quality | ||||
| Ion rejection rate | 95%-99%(new RO membrane) | |||
| Particles and bacteria rejection rate | >99% | |||
| Feed water requirements | Tap water, temperature: 5-45℃, pressure: 1.0-4.0Kgf/cm² | |||
| Dimension and weight | L*W*H: 55*52*108cm/Weight: about 80-100KG | |||
| Electrical requirements | AC110-240V, 50/60Hz | |||
| Power | 72-240W | |||
| Standard configuration | Machine(including 1 set of purification colum)+40/60 liters pressure tank( 40L for below 80L, 60L for above 80L)+terminal filter+ accessory package | |||
